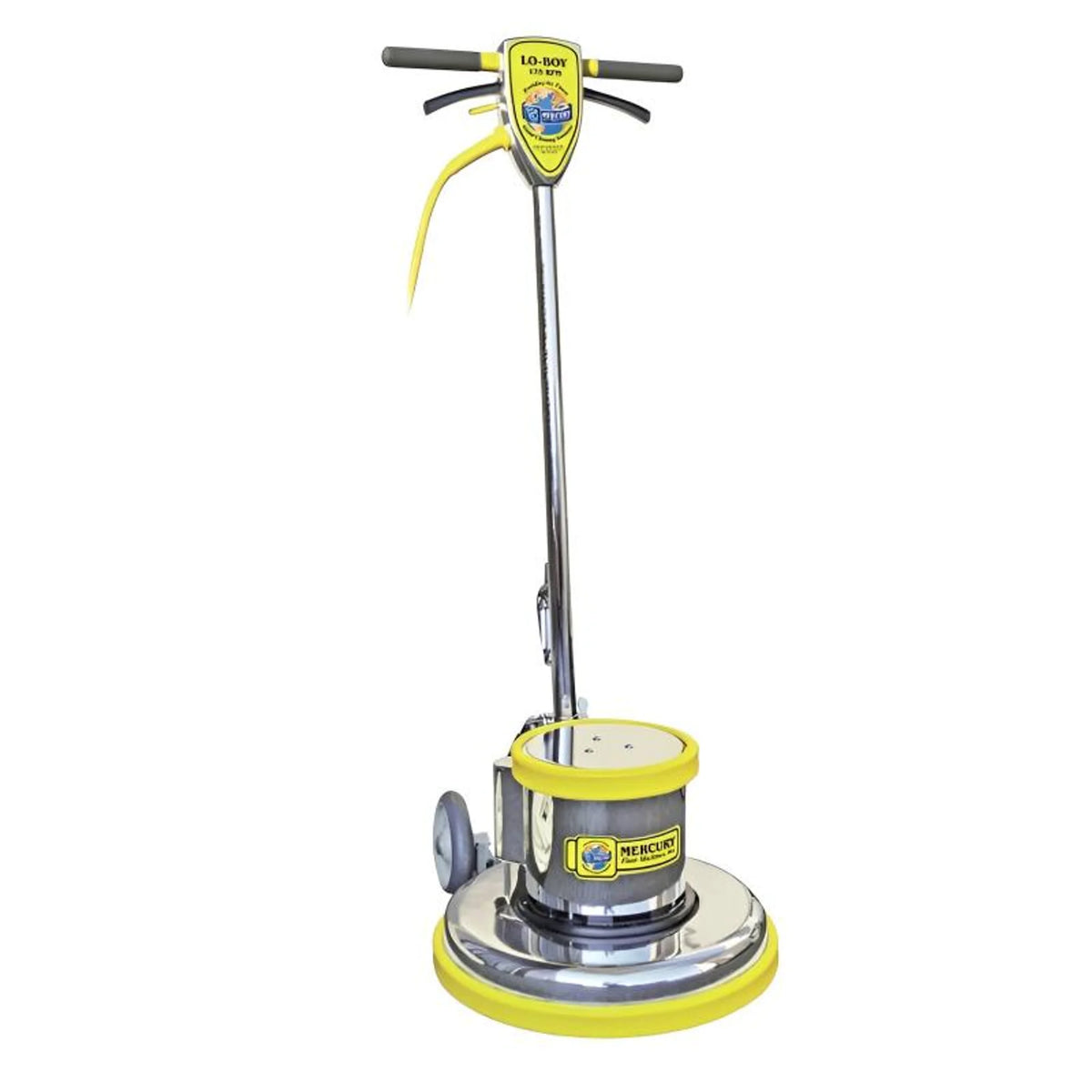

Mercury Floor Machines L-20E Lo-Boy Floor Machine – 20", 175 RPM, 103 lbs

Mercury L-20E Lo-Boy: 20" Ultra-Quiet Floor Machine for Occupied Buildings

The L-20E runs a 20" apron at 175 RPM and weighs 103 lbs. What separates the Lo-Boy series from the Hercules is mechanical — the gearbox is positioned under the apron rather than in the neck or handle column. That location change reduces the transmission of operating noise upward through the machine frame, which is the primary reason the Lo-Boy is chosen for cleaning during business hours in occupied spaces where the Hercules would be too loud.

L-20E Motor, Transmission, and Pad Specifications

• Apron size: 20" — the same footprint as the H-20E Hercules; fits through the same doorways
• Speed: 175 RPM — identical to the Hercules series; same cleaning speed, lower acoustic output
• Machine weight: 103 lbs — 5 lbs lighter than the H-20E Hercules (108 lbs); still significantly heavier than standard-weight 20" machines
• Motor: 1.5 HP A/C — same power platform as the Hercules series; draws 13–15A under load
• Gearbox location: Under the apron — low center of gravity reduces noise transmission through the handle column
• Included accessories: 19" pad driver and 18" rotary brush
• Electrical: 13–15A draw; two circuits recommended for sustained operation

Where the Lo-Boy Replaces Standard Floor Machines in Occupied Facilities

The L-20E is built for daytime or active-hours cleaning in environments where floor machine noise disrupts operations: hospitals and medical offices, hotels with guest-occupied floors, open-plan corporate offices, libraries, and schools during session. A standard heavy-duty floor machine at 175 RPM in a hard-surface corridor generates noise that travels through the building structure. The Lo-Boy's under-apron gearbox configuration dampens that transmission by keeping the rotating mass close to the floor rather than in the column where vibration couples to the handle frame. The result is measurable: Lo-Boy machines are consistently reported to run quieter in corridor cleaning scenarios than equivalent-speed Hercules models. If daytime cleaning is not a requirement, the Hercules H-20E at 108 lbs delivers 5 additional pounds of pad pressure for the same applications without the noise engineering premium.

Gearbox Position and Noise Dampening Mechanism

In a conventional floor machine, the gearbox sits in the housing between the handle column and the pad assembly. Vibration from the rotating gear sets travels up the metal column directly to the operator's hands and radiates outward as airborne noise. The Lo-Boy relocates the gearbox below the apron deck, where it is enclosed by the machine's low-profile housing. The apron itself acts as a noise barrier between the rotating components and the building environment. At 103 lbs and 175 RPM, the L-20E performs the same stripping, scrubbing, and buffing tasks as the Hercules with equivalent motor output — the difference is acoustic, not mechanical. For facilities that have tried low-speed burnishers or lighter machines to reduce noise and found the cleaning results inadequate, the Lo-Boy offers a path to heavy-duty cleaning performance without the noise profile of a standard heavy machine.

Documents

Owner's Manual · Parts List · Sell Sheet · Wiring Diagram
