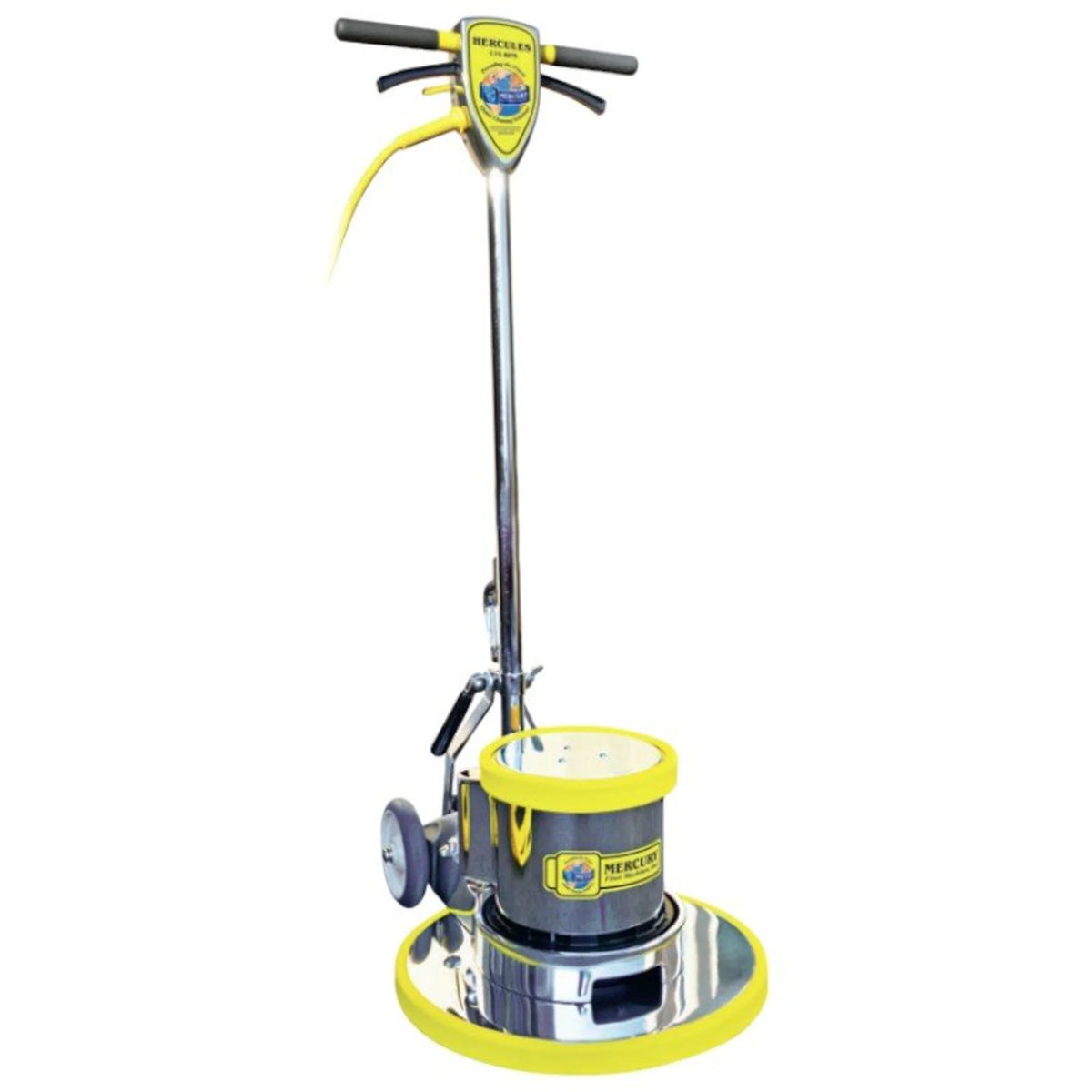

Mercury Floor Machines H-21E Hercules Floor Machine – 21", 175 RPM, 108 lbs

Mercury H-21E Hercules: 21" Super Heavy-Duty Floor Machine at 175 RPM

The H-21E is the largest apron size in the Hercules series — a 21" machine built for industrial and institutional floors where machine weight, motor durability, and consistent pad pressure matter more than speed. At 108 lbs and 175 RPM, the H-21E delivers sustained downward force that lighter floor machines cannot replicate, which translates to more effective scrubbing, stripping, and carpet bonnet cleaning in a single pass.

H-21E Motor, Transmission, and Pad Specifications

• Apron size: 21" — the widest in the Hercules line, covering more area per pass than the 17", 19", or 20" models
• Speed: 175 RPM — standard single-speed for heavy-duty scrubbing, stripping, and buffing applications
• Machine weight: 108 lbs — heavier than the 17E (106 lbs), 19E (107 lbs), and 20E (108 lbs); weight provides passive pad pressure
• Motor: 1.5 HP A/C dual-capacitor — dual capacitors (start and run) reduce motor heat buildup under sustained load
• Transmission: Triple-planetary gearbox — three planetary gear sets in sequence reduce rotational speed from motor to pad while multiplying torque output
• Included accessories: 19" pad driver and 18" rotary brush
• Electrical: Draws up to 15A on two circuits; verify floor outlet capacity before use

Where the H-21E Hercules Fits in Commercial Cleaning

The H-21E is sized for large open-floor environments: manufacturing plants, distribution centers, hospital corridors wider than standard, gymnasiums, and airport concourses. The 21" apron at 108 lbs provides sustained downward pressure that strips finish layers, scrubs embedded soil from textured tile, and extracts surface moisture through carpet bonnets without requiring the operator to apply additional force. For facilities that have been running lighter machines — 17" or 19" models in the 90 lb range — the step up to 108 lbs is immediately noticeable in single-pass effectiveness. If the work environment has doorways or equipment aisles that limit machine width, the H-19E or H-17E are the narrower alternatives within the same Hercules motor platform.

Triple-Planetary Gearbox and Dual-Capacitor A/C Motor in Detail

The triple-planetary transmission in the H-21E uses three sequential planetary gear sets to step down the motor's high-RPM output to 175 RPM at the pad. Each stage multiplies torque, so the pad receives significantly more turning force than the motor generates directly. This is the mechanical reason heavy-duty rotary machines at 175 RPM can strip floor finish that a lighter or faster machine cannot: the pad is not spinning faster, but it is pressing and turning with more force. The dual-capacitor A/C motor adds a run capacitor to the standard start capacitor — the run capacitor keeps the motor's power factor corrected during continuous operation, reducing heat and extending motor life under the sustained loads that stripping and heavy scrubbing generate. The H-21E draws up to 15A; facilities should confirm outlet capacity (two 15A circuits recommended for extended operation).

Documents

Owner's Manual · Parts List · Sell Sheet · Wiring Diagram
