Home/Mi-T-M AGW-SV14-B Air Compressor / Generator / Welder – 16.4 CFM, 5000W Gen

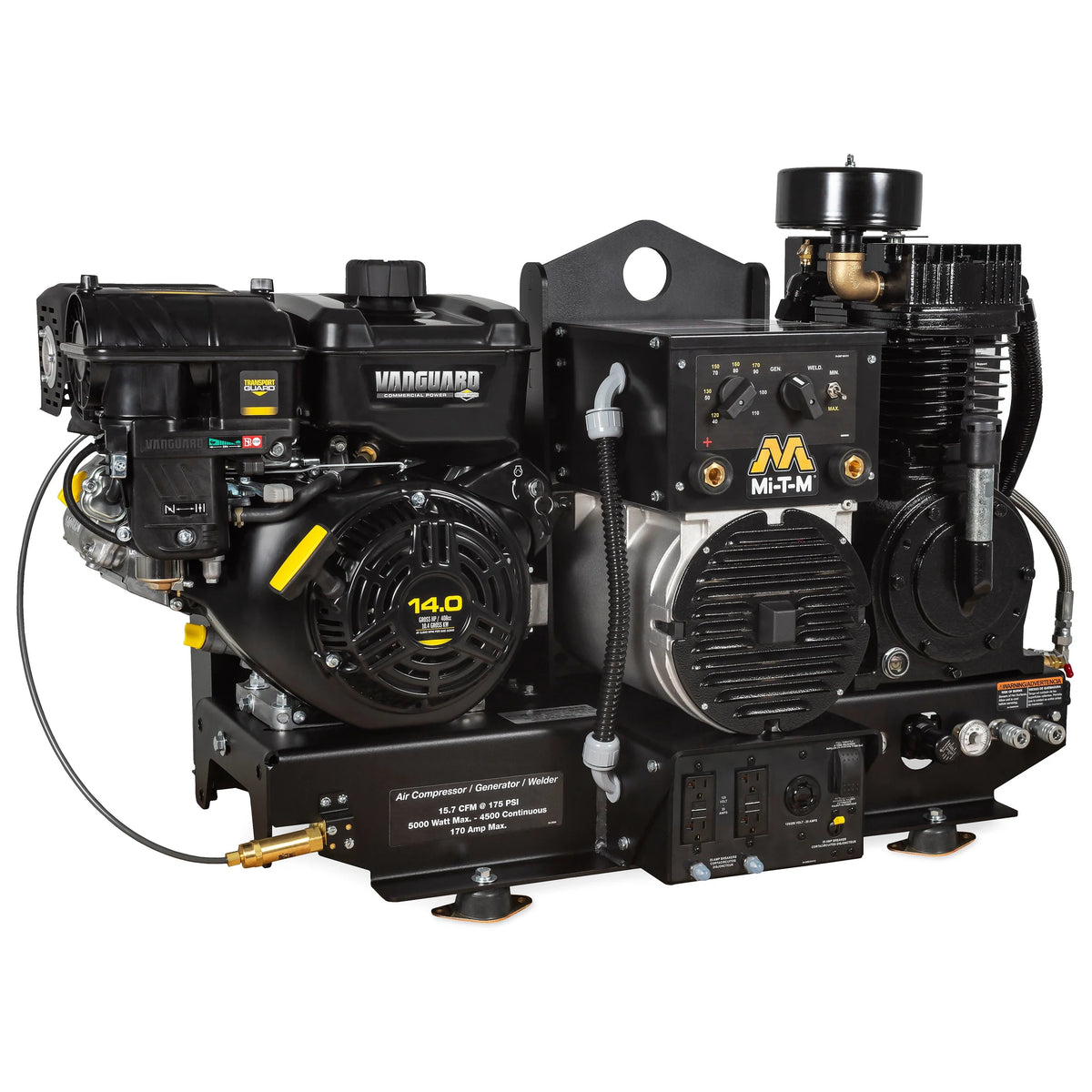

Mi-T-M AGW-SV14-B Air Compressor / Generator / Welder – 16.4 CFM, 5000W Gen

Name: Mi-T-M AGW-SV14-B Air Compressor / Generator / Welder – 16.4 CFM, 5000W Gen
Brand: Mi-T-M
SKU: AGW-SV14-B
Price: 7280.0 USD
Availability: InStock

Authorized dealerSKU: AGW-SV14-BIn stock

$7,280.00

Free shipping on this item

Choose an optionQuantity

Request a quote / purchase order

Tell us your quantity, delivery ZIP code and required date. For help choosing equipment, include your application.

Email a quote request Call (978) 295-7538

Call a specialist — (978) 295-7538

Pricing, freight and lead time. Mon–Fri 9 AM–5 PM ET.

Estimated delivery: 3–8 business days

Ships direct from Mi-T-M

Authorized Mi-T-M dealer

Tax-exempt & PO accepted

30-day returns

Expert phone support

Need help choosing? Talk to an expert

+1 (978) 295-7538

AGW-SV14-B Air Compressor / Generator / Welder for Mobile Service Truck Combo Power

The AGW Series combines an air compressor, generator and welder into one setup, making it easy to manage multiple tasks efficiently. Facility managers and contractors specify the AGW-SV14-B when uptime and serviceability matter more than entry-price tags.

AGW-SV14-B Tank, Pump, and Power Configuration

Specifications cover the rated CFM, tank volume, and motor configuration that determine which tools and stations the AGW-SV14-B supports.

Compressor Pump — Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator — Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings
Welder — Amperage selection switch, 170A or 220A maximum
Chassis — Powder coated two-piece belt guard.
Components — Regulator and two gauges for tank and outlet pressure · 150-PSI maximum rated regulator · Manual drain valves for proper maintenance · 16½-inch fly wheel · Quality pilot valve unloader AGW Series Operation
Generator Mode — AC current only · Selector switch set to idle down · Switch is set to full throttle
Welder Mode — DC current only · Engine must be running full throttle · Selector switch must be set to full throttle Note: All gasoline models sold in California are required to have a CARB compliant engine and/or fuel tank. Consult factory. Receiver tank required. Equipped with electric start – battery and battery cables not included.

AGW-SV14-B Applications and Environments

The AGW-SV14-B consolidates a compressor, generator, and welder onto one engine for service-truck and remote job-site work: fence-line and pipeline repair, agricultural maintenance, fleet body shops without grid power, construction punch lists, and disaster-response staging. One engine to fuel and maintain replaces three pieces of plant equipment for crews running mobile setups.

AGW-SV14-B Pump Build and Duty Cycle

Service intervals follow the pump-oil schedule in the operator manual.

Specifications

Displacement/ Engine	408cc Vanguard OHV
Rated Speed	3600 RPM
CFM @ 90 PSI	16.4
CFM @ 175 PSI	15.7
Tank Size	Not Applicable - Base-Mount Model
Max. AC Output	5000 watts
Rated AC Output	4500 watts
Alternator Wattage: Cont. On-Load @ 90 PSI	3000 watts
Alternator Wattage: Cont. On-Load @ 175 PSI	2500 watts
Frequency/Voltage	60Hz/120V/240V
Max. Amps (120V/240V)	41.5/20.8 Off-Load
Cont. Amps (120V/240V)	37.5/18.8 Off-Load
Receptacles	(2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock
Duty Cycle (10 Min. Run Time)	150A @ 100%
DC Voltage	50-170A Working Range
Fuel Tank	1.53-gallon
Net Weight	404.00 lbs.
Shipping Weight	469.00 lbs.
Length	49.00 in.
Width	22.00 in.
Height	28.50 in.
Warranty	2 Year Alternator, 2 Year Pump Exchange, 3 Year Vanguard Engine
Factory Options	AX-0070 Battery Tray, Box and 2-Foot of Cables; AX-0016 Battery, Battery Tray, Box and 2-Foot Cables; AX-0100 Remote Start/Choke, Sealed Cable (must be ordered with unit and cannot be added later)

Documents

Product Manual

Product Sheet

Manufacturer's Warranty

This product comes with a full manufacturer's warranty. All warranty claims are handled directly by the manufacturer.

For specific warranty details, please contact us at +1 (978) 295-7538 or email info@uscleaningtools.com

B2B & Tax-Exempt Purchases

We supply contractors, restoration companies, property managers, schools, government agencies, and other tax-exempt organizations.

How to place a tax-exempt order:

Write to us through our Contact Us page or email info@uscleaningtools.com and attach your valid tax exemption certificate (state resale or exemption certificate).
We verify your certificate and mark your account tax-exempt — usually within one business day.
Place your order and sales tax will not be charged.

For volume pricing or purchase orders, call +1 (978) 295-7538.

Shipping & Returns

Free shipping on most brands for orders over $300, delivered to the lower 48 states. Any brand-specific freight rate is shown at checkout before you pay.

Processing & delivery: in-stock orders ship in 2–7 business days. Tracking is emailed within 24 hours of shipment. Built-to-order equipment shows its lead time on this page.

Freight deliveries: inspect your equipment on arrival and note any damage on the delivery receipt. Items damaged in transit or defective on arrival are fully covered at no cost to you.

Cancellations: cancel any time before your order ships. Refunds are issued for the order total minus a non-refundable payment processing fee, which may apply, so a cancellation is not always a 100% refund. No fee is deducted if we cancel the order or the item arrives damaged or defective.

30-day returns: return unused equipment in its original packaging within 30 days of delivery. Change-of-mind returns are subject to a restocking fee. To start a return, email info@uscleaningtools.com or call +1 (978) 295-7538.

Mi-T-M AGW-SV14-B Air Compressor / Generator / Welder – 1...

View Cart

$7,280.00

Frequently Asked Questions

Is the AGW-SV14-B supplied with a tank?

No, it is a base-mount model. Mi-T-M notes a receiver tank is required.

How much air does the AGW-SV14-B deliver?

16.4 CFM @ 90 PSI and 15.7 CFM @ 175 PSI.

How many watts does the AGW-SV14-B generate?

5000 watts max AC output and 4500 watts rated. On-load continuous output is 3000 watts @ 90 PSI and 2500 watts @ 175 PSI.

What welding capacity does the AGW-SV14-B have?

150A @ 100% duty cycle (10 min. run time) and a 50-170A working range. Welding runs on DC current only, with the engine at full throttle.

What engine is used on the AGW-SV14-B?

A 408cc Vanguard OHV with a 1.53-gallon fuel tank. It is equipped with electric start, and the battery and battery cables are not included.

What warranty comes on the AGW-SV14-B?

2 Year Alternator · 2 Year Pump Exchange · 3 Year Vanguard Engine.

How the Mi-T-M AGW-SV14-B Air Compressor / Generator / Welder Compares to Other Mi-T-M air compressors

Every Mi-T-M air compressor we carry, side by side. Not sure which size fits the job? Call +1 (978) 295-7538.

Model	This model Mi-T-M AGW-SV14-B Air Compressor / Generator / Welder	Mi-T-M AGW-SM14-30M Air Compressor / Generator / Welder	Mi-T-M AGW-SM14-B Air Compressor / Generator / Welder	Mi-T-M AGW-SV14-30M Air Compressor / Generator / Welder	Mi-T-M AGW-SH22-20M Air Compressor / Generator / Welder
Price	$7,280	$7,035	$6,361	$7,952	$13,101
Air delivery	16.4 CFM	16.4 CFM	16.4 CFM	16.4 CFM	30.5 CFM
Tank	Base-mount	30 gal	Base-mount	30 gal	20 gal
Engine	408cc Vanguard	420cc Mi-T-M	420cc Mi-T-M	408cc Vanguard	688cc Honda GX690
Link	You're here	View	View	View	View
