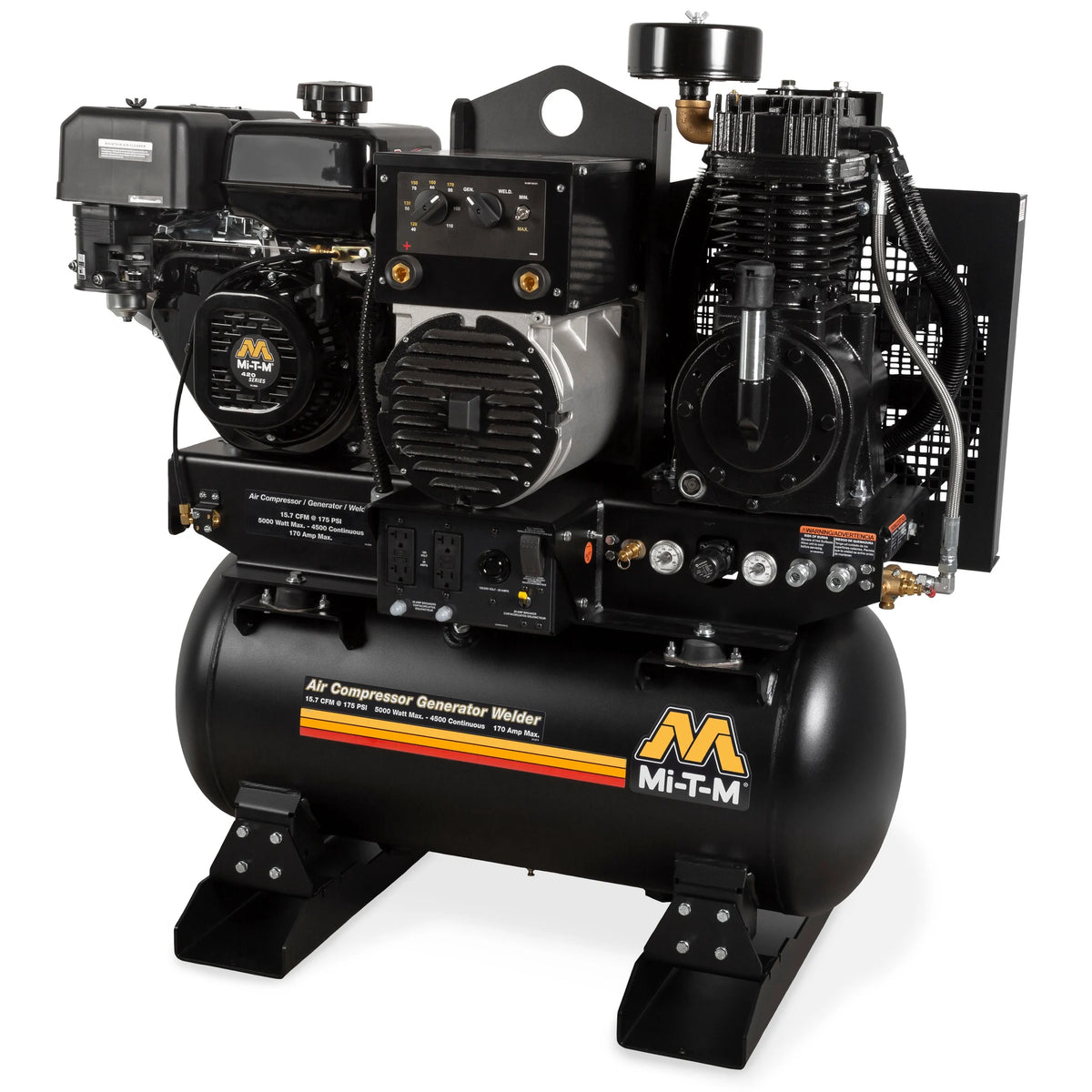

Mi-T-M AGW-SM14-30M Air Compressor / Generator / Welder – 30-Gal, 16.4 CFM, 5...

Mi-T-M AGW-SM14-30M Air Compressor / Generator / Welder – 30-Gal, 16.4 CFM, 5...

Brand: Mi-T-MSKU: AGW-SM14-30MIn Stock – Ready to Ship
$7,035.00
FREE SHIPPING – You save $200+ on freight

Ships from US manufacturer with factory warranty

Ach Direct DebitAmazon American Express Apple Pay Diners ClubDiscoverGoogle Pay Mastercard PayPalShop Pay USDC Visa
Authorized RetailerFactory-authorized dealer with genuine products
Manufacturer's WarrantyFull manufacturer warranty included
30-Day ReturnsHassle-free returns within 30 days
Lowest Price GuaranteedWe match any competitor's price
Ordering 3+ units? Call for volume pricing – +1 (978) 295-7538
Order before 5:00 PM EST for same-day dispatch. Estimated delivery:

Need help choosing? Talk to an expert

+1 (978) 295-7538

AGW-SM14-30M Air Compressor / Generator / Welder for Mobile Service Truck Combo Power

The AGW Series combines an air compressor, generator and welder into one setup, making it easy to manage multiple tasks efficiently. Facility managers and contractors specify the AGW-SM14-30M when uptime and serviceability matter more than entry-price tags.

AGW-SM14-30M Tank, Pump, and Power Configuration

Specifications cover the rated CFM, tank volume, and motor configuration that determine which tools and stations the AGW-SM14-30M supports.

  • Compressor Pump — Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
  • Generator — Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings
  • Welder — Amperage selection switch, 170A or 220A maximum
  • Chassis — Powder coated ASME receiver tank · Powder coated two-piece belt guard · Removable base plate offers flexible installation. Reduces operator fatigue on long jobs and survives bouncing in service trucks.
  • Components — Regulator and two gauges for tank and outlet pressure · 150-PSI maximum rated regulator · Manual drain valves for proper maintenance · 16½-inch fly wheel · Quality pilot valve unloader AGW Series Operation
  • Generator Mode — AC current only · Selector switch set to idle down · Switch is set to full throttle
  • Welder Mode — DC current only · Engine must be running full throttle · Selector switch must be set to full throttle Note: All gasoline models sold in California are required to have a CARB compliant engine and/or fuel tank. Consult factory. Equipped with electric start – battery and battery cables not included.

AGW-SM14-30M Applications and Environments

The AGW-SM14-30M consolidates a compressor, generator, and welder onto one engine for service-truck and remote job-site work: fence-line and pipeline repair, agricultural maintenance, fleet body shops without grid power, construction punch lists, and disaster-response staging. One engine to fuel and maintain replaces three pieces of plant equipment for crews running mobile setups.

AGW-SM14-30M Pump Build and Duty Cycle

OEM motor drives the pump via belt drive configuration; cast-iron cylinder construction matches the duty cycle expected in commercial shops. Service intervals follow the pump-oil schedule in the operator manual. NEMA plug configuration on electric variants determines circuit-breaker sizing — verify against the facility panel before specifying.

Specifications

Displacement/ Engine 420cc Mi-T-M OHV
Rated Speed 3600 RPM
CFM @ 90 PSI 16.4
CFM @ 175 PSI 15.7
Tank Size 30-gallon
Max. AC Output 5000 watts
Rated AC Output 4500 watts
Alternator Wattage: Cont. On-Load @ 90 PSI 3000 watts
Alternator Wattage: Cont. On-Load @ 175 PSI 2500 watts
Frequency/Voltage 60Hz/120V/240V
Max. Amps (120V/240V) 41.5/20.8 Off-Load
Cont. Amps (120V/240V) 37.5/18.8 Off-Load
Receptacles (2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock
Duty Cycle (10 Min. Run Time) 150A @ 100%
DC Voltage 50-170A Working Range
Fuel Tank 1.85-gallon
Net Weight 585.00 lbs.
Shipping Weight 650.00 lbs.
Length 46.00 in.
Width 22.00 in.
Height 47.00 in.
