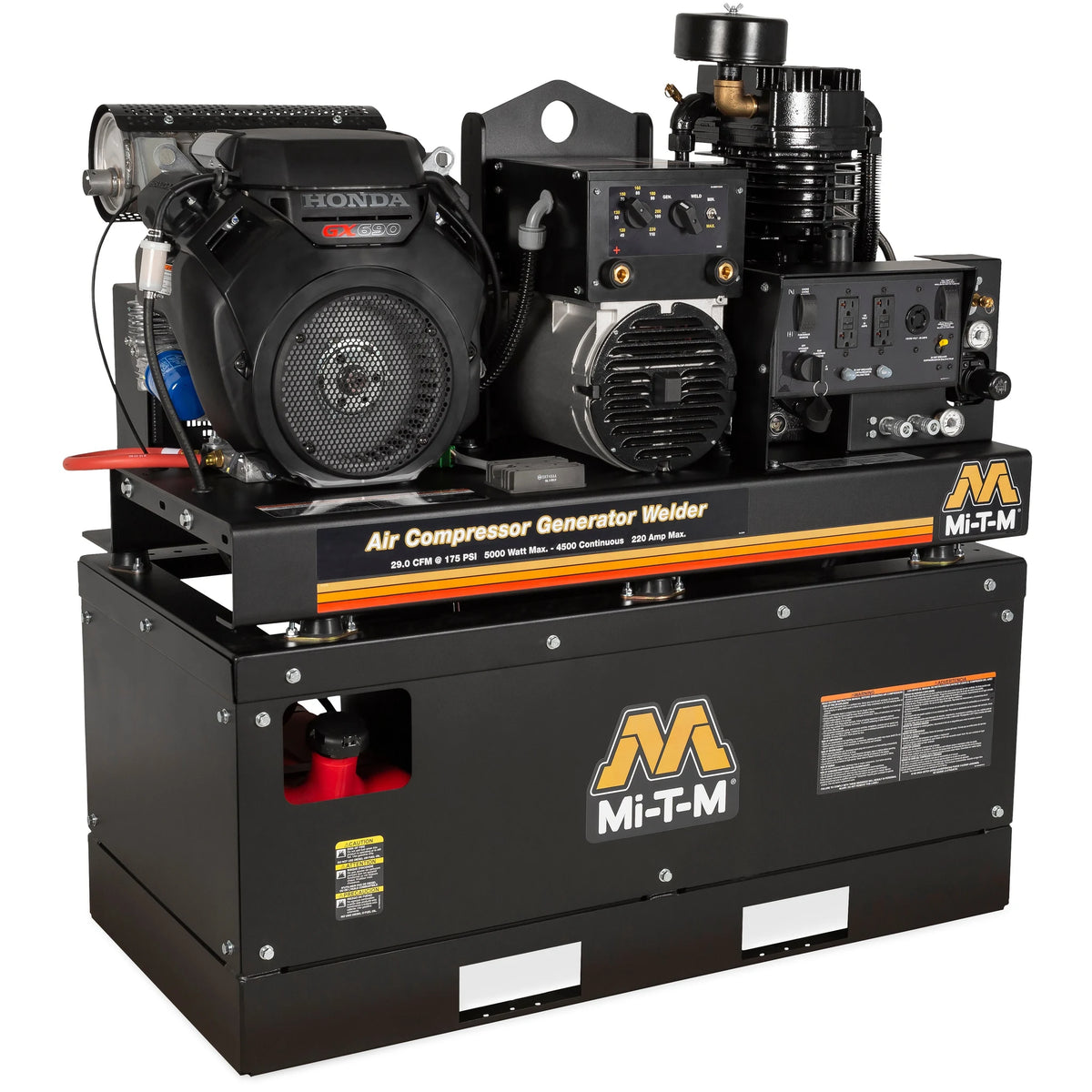

AGW-SH22-20M Air Compressor / Generator / Welder for Mobile Service Truck Combo Power

The AGW Series combines an air compressor, generator and welder into one setup, making it easy to manage multiple tasks efficiently. Facility managers and contractors specify the AGW-SH22-20M when uptime and serviceability matter more than entry-price tags.

AGW-SH22-20M Tank, Pump, and Power Configuration

Specifications cover the rated CFM, tank volume, and motor configuration that determine which tools and stations the AGW-SH22-20M supports.

Compressor Pump — Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator — Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings
Welder — Amperage selection switch, 170A or 220A maximum
Chassis — Powder coated ASME receiver tank · Powder coated four-piece belt guard · Removable base plate offers flexible installation.
Components — Regulator and two gauges for tank and outlet pressure · 150-PSI maximum rated regulator · Manual drain valves for proper maintenance · 16½-inch fly wheel · Quality pilot valve unloader AGW Series Operation
Generator Mode — AC current only · Selector switch set to idle down · Switch is set to full throttle
Welder Mode — DC current only · Engine must be running full throttle · Selector switch must be set to full throttle Note: All gasoline models sold in California are required to have a CARB compliant engine and/or fuel tank. Consult factory. 49 state engine and/or fuel tank. Not for sale in California. Equipped with electric start – battery not included.

AGW-SH22-20M Applications and Environments

The AGW-SH22-20M consolidates a compressor, generator, and welder onto one engine for service-truck and remote job-site work: fence-line and pipeline repair, agricultural maintenance, fleet body shops without grid power, construction punch lists, and disaster-response staging. One engine to fuel and maintain replaces three pieces of plant equipment for crews running mobile setups.

AGW-SH22-20M Pump Build and Duty Cycle

Service intervals follow the pump-oil schedule in the operator manual.

Specifications

Displacement/ Engine	688cc Honda GX690 OHV
Rated Speed	3600 RPM
CFM @ 90 PSI	30.5
CFM @ 175 PSI	29.0
Tank Size	20-gallon
Max. AC Output	5000 watts
Rated AC Output	4500 watts
Alternator Wattage: Cont. On-Load @ 90 PSI	4500 watts
Alternator Wattage: Cont. On-Load @ 175 PSI	4500 watts
Frequency/Voltage	60Hz/120V/240V
Max. Amps (120V/240V)	41.5/20.8
Cont. Amps (120V/240V)	37.5/18.8
Receptacles	(2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock
Duty Cycle (10 Min. Run Time)	220A @ 40%, 190A @ 60%, 150A @ 100%
DC Voltage	50-220A Working Range
Fuel Tank	10-gallon
Net Weight	803.00 lbs.
Shipping Weight	870.00 lbs.
Length	47.00 in.
Width	24.00 in.
Height	50.00 in.
Warranty	2 Year Alternator, 2 Year Pump Exchange, 3 Year Honda Engine
Factory Options	IX-0001 Vibration Isolator Pads (must be ordered with unit and cannot be added later)

Documents

Product Manual

Product Sheet

Manufacturer's Warranty

This product comes with a full manufacturer's warranty. All warranty claims are handled directly by the manufacturer.

For specific warranty details, please contact us at +1 (978) 295-7538 or email info@uscleaningtools.com

B2B & Tax-Exempt Purchases

We supply contractors, restoration companies, property managers, schools, government agencies, and other tax-exempt organizations.

How to place a tax-exempt order:

Write to us through our Contact Us page or email info@uscleaningtools.com and attach your valid tax exemption certificate (state resale or exemption certificate).
We verify your certificate and mark your account tax-exempt — usually within one business day.
Place your order and sales tax will not be charged.

For volume pricing or purchase orders, call +1 (978) 295-7538.

Shipping & Returns

Free shipping on most brands for orders over $300, delivered to the lower 48 states. Any brand-specific freight rate is shown at checkout before you pay.

Processing & delivery: in-stock orders ship in 2–7 business days. Tracking is emailed within 24 hours of shipment. Built-to-order equipment shows its lead time on this page.

Freight deliveries: inspect your equipment on arrival and note any damage on the delivery receipt. Items damaged in transit or defective on arrival are fully covered at no cost to you.

Cancellations: cancel any time before your order ships. Refunds are issued for the order total minus a non-refundable payment processing fee, which may apply, so a cancellation is not always a 100% refund. No fee is deducted if we cancel the order or the item arrives damaged or defective.

30-day returns: return unused equipment in its original packaging within 30 days of delivery. Change-of-mind returns are subject to a restocking fee. To start a return, email info@uscleaningtools.com or call +1 (978) 295-7538.

Mi-T-M AGW-SH22-20M Air Compressor / Generator / Welder –...

View Cart

$13,101.00

Frequently Asked Questions

How much air does the AGW-SH22-20M deliver?

Mi-T-M rates it at 30.5 CFM @ 90 PSI and 29.0 CFM @ 175 PSI, stored in a 20-gallon receiver tank.

What generator output does the AGW-SH22-20M have?

5000 watts max and 4500 watts rated AC output at 60Hz/120V/240V. It holds 4500 watts continuous on-load at both 90 PSI and 175 PSI.

What are the AGW-SH22-20M welder ratings?

Duty cycle (10 min. run time) is 220A @ 40%, 190A @ 60%, 150A @ 100%, over a 50-220A working range. An amperage selection switch picks 170A or 220A maximum.

Can the AGW-SH22-20M weld and power tools at once?

No, it runs one mode at a time. Welder mode is DC current only with the engine at full throttle; generator mode is AC current only.

What engine and fuel tank does the AGW-SH22-20M have?

A 688cc Honda GX690 OHV with a 10-gallon fuel tank and electric start (battery not included). It is a 49 state engine and/or fuel tank, not for sale in California.

What warranty does the AGW-SH22-20M carry?

Mi-T-M lists 2 Year Alternator · 2 Year Pump Exchange · 3 Year Honda Engine. Vibration Isolator Pads are the one factory option.

How the Mi-T-M AGW-SH22-20M Air Compressor / Generator / Welder Compares to Other Mi-T-M air compressors

Every Mi-T-M air compressor we carry, side by side. Not sure which size fits the job? Call +1 (978) 295-7538.

Model	This model Mi-T-M AGW-SH22-20M Air Compressor / Generator / Welder	Mi-T-M AGW-SM14-30M Air Compressor / Generator / Welder	Mi-T-M AGW-SM14-B Air Compressor / Generator / Welder	Mi-T-M AGW-SV14-30M Air Compressor / Generator / Welder	Mi-T-M AGW-SV14-B Air Compressor / Generator / Welder
Price	$13,101	$7,035	$6,361	$7,952	$7,280
Air delivery	30.5 CFM	16.4 CFM	16.4 CFM	16.4 CFM	16.4 CFM
Tank	20 gal	30 gal	Base-mount	30 gal	Base-mount
Engine	688cc Honda GX690	420cc Mi-T-M	420cc Mi-T-M	408cc Vanguard	408cc Vanguard
Link	You're here	View	View	View	View
