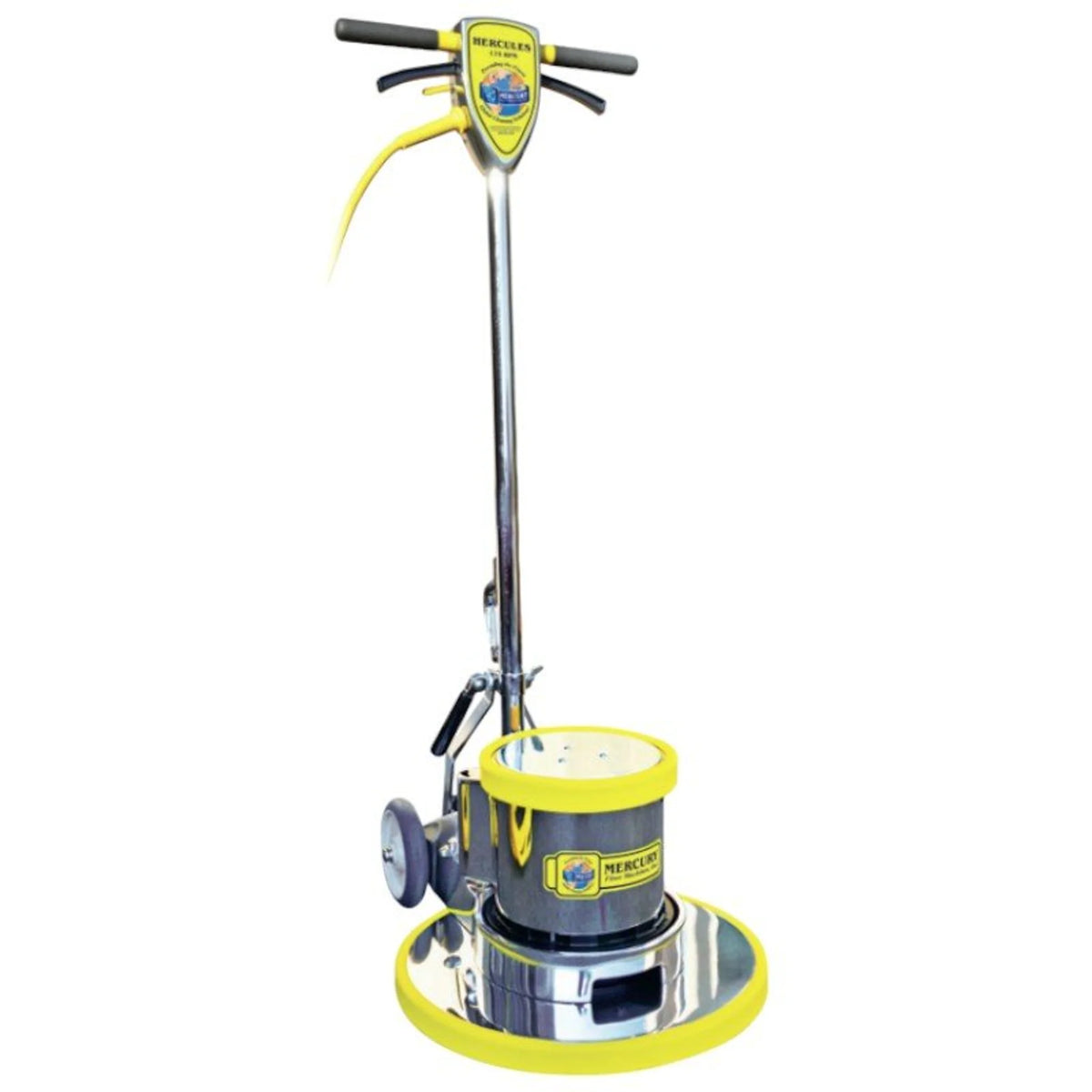

Mercury H-19E Hercules: 19" Super Heavy-Duty Floor Machine at 175 RPM

The H-19E runs a 19" apron at 175 RPM and weighs 107 lbs — one pound lighter than the H-20E and H-21E models, with a narrower apron that fits through standard commercial doorways. The same 1.5 HP dual-capacitor A/C motor and triple-planetary gearbox that power the larger Hercules models drive the H-19E, meaning motor durability and torque output are equivalent across the series regardless of apron width.

H-19E Motor, Transmission, and Pad Specifications

• Apron size: 19" — narrower than the H-20E and H-21E; fits standard 36" commercial doorways without repositioning
• Speed: 175 RPM — single-speed for stripping, scrubbing, buffing, and carpet bonneting
• Machine weight: 107 lbs — 1 lb lighter than the 20" and 21" models; same effective pad pressure on most applications
• Motor: 1.5 HP A/C dual-capacitor — identical motor platform to H-20E and H-21E
• Transmission: Triple-planetary gearbox — three planetary gear sets for torque multiplication to the pad
• Included accessories: 18" pad driver and 17" rotary brush
• Electrical: Up to 15A draw; two 15A circuits recommended for extended operation

Where the H-19E Fits in Multi-Building or Multi-Floor Operations

The H-19E is the most practical Hercules model for facilities where the machine must move between areas of different widths — passing through 36" doorways, into restroom entries, or along service corridors where the 20" and 21" models require turning the machine sideways or removing door stops. At 107 lbs, it is also more manageable on freight elevators with tight interior dimensions. Facilities that run a 21" Hercules in open floor areas often add an H-19E as the corridor and restroom machine, running matched motor and speed settings so that floor finish results are consistent throughout the building. If the target application is exclusively large open areas and width is not a constraint, the H-21E produces 2" more floor coverage per pass at the same speed and motor output.

Torque Delivery and Pad Pressure at 19" and 107 lbs

The triple-planetary gearbox in the H-19E distributes torque evenly across the 18" pad driver. At 107 lbs concentrated over 19" of pad diameter, the machine delivers pressure that exceeds what a 90 lb machine can produce regardless of pad size — the weight differential is the primary variable, not the apron width. On stripping tasks, this weight advantage over lighter floor machines means the H-19E removes finish in fewer passes, reducing chemical dwell time requirements and total floor-down time. The dual-capacitor motor sustains rated torque throughout a continuous stripping pass without the speed drop that single-capacitor motors show under peak load. This is particularly relevant on thick or multi-layer finish, where pad resistance stays high throughout the pass.
