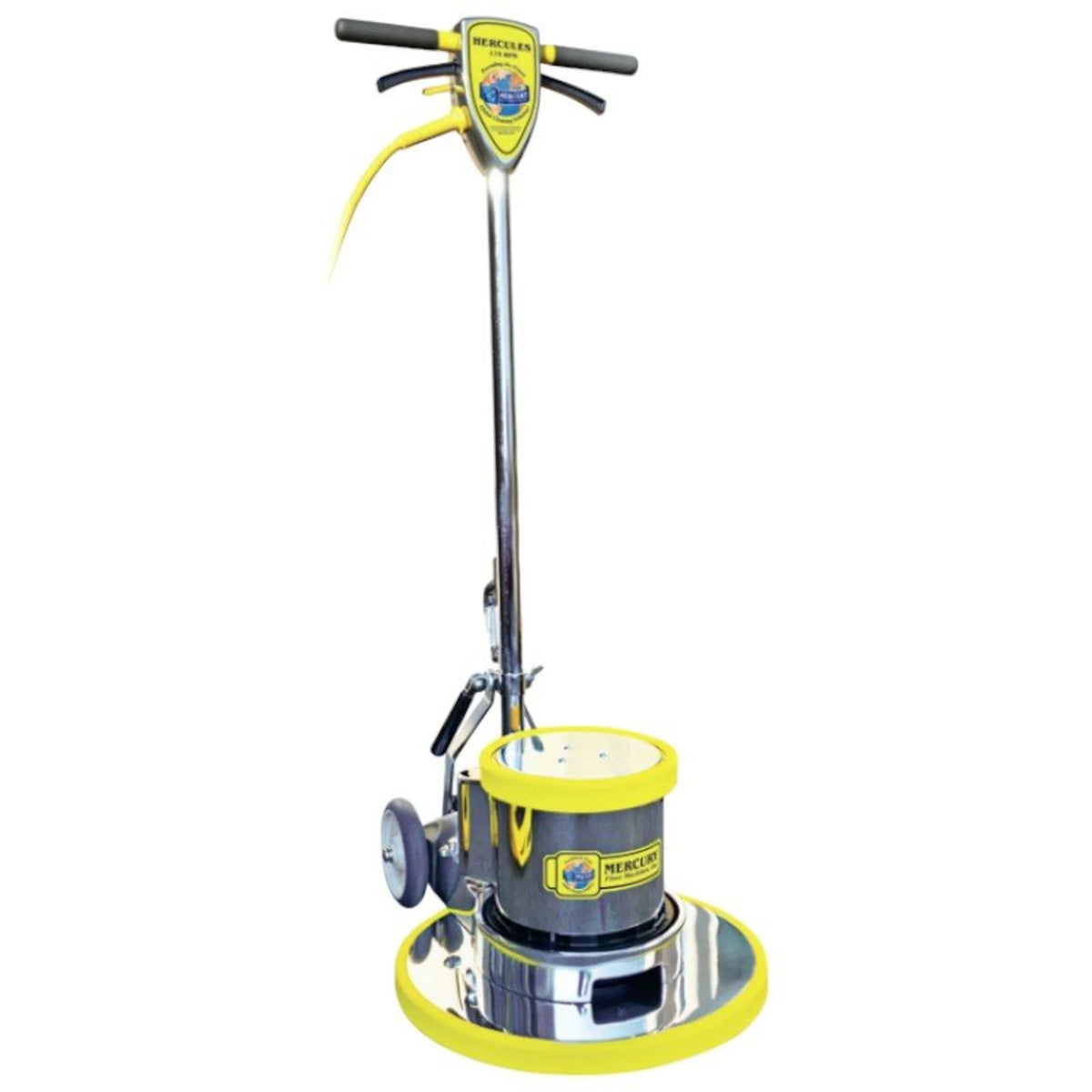

Mercury Floor Machines H-17E Hercules Floor Machine – 17", 175 RPM, 106 lbs

Mercury H-17E Hercules: 17" Super Heavy-Duty Floor Machine at 175 RPM

The H-17E is the 17" model in the Hercules series — the narrowest apron width in the lineup at 106 lbs. For facilities where a 19" or larger machine cannot access key cleaning zones without disassembly or door removal, the H-17E delivers the same motor platform, gearbox design, and sustained torque in a machine that fits through narrower openings while retaining the weight advantage that defines the Hercules series.

H-17E Motor, Transmission, and Pad Specifications

• Apron size: 17" — the narrowest in the Hercules series; passes through service corridors and equipment bays that stop wider models
• Speed: 175 RPM — single-speed for stripping, scrubbing, buffing, and bonnet cleaning
• Machine weight: 106 lbs — lighter than the 19" (107 lbs), 20" (108 lbs), and 21" (108 lbs) models but still significantly heavier than standard-weight 17" floor machines at 90 lbs
• Motor: 1.5 HP A/C dual-capacitor — same motor platform as the larger Hercules models
• Transmission: Triple-planetary gearbox — torque multiplication across three sequential gear sets
• Included accessories: 16" pad driver and 15" rotary brush
• Electrical: Up to 15A draw; two 15A circuits recommended for extended operation

Why 17" Apron Width Matters in Specific Facility Types

Most commercial floor machines in the 17" category are lightweight — typically 85–95 lbs — and suited for light buffing or maintenance cleaning. The H-17E at 106 lbs is different: it brings heavy-duty Hercules-series weight and torque to a footprint that fits through narrow service access points, restroom entries, and between fixed equipment where the 19" models cannot operate. Facilities with this constraint — food processing plants with equipment aisles narrower than 24", laboratories with fixed benching, or retail stockrooms with dense racking — can run the H-17E for stripping and heavy scrubbing in zones that previously required manual methods or lighter, less effective machines. The H-17E also pairs with the H-19E or H-21E in multi-machine operations where the smaller unit handles tight spaces and the larger unit covers open floor areas at matched speed and finish results.

Torque and Pad Pressure on a 17" Machine at 106 lbs

The triple-planetary gearbox and 1.5 HP dual-capacitor motor in the H-17E are identical to the larger Hercules models. At 106 lbs on a 16" pad driver, the H-17E delivers higher pounds-per-square-inch than any wider model in the series — the same weight concentrated over a smaller area results in greater downward force per unit of pad surface. This is mechanically relevant for stripping: the black stripping pad encounters finish with more localized pressure, which improves chemical-to-mechanical action at the point of contact. For facilities that run the H-17E exclusively in narrow zones, this means the machine can achieve single-pass stripping on finish that a lighter 17" machine requires multiple passes to remove, reducing chemical usage and floor-down time proportionally.
