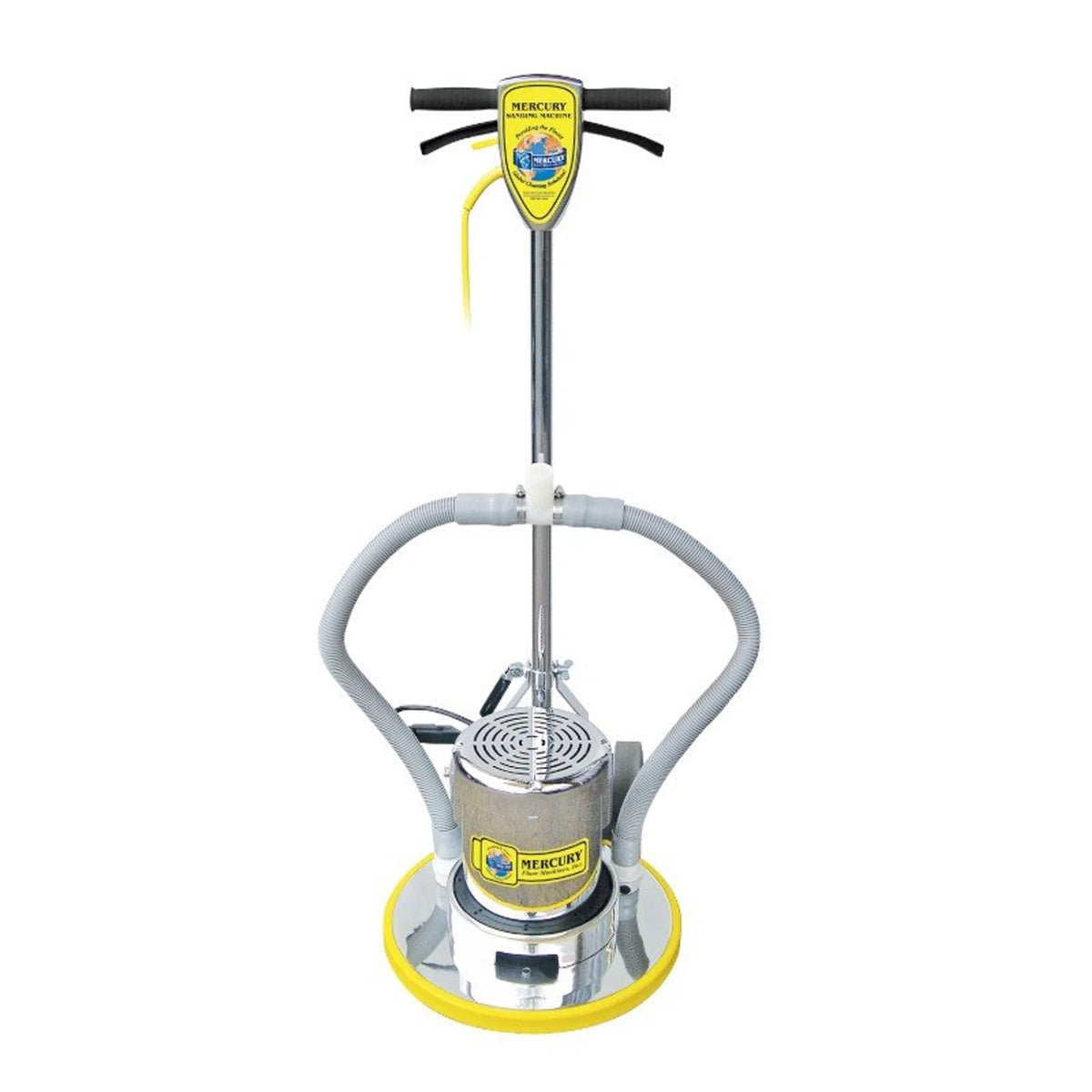

Mercury H-20S Hercules Floor Sander – 1.5 HP Sealed Motor, 20" Apron, 175 RPM

H-20S Hercules Floor Sander — Sealed Motor Protection for Dusty Sanding Environments

The Mercury H-20S Hercules is a 20-inch floor sanding machine with a completely sealed 1.5 HP motor — the defining feature that separates it from open-motor floor machines. In wood sanding, concrete grinding, and stone resurfacing environments where fine dust is unavoidable, an unsealed motor will eventually accumulate debris on the windings and fail. The H-20S eliminates that failure mode. It shares the same triple-planetary high-torque transmission and polished aluminum chassis as the H-20E, but with sealed motor protection that extends service life in the dustiest environments. Two YouTube videos demonstrate the machine in operation — see the Video section below.

H-20S Sealed Motor, Transmission, and Pad Configuration

The sealed motor is paired with a triple-planetary transmission to deliver controlled 175 RPM at the pad — consistent torque regardless of surface resistance, without the motor overheating from dust infiltration.

• Sealed 1.5 HP AC motor (15 A, dual capacitors) — completely enclosed against dust infiltration; the primary reason contractors choose the H-20S over open-motor machines in sanding applications
• Triple-planetary high-torque transmission — delivers smooth 175 RPM even under load on resistant surfaces like hardwood or concrete aggregate
• 20" apron with 18" rotary brush — the 20" apron accepts a wider range of pads and brushes; the 18" rotary brush is the active sanding element
• 20" rotary pad driver — for pad-based applications including diamond grinding and surface preparation
• 108-lb polished aluminum chassis — the all-metal weight adds downward pressure on the pad, which translates to better abrasive contact and more consistent finish quality
• 6" non-marking fixed operating wheels — machine rolls level and stable without marking finished or unfinished floor surfaces

H-20S Applications and Environments

Floor finishing contractors working on oak, maple, and pine hardwood floors specify the H-20S because the sealed motor does not fail from fine wood dust accumulation — a common failure mode on open-motor machines used for multi-day sanding jobs. Concrete contractors using diamond grinding pads for surface preparation and concrete coating applications choose it for the same reason: concrete dust is more abrasive and penetrating than wood dust, and open motors on concrete jobs typically require more frequent service. Stone restoration contractors polishing marble, travertine, and terrazzo in commercial lobbies and hotel corridors use it where dust is generated continuously throughout the work shift. The 50-foot power cord allows the operator to cover most room-sized areas without repositioning the extension cord during the job.

H-20S RPM, Pad Compatibility, and Warranty

Runs at 175 RPM — appropriate for sanding, stripping, and surface preparation applications. Not a burnisher; for high-gloss finish applications requiring 1,000+ RPM, see the Mercury burnisher line. Compatible with standard 20" round floor pads: use 60–80 grit abrasive screens for initial sanding, 100–120 grit for finish sanding, and red or white pads for polishing sealed surfaces. The H-20S carries Mercury's 5-year warranty on the motor, transmission, and chassis — the longest standard warranty in the floor machine category.

Specifications

Documents

H-20S Owner's Manual
Wiring Diagram (All Mercury Floor Machines)
H-20S Parts List
H-20S Sell Sheet

Video Overview
