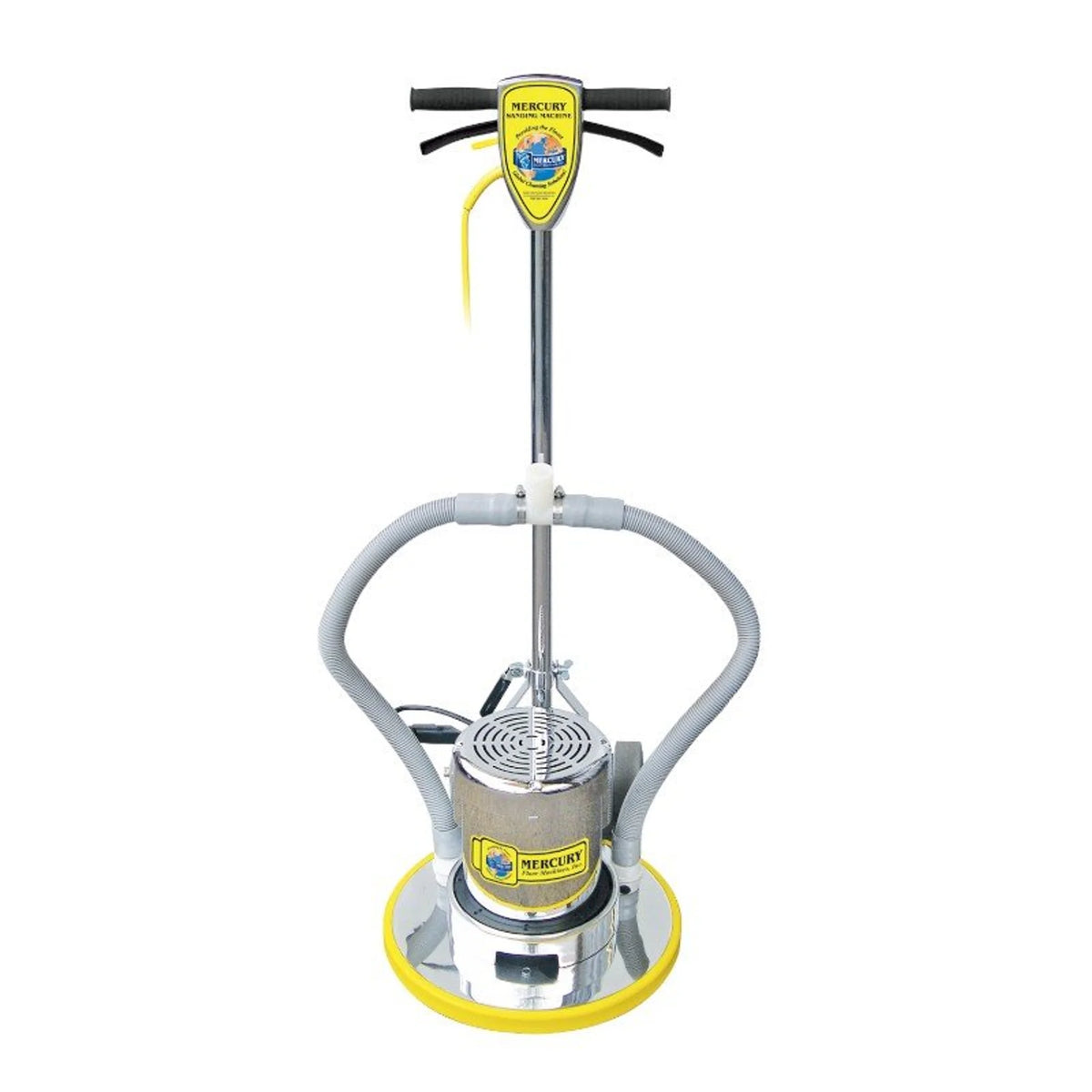

H-19S Hercules Floor Sander — 19" Sealed Motor Sanding Machine for Intermediate-Size Floors
The Mercury H-19S Hercules is the 19-inch version of the sealed-motor Hercules sanding line — one inch narrower than the H-20S with the same 1.5 HP sealed motor, triple-planetary transmission, and polished aluminum chassis. The H-19S is the right choice when the job site has doorways or corridors where a 20" apron is a tight fit, or when the facility manager specifies a 19" machine to match their existing pad inventory. It runs the same 18" rotary brush and accepts a 19" pad driver, handles wood, stone, and concrete sanding applications, and carries the same 5-year motor/transmission/chassis warranty as the rest of the Hercules line. Two YouTube videos demonstrate the machine in operation — see the Video section below.
H-19S Sealed Motor Performance and Pad Configuration
The sealed motor protection and triple-planetary gearbox are identical to the H-20S — the only difference is the one-inch narrower apron profile and corresponding brush/pad sizes.
Sealed 1.5 HP AC motor (15 A, dual capacitors) — completely enclosed against dust infiltration, extending motor life in sanding environments where open motors fail from debris accumulation
Triple-planetary high-torque transmission — delivers consistent 175 RPM under load on hardwood, concrete, and stone without motor strain
19" apron with 17" rotary brush — the active sanding element; compatible with standard 17" round abrasive screens and brushes
18" rotary pad driver with riser — for pad-based applications; the riser raises the driver to the correct operating height for the 19" apron
107-lb polished aluminum chassis — all-metal weight provides consistent downward pressure on the abrasive surface for uniform sanding results
6" non-marking fixed wheels — stable, level movement across the floor without marking finished or unfinished surfaces
H-19S Applications and Environments
Floor finishing contractors working in hotel corridors, school hallways, and apartment building common areas choose the H-19S when 20" machines are a tight fit through fire doors and doorways. Contractors who work in older buildings with narrower interior dimensions use it as the primary machine where the H-20S would require repositioning around obstacles. Stone restoration specialists polishing marble and terrazzo in tight retail spaces and restaurant dining rooms where maneuvering a 20" machine around fixed tables and fixtures is difficult use the 19" profile for better access. The sealed motor makes it appropriate for any application where fine dust is unavoidable and the machine will run for multiple hours per day.
H-19S RPM, Pad Compatibility, and Warranty
Runs at 175 RPM — appropriate for sanding, surface preparation, and light polishing. Use standard 17" abrasive screens for wood sanding, 19" diamond pads for concrete and stone surface prep, and 17"–19" floor pads for polishing sealed surfaces. The H-19S carries Mercury's 5-year warranty on the motor, transmission, and chassis.
What is the difference between the Mercury H-19S and H-20S?
The H-19S has a 19" apron, 17" rotary brush, and 18" pad driver with riser; it weighs 107 lbs. The H-20S has a 20" apron, 18" rotary brush, and 20" pad driver; it weighs 108 lbs. Both use the same sealed 1.5 HP motor, 175 RPM, and triple-planetary transmission. Choose the H-19S when doorways or corridors are too narrow for the 20" apron, or when you need to match 17"–19" pad inventory.
What pad sizes are compatible with the Mercury H-19S?
The H-19S uses a 17" rotary brush for abrasive sanding applications and an 18" pad driver with riser for pad-based work. Use 17" abrasive screens for wood sanding, 19" diamond pads for concrete surface preparation, and 17"–19" floor pads for polishing sealed surfaces.
Why is a sealed motor important for floor sanding applications?
Open motors in sanding machines accumulate fine dust on the motor windings over time — eventually causing overheating and short circuits that require motor replacement. The H-19S sealed motor prevents dust infiltration entirely, extending service life in wood sanding, concrete grinding, and stone polishing environments where fine dust is continuously generated.
What warranty does the Mercury H-19S carry?
The H-19S carries Mercury's 5-year warranty on the motor, transmission, and chassis — the same warranty as all Hercules sealed-motor machines. This is significantly longer than typical commercial floor machine warranties.
What is the power cord length on the H-19S?
The H-19S includes a 50-foot, 14/3-gauge safety power cord. This covers most commercial room sizes without needing to reposition an extension cord during the sanding pass.
