Stripping and Polishing on One Machine โ€” Hawk 17" 2-Speed XHD

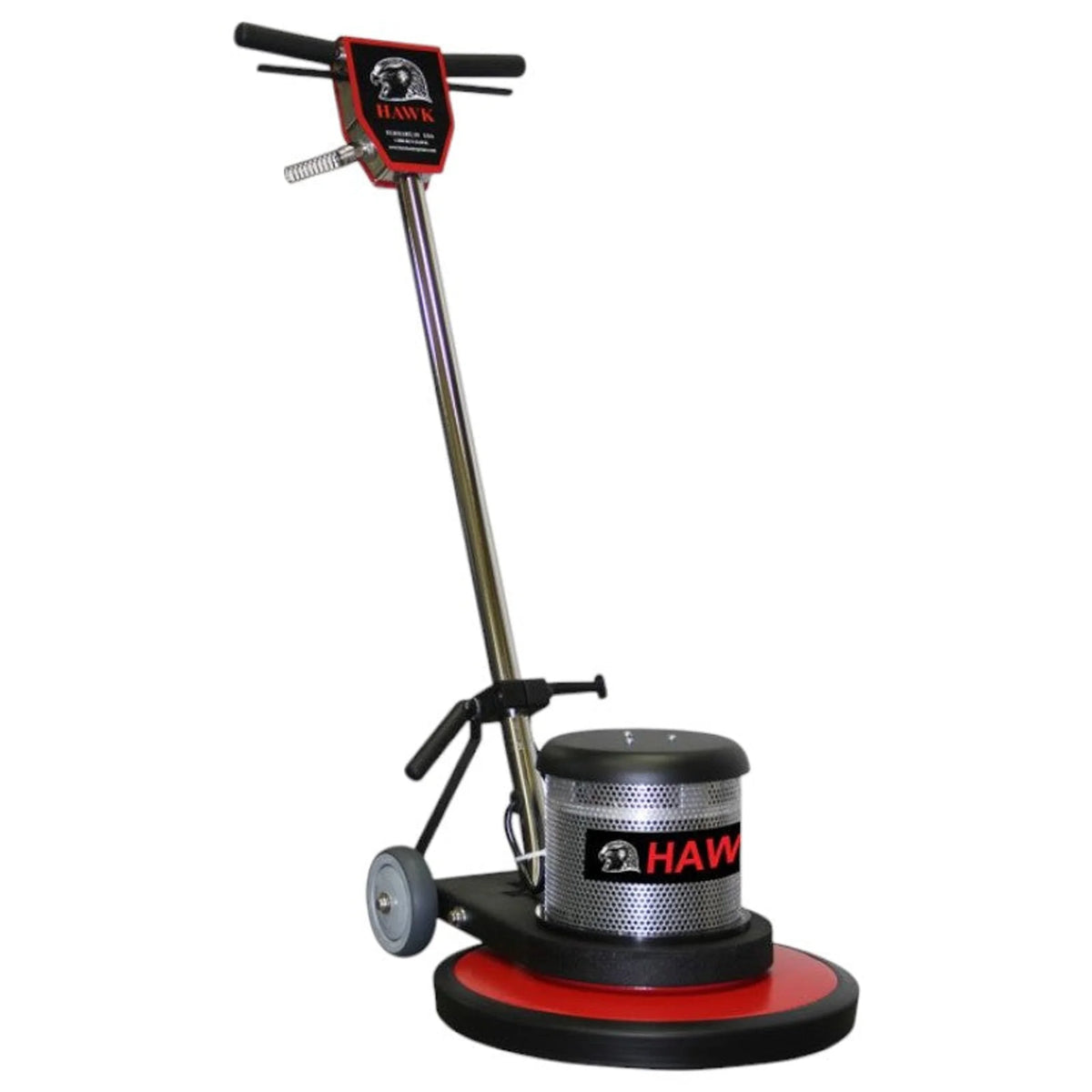

The Hawk F04-17-01 17" 2-Speed Extra Heavy Duty Professional Floor Machine replaces two single-speed buffers with one commercial-grade machine. The 1.5 HP DC rectified 2-speed motor switches between 165 RPM for aggressive stripping and scrubbing and 300 RPM for high-speed buffing and spray finishing, covering a 16" pad path at 8.5โ€“9.1 Amp draw. Triple-planetary 11:1 helical-cut commercial gears maintain both speed settings under sustained load, and GS42-rated noise levels of 60 dB at low speed and 69 dB at high speed allow daytime operation in occupied facilities.

F04-17-01 Motor, Gear, and Speed-Switch System

  • 1.5 HP DC rectified 2-speed motor โ€” 66-frame with toggle switch mounted on motor housing for instant low-to-high speed transitions without stopping
  • Triple-planetary 11.1:1 helical-cut commercial gears โ€” same gear ratio drives both speed settings, eliminating the gear-slip failures common in lower-grade 2-speed machines
  • 17" pad driver, 16" pad size โ€” wider cleaning path than 13" or 15" models reduces passes per corridor on large open floors
  • Chromed steel handle with vinyl-dipped foam grips โ€” reduces operator fatigue during extended buffing runs compared to bare-steel grip handles
  • 50 ft 12-3 SJT industrial power cord โ€” reaches across large commercial floors without extension cords

Where the Hawk 17" 2-Speed XHD Outperforms Single-Speed Machines

Single-speed 165 RPM machines require a second burnisher to restore high-gloss finishes after stripping and recoating. The F04-17-01 eliminates that second machine โ€” strip at 165 RPM, recoat the floor, then switch to 300 RPM for spray buffing or dry buffing to restore luster, all with the same unit. At 94 lbs and UL/CUL listed, it operates in schools, hospitals, government buildings, and manufacturing facilities requiring equipment certification.

Related: Hawk Floor Machines ยท Dual Speed Floor Machines ยท Commercial Floor Machines

F04-17-01 Specifications and Documents

Specification Details
Model HP1517-2SXHD
Part # F04-17-01
Pad Driver Size 17 inch
Pad Size 16 inch
Speed 165/300 RPM
Amp Draw 8.5/9.1 Amp
Weight 94 lbs
Motor 1.5 HP, 66 frame, DC rectified 2-speed motor
Drive System Triple-planetary 11.1 helical-cut commercial
Power Source 115-230V, 50/60 Hz
Power Cord 50 ft. 12-3 SJT power cord w/ molded plug
dB Rating 60 dB (165 RPM) โ€“ 69 dB (300 RPM) โ€“ Meets GS42 standard

Spec Sheet

Manual

Product Warranty Information

"1 Year Service Warranty, 3 Years For Parts"
Product Image
Added to cart
Hawk Enterprises F04-17-01 2-Speed XHD Floor Machine โ€“ 165/300 RPM, 1.5 HP DC, 94 lb Hawk Enterprises F04-17-01 2-Speed XHD Floor Machine โ€“ 16...
View Cart

Frequently Asked Questions

What is the speed difference between 165 RPM and 300 RPM on the F04-17-01, and when should each be used?
At 165 RPM with a black or green pad, the F04-17-01 generates enough dwell force to strip wax coatings and scrub embedded soil from VCT and tile. At 300 RPM with a red spray-buff pad or white polishing pad, it restores a high-gloss shine after recoating. The toggle switch on the motor housing allows switching between modes without stopping.
How does the F04-17-01 differ from the F03-17-01 2-Speed HD machine?
The F04-17-01 (2-Speed XHD) uses XHD triple-planetary gears with an 11.1:1 ratio, while the F03-17-01 (2-Speed HD) uses commercial triple-planetary 10:1 gears. The XHD gear specification provides higher torque capacity, making the F04 better suited for heavy concrete surface prep and aggressive stripping applications.
Is the Hawk F04-17-01 UL/CUL listed?
Yes. The F04-17-01 is UL/CUL listed, meeting safety certification requirements for commercial and government facilities that mandate listed equipment. It also meets GS42 noise standards at both speed settings.
What pad size does the 17" Hawk 2-Speed XHD machine use?
The F04-17-01 uses a 17" pad driver with a 16" pad. The one-inch differential between driver and pad is standard in Hawk's 17" lineup. Standard 16" stripping, scrubbing, spray-buff, and polishing pads from major janitorial supply distributors fit this machine.
Can the F04-17-01 be used on concrete floors for surface preparation?
Yes. At 165 RPM with diamond tooling or aggressive abrasive pads, the F04-17-01 performs light concrete surface prep, blending, and polishing. The 94 lb machine weight provides natural pad pressure, and optional frame weights can be added when more downforce is needed for harder concrete profiles.
