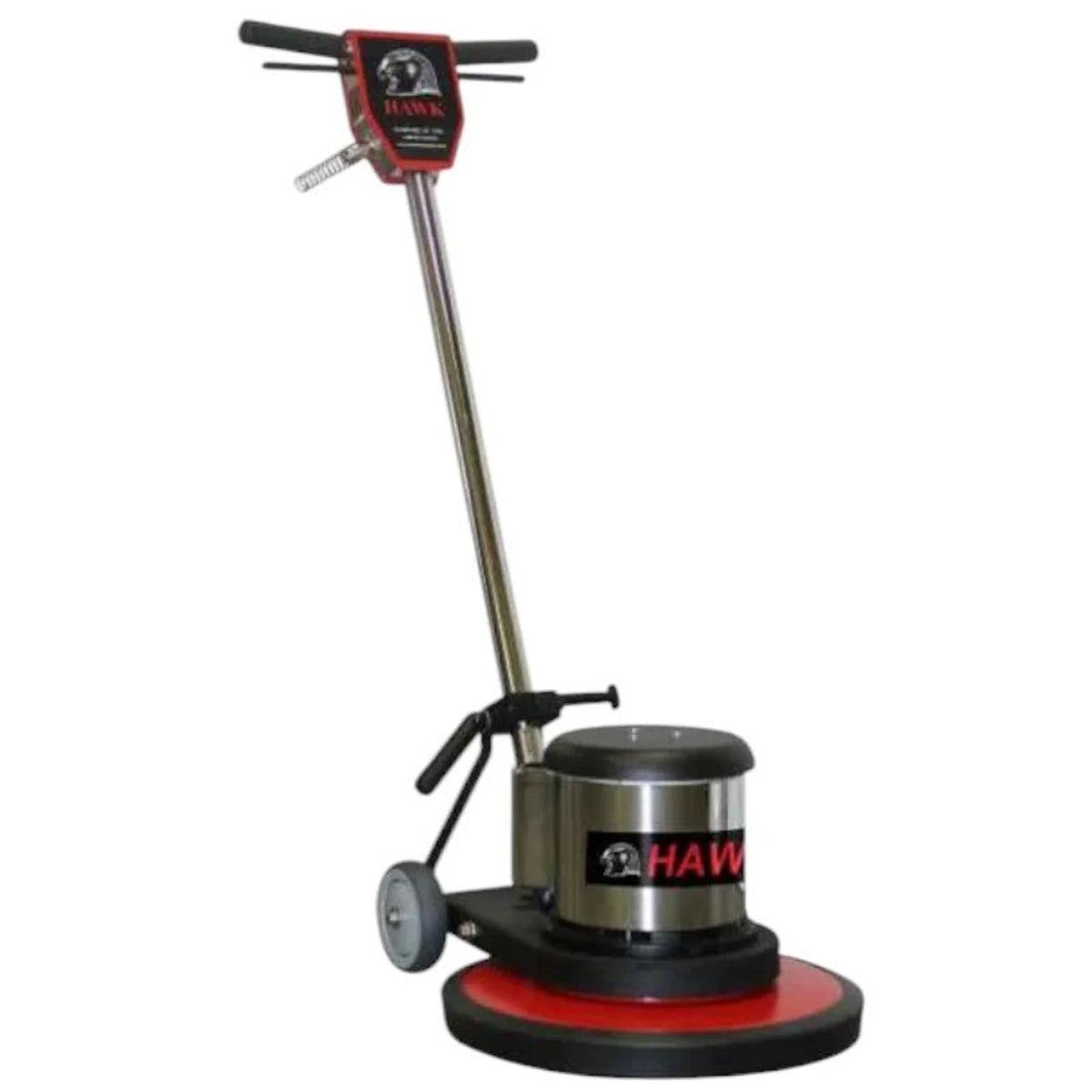

Hawk XHD 17" 2-Speed 360 Floor Machine – 165/300 RPM, 1.5 HP, Dust Port
Authorized dealerSKU: F05-17In stock$2,247.00
Request a quote / purchase order
Tell us your quantity, delivery ZIP code and required date. For help choosing equipment, include your application.
Email a quote request Call (978) 295-7538Call a specialist — (978) 295-7538
Pricing, freight and lead time. Mon–Fri 9 AM–5 PM ET.
Estimated delivery: 3–8 business days
Ships direct from Hawk Enterprises
Authorized Hawk Enterprises dealerGenuine Hawk Enterprises equipment with full factory warranty support
Tax-exempt & PO acceptedSend your exemption certificate and we bill without sales tax
30-day returnsUnused equipment in original packaging, within 30 days
Expert phone supportTalk to a product specialist Mon–Fri, 9 AM–5 PM ET: (978) 295-7538
Need help choosing? Talk to an expert
+1 (978) 295-7538Dual-Speed 17" Floor Machine with Integrated 360° Dust Collection and 1.5 HP DC Motor
The Hawk Enterprises XHD 17" 2-Speed 360 (F05-17-01) combines a 1.5 HP dual-capacitor AC motor with dual operating speeds of 165 and 300 RPM and a fully integrated 360-degree dust collection system. The 2-inch dust port connects to standard vacuum units for source-capture dust control during sanding, stripping, and surface preparation. Triple-planetary XHD 11:1 helical-cut gears handle the torque loads of diamond tooling and abrasive pad applications at 94 lbs total machine weight.
Dual-Speed and Dust Collection Specs
- 165/300 RPM dual-speed, 8.5/9.1A draw — 165 RPM for aggressive stripping and surface prep with diamond or black pads; 300 RPM for spray buffing and finish applications on polished concrete and VCT.

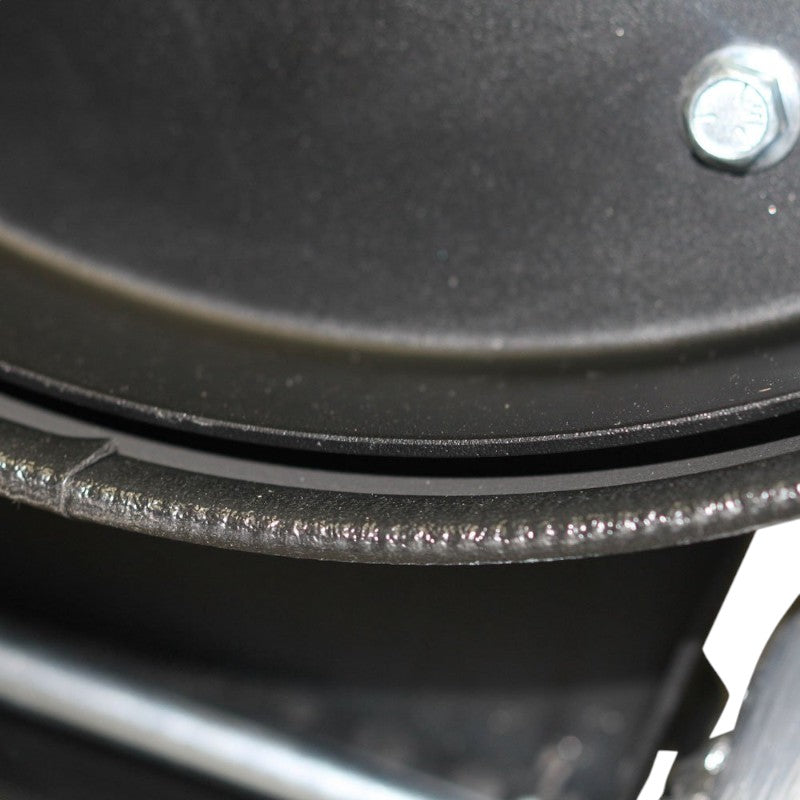

- 360° dust collection with 2" vacuum port — integrated shroud captures debris from the full circumference of the pad path; UL-listed components; connects to standard commercial vacuums or HEPA units.
- 1.5 HP dual-capacitor AC, triple-planetary XHD 11:1 gears — XHD gear designation indicates extra-heavy-duty rating.
- 16-gauge steel brush cover, powder-coated handle — 16-gauge steel resists deformation from incidental impact against baseboards, furniture, and equipment during commercial use.
- 66 dB, GS42 compliant, 50-ft cord with lock
Deployment Applications
Commercial flooring contractors use the XHD 17" 2-Speed 360 with diamond tooling at 165 RPM for concrete surface preparation in commercial kitchens, retail stores, and healthcare facility floors. Hardwood floor specialists run it at 165 RPM with abrasive screens for gymnasium floor sanding and finish removal. Building service contractors switch to 300 RPM for spray buffing and finish maintenance on large-area VCT floors in schools and government buildings. Restoration contractors use the 165 RPM setting with scarifying tooling for adhesive removal from concrete subfloors after flooring tear-out.
Specifications
| Model | HP1517-2SXHD |
|---|---|
| Part Number | F05-17-01 |
| Machine Size | 17" |
| Pad Size | 17" |
| Speed | 165 / 300 RPM |
| Amp Draw | 8.5 / 9.1 A |
| Motor | 1.5 HP, 66 frame, dual capacitor AC |
| Drive System | Triple-planetary XHD 11:1 helical-cut industrial gears |
| Power Source | 115–230V, 50/60 Hz |
| Power Cord | 50 ft, 12-3 SJT with molded plug |
| Noise Level | 66 dB – GS42 compliant |
| Weight | 94 lbs |
Documents
Product Warranty Information
| Service Warranty | 1 year |
|---|---|
| Parts | 3 years |
Warranty claims go through the manufacturer. Questions about coverage? Call +1 (978) 295-7538 or email info@uscleaningtools.com.
B2B & Tax-Exempt Purchases
We supply contractors, restoration companies, property managers, schools, government agencies, and other tax-exempt organizations.
How to place a tax-exempt order:
- Write to us through our Contact Us page or email info@uscleaningtools.com and attach your valid tax exemption certificate (state resale or exemption certificate).
- We verify your certificate and mark your account tax-exempt — usually within one business day.
- Place your order and sales tax will not be charged.
For volume pricing or purchase orders, call +1 (978) 295-7538.
Shipping & Returns
Free shipping on most brands for orders over $300, delivered to the lower 48 states. Any brand-specific freight rate is shown at checkout before you pay.
Processing & delivery: in-stock orders ship in 2–7 business days. Tracking is emailed within 24 hours of shipment. Built-to-order equipment shows its lead time on this page.
Freight deliveries: inspect your equipment on arrival and note any damage on the delivery receipt. Items damaged in transit or defective on arrival are fully covered at no cost to you.
Cancellations: cancel any time before your order ships. Refunds are issued for the order total minus a non-refundable payment processing fee, which may apply, so a cancellation is not always a 100% refund. No fee is deducted if we cancel the order or the item arrives damaged or defective.
30-day returns: return unused equipment in its original packaging within 30 days of delivery. Change-of-mind returns are subject to a restocking fee. To start a return, email info@uscleaningtools.com or call +1 (978) 295-7538.
