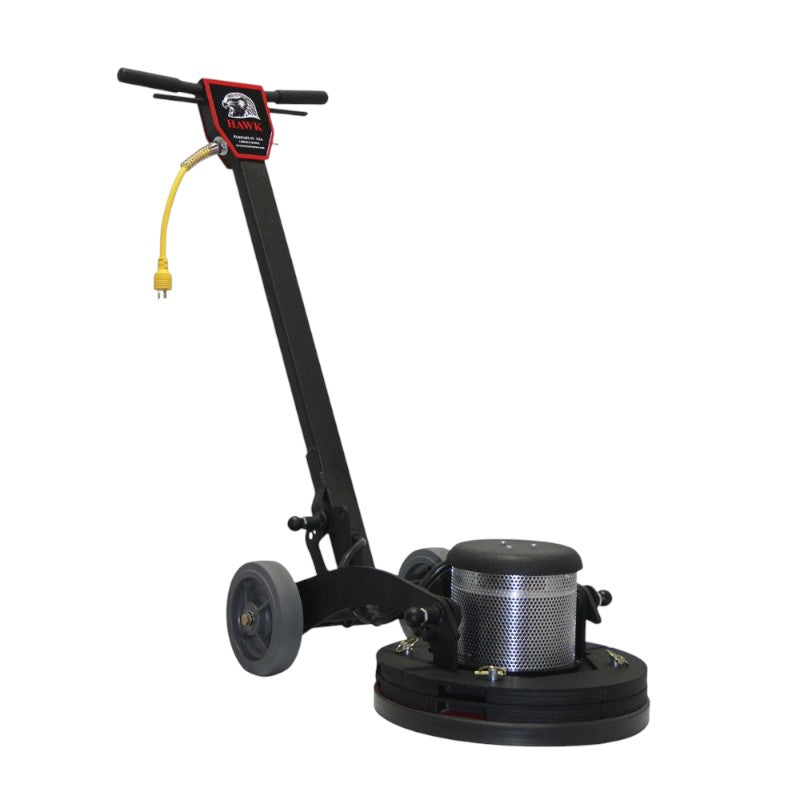

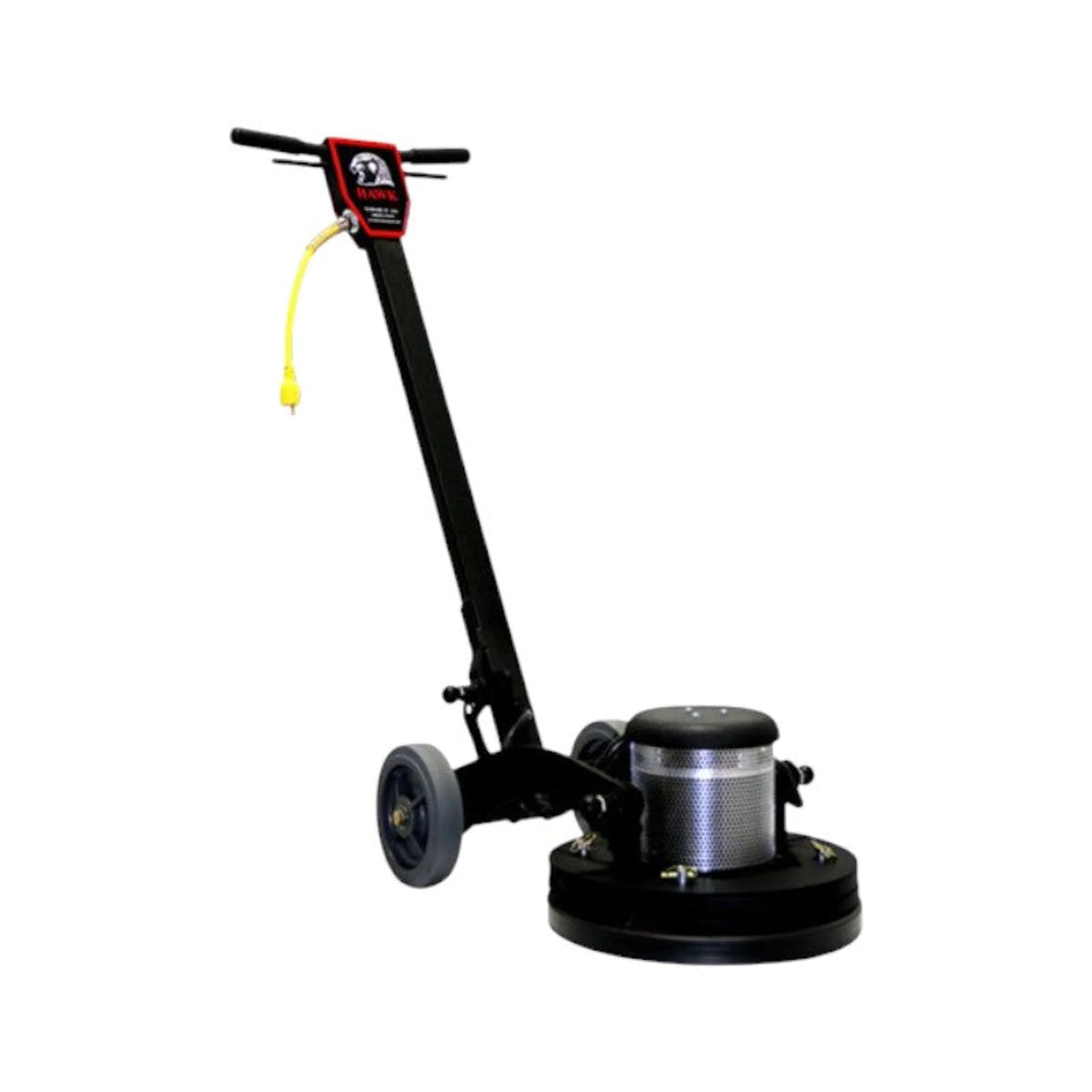

Hawk Merlin 2-Speed XHD WD 17" Floor Machine – 165/300 RPM, 1.5 HP DC

Brand: Hawk EnterprisesSKU: F71-17-01In Stock – Ready to Ship
$2,867.00
FREE SHIPPING – You save $200+ on freight

Ships from US manufacturer with factory warranty

Ach Direct DebitAmazon American Express Apple Pay Diners ClubDiscoverGoogle Pay Mastercard PayPalShop Pay USDC Visa
Authorized RetailerFactory-authorized dealer with genuine products
Manufacturer's WarrantyFull manufacturer warranty included
30-Day ReturnsHassle-free returns within 30 days
Lowest Price GuaranteedWe match any competitor's price
Ordering 3+ units? Call for volume pricing – +1 (978) 295-7538
Order before 5:00 PM EST for same-day dispatch. Estimated delivery:

Need help choosing? Talk to an expert

+1 (978) 295-7538

Dual-Speed 17" Industrial Floor Machine with WD Floating Head, DC Rectified Motor, and 80 lb Weight Kit

The Hawk Merlin 2-Speed XHD WD 17" (F71-17-01) is the 17-inch version of the Merlin XHD industrial platform: 1.5 HP DC rectified 2-speed motor, triple-planetary XHD 11:1 helical-cut gears, 80 lb weight kit, and the Wheels-Down floating head in a 260-lb chassis. The DC rectified motor delivers consistent torque at both 165 RPM (deep scrubbing and stripping) and 300 RPM (polishing and spray buffing) while drawing one-third less amperage than equivalent AC motors.

Dual-Speed DC Motor and WD Head Specs

  • 1.5 HP DC rectified 2-speed, 8.5/9.1A — DC motor provides consistent torque under varying floor-load conditions; the rectified DC circuit maintains speed under load more effectively than AC motors at equivalent wattage.
  • 165/300 RPM, XHD 11:1 helical-cut gears — 165 RPM for stripping, heavy scrubbing, and diamond tooling; 300 RPM for spray buffing and finish restoration; single machine covers the full range of floor care without switching units.
  • WD floating head, 80 lb weight kit — WD pivot maintains full pad-to-floor contact on uneven surfaces; 80 lb weights increase downforce for diamond tooling and abrasive applications where machine weight alone is insufficient.
  • 62–69 dB, GS42 compliant at both speeds — 62 dB at 165 RPM and 69 dB at 300 RPM; both speeds qualify for occupied-building use including nighttime and early-morning cleaning in healthcare and hospitality.
  • 260 lb operating weight, 25 × 33 × 55 in — heavier chassis than the 113-lb Glide Freedom models; weight provides natural downforce for heavy-duty applications without additional ballast.

Industrial Deployment Applications

Flooring contractors use the Merlin 2-Speed XHD WD 17" with diamond tooling at 165 RPM for concrete preparation on commercial retail, healthcare, and institutional floor renovation projects where the 17-inch footprint is preferred over larger 20-inch machines for maneuverability in furnished spaces. Building service contractors switch to 300 RPM for spray buffing and finish maintenance on polished concrete and VCT floors in large commercial spaces. Industrial facility maintenance crews use the 80 lb weight kit with scarifying tooling for adhesive removal and concrete surface prep in occupied manufacturing environments. Healthcare renovation contractors use the 17-inch WD model for floor preparation work in patient rooms and clinical spaces where the 20-inch Merlin is too large for maneuvering around fixed equipment.

Specifications

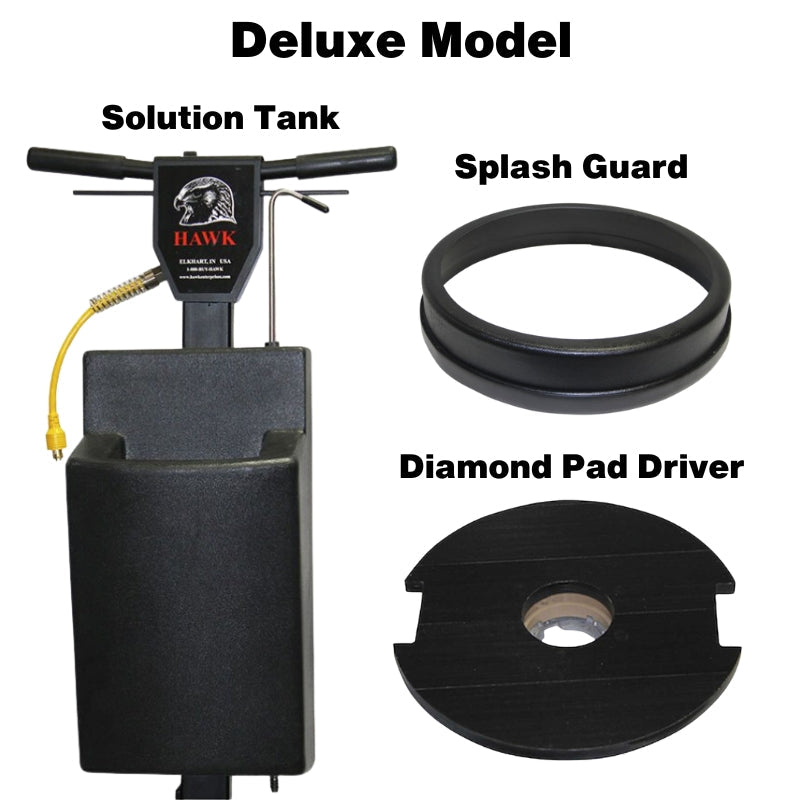

Part Numbers F71-17-01 / F71-17-01DX
Pad Size 16"
Brush/Tool Size 15"
Speed 165 / 300 RPM
Amp Draw 8.5 / 9.1 A
Motor 1.5 HP, 2-speed DC rectified
Drive System Triple-planetary XHD helical-cut 11:1

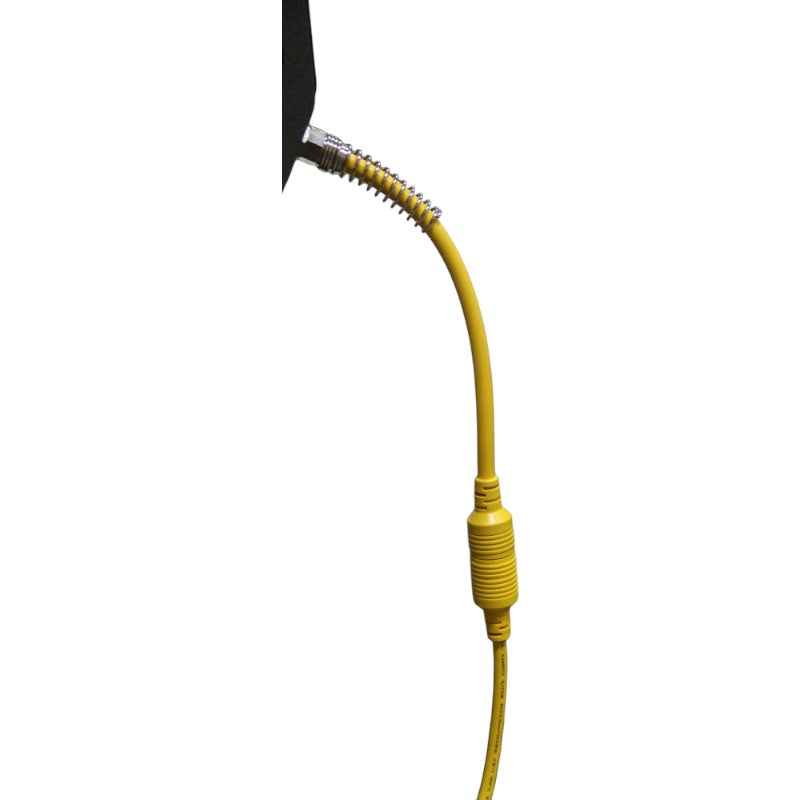

Power Cord 50 ft, (12-3) 2-piece industrial with cord lock
Noise Level 62 dB (165 RPM) / 69 dB (300 RPM) – GS42
Weight 260 lbs (Standard) / 270 lbs (DX)
Dimensions 25 × 33 × 55 in

Documents

Hawk Merlin 2-Speed XHD WD 17" Floor Machine – 165/300 RPM, 1.5 HP DC User Manual (PDF)

Hawk Merlin 2-Speed XHD WD 17" Floor Machine – 165/300 RPM, 1.5 HP DC Spec Sheet (PDF)

Spec Sheet

Manual

Product Warranty Information

"1 Year Service Warranty, 3 Years For Parts"

B2B & Tax-Exempt Purchases

We supply contractors, restoration companies, property managers, schools, government agencies, and other tax-exempt organizations.

How to place a tax-exempt order:

  1. Write to us through our Contact Us page or email info@uscleaningtools.com and attach your valid tax exemption certificate (state resale or exemption certificate).
  2. We verify your certificate and mark your account tax-exempt — usually within one business day.
  3. Place your order and sales tax will not be charged.

For volume pricing or purchase orders, call +1 (978) 295-7538.

Shipping & Returns

Free shipping on most brands for orders over $300, delivered to the lower 48 states. Any brand-specific freight rate is shown at checkout before you pay.

Processing & delivery: in-stock orders are processed within 1–2 business days and typically deliver in 5–7 business days. Tracking is emailed within 24 hours of shipment. Built-to-order and backordered equipment shows its lead time on this page.

Freight deliveries: inspect your equipment on arrival and note any damage on the delivery receipt. Items damaged in transit or defective on arrival are fully covered at no cost to you.

Cancellations: cancel any time before your order ships for a full 100% refund.

30-day returns: return unused equipment in its original packaging within 30 days of delivery. Change-of-mind returns are subject to a restocking fee. To start a return, email info@uscleaningtools.com or call +1 (978) 295-7538.

Product Image
Added to cart
Hawk Merlin 2-Speed XHD WD 17Hawk Merlin 2-Speed XHD WD 17" Floor Machine – 165/300 RP...
View Cart
$2,867.00

Frequently Asked Questions

What is the difference between the Merlin 2-Speed XHD WD 17" and the 20" version?
Both use the same 1.5 HP DC rectified motor, XHD gears, WD floating head, and 80 lb weight kit. The 17-inch model weighs 260 lbs vs. 234 lbs for the 20-inch standard, and uses a 16-inch pad vs. 19-inch. The 17-inch footprint is better suited to patient rooms, clinical spaces, and other environments where the 20-inch machine is too wide to maneuver around fixed equipment.
Why is a DC rectified motor preferred over an AC motor for dual-speed floor machines?
DC rectified motors maintain more consistent torque under varying floor-load conditions than AC motors, particularly during directional changes and encounters with floor seams and transitions. They also draw approximately one-third less amperage at equivalent torque output, reducing circuit load when running multiple machines.
What tasks use 165 RPM vs. 300 RPM on the Merlin 2-Speed?
165 RPM is used for stripping, heavy scrubbing, diamond tooling on concrete, and scarifying applications with black pads and abrasive tooling. 300 RPM is used for spray buffing, finish restoration, and polishing maintenance with red, white, or tan pads.
What does the 80 lb weight kit do?
The weight kit adds 80 lbs of additional downforce to improve pad-to-floor pressure during diamond tooling and aggressive stripping applications where the 260-lb machine weight alone is insufficient for consistent surface contact. The weights are removable for standard scrubbing and buffing applications where less downforce is needed.
What noise levels does the machine produce at each speed?
62 dB at 165 RPM and 69 dB at 300 RPM, both compliant with GS42 international noise standards. Both speeds qualify for use in occupied buildings including hospitals, schools, and hotels during daytime and nighttime cleaning schedules.
