Wagner Meters WFP450+ Rapid RH L6 Flooring Kit with Orion 950 and DataGrabbers
Authorized dealerSKU: 880-R0WFP-451In stock$2,089.00
Free shipping on this item
Request a quote / purchase order
Tell us your quantity, delivery ZIP code and required date. For help choosing equipment, include your application.
Email a quote request Call (978) 295-7538Call a specialist — (978) 295-7538
Pricing, freight and lead time. Mon–Fri 9 AM–5 PM ET.
Estimated delivery: 3–8 business days
Ships direct from Wagner Meters
Authorized Wagner Meters dealerGenuine Wagner Meters equipment with full factory warranty support
Tax-exempt & PO acceptedSend your exemption certificate and we bill without sales tax
30-day returnsUnused equipment in original packaging, within 30 days
Expert phone supportTalk to a product specialist Mon–Fri, 9 AM–5 PM ET: (978) 295-7538
Need help choosing? Talk to an expert
+1 (978) 295-7538WFP450+ Rapid RH L6 Concrete, Wood and Ambient Moisture Testing
WFP450+ Rapid RH L6 kit measures moisture in concrete and wood and records room conditions for flooring jobs. The Total Reader reads concrete RH and temperature from the L6 Smart Sensors. The Orion 950 measures wood moisture and calculates equilibrium moisture content, while two Smart Logger V2 recorders track ambient conditions. The instruments fit in a hard-shell ABS case with a foam-padded interior. The case also holds the insertion tool, wire brush, vacuum attachment and 3/4 in SDS masonry drill bit.
WFP450+ Rapid RH L6 Concrete, Wood and Air Readings
The L6 system is built for ASTM F2170 in-situ RH testing. Sensors give readings after 24 hours of acclimation. Each instrument reports to its own free app.
- Concrete RH and Temperature — Touch-n-Sense takes readings when the Total Reader touches a Smart Sensor.
- Concrete Reading History — 5 Bluetooth DataGrabbers store time-stamped readings in the sensor memory at your chosen interval and upload them to the DataMaster L6 app.
- Pinless Wood Readings — the Orion 950 reads 0.25 in or 0.75 in deep, covers 4.0% to 32.0% MC by species setting and calculates EMC, dew point and grains per pound.
- Ambient Readings — each Smart Logger V2 stores 16,384 readings and sends them to the free Wagner Sentry app over Bluetooth 5.0.
- Job Reports — DataMaster L6 stores data and builds reports; the Orion 950 stores 100 readings and sends them to the FloorSmart and Woodshop MC apps.
WFP450+ Rapid RH L6 Applications for Flooring Installers
Flooring installers use the WFP450+ Rapid RH L6 kit to document slab RH before gluing down resilient, wood or tile floors in schools, offices and retail stores. On hardwood jobs, the Orion 950 compares board moisture with the room's EMC. Its relative mode checks drywall, plywood, OSB and MDF, and the included On-Demand Calibrator lets you check the Orion in the field. Facility managers and building inspectors can use the Smart Loggers to record ambient conditions. The infrared thermometer measures slab surface temperature. Each logger reads 0 to 100% RH at ±1.5% RH and ±0.1 °C, and transmits up to 150 ft (46 meters).
Specifications
| Total Reader – Battery Description | CR1/3N |
| Total Reader – Operating Humidity | 10-90% |
| Smart Logger V2 – Transmission Distance | Up to 150 ft (46 meters) |
| Smart Logger V2 – Storage | 16,384 data measurements |
| Smart Logger V2 – Operating Temperature Range | -22°F (-30°C)~140°F (60°C) |
| Smart Logger V2 – RH Measurement Range | 0~100%RH |
| Smart Logger V2 – Temperature accuracy | ±0.1 °C |
| Smart Logger V2 – RH Measurement Accuracy | ±1.5%RH |
| Orion 950 – Measurement Ranges | MC for wood: 4.0% to 32.0% (range will vary slightly depending on species setting) |
| Orion 950 – Relative Measurement Scale | 0-100 |
| Orion 950 – Internal Data Storage Capacity | 100 saved readings |
| Orion 950 – Equilibrium Moisture Content Measurement Range | 0-40.7% |
| Orion 950 – Dew Point Range | -85°F to +110°F (-65°C to +43°C) |
| Orion 950 – Shallow scan depth | 0.25 in (6.4 mm) |
| Orion 950 – Deep scan depth | 0.75 in (19 mm) |
| Infrared Thermometer – Measurement Range | -25.6° F to 707° F (-32° C to 375° C) |
| Infrared Thermometer – Accuracy | ±2% of reading |
| Infrared Thermometer – Distance to Spot Ratio | 12:1 |

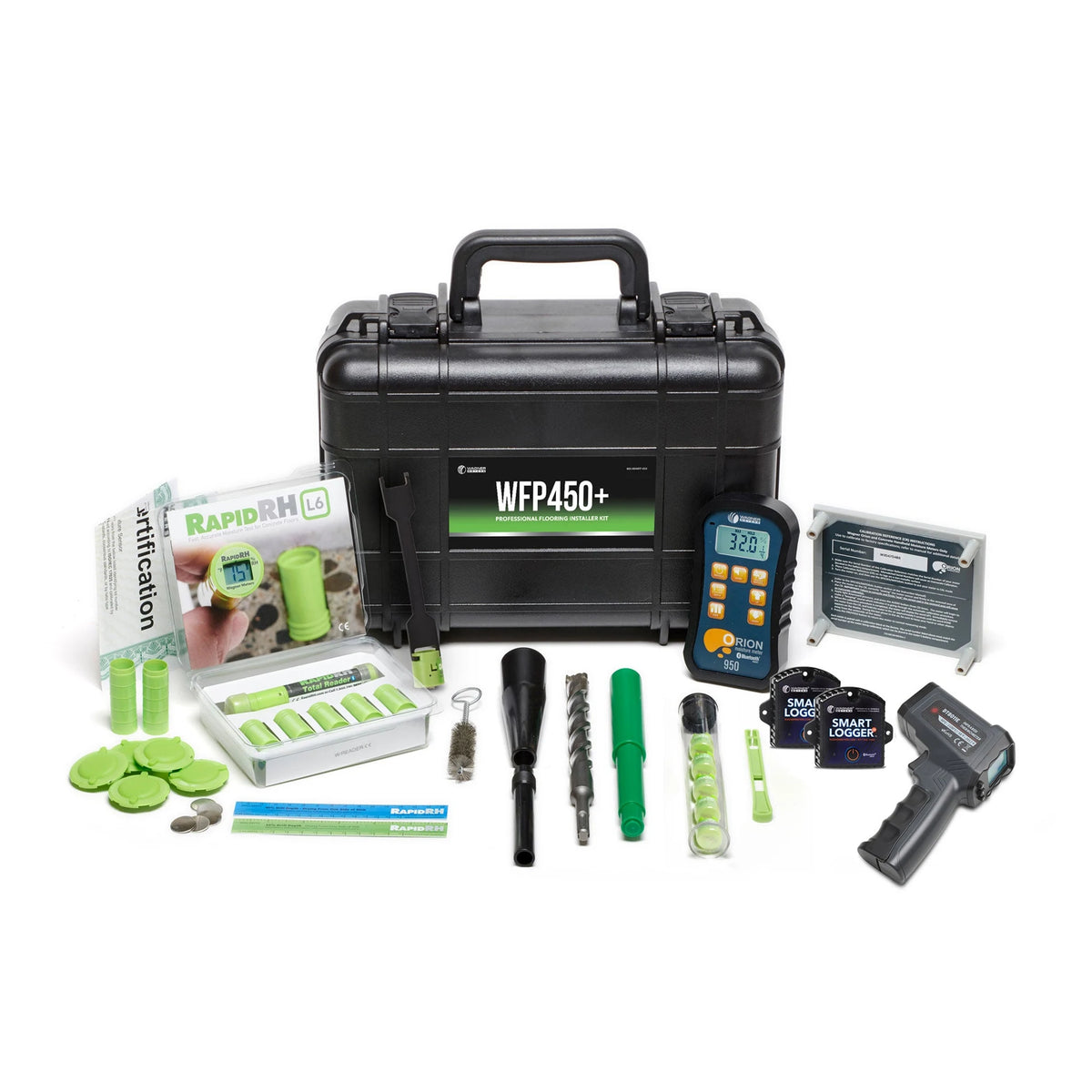

What's in the Box
- 1 × Orion 950 dual-depth pinless wood moisture meter with rubber boot
- 1 × On-Demand Calibrator for the Orion meter
- 1 × Infrared (IR) thermometer
- 1 × Hard-shell ABS carrying case with foam-padded interior
- 5 × L6 DataGrabbers with Bluetooth (tube of 5) with Extraction Tool
- 5 × L6 Smart Sensors
- 1 × Total Reader with Bluetooth
- 2 × Smart Logger V2 ambient temperature and humidity recorders
- 1 × Insertion Tool
- 10 × Sleeve Extensions
- 5 × Protective Caps with butyl rubber seal and integral access cover
- 5 × Stainless Steel Covers
- 1 × 3/4 in SDS masonry drill bit
- 1 × Wire Cleaning Brush
- 1 × Vacuum Attachment
- 1 × Certificate of Calibration
- 1 × Floor Map
- 1 × Instruction Manual
- 1 × CR1/3N battery for the Total Reader
Documents
Rapid RH L6 Instruction Manual (PDF)
DataGrabber with Bluetooth Manual (PDF)
DataMaster L6 App Instructions (PDF)
Smart Logger V2 User Manual (PDF)
