Wagner Meters WFP400+ Rapid RH L6 Flooring Kit – Slab RH, Wood MC
Authorized dealerSKU: 880-R0WFP-402In stock$1,527.00
Free shipping on this item
Request a quote / purchase order
Tell us your quantity, delivery ZIP code and required date. For help choosing equipment, include your application.
Email a quote request Call (978) 295-7538Call a specialist — (978) 295-7538
Pricing, freight and lead time. Mon–Fri 9 AM–5 PM ET.
Estimated delivery: 3–8 business days
Ships direct from Wagner Meters
Authorized Wagner Meters dealerGenuine Wagner Meters equipment with full factory warranty support
Tax-exempt & PO acceptedSend your exemption certificate and we bill without sales tax
30-day returnsUnused equipment in original packaging, within 30 days
Expert phone supportTalk to a product specialist Mon–Fri, 9 AM–5 PM ET: (978) 295-7538
Need help choosing? Talk to an expert
+1 (978) 295-7538WFP400+ Rapid RH L6 for Wood Moisture and Concrete Slab RH
Flooring moisture test kit WFP400+ Rapid RH L6 pairs the Orion 950 pinless wood moisture meter with L6 Smart Sensors for in-situ concrete slab RH testing. Check the boards and the slab before laying wood over concrete. Two Smart Logger V2 recorders log room temperature and humidity while you work.
WFP400+ Rapid RH L6 Wood and Slab Testing
The Orion 950 measures moisture in the wood flooring. The Total Reader reads concrete relative humidity and temperature from installed L6 Smart Sensors, so you can keep separate records for the flooring and the slab beneath it.
- Check Wood Without Pinholes — The Orion 950 pinless sensor measures at 0.25 in or 0.75 in depth. Its wood moisture range is 4.0% to 32.0%, with slight variation depending on the species setting.
- Assess Wood Acclimation Conditions — The Orion 950 automatically calculates equilibrium moisture content using its built-in temperature and humidity sensor. It also calculates dew point and grains per pound.
- Test the Concrete Slab — Use Rapid RH L6 for ASTM F2170 in-situ slab RH testing. After 24 hours of sensor acclimation, the Total Reader takes a reading on contact with the sensor.
- Keep Wood and Slab Records — Send Orion 950 readings over Bluetooth to FloorSmart or Woodshop MC. The Total Reader connects to DataMaster L6 to store concrete readings and generate reports.
- Track Room Conditions — The included Smart Logger V2 recorders log temperature and relative humidity. Each stores up to 16,384 measurements and sends readings over Bluetooth to Wagner Sentry.
- Calibrate the Wood Meter in the Field — Use the included On-Demand Calibrator for the Orion 950. Each L6 Smart Sensor has its own factory calibration, so the Total Reader does not need to be sent out for recalibration.
WFP400+ Rapid RH L6 Uses for Flooring Contractors
Use this flooring moisture test kit when installing wood flooring over concrete in homes, offices, and retail spaces. Record Orion 950 wood moisture readings and L6 slab RH results, then compare them with the flooring system's installation requirements. Restoration contractors and building inspectors can use the Orion 950's relative mode for comparative checks of plywood, OSB, MDF, and drywall. Woodworkers and facility managers can use its pinless moisture measurement and automatic EMC calculation to check wood materials.
Specifications
| Total Reader – Battery Description | CR1/3N |
| Total Reader – Operating Humidity | 10-90% |
| Smart Logger V2 – Transmission Distance | Up to 150 ft (46 meters) |
| Smart Logger V2 – Storage | 16,384 data measurements |
| Smart Logger V2 – RH Measurement Range | 0~100%RH |
| Smart Logger V2 – Temperature accuracy | ±0.1 °C |
| Smart Logger V2 – RH Measurement Accuracy | ±1.5%RH |
| Orion 950 – Power | 9-volt battery (Wagner recommends using non-rechargeable Alkaline or Lithium or rechargeable NiMH batteries) |
| Orion 950 – Measurement Ranges | MC for wood: 4.0% to 32.0% (range will vary slightly depending on species setting) |
| Orion 950 – Internal Data Storage Capacity | 100 saved readings |
| Orion 950 – Ambient Relative Humidity Range | 0% to 100% |
| Orion 950 – Equilibrium Moisture Content Measurement Range | 0-40.7% |
| Orion 950 – Dew Point Range | -85°F to +110°F (-65°C to +43°C) |
| Orion 950 – Shallow scan depth | 0.25 in (6.4 mm) |
| Orion 950 – Deep scan depth | 0.75 in (19 mm) |
| Infrared Thermometer – Measurement Range | -25.6° F to 707° F (-32° C to 375° C) |
| Infrared Thermometer – Accuracy | ±2% of reading |
| Infrared Thermometer – Distance to Spot Ratio | 12:1 |

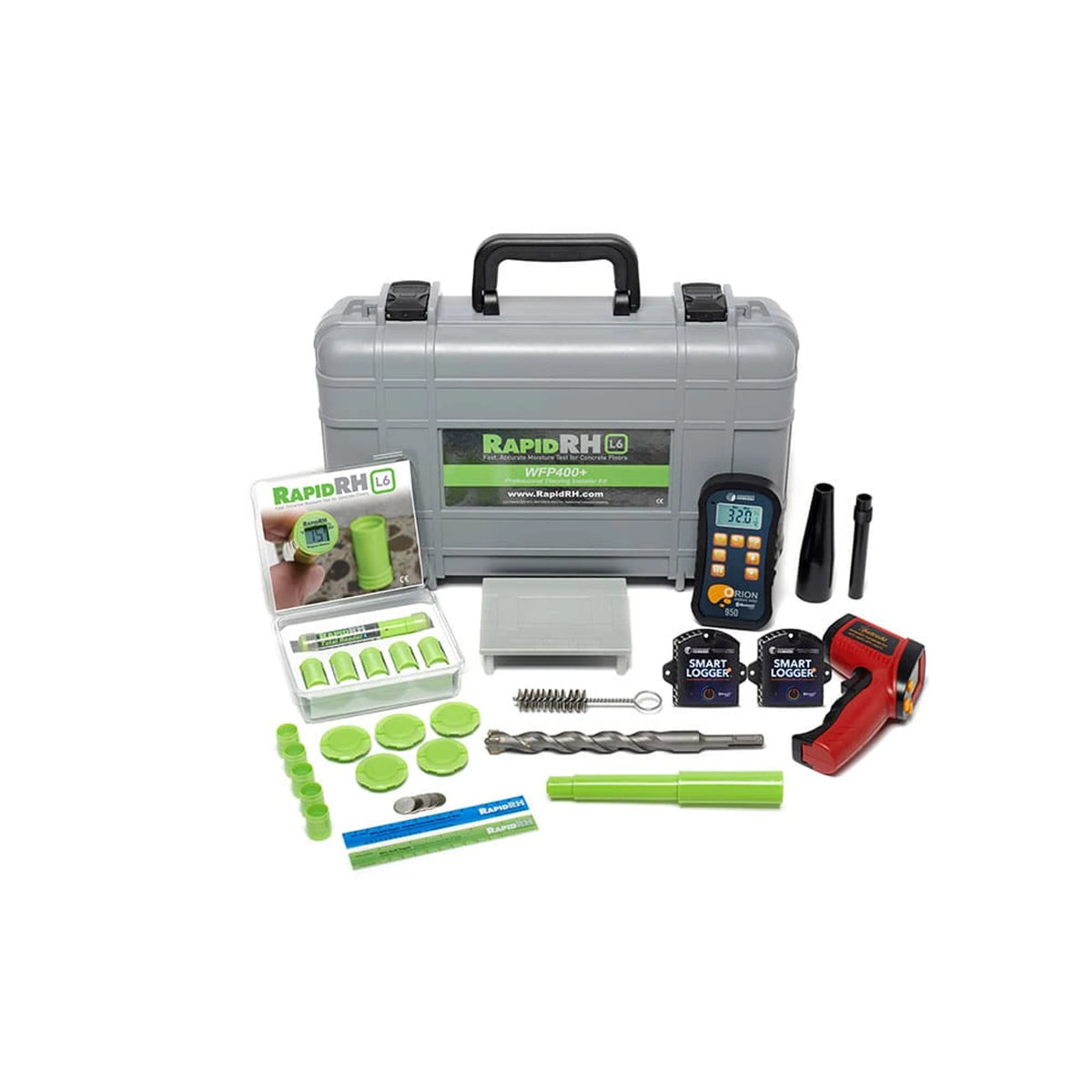

What's in the Box
- 1 × Orion 950 dual-depth pinless wood moisture meter with rubber boot
- 1 × On-Demand Calibrator for the Orion meter
- 1 × Infrared (IR) thermometer
- 1 × Hard-shell ABS carrying case with foam-padded interior
- 5 × L6 Smart Sensors
- 1 × Total Reader with Bluetooth
- 2 × Smart Logger V2 ambient temperature and humidity recorders
- 1 × Insertion Tool
- 10 × Sleeve Extensions
- 5 × Protective Caps with butyl rubber seal and integral access cover
- 5 × Stainless Steel Covers
- 1 × 3/4 in SDS masonry drill bit
- 1 × Wire Cleaning Brush
- 1 × Vacuum Attachment
- 1 × Certificate of Calibration
- 1 × Floor Map
- 1 × Instruction Manual
- 1 × CR1/3N battery for the Total Reader
