Tornado BD 30/20 Walk-Behind Floor Scrubber – 30" Disk, 110 Lbs, 33,798 sq ft/hr, TS530-W30-U

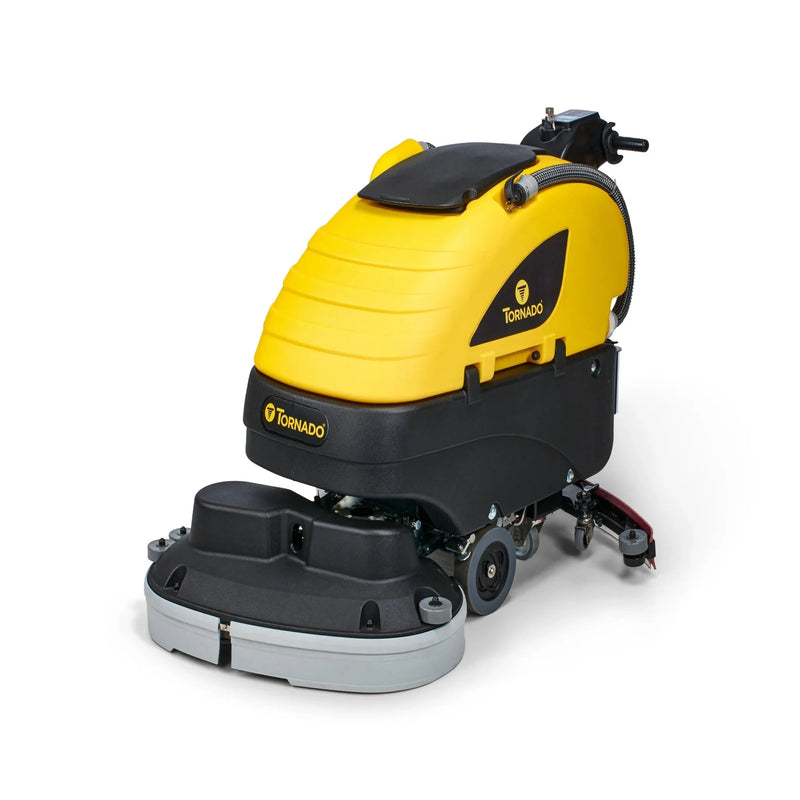

Tornado BD 30/20 Walk-Behind Floor Scrubber

The Tornado BD 30/20 (model TS530-W30-U) is the largest walk-behind disc scrubber Tornado builds: a 30" cleaning path on dual 15" disc pads, 20-gallon solution and 22-gallon recovery tanks, and 33,798 sq. ft. per hour of theoretical productivity. Dual 350W brush motors deliver up to 110 lbs of adjustable down pressure, a 570W vacuum recovers solution for dry floors in one pass, and a 300W traction drive climbs ramps to 10% grade fully loaded. Running 3–4 hours per charge, it's built for big-box retail, warehouse, and convention-center floors where a 26" machine runs out of shift before the floor is done.

BD 30/20 Brush Drive, Down Pressure, and Runtime

The extra 4" of path over the BD 26/20 comes from larger 15" discs on the same brush-motor platform, so coverage climbs without added weight or drive-system complexity.

• 30" cleaning path, dual 15" disc brushes — 15% wider than the BD 26/20; fewer operator passes per shift on long warehouse aisles and open retail floors
• 110 lbs adjustable down pressure — covers daily maintenance scrubbing through heavy-soil stripping on concrete and epoxy
• 20-gal solution / 22-gal recovery tanks — enough for continuous 3-hour runs across most commercial floor areas without a mid-shift refill
• Dual 350W brush motors — independent per disc; holds equal contact pressure on uneven surfaces
• 570W vacuum motor — 64" water lift recovers solution from grout lines and low-profile transitions
• 300W traction drive — handles ramps to 10% grade fully loaded with no operator push on long runs

BD 30/20 Applications and Environments

Large-format retail is the core use case: grocery, home improvement, and warehouse clubs. A 30" path covers checkout entrances and open sales floor in fewer passes than any walk-behind below it. Airport concourses and convention exhibit halls use it for overnight runs where a 60" ride-on won't fit service corridors. Automotive showrooms with polished concrete or epoxy lean on the pad compatibility — soft pads for daily shine, harder pads for quarterly strip cycles — without swapping machines. Food processing plants cleaning concrete under food-safe rules specify it for strong liquid recovery and a simple pad change.

What Ships in the Box

The BD 30/20 ships complete: one pad holder (part 48814020), an on-board 24V charger, and the battery set matched to the model ordered. Lead Acid (TS530-W30-UC) includes four 99506 6V Lead Acid batteries; AGM (TS530-W30-UG) includes four 99558 AGM batteries. Front and rear squeegees come installed, and the 15" pad driver with Mighty Lock is included.

Specifications
