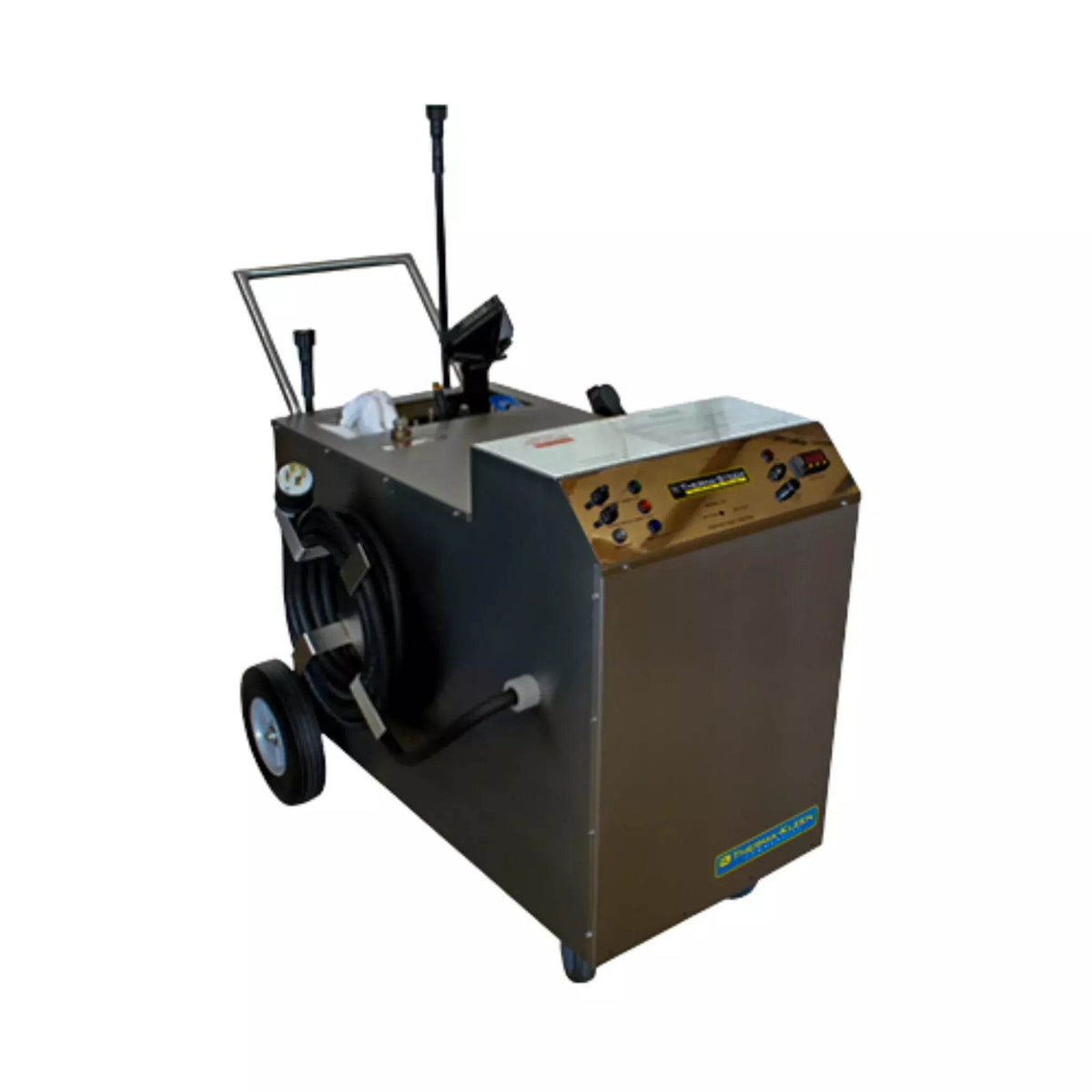

Therma-Steem Industrial XL3 — 40kW Dual-Output Steam for Heavy-Duty Continuous Production
The Therma-Steem XL3 is the high-capacity version of the XL1 — the same 155 PSI and 365°F output pressure and temperature, but with a 40kW heating element instead of 20kW. That doubles steam production from 55 lbs/hour to 110 lbs/hour, enabling two simultaneous operator hose stations or continuous cleaning of larger surface areas without waiting for steam pressure to rebuild. Electrical requirement is 480V, 3-phase, 49 amps (up from 26 amps on the XL1).
Therma-Steem XL3 Steam Output, PSI, and Heating Capacity
The XL3 exists for facilities where the XL1's 55 lbs/hour output becomes the production bottleneck — multi-operator applications or high-throughput cleaning lines where downtime between cycles is unacceptable.
110 lbs of steam per hour — double the XL1; supports two simultaneous hose stations or one station with higher continuous output
40kW incoloy heating element — maintains 155 PSI and 365°F during continuous dual-hose operation without pressure drop
155 PSI / 365°F output — identical to XL1; penetration capability and thermal sanitization performance are unchanged from the smaller model
Continuous-fill design — 7-gallon reserve feeds 5-gallon stainless steel boiler; refill during operation with no pressure interruption
97% dry vapor steam — suitable for electrical component cleaning and food contact surface sanitation
All stainless steel construction — boiler carries lifetime warranty; 10" rubber and 5" locking wheels for positioning
XL3 Applications and Environments
High-throughput food processing plants where multiple sanitation stations operate simultaneously are the primary XL3 application — two operators working from one unit rather than two separate XL1 units reduces capital cost and maintenance overhead. Large aircraft maintenance hangars cleaning entire airframe sections rather than individual components benefit from the continuous high-output steam. Military depots running three-shift operations where equipment must be ready for the next shift without cooling periods between cleanings use the XL3's no-downtime design. KOSHER-certified commercial kitchens cleaning large equipment arrays — ovens, industrial mixers, conveyor systems — use the dual-hose output to reduce sanitation time per shift. The XL3 shares identical footprint dimensions (33" × 23" × 34") and weight (215 lbs) with the XL1 — a facility already running an XL1 can add an XL3 without infrastructure changes beyond the electrical supply upgrade to 49 amps.
XL3 Steam Temperature, PSI, and Dry-Steam Output
Output conditions are identical to the XL1: 365°F (185°C) boiler temperature, 155 PSI (10.7 bar) output pressure, 97% dry vapor quality. The XL3's 40kW element maintains these conditions at 110 lbs/hour — the XL1's 20kW element would drop pressure or temperature under equivalent load. Ships with the same full accessory kit as the XL1: 25 ft SS hose, trigger gun, wand extensions, brush set, squeegee, microfiber cloths, safety equipment. Electrical requirement: 480V, 3-phase, 49 amps — also available in 220V or 575V upon request.
Specifications
Boiler
5-gallon stainless steel with 7-gallon SS reserve tank
Maximum Temperature
365°F / 185°C
Output Pressure
155 PSI / 10.7 bar
Electrical Requirements
480V, 3-phase, 49A (220V or 575V available)
Heating Element
40 kW incoloy
Steam Production
110 lbs/hour
Steam Dryness
97% dry vapor
Fill Type
Continuous fill (no shutdown required)
Dimensions
33" × 23" × 34"
Weight
215 lbs
Wheels
10" rubber + 5" locking
Video Overview
Product Warranty Information
"1 Year"
B2B & Tax-Exempt Purchases
We supply contractors, restoration companies, property managers, schools, government agencies, and other tax-exempt organizations.
How to place a tax-exempt order:
Write to us through our Contact Us page or email info@uscleaningtools.com and attach your valid tax exemption certificate (state resale or exemption certificate).
We verify your certificate and mark your account tax-exempt — usually within one business day.
Place your order and sales tax will not be charged.
For volume pricing or purchase orders, call +1 (978) 295-7538.
Shipping & Returns
Free shipping on most brands for orders over $300, delivered to the lower 48 states. Any brand-specific freight rate is shown at checkout before you pay.
Processing & delivery: in-stock orders are processed within 1–2 business days and typically deliver in 5–7 business days. Tracking is emailed within 24 hours of shipment. Built-to-order and backordered equipment shows its lead time on this page.
Freight deliveries: inspect your equipment on arrival and note any damage on the delivery receipt. Items damaged in transit or defective on arrival are fully covered at no cost to you.
Cancellations: cancel any time before your order ships for a full 100% refund.
30-day returns: return unused equipment in its original packaging within 30 days of delivery. Change-of-mind returns are subject to a restocking fee. To start a return, email info@uscleaningtools.com or call +1 (978) 295-7538.
Both produce steam at 155 PSI and 365°F. The XL3 uses a 40kW heating element (versus 20kW on the XL1) to produce 110 lbs of steam per hour — double the XL1's 55 lbs/hour. This enables two simultaneous hose stations or higher single-station output. Electrical draw increases from 26 amps to 49 amps at 480V, 3-phase.
Can the XL3 run two operator stations simultaneously?
Yes. The 110 lbs/hour steam output and 40kW element are sized to support dual-hose operation — two operators working simultaneously from a single unit without pressure drop. This is the primary reason to choose the XL3 over two separate XL1 units.
What is the electrical requirement for the XL3?
The XL3 requires 480V, 3-phase, 49 amps. Also available in 220V and 575V 3-phase configurations upon request. Facilities without 3-phase power cannot use the XL3 — see the propane-fired Ultra 250 or Ultra 600 for single-phase alternatives.
Does the XL3 require a pressure vessel certification or third-party inspection?
The Therma-Steem XL3 operates below the OSHA pressure threshold that requires third-party pressure vessel certification. Standard industrial safety features include: low water alarm, DIN temperature control, high pressure limit switch, and pressure relief valve.
What are the safety features built into the XL3?
The XL3 includes: low water alarm (signals when reserve tank needs refilling), DIN temperature control (maintains setpoint automatically), high pressure limit switch (prevents over-pressurization), and pressure relief valve (safety release for fault conditions).
Is the XL3 USDA allowable for food processing environments?
Yes. The Therma-Steem XL3 is USDA allowable for use in food processing facilities. The 97% dry vapor steam leaves no chemical residue and the unit generates no fumes — both required for food contact surface sanitation in USDA-inspected facilities.
