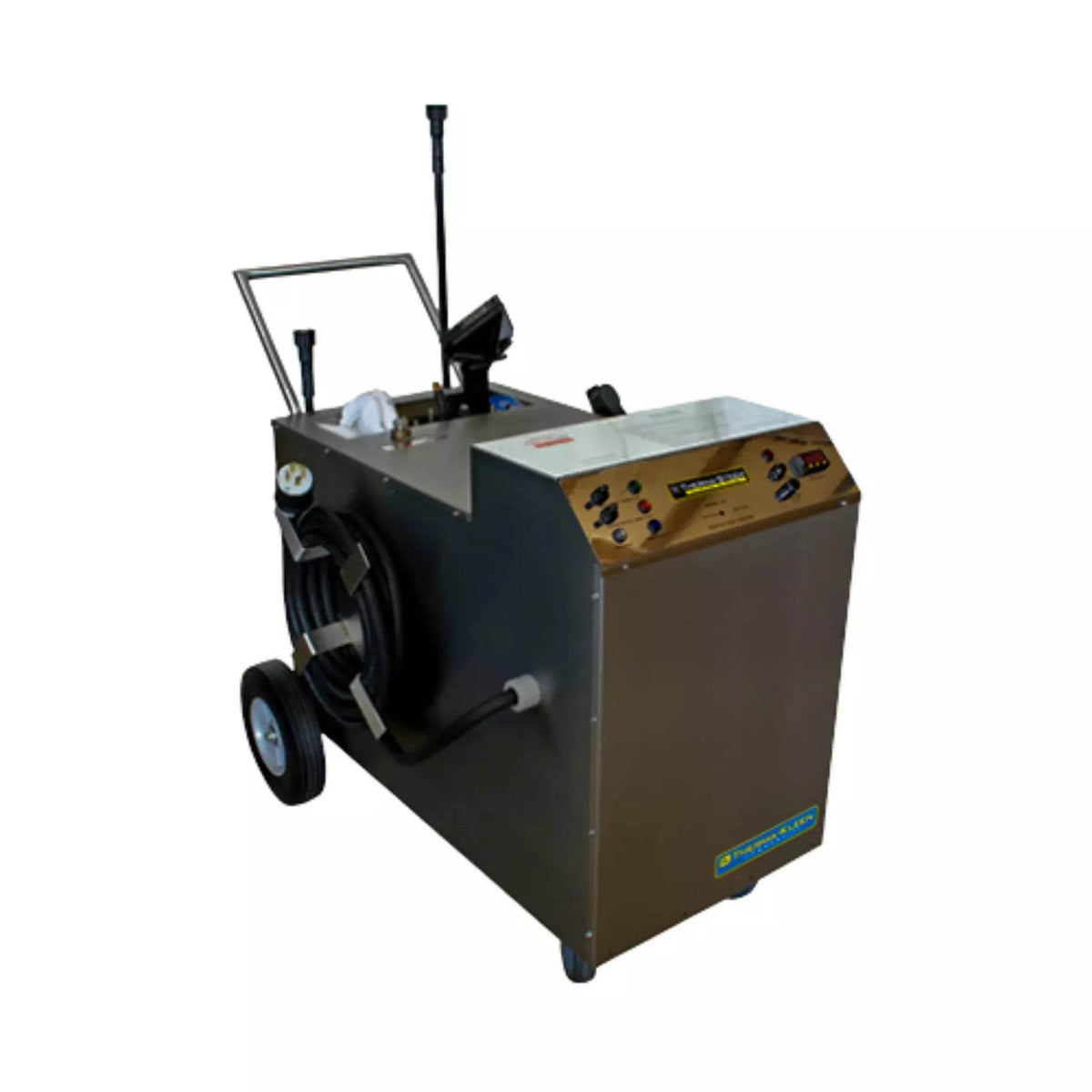

The Therma-Steem XL1 is a fixed-installation industrial steam cleaner built for continuous round-the-clock operation. At 155 PSI and 365°F with a 20kW incoloy heating element, it generates 55 lbs of steam per hour from a 5-gallon stainless steel boiler backed by a 7-gallon stainless steel reserve tank. The continuous-fill design means zero downtime between refills. Requires 480V, 3-phase power (26 amps) — for facilities that cannot provide 3-phase, see the propane Ultra series.
Therma-Steem XL1 Steam Output, PSI, and Operating Conditions
The XL1 targets industrial environments where steam needs to reach inside conveyors, food processing equipment, and machinery with complex geometry — the 25 ft stainless steel hose with gun and multiple brush configurations allow access where pressure washing cannot reach.
155 PSI output pressure — 10.7 bar; penetrates grease, biofilm, and industrial grime on equipment surfaces and in crevices
365°F maximum temperature — above the 212°F thermal sanitization threshold by 153°F; kills most pathogens on contact without chemicals
55 lbs of steam per hour — 20kW incoloy heating element maintains consistent output during extended continuous operation
Continuous-fill design — 7-gallon reserve tank feeds the 5-gallon boiler without shutdown; fill the reserve while steam generation continues
97% dry vapor steam — low moisture content allows use around electrical components and in food processing environments without surface flooding
All stainless steel construction — 5-gallon boiler with lifetime warranty; 10" rubber wheels and 5" locking wheels for positioning stability
XL1 Applications and Environments
Food processing facilities use the XL1 for conveyor cleaning, food contact surface sanitation, and equipment degreasing where chemical residue cannot remain — the 97% dry vapor leaves no chemical contamination and meets USDA requirements for food processing environments. Automotive manufacturing plants and airline maintenance facilities clean engine components, chassis areas, and ground service equipment with the 25 ft hose and rotating brush attachments. Military maintenance depots and KOSHER-certified food operations (where chemical sanitizers create compliance issues) use it as a primary sanitation platform. The 24/7 operational design suits three-shift production environments where downtime is not an option.
XL1 Steam Temperature, PSI, and Dry-Steam Output
Boiler temperature reaches 365°F (185°C) with 155 PSI output pressure (10.7 bar). Steam dryness: 97% — only 3% moisture content in the vapor, critical for electrical component cleaning and avoiding surface flooding. The XL1 is not an OSHA-classified steam pressure vessel (operates below the threshold requiring third-party pressure vessel certification). Electrical requirement: 480V, 3-phase, 26 amps — also available in 220V or 575V upon request. Ships with a full accessory kit including 25 ft SS hose, trigger gun, multiple brush types, squeegee, wand extensions, microfiber cloths, and safety equipment.
Specifications
Boiler
5-gallon stainless steel with 7-gallon SS reserve tank
Maximum Temperature
365°F / 185°C
Output Pressure
155 PSI / 10.7 bar
Electrical Requirements
480V, 3-phase, 26A (220V or 575V available)
Heating Element
20 kW incoloy
Steam Production
55 lbs/hour
Steam Dryness
97% dry vapor
Fill Type
Continuous fill (no shutdown required)
Dimensions
33" × 23" × 34"
Weight
215 lbs
Wheels
10" rubber + 5" locking
Video
Product Warranty Information
"1 Year"
B2B & Tax-Exempt Purchases
We supply contractors, restoration companies, property managers, schools, government agencies, and other tax-exempt organizations.
How to place a tax-exempt order:
Write to us through our Contact Us page or email info@uscleaningtools.com and attach your valid tax exemption certificate (state resale or exemption certificate).
We verify your certificate and mark your account tax-exempt — usually within one business day.
Place your order and sales tax will not be charged.
For volume pricing or purchase orders, call +1 (978) 295-7538.
Shipping & Returns
Free shipping on most brands for orders over $300, delivered to the lower 48 states. Any brand-specific freight rate is shown at checkout before you pay.
Processing & delivery: in-stock orders are processed within 1–2 business days and typically deliver in 5–7 business days. Tracking is emailed within 24 hours of shipment. Built-to-order and backordered equipment shows its lead time on this page.
Freight deliveries: inspect your equipment on arrival and note any damage on the delivery receipt. Items damaged in transit or defective on arrival are fully covered at no cost to you.
Cancellations: cancel any time before your order ships for a full 100% refund.
30-day returns: return unused equipment in its original packaging within 30 days of delivery. Change-of-mind returns are subject to a restocking fee. To start a return, email info@uscleaningtools.com or call +1 (978) 295-7538.
What is the output pressure and temperature of the Therma-Steem XL1?
The XL1 produces 155 PSI (10.7 bar) at 365°F (185°C). This is 153°F above the 212°F thermal sanitization threshold — sufficient to kill most pathogens on contact without chemical sanitizers.
Does the XL1 require shutdown to refill with water?
No. The continuous-fill design uses a 7-gallon stainless steel reserve tank that feeds the 5-gallon boiler — you refill the reserve tank while steam generation continues at full pressure and temperature. There is no production shutdown for refills.
What power supply does the Therma-Steem XL1 require?
The standard XL1 requires 480V, 3-phase, 26 amps. It is also available in 220V and 575V configurations upon request at time of order. Single-phase power is not supported — facilities without 3-phase power should consider the propane-fired Ultra 250 or Ultra 600.
What does 97% dry vapor steam mean?
97% dry vapor means only 3% of the steam output is liquid water droplets — 97% is vapor. This low moisture content allows use around electrical components and in food contact environments without flooding surfaces or leaving standing water.
How much steam does the XL1 produce per hour?
The 20kW incoloy heating element generates 55 lbs of steam per hour during continuous operation. This output is sustained through the continuous-fill design without degradation over extended shifts.
What is included in the accessory kit with the XL1?
The XL1 ships with: 25 ft SS hose with trigger gun, 20" and 36" wand extensions, multiple brush types (brass, nylon, SS in multiple sizes), handheld squeegee, floor brush, zero-degree blast attachment, microfiber cloths, gloves, and safety glasses — a complete operating kit.
