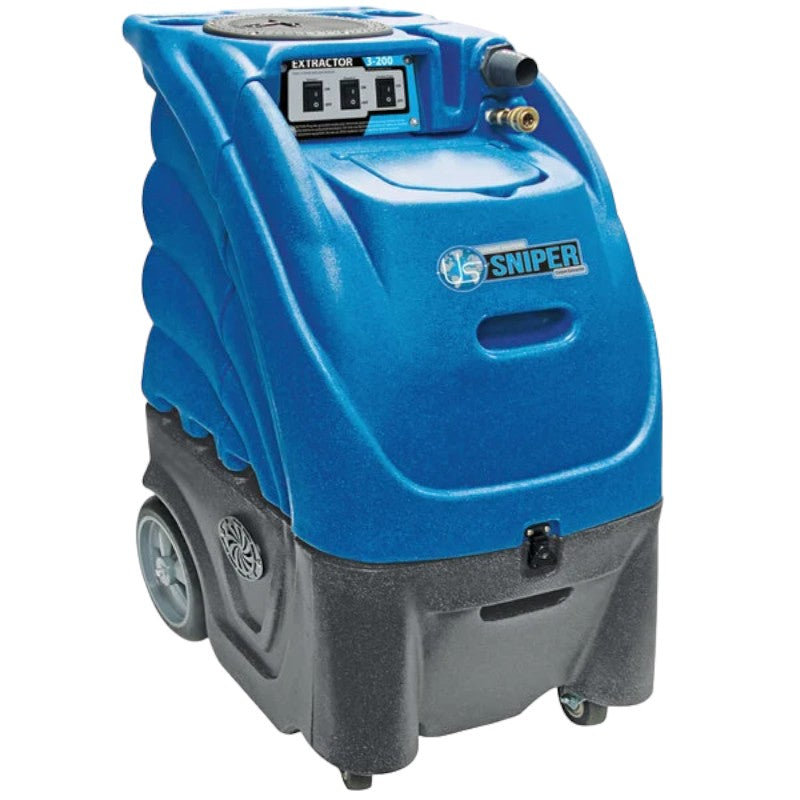

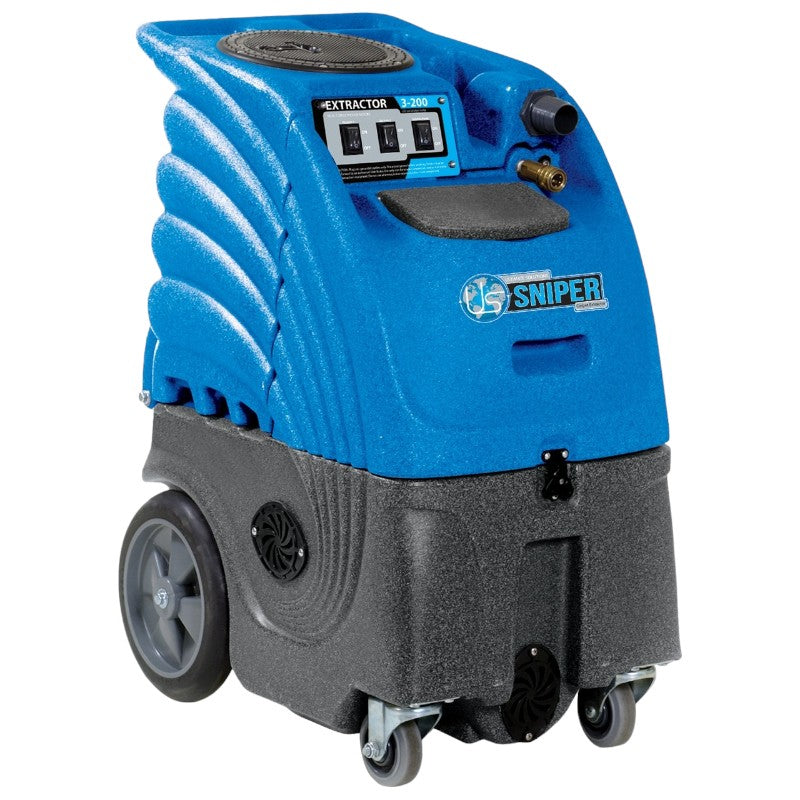

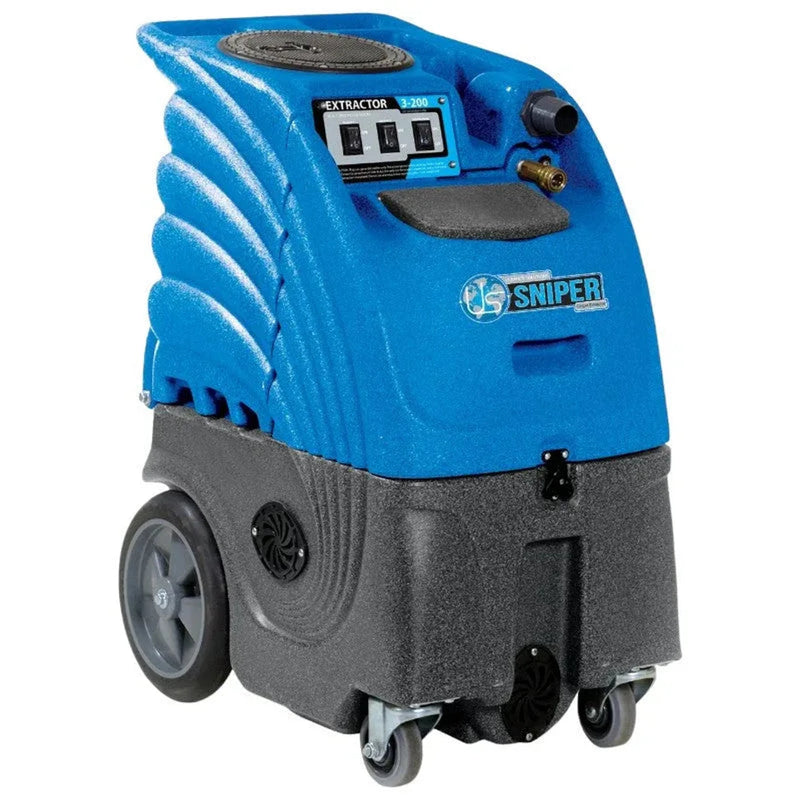

The 86-2300 is the highest-pressure 2-stage configuration in Sandia's 6-gallon Sniper line — 300 PSI pump pressure paired with the same dual 2-stage motors and 205" water lift as the 86-2100 (100 PSI) and 86-3200 (200 PSI, 3-stage). The higher pump pressure drives solution deeper into cut-pile carpet and more aggressively dislodges embedded soil, making it suited for high-traffic commercial carpet that has accumulated significant soiling between cleanings. The heated variant (86-2300-H) adds a 2000W in-line heater to raise solution to 200°F.
86-2300 Specifications and Pump Pressure Implications
Pump pressure: 300 PSI — the highest pump pressure in the 6-gallon Sniper line; matches the 12-gallon 80-2300's pressure rating in a lighter, smaller package
Vacuum motors: dual 2-stage — produces 205" water lift; same as the 86-2100 (2-stage) and 86-3200 (3-stage) 6-gallon models
Tank capacity: 6 gal solution + 6 gal recovery
Weight: 93 lbs standard / 103 lbs heated — 6 lbs heavier than the 86-2100 (87/97 lbs); same weight as the 86-3200 (93/103 lbs)
Dimensions: 26"×17"×35"; 10" non-marking wheels
Power cord: one 25 ft cord (standard model) — the source data does not specify dual cords for the heated model as explicitly as the 86-3200 listing, but standard practice for 2000W heater models requires two circuits
Heater (86-2300-H only): 2000W in-line unit raises solution to 200°F

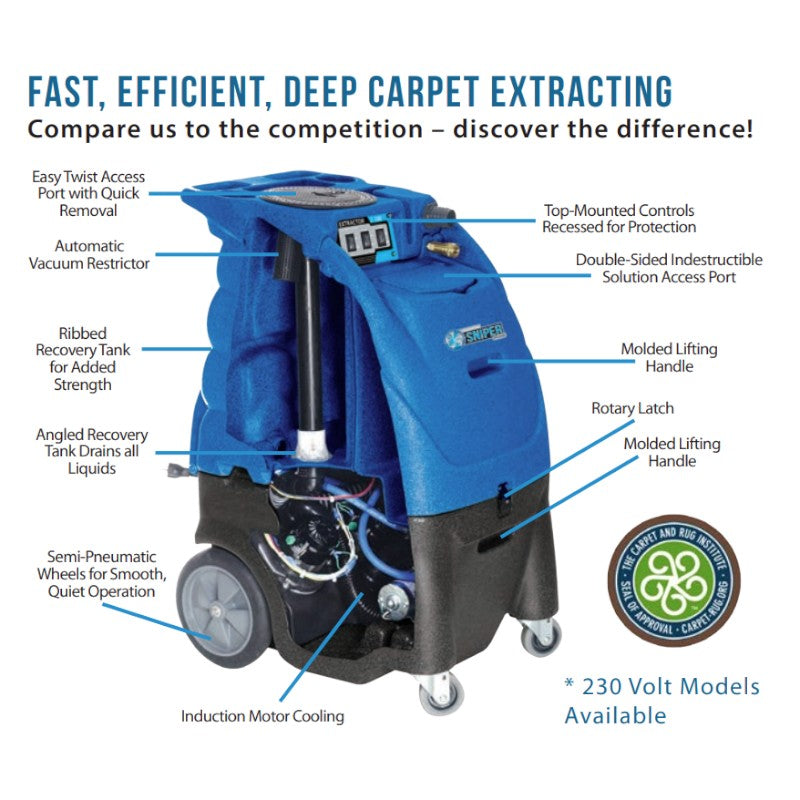

Body: roto-molded polyethylene; waist-high recessed controls; made in USA
When 300 PSI Makes a Difference
Pump pressure determines how forcefully solution enters carpet fibers. At 300 PSI, the 86-2300 pushes solution past the surface yarn and into the pile base, where embedded food particles, tracked-in soil, and oily residue accumulate. In high-traffic corridors, hotel lobbies, school hallways, and airport carpeting where foot traffic grinds soil deep into the fiber structure, 300 PSI extraction produces better single-pass results than 100 PSI. The trade-off is drying time: higher pressure drives more moisture into the backing, so the 86-2300 requires attention to extraction speed to avoid over-wetting. The same 205" water lift across all 86-series Sniper models means extraction efficiency is constant — the pressure increase affects penetration depth, not recovery.
86-2300 vs 86-3200: 2-Stage vs 3-Stage Motors at Similar Pressure
The 86-2300 (300 PSI, dual 2-stage) and 86-3200 (200 PSI, dual 3-stage) weigh the same and have the same tank size and dimensions. The 86-3200 uses 3-stage motors for higher CFM and water lift in applications where extraction speed and airflow matter more than pump pressure. The 86-2300 prioritizes solution injection depth. On heavily soiled, lower-pile carpet, the 86-2300's 300 PSI penetrates more aggressively; on denser carpet with thick pile where moisture removal speed is critical, the 86-3200's 3-stage motors may produce faster drying.
This product comes with a full manufacturer's warranty. All warranty claims are handled directly by the manufacturer.
For specific warranty details, please contact us at +1 (978) 295-7538 or email info@uscleaningtools.com
B2B & Tax-Exempt Purchases
We supply contractors, restoration companies, property managers, schools, government agencies, and other tax-exempt organizations.
How to place a tax-exempt order:
Write to us through our Contact Us page or email info@uscleaningtools.com and attach your valid tax exemption certificate (state resale or exemption certificate).
We verify your certificate and mark your account tax-exempt — usually within one business day.
Place your order and sales tax will not be charged.
For volume pricing or purchase orders, call +1 (978) 295-7538.
Shipping & Returns
Free shipping on most brands for orders over $300, delivered to the lower 48 states. Any brand-specific freight rate is shown at checkout before you pay.
Processing & delivery: in-stock orders are processed within 1–2 business days and typically deliver in 5–7 business days. Tracking is emailed within 24 hours of shipment. Built-to-order and backordered equipment shows its lead time on this page.
Freight deliveries: inspect your equipment on arrival and note any damage on the delivery receipt. Items damaged in transit or defective on arrival are fully covered at no cost to you.
Cancellations: cancel any time before your order ships for a full 100% refund.
30-day returns: return unused equipment in its original packaging within 30 days of delivery. Change-of-mind returns are subject to a restocking fee. To start a return, email info@uscleaningtools.com or call +1 (978) 295-7538.
How does the 86-2300 differ from the 86-2100 in the 6-gallon Sniper line?
The 86-2300 uses a 300 PSI pump versus the 86-2100's 100 PSI pump. Both models use dual 2-stage motors producing 205" water lift and have identical 6-gallon tanks and 26"×17"×35" dimensions. The 86-2300 weighs 6 lbs more (93 vs 87 lbs). Choose the 86-2300 for heavily soiled commercial carpet needing deep solution penetration.
Does 300 PSI mean faster drying times?
Not necessarily. Higher pump pressure drives solution deeper into carpet fibers, which can increase moisture depth and extend drying time if not properly managed. The 86-2300 produces the same 205" water lift as the 86-2100, so extraction power is identical. Drying time depends more on extraction speed and operator technique than pump pressure alone.
What is the difference between the 86-2300 and 86-3200?
The 86-2300 uses a 300 PSI pump with dual 2-stage motors. The 86-3200 uses a 200 PSI pump with dual 3-stage motors. Both weigh 93 lbs (standard) and share the same tank size and dimensions. The 86-2300 prioritizes injection depth through higher pressure; the 86-3200 prioritizes airflow and extraction speed through additional motor stages.
What type of carpet is the 86-2300 best suited for?
The 86-2300's 300 PSI pump is most effective on cut-pile commercial carpet in high-traffic areas — hotel corridors, school hallways, and office lobbies where soil has been pressed deep into the fiber base. It is less appropriate for delicate area rugs or low-pile carpet where high pressure can over-saturate the backing.
How many square feet per hour can the 86-2300 clean?
Production rate depends on soil load, carpet type, and operator speed. A skilled operator with a single-head wand typically covers 800–1,500 sq ft per hour with a portable extractor in commercial settings. Dual-head wands increase coverage. The 6-gallon tanks require fill-dump cycles approximately every 1,500–2,000 sq ft depending on application rate.
