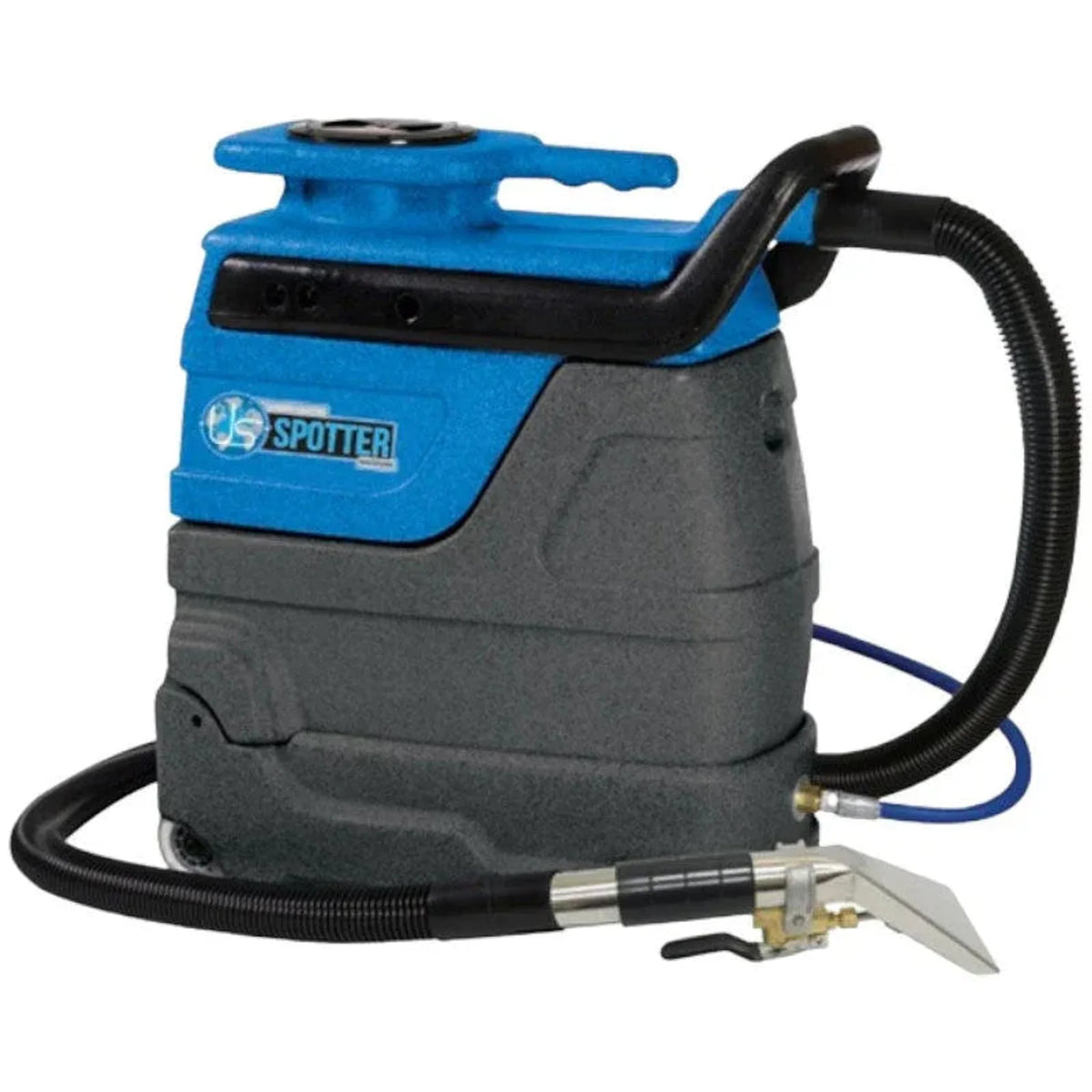

Sandia 50-4100 Heated Spot Extractor – 100 PSI, 600W Heater, 3-Gallon

Sandia 50-4100 Heated 3-Gallon Spot Extractor – 100 PSI, 200°F, 15 Ft Hoses

The 50-4100 is the heated version of Sandia's 3-gallon spot extractor line — the only model in the 50-series that combines a 100 PSI pump with a 600W in-line heater. The heater raises solution temperature to 200°F before it contacts the surface, which breaks down protein-based stains (food, blood, pet waste) more effectively than cold or warm water alone. Compared to the unheated 50-1006 (55 PSI, 29 lbs), the 50-4100 doubles the pump pressure and adds 13 lbs for the heater assembly.

50-4100 Specifications and Heater Mechanics

• Pump: 100 PSI Flojet — nearly double the 55 PSI in the 50-1006 and Super Spotter series; higher pressure injects solution deeper into carpet pile and denser upholstery fabric
• Heater: 600W in-line unit raises solution to 200°F — the same target temperature as Sandia's full-size heated extractors (80-3300-H, 86-2100-H, etc.), achieved with lower wattage due to the smaller solution flow rate
• Vacuum motor: 2-stage Ametek, 804W — produces 100 CFM airflow and 76" water lift; the 76" lift is lower than the Super Spotter's 98.8" lift, which may reflect different Ametek motor configurations between the two units
• Hoses: 15 ft vacuum and solution hoses — same length as the 50-1006; allows machine-in-doorway operation
• Power cord: 20 ft — 5 ft shorter than the 50-1006's 25 ft cord; total working radius from outlet is approximately 35 ft
• Tank capacity: 3 gal solution + 3 gal recovery
• Weight: 42 lbs — 13 lbs heavier than the 50-1006 (29 lbs) due to the heater assembly; still one-person portable
• Dimensions: 25"×11"×29", body: roto-molded polyethylene, 115V/60Hz
• Tool: 4" stainless steel upholstery tool

When Heated Extraction Justifies the Upgrade

Heat changes the chemistry of spot cleaning, not just the temperature. Protein-based soils (blood, vomit, food) denature at elevated temperatures, breaking their bond with carpet and upholstery fibers more readily than with cold water. Oily soils from cooking grease or skin oils emulsify more quickly with hot solution. In medical facilities, senior living, and food service environments where these soil types are common, the 200°F solution temperature reduces the number of extraction passes needed to achieve visible results. The 100 PSI pump adds another advantage: it penetrates denser materials — Scotchgard-treated commercial carpet, vinyl-backed hospitality fabrics — where 55 PSI units deliver solution only to the surface.

50-4100 vs 50-1006: Choosing Based on Soil Type

For general spot cleaning — spilled beverages, mud, tracked-in soil — the 50-1006 at 55 PSI without heat is sufficient and lighter. For protein-based or oily stains, sanitization requirements, or surfaces where chemical cleaning alone has not achieved results, the 50-4100's 100 PSI and 200°F heater combination addresses what the 50-1006 cannot. The weight difference (42 lbs vs 29 lbs) is meaningful only when the machine is carried frequently — for facilities that leave it on a cart or wheel it between rooms, the weight difference is negligible.

Documents

Spec Sheet – Sandia 50-4100

Owner's Manual – Sandia 50-4100

Model	50-4100
Solution Tank	3 gal
Recovery Tank	3 gal
Pump Pressure	100 PSI (Flojet)
Heater	600W in-line, up to 200°F
Vacuum Motor	2-stage Ametek, 804W
Airflow	100 CFM
Water Lift	76"
Hoses	15 ft vacuum + 15 ft solution
Upholstery Tool	4" stainless steel
Power Cord	20 ft
Voltage	115V / 60Hz
Dimensions	25" × 11" × 29"
Weight	42 lbs
Body Material	Roto-molded polyethylene
