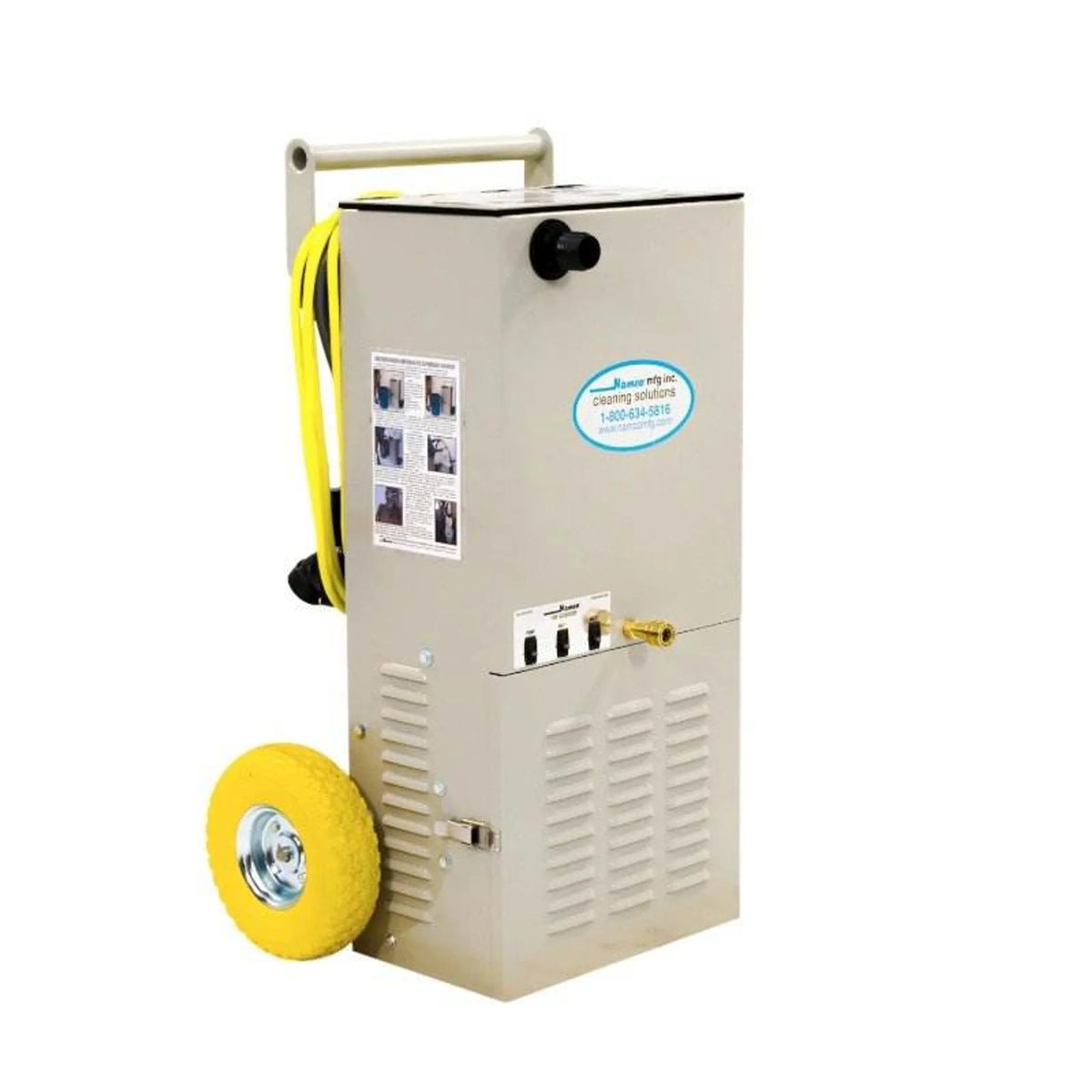

Namco Scooter Junior 4108 Carpet Extractor – 120 PSI, 180" Water Lift, 10 Gallon

Namco Scooter Junior 4108 Commercial Carpet Extractor – Dual 2-Stage Motors, 120 PSI, 10-Gallon Recovery

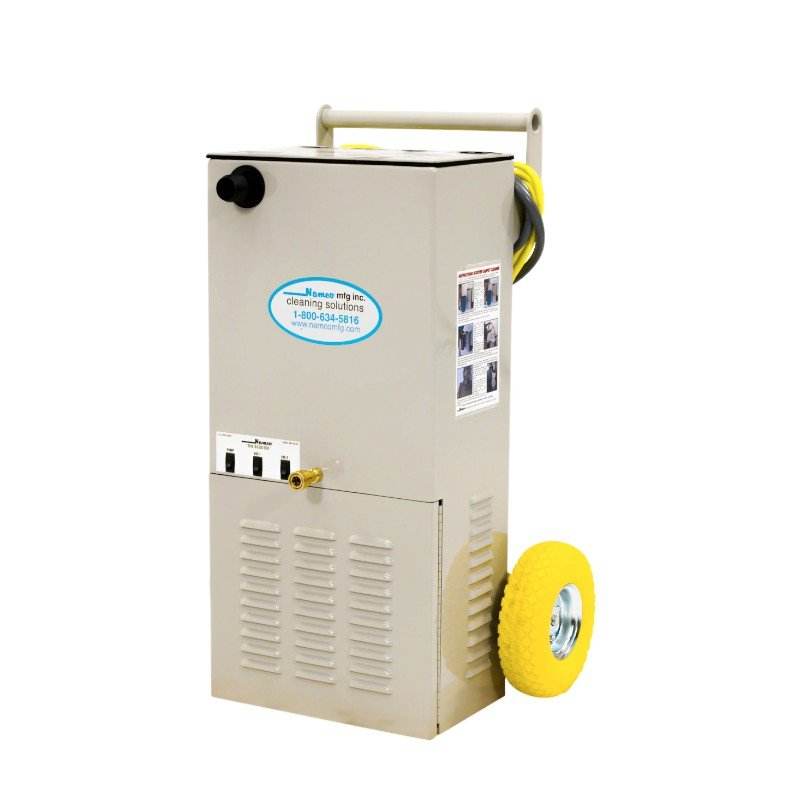

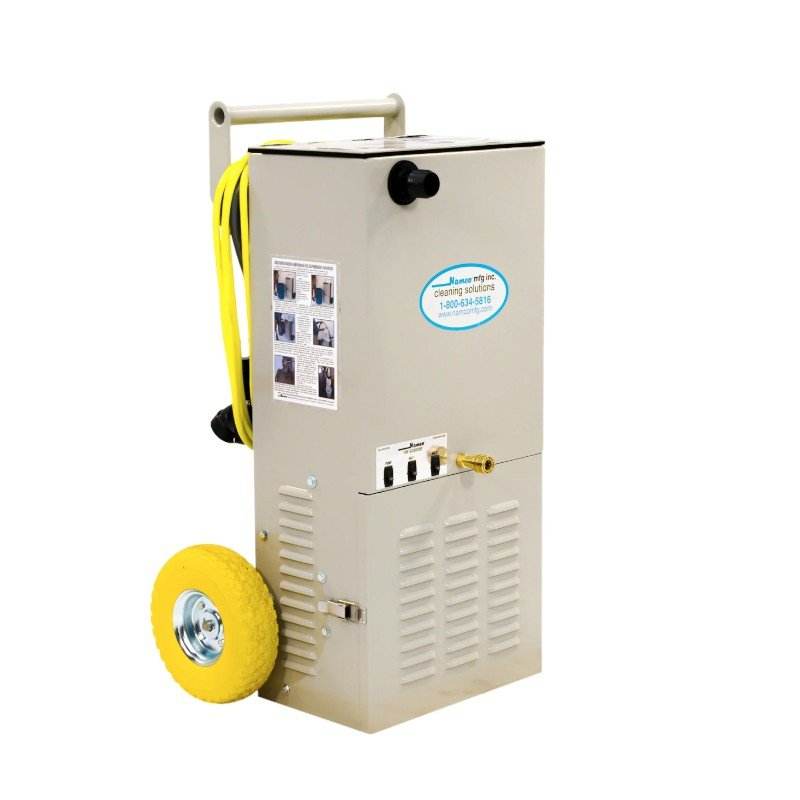

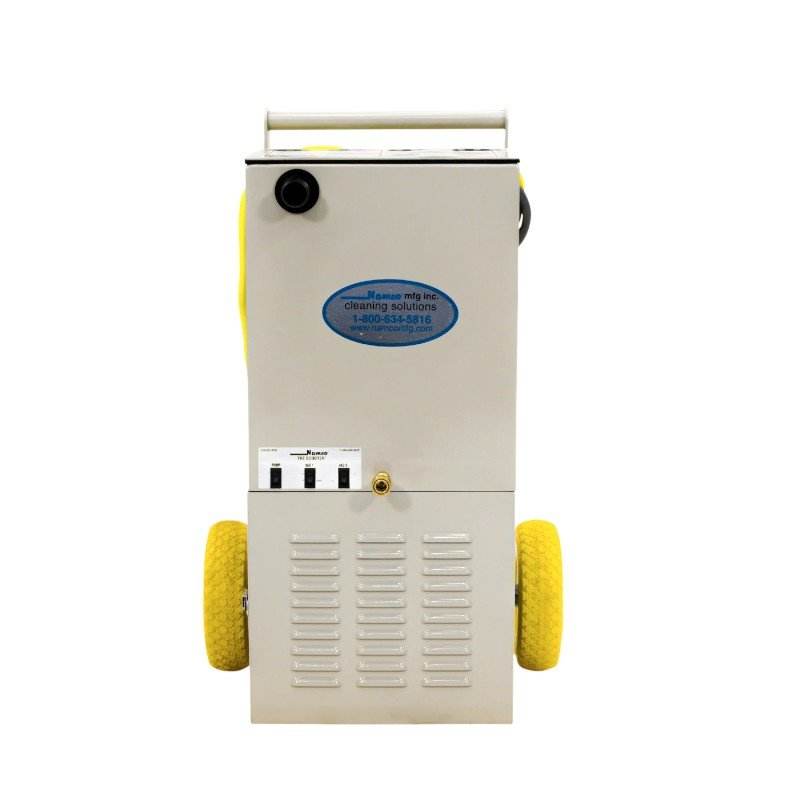

The Namco Scooter Junior 4108 is a heavy-duty, US-made carpet extractor built on an aircraft-grade aluminum chassis with dual two-stage vacuum motors delivering 180" of water lift and 180 CFM of airflow. A 120 PSI solution pump, 10-gallon recovery tank, and 50-foot hose set give professional cleaning crews the extraction power and reach for large-area commercial jobs — hotels, offices, restoration sites — while a built-in dump valve eliminates the manual carry-and-pour routine. At 150 lbs shipping weight, the Scooter Junior rolls on pneumatic wheels and fits through standard commercial doorways at 16" wide.

Scooter Junior 4108 Motor, Pump, and Structural Specifications

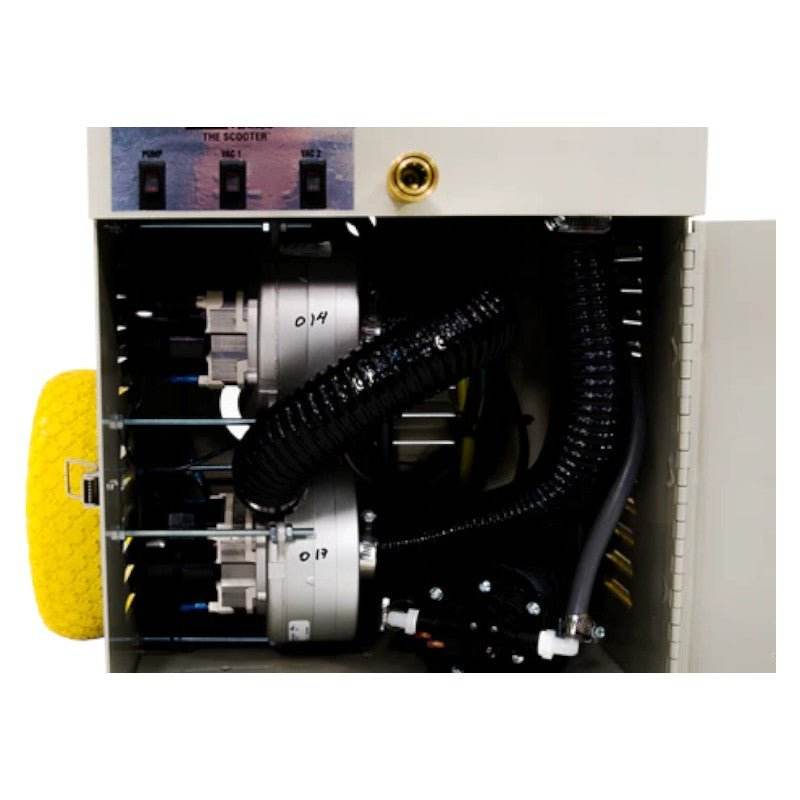

• Vacuum motors: dual 2-stage — 180" water lift / 180 CFM combined; deep extraction leaves carpets significantly drier than single-motor extractors
• Solution pump: 120 PSI — consistent pressure through 50 feet of solution hose without pressure drop at the wand
• Recovery tank: 10 gallons — reduces the number of dump cycles on large jobs; built-in dump valve empties directly into a toilet or floor drain without lifting

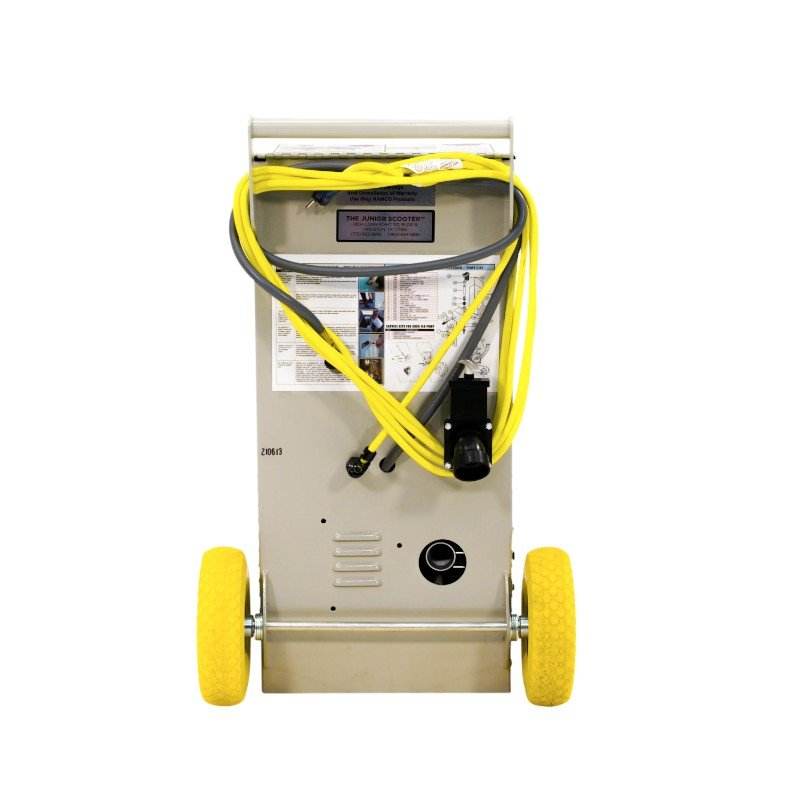

• Hoses: 50-ft solution + 50-ft vacuum — covers large rooms and corridors without repositioning the machine
• Floor wand: stainless steel single-jet, 12" path — included in the standard kit
• Body: aircraft-grade aluminum — corrosion-resistant and lighter than steel for a machine of this extraction capacity

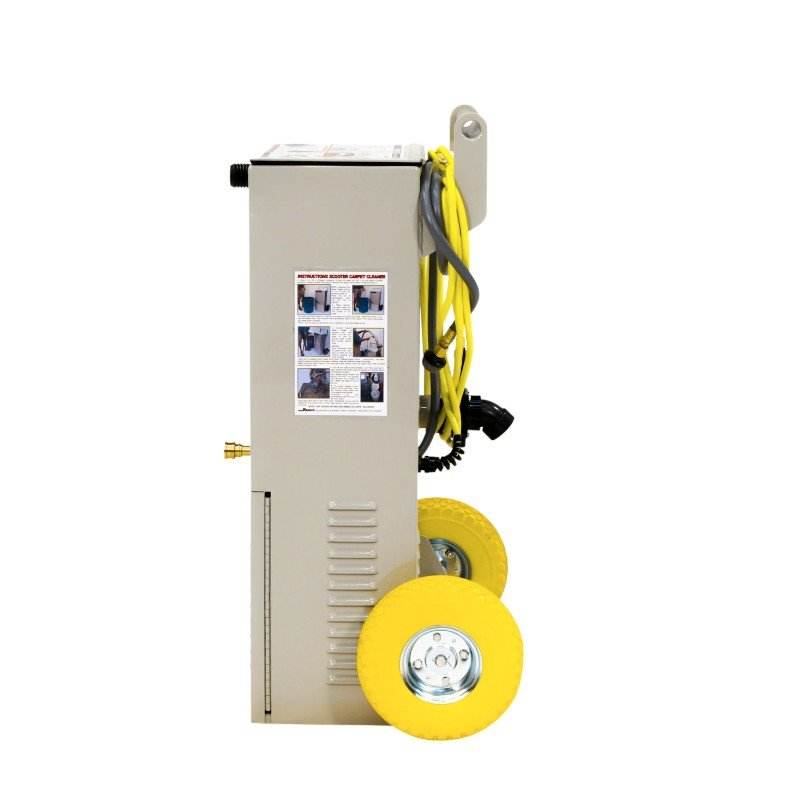

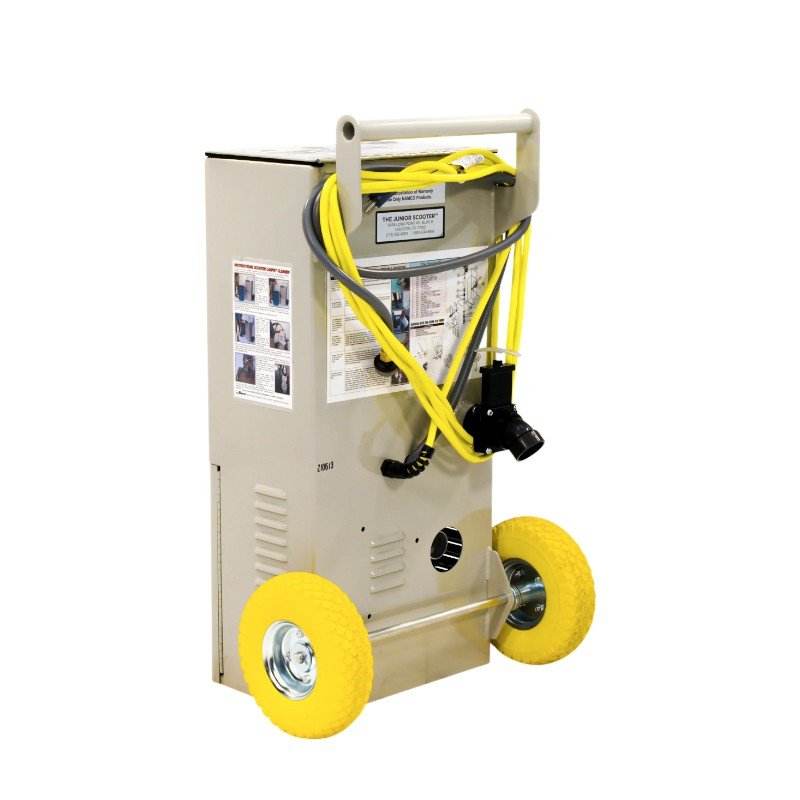

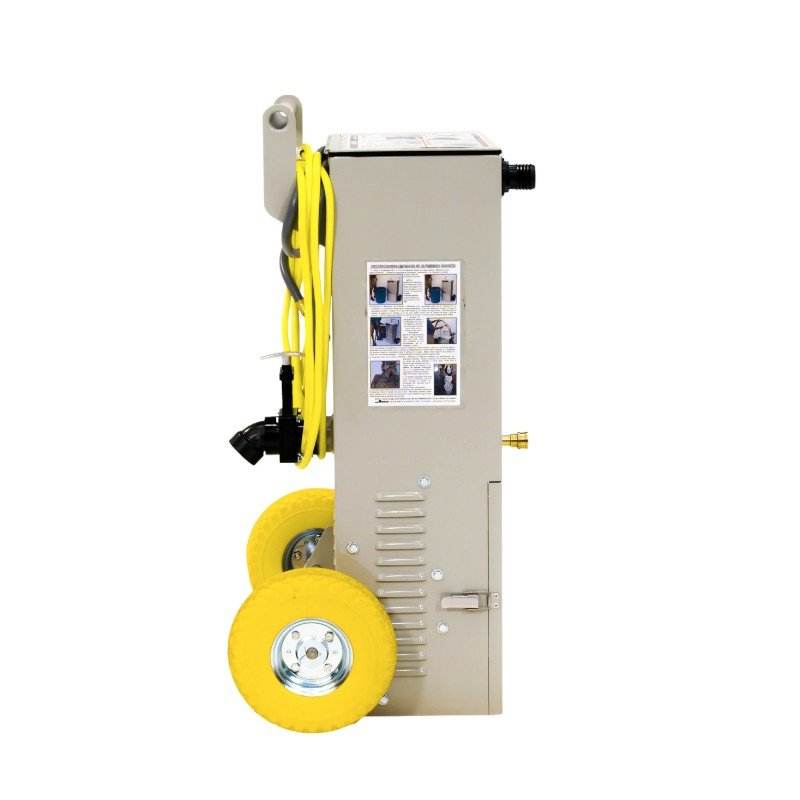

• Wheels: pneumatic — absorb impact on transitions between floor types and on ramps
• Voltage: 120V, NEMA 5-15P — standard commercial circuit, corded for continuous operation

Professional Cleaning Applications for the Scooter Junior 4108

The Scooter Junior 4108 handles the extraction demands that smaller spotters cannot sustain — full carpet replacement prep cleaning in hotels, flood and water damage mitigation where rapid water removal is critical, large office suites where 50-foot hoses allow one-position cleaning of entire wings, and automotive detailing shops that clean vehicle interiors and floor mats. The dual 2-stage motor configuration produces 180" of water lift, which is notably higher than typical single-motor portables that max out at 100–120", and that lift difference is what pulls moisture out of low pile and loop carpet constructions that otherwise take hours longer to dry. Upholstery cleaning crews also use this machine with the optional upholstery hand tool for fabric seating in theaters, waiting rooms, and transportation fleets.

120 PSI Pump Performance, Dump Valve, and Included Tool Kit

The 120 PSI solution pump maintains consistent pressure at the 12" stainless steel floor wand through all 50 feet of solution hose — a meaningful spec because many portable extractors rated at 120 PSI at the pump lose 20–30 PSI through long hose runs, reducing their effective cleaning pressure. The Scooter Junior's two-stage motor design means each motor uses two impeller stages to generate vacuum, which is more efficient than single-stage motors of equivalent amperage. The built-in dump valve connects to a standard drain or toilet flange — no tools required — so operators empty 10 gallons of dirty water in seconds rather than disconnecting a tank and carrying it across a room. The machine ships with a stainless steel single-jet floor wand, 50-foot vacuum hose, and 50-foot solution hose as a complete operating kit.
