NaceCare TVL 850/150T 918291 Ride-On Scrubber – 26"/34" Path, 3×NX1K, 3 Hr

NaceCare TVL 850/150T 918291 – Ride-On Scrubber with Adjustable 26"–34" Path and 3×NX1K Batteries

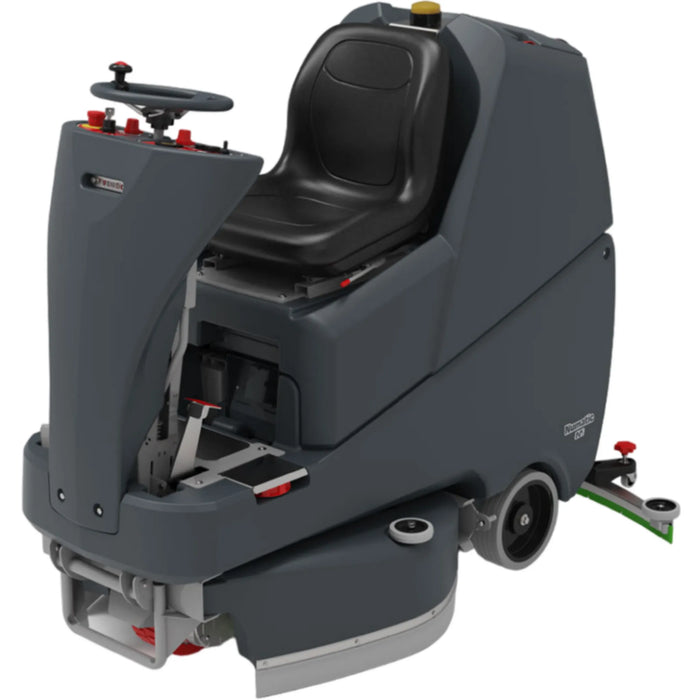

The NaceCare TVL 850/150T (part number 918291) is a professional ride-on floor scrubber with three selectable scrubbing widths — 26", 30", and 34" — powered by three NX1K lithium phosphate batteries delivering 3 hours of runtime. At 160 lbs of brush pressure, 212 RPM, and 32-gallon solution and recovery tanks, it covers 52,500 square feet per hour across hospitals, warehouses, universities, airports, and large commercial facilities.

TVL 850/150T Adjustable Scrubbing Widths and 3×NX1K Runtime Performance

• Three selectable widths — 26", 30", 34": a single machine adapts to narrow corridor passes (26"), medium-width aisles (30"), and open floor sections (34") without swapping decks or machines.
• 160 lb brush pressure at 212 RPM: high downforce with high brush speed — the combination most effective at dislodging embedded soil and finish buildup on high-traffic hard floors.
• 3×NX1K lithium phosphate batteries, 3-hr runtime: three NX1K cells deliver 3 hours of sustained cleaning; recharge takes 7 hours; NX1K cells support 4,000+ cycles with zero maintenance.

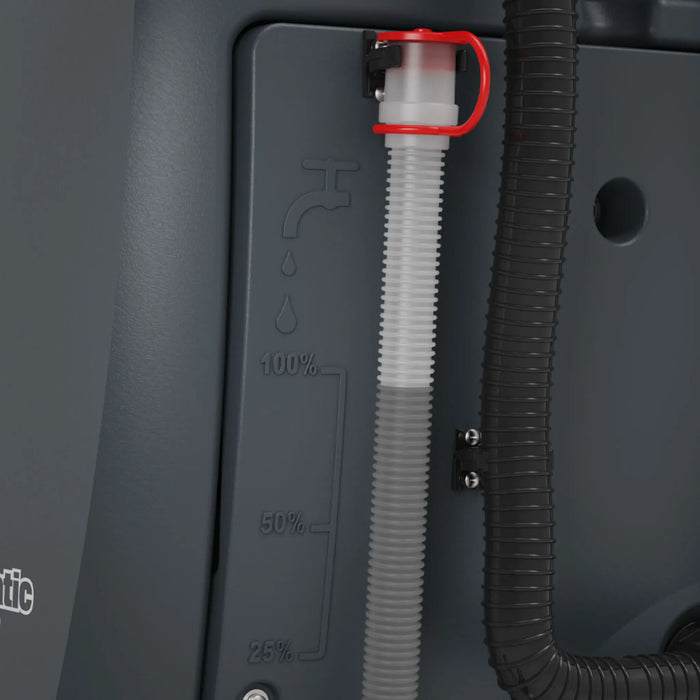

• 32-gal solution / 32-gal recovery tanks: high-capacity matched tanks minimize refill interruptions across large facility cleaning runs.
• 52,500 sq ft/hr working capacity: capable of cleaning a 250,000 sq ft warehouse floor in under 5 hours at full-width 34" operation.
• Adjustable water flow 0.25–1.0 GPM: low flow for maintenance scrubbing on lightly soiled floors; high flow for heavily soiled or stripped floors requiring deeper chemical penetration.

Large Facility Applications and Scrubbing Width Selection

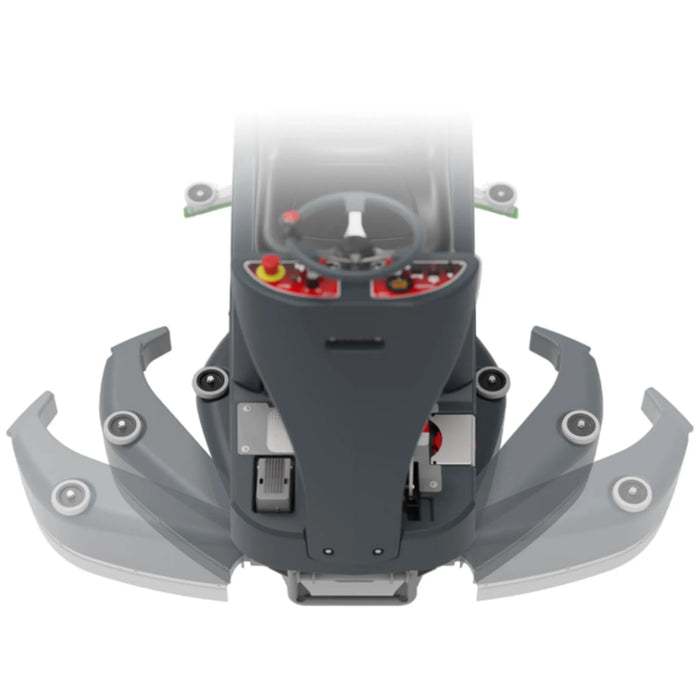

The three scrubbing width options directly impact where the TVL 850/150T can operate in a facility. At 26", the machine passes through standard doorways and cleans narrow service corridors. At 30", it handles medium-width aisles between warehouse racking. At 34", it cleans open warehouse floor sections at maximum coverage rate. The pop-on/pop-off brush system allows tool-free pad changes between aggressive scrubbing brushes and softer maintenance pads, enabling the same machine to handle both daily maintenance and periodic deep-clean or stripping tasks.

TVL 850/150T LED Control Panel and Optional Chemical Dispenser

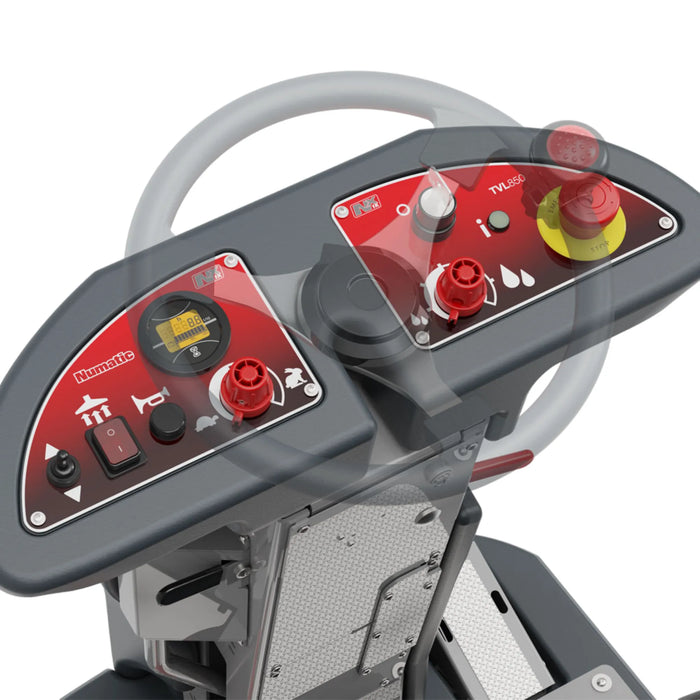

The LED control panel displays battery status, water flow rate, brush pressure, and chemical level in real time — giving operators and supervisors immediate visibility into machine performance without guessing or stopping to inspect. The optional onboard chemical dispenser handles ratios from 32:1 to 128:1, automatically diluting chemical concentrate at the correct ratio and eliminating over-concentration errors that damage floors or under-concentration that reduces cleaning effectiveness. A grounding strip prevents static buildup during operation in environments where static discharge is a concern, such as electronics warehouses or pharmaceutical facilities.
