NaceCare NA 20SS Floor Machine – 175 RPM, 1.5 HP, 20

NaceCare NA 20SS Floor Machine – 175 RPM, 1.5 HP, 20", 96 lbs

Brand: NacecareSKU: 8025230In Stock – Ready to Ship
$1,999.00$2,299.00Save $300.00
FREE SHIPPING on this item

Ships from US manufacturer with factory warranty

Ach Direct DebitAmazon American Express Apple Pay Diners ClubDiscoverGoogle Pay MastercardPayPalShop Pay USDC Visa
Authorized RetailerFactory-authorized dealer with genuine products
Manufacturer's WarrantyFull manufacturer warranty included
30-Day ReturnsHassle-free returns within 30 days
Lowest Price GuaranteedWe match any competitor's price
Ordering 3+ units? Call for volume pricing – (978) 295-7538
Order before 5:00 PM EST for same-day dispatch. Estimated delivery:

Need help choosing? Talk to an expert

(978) 295-7538

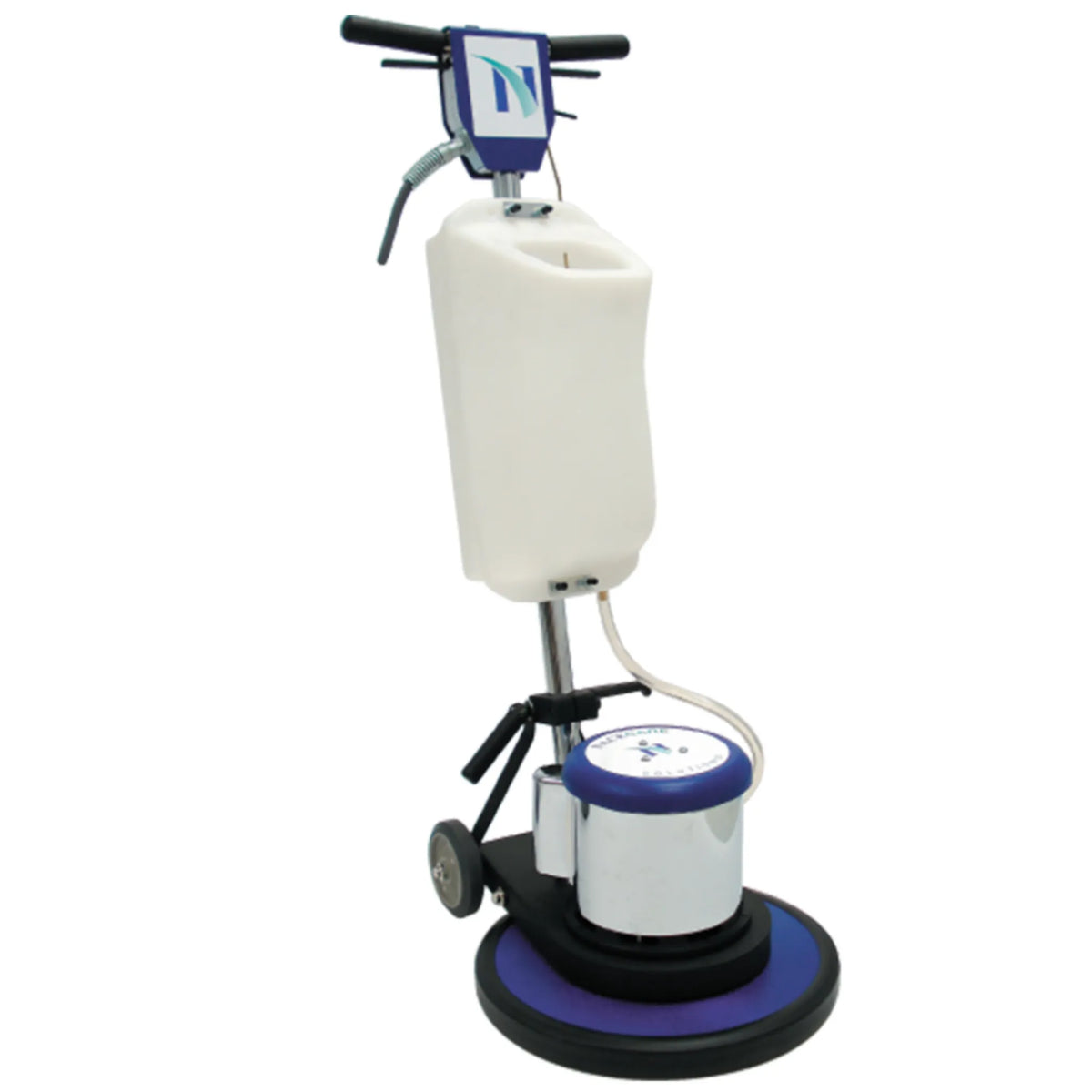

NaceCare NA 20SS 20" Standard-Speed Floor Machine — 175 RPM, 1.5 HP, All-Steel

The NaceCare NA 20SS is a heavy-duty single-speed floor machine engineered for the two most physically demanding floor maintenance tasks: deep scrubbing and finish stripping. Its all-steel construction, dual planetary gear drive, and 96-lb operating weight combine to deliver consistent pad pressure across 20" of cleaning path — the kind of mechanical force that chemical dwell time alone cannot replicate on heavily soiled or heavily coated concrete, vinyl composite tile, and terrazzo floors.

NA 20SS Motor, Drive, and Construction

  • Brush speed: 175 RPM — the standard operating speed for scrubbing and stripping; compatible with the full range of 175-RPM floor pads.
  • Motor: 1.5 HP, 115V, 60 Hz — commercial-duty motor sized for continuous operation in institutional and industrial environments.
  • Drive: Dual planetary steel gears — superior torque capacity and smoother pad rotation than single-gear machines; reduces gear wear on heavy stripping pads.
  • Pad size: 20" — wide cleaning path covers more square footage per pass, reducing operator time on large floor areas.
  • Power cord: 50' — extended reach covers standard commercial room layouts without relocating the power source.
  • Optional shampoo tank: 4.0 US gallons — adds solution dispensing for carpet shampooing and wet scrubbing applications.
  • Weight: 96 lbs — purpose-built machine weight provides downward pad pressure without requiring the operator to lean on the machine.

Applications: Scrubbing, Stripping, and Facility Maintenance

At 175 RPM, the NA 20SS operates in the standard-speed range suited for daily and periodic maintenance tasks. Janitorial contractors and in-house facility teams use it for routine scrubbing of resilient floors using red or green pads that remove soil and light marks without cutting into the finish coat. For periodic stripping — removing built-up finish layers before recoating — operators fit a black stripping pad, where the NA 20SS's 96-lb weight applies the mechanical pressure needed to break the finish bond without requiring excessive chemical stripper concentration. Schools, hospitals, public buildings, and commercial facilities with high foot traffic and resilient flooring are the primary operating environments. The machine is also used in light industrial and warehouse settings where concrete floors require regular maintenance scrubbing.

175 RPM Pad Selection and Operator Fatigue

At 175 RPM, pad color is a reliable guide to abrasiveness and task assignment. Black pads are the most aggressive — used for stripping old finish coats; they work with the machine's 96-lb weight to mechanically shear through multiple layers. Red pads clean and lightly buff without removing the finish coat, suitable for regular interim cleaning between strip-and-recoat cycles. Green pads fall between red and black — moderate abrasion for scrubbing soiled floors that do not yet need stripping. Because the NA 20SS's 96 lbs of machine weight handles pad pressure mechanically, operators do not need to bear down on the handle, reducing fatigue during extended scrubbing sessions. The handle-mounted controls and balanced drive keep the machine tracking straight, so operators expend effort guiding rather than correcting the machine's path.

Model NA 20SS (Part No. 8025230)
Brush Speed 175 RPM
Pad Size 20"
Motor 1.5 HP
Voltage 115V, 60 Hz
Drive Dual planetary steel gears
Power Cord 50'
Weight 96 lbs
Shampoo Tank (optional) 4.0 US gallons
Construction All-steel throughout
Package Dimensions 46" H × 26" L × 21" W

Documents

Spec Sheet
Manual

Manufacturer's Warranty

This product comes with a full manufacturer's warranty. All warranty claims are handled directly by the manufacturer.

For specific warranty details, please contact us at (978) 295-7538 or email info@uscleaningtools.com

Product Image
Added to cart
NaceCare NA 20SS Floor Machine – 175 RPM, 1.5 HP, 20NaceCare NA 20SS Floor Machine – 175 RPM, 1.5 HP, 20", 96...
View Cart

Frequently Asked Questions

What is the operating speed of the NaceCare NA 20SS?
The NA 20SS runs at a single speed of 175 RPM — the standard operating speed for scrubbing and stripping tasks on resilient and hard floors.
What pad size does the NA 20SS use?
The NA 20SS uses a 20" pad. At 175 RPM, it is compatible with standard floor pads: black (stripping), red (cleaning/buffing), and green (scrubbing). Pad holders and driver discs for 20" pads are widely available.
Why does the NA 20SS weigh 96 lbs?
The 96-lb machine weight is intentional — it applies consistent downward pad pressure mechanically so operators do not need to lean on the handle. This reduces operator fatigue during extended stripping or scrubbing runs and produces more consistent results across the full 20" cleaning path.
Does the NaceCare NA 20SS include a shampoo tank?
The shampoo tank is an optional accessory with a 4.0-gallon capacity. It is not included in the standard machine (Part No. 8025230) but can be added for carpet shampooing and wet scrubbing applications.
What is the part number for the NaceCare NA 20SS?
The NA 20SS is sold under part number 8025230. The machine is manufactured by NaceCare Solutions and is also listed as 8025238 by some distributors; verify part number with the seller to confirm the standard configuration.
What type of gear drive does the NA 20SS use?
The NA 20SS uses dual planetary steel gears, which provide greater torque capacity and smoother pad rotation than single-gear floor machines — particularly important when running aggressive black stripping pads under heavy load.
