Mi-T-M JCW-3504-2MHB Belt Drive Pressure Washer: 3500 PSI, Honda-Powered for Jobsite Cleaning

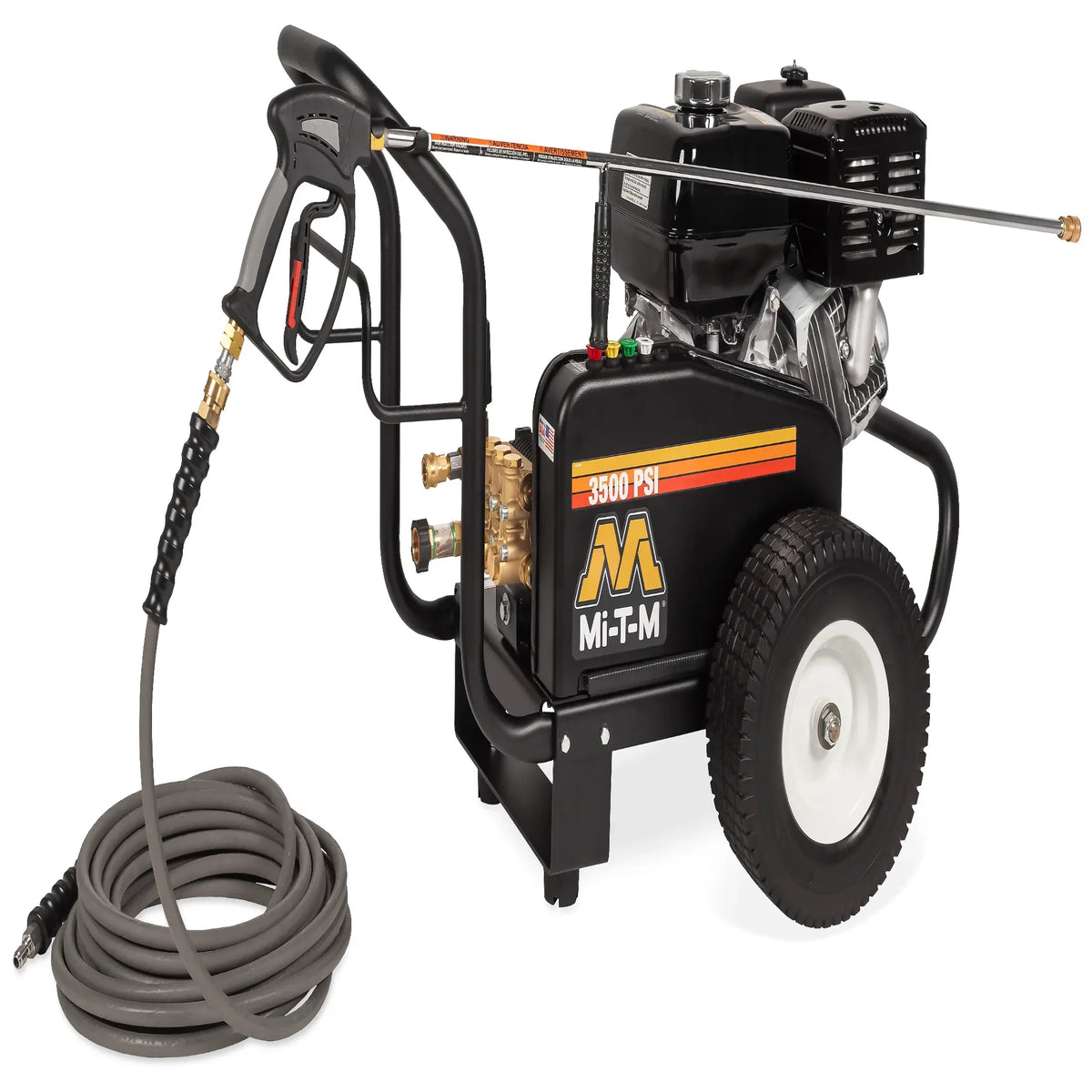

The Mi-T-M JCW-3504-2MHB is a gasoline belt-drive pressure washer producing 3500 PSI at 3.7 GPM through a Honda GX390 OHV 389cc engine and an AR pump with Mi-T-M Pressure Relief Start. Its powder-coated steel frame with enclosed two-piece belt guard and 13-inch flat-free tires make it a go-anywhere unit built for agriculture, construction, and fleet maintenance operations.

JCW-3504-2MHB Pump and Drive System

  • AR pump with forged brass manifold — handles continuous high-pressure output without thermal fatigue
  • Thermal relief valve and clear-sleeve water filter — stops heat buildup and allows inline inspection without tools
  • Mi-T-M Pressure Relief Start — reduces pull-cord resistance and extends pump life between service intervals
  • Belt drive system with enclosed two-piece guard — absorbs shock loads to deliver smooth torque at the pump shaft
  • Factory-optional CX-0082 / CX-0085 external bypass — ordered at factory for operations with frequent trigger-off intervals

Jobsite Environments Suited for the JCW-3504-2MHB

Agricultural facilities running livestock equipment, combine cleanout, or post-harvest barn washdowns benefit from the 3500 PSI output and portable 195 lb frame that moves on 13-inch flat-free tires without needing flat repairs mid-shift. Construction contractors cleaning concrete forms, scaffolding, and heavy equipment between pours rely on the Honda GX390 for consistent restarts in dusty site conditions. Fleet washing operations with multiple vehicles per shift can pair the unit with a 200-gallon trailer tank using the 3/4-inch barb inlet. The 50-foot x 3/8-inch non-marking hose and 48-inch lance keep operators away from spray rebound on all four nozzle angles (0°, 15°, 25°, 40°).

Regulatory Compliance and Included Kit

This model is not for sale in California; gasoline-powered Mi-T-M washers sold in California require CARB-compliant engines available through separate models. The JCW-3504-2MHB ships with quick-connect nozzle set (0°, 15°, 25°, 40°), one 50-foot x 3/8-inch non-marking hose, and an insulated trigger gun rated for the operating pressure. Spec Sheet and Operator Manual are available below.

PSI 3500
GPM 3.7
Engine 389cc Honda GX390 OHV
Pump AR
Unloader Mi-T-M Adjustable Pressure
Lance Length 48 in.
Net Weight 195 lbs
Shipping Weight 249 lbs
Dimensions (L×W×H) 39.5 × 28.5 × 26 in.

Documents

Spec Sheet
Manual

Product Warranty Information

"1 Year Unloader, 3 Year Honda Engine, 7 Year AR Pump"
Product Image
Added to cart
Mi-T-M JCW-3504-2MHB Belt Drive Pressure Washer – 3500 PSI, 3.7 GPM, Honda GX390Mi-T-M JCW-3504-2MHB Belt Drive Pressure Washer – 3500 PS...
View Cart

Frequently Asked Questions

What is the cleaning power rating of the JCW-3504-2MHB?
The JCW-3504-2MHB produces 3500 PSI at 3.7 GPM, yielding 12,950 cleaning units (CU) — sufficient for removing caked concrete, oil stains, and organic buildup from equipment surfaces.
Which engine powers this pressure washer?
It runs on a Honda GX390 OHV 389cc engine with recoil start. The GX390 is rated for 11.7 gross HP and carries Honda's commercial engine warranty.
What pump type does the JCW-3504-2MHB use?
It uses an AR belt-drive pump fitted with a forged brass manifold, thermal relief valve, and Mi-T-M Pressure Relief Start. AR pumps are designed for continuous-duty use and field-serviceable with standard parts.
Can the JCW-3504-2MHB be sold in California?
No — this model is not available for sale in California because its engine does not carry CARB certification. Buyers in California must select a CARB-compliant Mi-T-M model.
What hose length and diameter come included?
The unit ships with a 50-foot x 3/8-inch non-marking hose rated for the 3500 PSI operating pressure, plus an insulated trigger gun and four quick-connect nozzles (0°, 15°, 25°, 40°).
What is the weight and frame material?
The JCW-3504-2MHB weighs 195 lbs net and ships at 249 lbs. The frame is powder-coated steel with a two-piece enclosed belt guard and 13-inch flat-free tires for terrain mobility.
Is an external bypass system available for this model?
Yes — the CX-0082 or CX-0085 external bypass system is available as a factory-order option to protect the pump from heat buildup during extended trigger-off periods.
