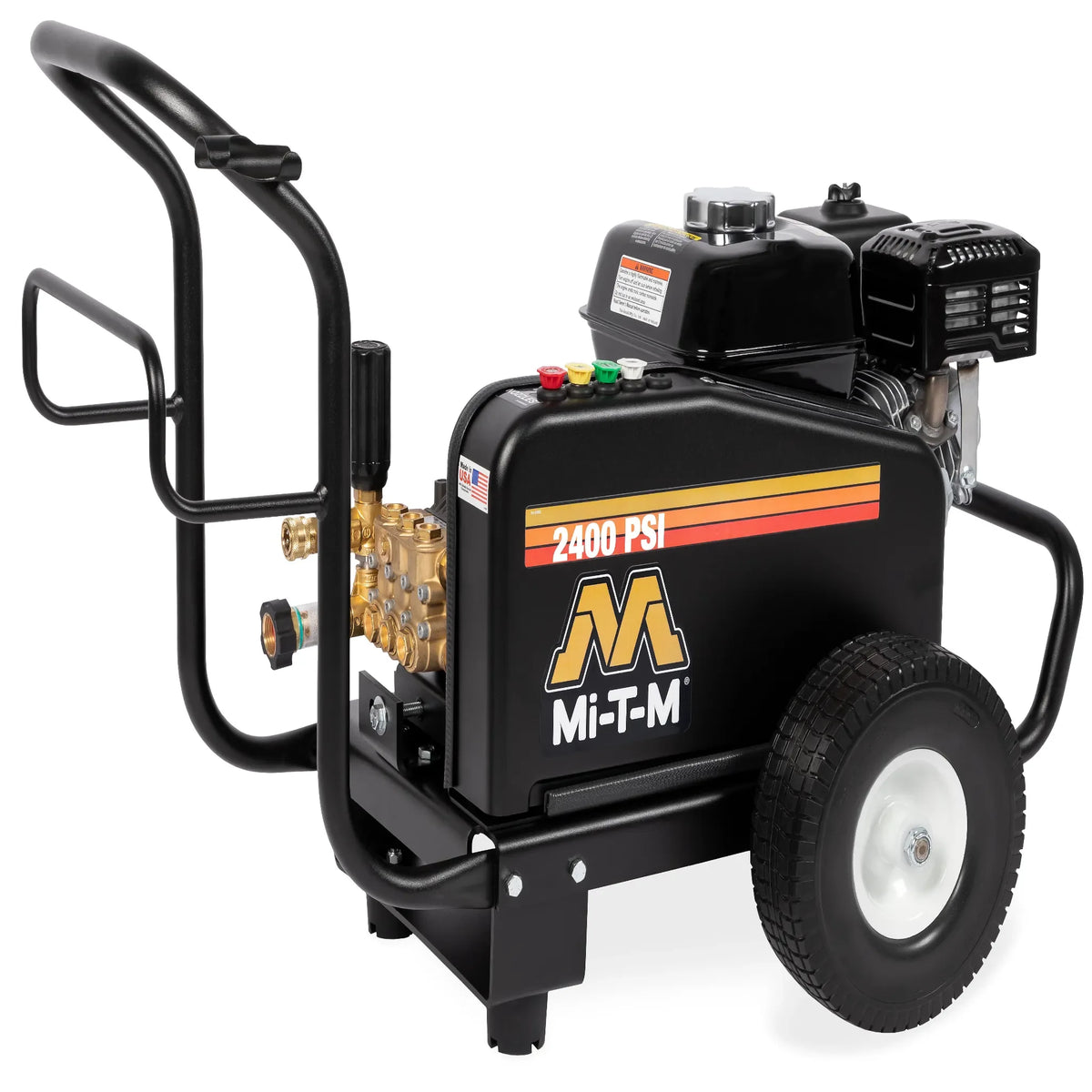

Mi-T-M JCW-2403-0MHB Gasoline Belt Drive Pressure Washer – 2400 PSI, 2.8 GPM, Honda GX200

Mi-T-M JCW-2403-0MHB Gasoline Belt Drive Pressure Washer – 2400 PSI, 2.8 GPM, Honda GX200

Brand: Mi-T-MSKU: JCW-2403-0MHBIn Stock – Ready to Ship
$2,145.00
FREE SHIPPING – You save $200+ on freight

Ships from US manufacturer with factory warranty

Ach Direct DebitAmazon American Express Apple Pay Diners ClubDiscoverGoogle Pay MastercardPayPalShop Pay USDC Visa
Authorized RetailerFactory-authorized dealer with genuine products
Manufacturer's WarrantyFull manufacturer warranty included
30-Day ReturnsHassle-free returns within 30 days
Lowest Price GuaranteedWe match any competitor's price
Ordering 3+ units? Call for volume pricing – (978) 295-7538
Order before 5:00 PM EST for same-day dispatch. Estimated delivery:

Need help choosing? Talk to an expert

(978) 295-7538

Mi-T-M JCW-2403-0MHB: Belt Drive Gasoline Pressure Washer at 2400 PSI / 2.8 GPM

The Mi-T-M JCW-2403-0MHB delivers 2400 PSI at 2.8 GPM (6.72 cleaning units) through a belt-drive AR pump powered by a 196cc Honda GX200 OHV engine. At 178 lbs net, it rides on 10-inch flat-free tires for field mobility. The belt-drive connection reduces pump operating temperature and vibration compared to direct-drive designs, extending pump service life in sustained commercial use.

Belt Drive System, Honda GX200, and AR Pump Specifications

  • AR belt-drive pump — runs cooler and quieter than direct-drive; forged brass manifold with thermal relief valve for overheating protection
  • 196cc Honda GX200 OHV engine — commercial-grade engine with adjustable pressure unloader for precise PSI control
  • 2400 PSI / 2.8 GPM — 6.72 cleaning units suitable for fleet washing, construction equipment, and agricultural machinery
  • 10-inch flat-free tires — transport across gravel, mud, and uneven job-site terrain without flat risk
  • 36-inch lance — working distance reduces operator contact with spray blowback
  • 50-foot non-marking hose — reaches across vehicles and large surfaces without staining adjacent materials
  • Four quick-connect nozzles included — 0°, 15°, 25°, and 40° tips for surface-specific pressure patterns

Commercial Applications: Construction, Agriculture, and Fleet Washing

Concrete contractors use the JCW-2403-0MHB to strip forms, clean mixers, and wash cured concrete spatter from equipment. Agricultural operations wash combines, tractors, and livestock facilities where a fuel-independent electric unit is not practical in the field. Fleet maintenance managers use it at staging areas for exterior washing of trailers, work trucks, and heavy equipment between jobs. Municipalities deploy this unit for graffiti removal and sidewalk maintenance where portability matters.

Compliance, Optional Accessories, and Documents

Not for sale in California — 49-state engine only. California requires a CARB-compliant engine variant. The optional CX-0005 Insulated Dual Lance (36-inch, factory order only) allows switching between high and low pressure chemical injection without changing nozzle tips. Includes insulated trigger gun for operator safety.

PSI 2400
GPM 2.8
Engine 196cc Honda GX200 OHV
Pump AR (belt drive)
Unloader Adjustable pressure
Lance 36 in
Net Weight 178 lbs
Dimensions (L×W×H) 39.50 × 28.50 × 26.00 in

Spec Sheet | Manual

Product Warranty Information

"3 Year Honda Engine, 7 Year AR Pump"
Product Image
Added to cart
Mi-T-M JCW-2403-0MHB Gasoline Belt Drive Pressure Washer – 2400 PSI, 2.8 GPM, Honda GX200Mi-T-M JCW-2403-0MHB Gasoline Belt Drive Pressure Washer ...
View Cart

Frequently Asked Questions

What is the difference between belt drive and direct drive on the JCW-2403-0MHB?
A belt drive places a V-belt between the engine and pump, slowing the pump RPM to 1,400–1,450 RPM versus the engine's 3,400–3,600 RPM. Lower pump RPM reduces heat, vibration, and pump wear — extending service life significantly in daily commercial use.
What does the thermal relief valve on the AR pump do?
The thermal relief valve opens if water temperature inside the pump exceeds a set threshold (typically 145°F), releasing hot water before internal seals and check valves degrade. This protects the pump when the trigger gun is held closed for extended periods.
Is the JCW-2403-0MHB available in California?
No. The JCW-2403-0MHB uses a 49-state Honda GX200 engine not approved for California sale. A CARB-compliant engine is required for California; contact us for availability.
What nozzles are included with the JCW-2403-0MHB?
Four quick-connect nozzles are included: 0° (pencil jet for stubborn stains), 15° (stripping), 25° (general cleaning), and 40° (wide rinse). An insulated trigger gun is also included.
What is the dual lance option and when is it useful?
The optional CX-0005 Insulated Dual Lance (factory order only) lets you switch between high-pressure rinsing and low-pressure chemical injection from a single wand without disconnecting and reconnecting nozzle tips — saving time on detailing or degreasing jobs.
How far does the 50-foot hose reach?
The included 50-foot non-marking hose lets operators cover most vehicles, trailers, and equipment from a single unit position. For larger surfaces, Mi-T-M sells extension hoses compatible with quick-connect fittings.
What cleaning unit output does 2400 PSI / 2.8 GPM represent?
Cleaning units (CU) = PSI × GPM. The JCW-2403-0MHB produces 6,720 CU — sufficient for fleet washing, concrete cleaning, and graffiti removal on most commercial surfaces.
