Mi-T-M HS Series Gasoline Belt Drive, 4.0 GPM, Model HS-4004-1MAK

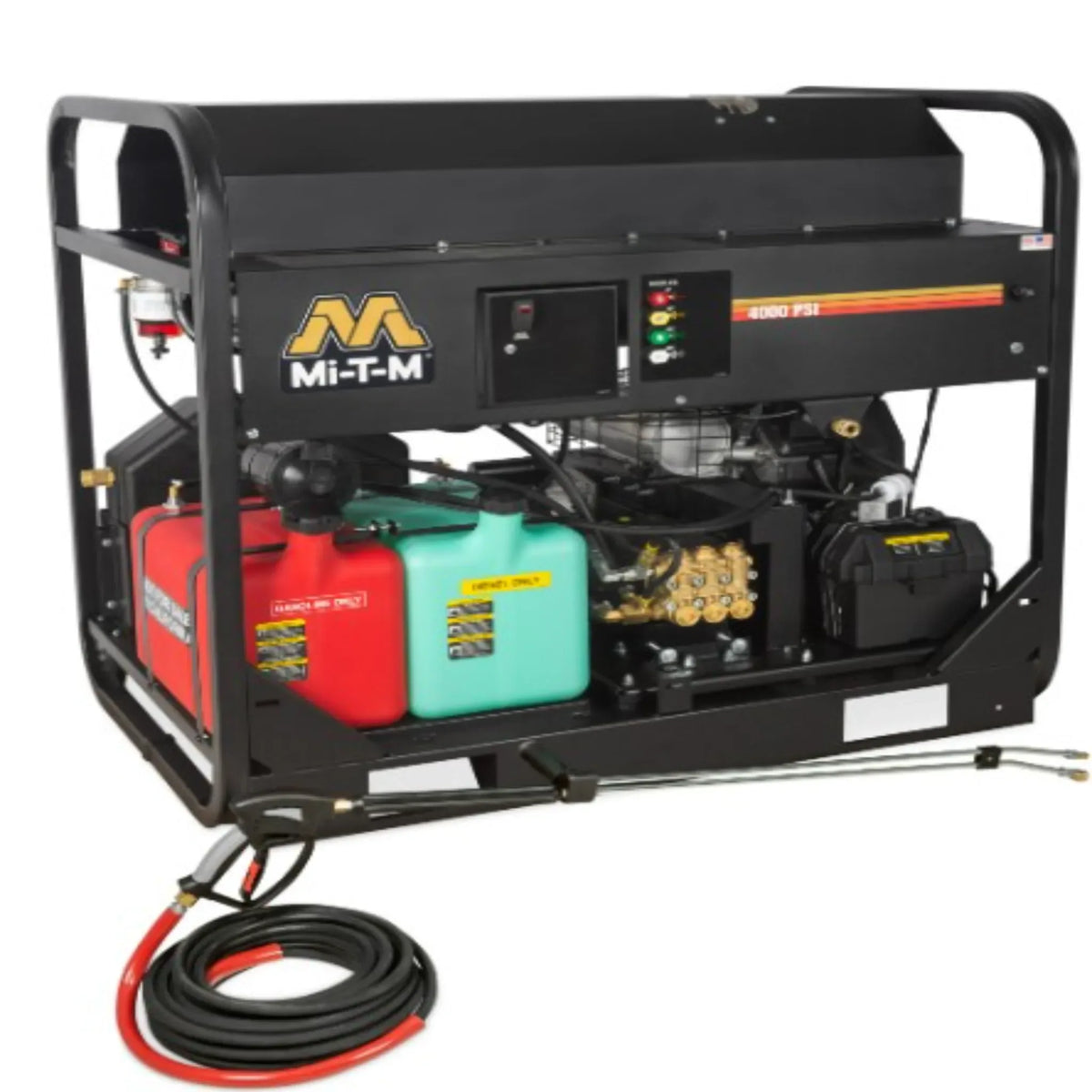

The Mi-T-M HS Series Gasoline Belt Drive Hot Water Pressure Washer (Model HS-4004-1MAK) delivers industrial-grade cleaning power wherever you need it. Designed for heavy-duty jobs, this portable unit can be mounted on a trailer or truck for mobile operations. With a 674cc Kohler CH640 OHV engine and a robust belt drive system, it provides the performance and reliability needed to tackle grease, grime, oil, and mud with ease.

Why You'll Love the Mi-T-M HS-4004-1MAK

  • Powerful Cleaning Performance – 4000 PSI at 4.0 GPM for efficient removal of the toughest buildup.
  • Commercial-Grade Reliability – Engineered with a Kohler OHV engine and AR pump for long-lasting durability.
  • Built for Mobility – Compact footprint ideal for mounting on trailers or trucks for mobile cleaning applications.
  • Consistent Hot Water Output – Delivers up to 200°F water temperature with a 150°F rise above ambient.
  • Durable Design – Heavy-duty powder-coated steel frame ensures protection and stability during transport and use.

Perfect For:

  • Contract cleaning professionals
  • Fleet maintenance and vehicle wash applications
  • Construction and industrial sites
  • Farm and equipment cleaning
  • Municipal and public works departments

Key Features and Benefits

  • Pump: External bypass system protects from heat build-up; factory preset unloader with forged brass manifold and stainless-steel inlet strainer for optimal flow.
  • Engine: 674cc Kohler CH640 OHV gasoline engine with electric start (sealed battery included).
  • Frame: Heavy-duty, powder-coated steel frame designed for durability and easy mounting.
  • Components: 2900-watt generator and dual cogged belt drive system for smooth operation; ½-inch Schedule 80 coil with stainless-steel wrap for longevity.
  • Fuel System: Burns No. 1 or No. 2 diesel or kerosene (not approved for bio-fuel).
  • Heat Performance: Provides a 150°F (66°C) temperature rise, reaching a maximum outlet temperature of 200°F.
  • Included Accessories: 50-ft x 3/8-inch steel wire-braided hose, adjustable dual lance with trigger gun, and quick-connect nozzles (0°, 15°, 25°, 40°).
  • Safety: Model includes trapping unloader (others include K7 flow actuated unloader); all gasoline models meet CARB compliance requirements for California (consult factory).
  • Optional Accessories (must be ordered with unit):
    • HX-0130 Three-way Ball Valve: Operate from garden hose, float tank, or trailer tank by adjusting the valve lever.
    • HX-0142 Steam Combination 250°F: Boosts outlet water temperature to 250°F.
    • HX-0145 Adjustable Thermostat: Allows operator to control water temperature between 86°F–248°F.
    • HX-0146 Hour Meter: Tracks total operating hours for maintenance planning.
    • HX-0147 Four Point Lifting Capability: Enables safe crane lifting and positioning.
    • HX-0148 Adjustable Detergent Valve: Injects soap through high pressure (requires trapping unloader; consult factory).

Specifications

Specification Value
PSI 4000
GPM 4.0
Displacement / Engine 674cc Kohler CH640 OHV
Pump AR
Engine Fuel Tank Capacity 10.0 gallon
Burner Fuel Tank Capacity 10.0 gallon
Burner Fuel Consumption 2.76 gph
BTU per Hour 386,400
Net Weight 750 lbs
Shipping Weight 854 lbs
Length 50.00 in
Width 34.00 in
Height 46.00 in

Documents

Spec Sheet

Manual
