Mi-T-M HMT-4004-0MGV Hot Water Mini Trailer – 4000 PSI, 3.7 GPM

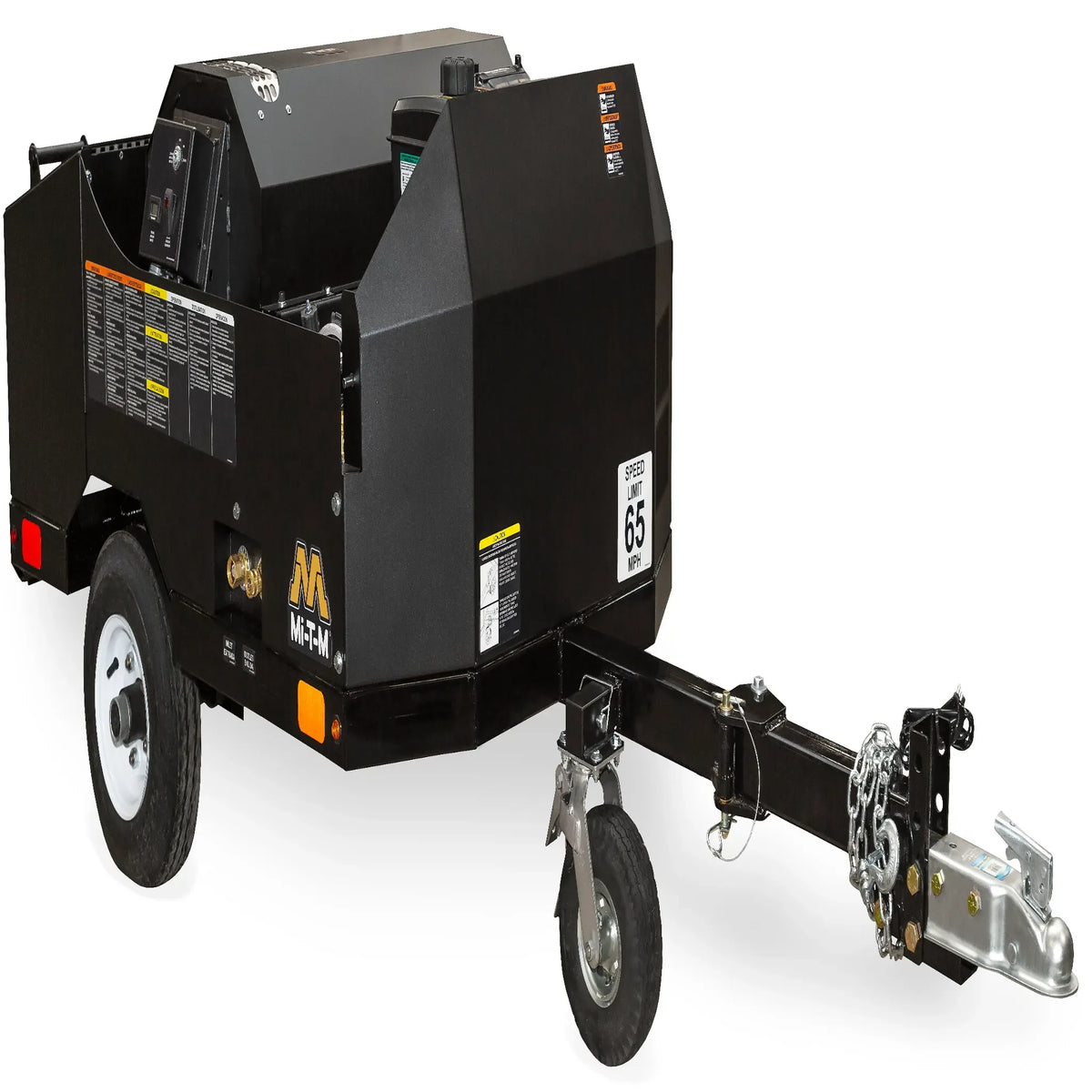

The Mi-T-M HMT-4004-0MGV is a trailer-mounted hot water pressure washer rated at 4000 PSI and 3.7 GPM, powered by a 408cc Vanguard OHV engine with a General pump. It produces 343,000 BTU/hr through a 12V Beckett burner and 4-pancake heat exchanger on a reinforced powder-coated steel frame. DOT approved, it tows with a standard 2-inch ball hitch and includes a 10.0-gallon burner fuel tank, 50-foot wire-braided hose, dual lance, and quick-connect nozzles.

Pressure and Heating Performance

  • Pressure: 4000 PSI at 3.7 GPM — sufficient for fleet washing, construction site degreasing, and heavy equipment cleaning.
  • Heating: 343,000 BTU/hr — raises water temperature significantly above ambient for hot water cleaning advantage on grease, oil, and biological contamination.
  • Engine: 408cc Vanguard OHV — reliable air-cooled gasoline engine with remote start and 12V electric start (battery not included).
  • Pump: General — adjustable pressure unloader, forged brass manifold, thermal relief valve for durability under sustained pressure.
  • Burner: 12V Beckett — runs on No. 1 or No. 2 fuel oil, diesel, or kerosene (bio-fuel not approved); 10.0-gallon burner tank at 2.45 gph consumption.
  • Frame — reinforced powder-coated steel with 2.875 cu.ft. locking storage and caster brake; DOT approved with removable safety flag.

Mobile Cleaning Applications

The HMT-4004-0MGV is used by mobile pressure washing contractors, fleet washing operations, construction site cleanup crews, agricultural cleaning operations, and municipal maintenance departments that need hot water cleaning capability at job sites without fixed infrastructure. The 1000 lb trailer is towed by a standard 2-inch ball hitch and includes 8-inch tires sized for highway towing. Optional accessories include a TX-0010 adjustable trailer coupler hitch and TX-0020 high-pressure hose reel — both must be ordered at time of unit purchase.

Safety Features

A 250°F high-temperature safety limit switch prevents over-temperature operation. The DOT-approved trailer design includes a removable safety flag and meets highway towing safety standards. The ½-inch Schedule 80 pipe coil and stainless-steel inlet strainer are designed for sustained high-pressure, high-temperature operation without the coil failure risk associated with thinner-walled heating components.

Specifications

Model HMT-4004-0MGV
Pressure 4000 PSI
Flow Rate 3.7 GPM
Engine 408cc Vanguard OHV
Pump General
BTU/hr 343,000
Burner Fuel No.1/No.2 oil, diesel, kerosene
Burner Tank Capacity 10.0 gal
Fuel Consumption 2.45 gph
Weight 1000 lbs
Dimensions (L × W × H) 99" × 43.5" × 36"

Documents

Spec Sheet

Manual

Product Warranty Information

"3 Year Vanguard Engine, 7 Year General Pump"
Product Image
Added to cart
Mi-T-M HMT-4004-0MGV Hot Water Mini Trailer – 4000 PSI, 3.7 GPM Mi-T-M HMT-4004-0MGV Hot Water Mini Trailer – 4000 PSI, 3...
View Cart

Frequently Asked Questions

What pressure and flow does the Mi-T-M HMT-4004-0MGV deliver?
The HMT-4004-0MGV delivers 4000 PSI at 3.7 GPM — suitable for fleet washing, construction site cleanup, heavy equipment degreasing, and agricultural cleaning operations.
What engine powers the HMT-4004-0MGV?
The HMT-4004-0MGV uses a 408cc Vanguard OHV gasoline engine with remote start and 12V electric start (battery not included). The engine fuel tank holds 1.51 gallons.
How much heat does the burner produce?
The 12V Beckett burner produces 343,000 BTU/hr using No.1/No.2 fuel oil, diesel, or kerosene from a 10-gallon burner tank at 2.45 gallons per hour fuel consumption.
Is the HMT-4004-0MGV DOT approved for highway towing?
Yes. The HMT-4004-0MGV is DOT approved and includes a removable safety flag. It tows with a standard 2-inch ball hitch. An optional TX-0010 adjustable coupler hitch is available if ordered with the unit.
What safety limit switch does the HMT-4004-0MGV include?
A 250°F high-temperature safety limit switch prevents over-temperature operation of the heating system, protecting the pump and plumbing components from damage.
What accessories are included with the HMT-4004-0MGV?
Included accessories are: quick-connect nozzles (0°, 15°, 25°, 40°), adjustable dual lance, and 50-foot steel wire-braided hose. Optional TX-0010 hitch and TX-0020 hose reel must be ordered at time of unit purchase.
