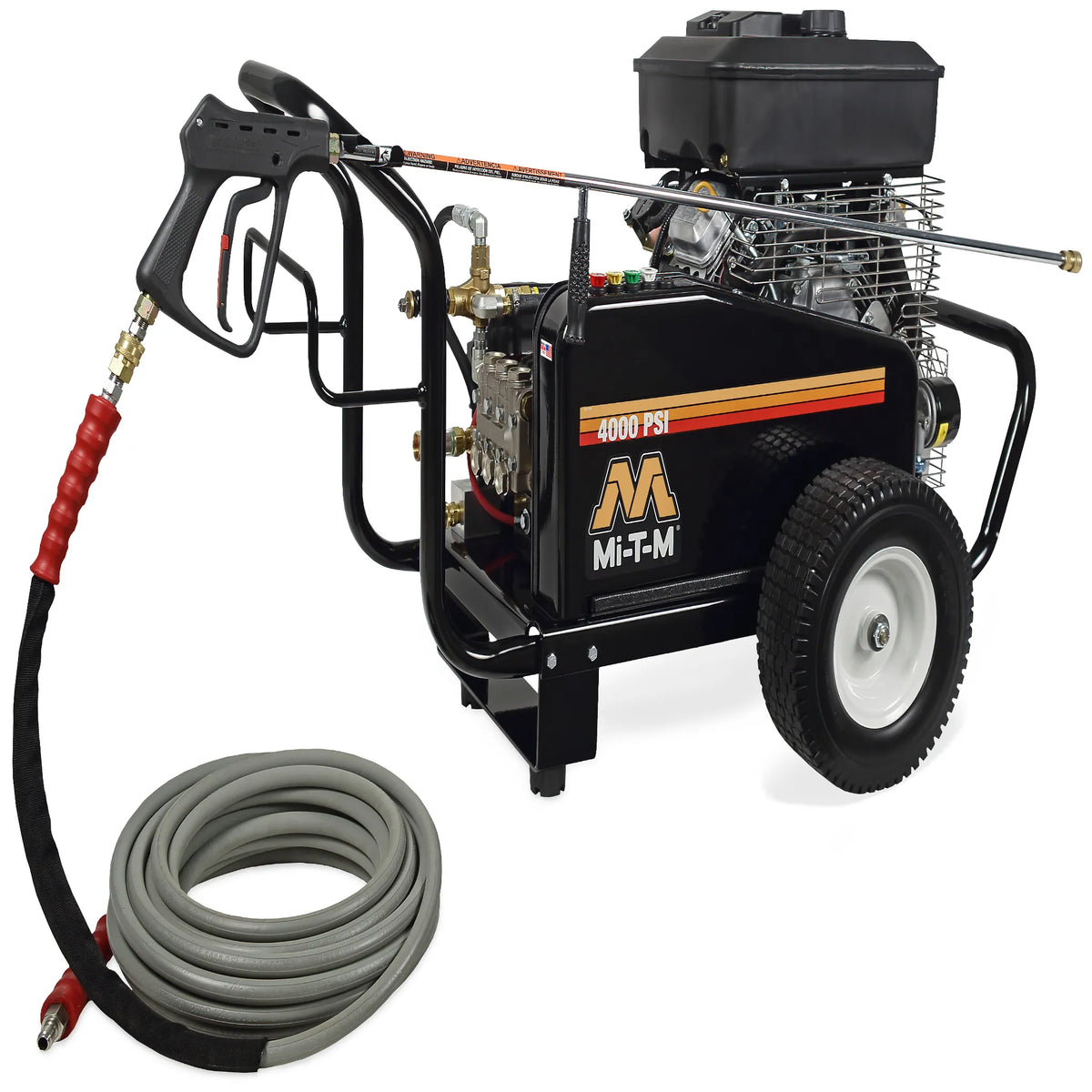

Mi-T-M CW-4004-5MV0 Belt Drive Pressure Washer – 4000 PSI, 4.0 GPM, Vanguard OHV Electric Start

Mi-T-M CW-4004-5MV0 Belt Drive Pressure Washer – 4000 PSI, 4.0 GPM, Vanguard OHV Electric Start

Brand: Mi-T-MSKU: CW-4004-5MV0In Stock – Ready to Ship
$5,605.00
FREE SHIPPING – You save $200+ on freight

Ships from US manufacturer with factory warranty

Ach Direct DebitAmazon American Express Apple Pay Diners ClubDiscoverGoogle Pay MastercardPayPalShop Pay USDC Visa
Authorized RetailerFactory-authorized dealer with genuine products
Manufacturer's WarrantyFull manufacturer warranty included
30-Day ReturnsHassle-free returns within 30 days
Lowest Price GuaranteedWe match any competitor's price
Ordering 3+ units? Call for volume pricing – (978) 295-7538
Order before 5:00 PM EST for same-day dispatch. Estimated delivery:

Need help choosing? Talk to an expert

(978) 295-7538

Mi-T-M CW-4004-5MV0: 4000 PSI Vanguard Electric-Start Belt Drive Pressure Washer at 4.0 GPM

The Mi-T-M CW-4004-5MV0 is a gasoline belt-drive pressure washer rated at 4000 PSI and 4.0 GPM, powered by a 480cc Vanguard OHV engine with electric start and sealed battery. It produces 16,000 cleaning units — the highest cleaning output in the CW Premium Series — combining maximum pressure with higher flow rate via the Vanguard's larger displacement. The nickel-plated brass manifold, external bypass General pump, and 256 lb CW chassis make it a sustained high-capacity commercial performer.

CW-4004-5MV0 Vanguard Engine and High-Capacity Pump

  • 480cc Vanguard OHV with sealed battery electric start — keystart convenience with a sealed battery included; no external battery purchase required
  • 4.0 GPM at 4000 PSI — 16,000 cleaning units — higher flow than Honda GX390-powered 4004 variants for faster coverage per pass
  • Nickel-plated brass manifold with thermal relief valve — corrosion resistance optimized for chemical detergent and sustained 4000 PSI operation
  • General pump with external bypass system — protects pump seals at maximum operating pressure during trigger-off intervals
  • Two-piece enclosed belt guard with 13-inch flat-free tires — transport-ready protection and terrain mobility

High-Volume Commercial Applications for 4000 PSI, 4.0 GPM

Industrial facility managers cleaning large concrete areas — warehouses, loading docks, parking decks — use the 4.0 GPM flow rate to cover more square footage per pass compared to 3.5 GPM 4004 variants. Construction contractors preparing masonry, concrete slabs, and steel structures for coating or repair use the 4000 PSI output to remove contamination in a single aggressive pass. The electric start simplifies operation for crews running the unit across long shifts without repeated recoil pulls. Fleet maintenance operations with heavy equipment require the higher cleaning unit output to reduce per-machine cleaning time in high-throughput environments.

Included Kit and Configuration

Ships with quick-connect nozzles (0°, 15°, 25°, 40°), a 50-foot x 3/8-inch non-marking hose, and an insulated trigger gun. Sealed battery for electric start is included. Not for sale in California.

PSI 4000
GPM 4.0
Engine 480cc Vanguard OHV, Electric Start, Sealed Battery Included
Pump General
Unloader Mi-T-M Factory Preset
Lance Length 48 in.
Net Weight 256 lbs
Shipping Weight 330 lbs
Dimensions (L×W×H) 46 × 28 × 30 in.

Documents

Spec Sheet
Manual

Product Warranty Information

"1 Year Unloader, 3 Year Engine, 7 Year Pump"
Product Image
Added to cart
Mi-T-M CW-4004-5MV0 Belt Drive Pressure Washer – 4000 PSI, 4.0 GPM, Vanguard OHV Electric StartMi-T-M CW-4004-5MV0 Belt Drive Pressure Washer – 4000 PSI...
View Cart

Frequently Asked Questions

What makes the CW-4004-5MV0 different from the CW-4004-5MGH?
The CW-4004-5MV0 uses a Vanguard 480cc OHV with electric start and produces 4.0 GPM vs. 3.5 GPM on the Honda GX390-powered 5MGH — yielding 16,000 cleaning units vs. 14,000. It weighs more at 256 lbs vs. 216 lbs.
Is the sealed battery for electric start included?
Yes — the CW-4004-5MV0 includes a sealed battery for the Vanguard electric start system. No separate battery purchase is required.
What cleaning output does 4000 PSI at 4.0 GPM provide?
4000 PSI × 4.0 GPM = 16,000 cleaning units — the highest output among standard CW Premium Series models, suitable for high-throughput industrial cleaning, large concrete surfaces, and heavy equipment in sustained daily use.
Why does this model use a nickel-plated brass manifold?
At 4000 PSI with chemical detergent use, standard brass manifolds experience accelerated surface wear. Nickel plating adds corrosion resistance and surface hardness, extending manifold service life in intensive commercial cleaning applications.
What is the CW-4004-5MV0's shipping weight?
Net weight is 256 lbs; shipping weight is 330 lbs — heavier than GX390-engined variants due to the larger Vanguard engine displacement and included battery. Freight delivery with lift gate is required.
Is the CW-4004-5MV0 available in California?
No — not for sale in California. The Vanguard OHV engine does not carry CARB certification. California buyers need a CARB-compliant Mi-T-M configuration.
What is included with the unit?
Quick-connect nozzles (0°, 15°, 25°, 40°), a 50-foot x 3/8-inch non-marking hose, an insulated trigger gun, and a sealed battery for the electric start system are all included.
