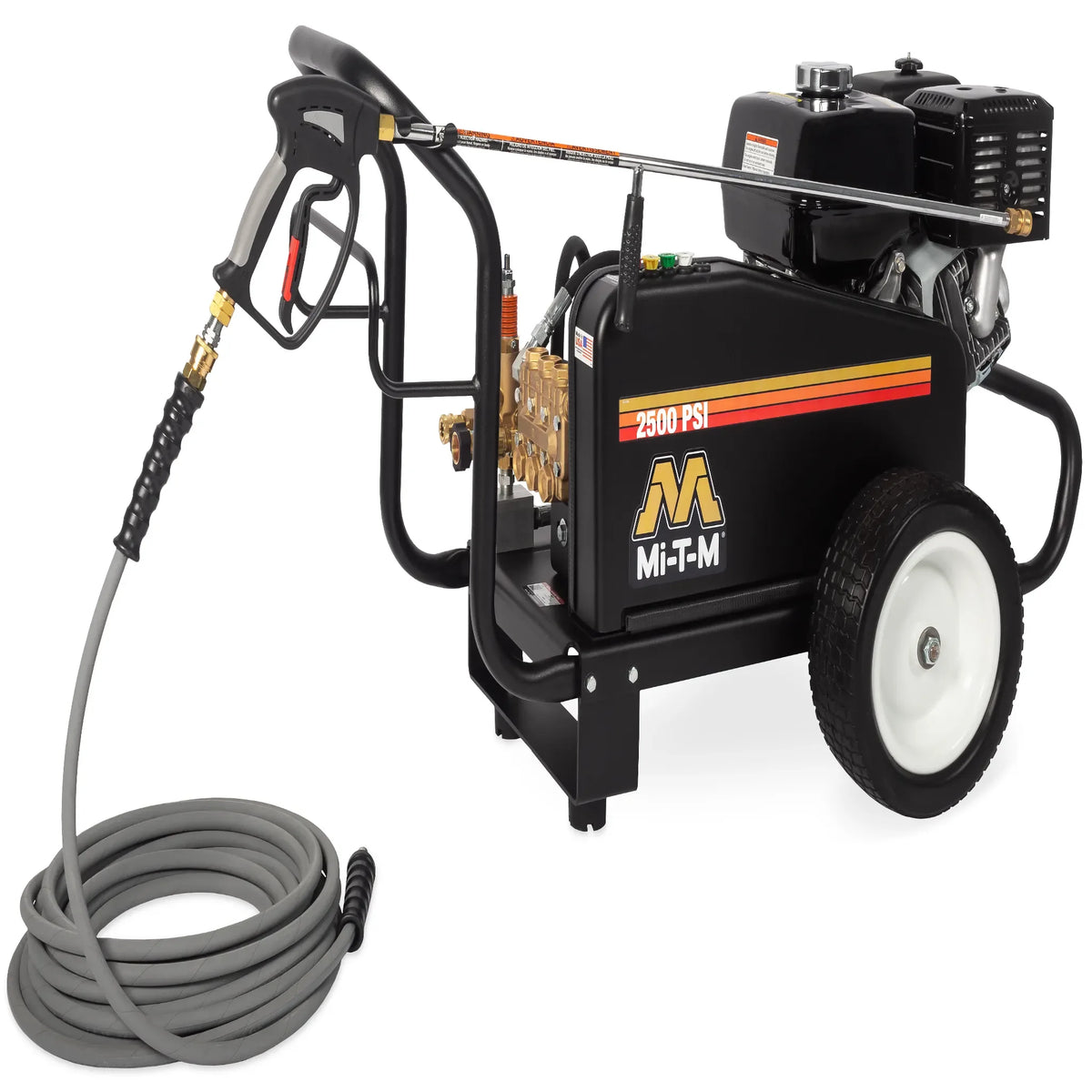

Mi-T-M CW-2505-4MGH Belt Drive Pressure Washer – 2500 PSI, 4.4 GPM, Honda GX390

Mi-T-M CW-2505-4MGH Belt Drive Pressure Washer – 2500 PSI, 4.4 GPM, Honda GX390

Brand: Mi-T-MSKU: CW-2505-4MGHIn Stock – Ready to Ship
$3,250.00
FREE SHIPPING – You save $200+ on freight

Ships from US manufacturer with factory warranty

Ach Direct DebitAmazon American Express Apple Pay Diners ClubDiscoverGoogle Pay MastercardPayPalShop Pay USDC Visa
Authorized RetailerFactory-authorized dealer with genuine products
Manufacturer's WarrantyFull manufacturer warranty included
30-Day ReturnsHassle-free returns within 30 days
Lowest Price GuaranteedWe match any competitor's price
Ordering 3+ units? Call for volume pricing – (978) 295-7538
Order before 5:00 PM EST for same-day dispatch. Estimated delivery:

Need help choosing? Talk to an expert

(978) 295-7538

Mi-T-M CW-2505-4MGH: 2500 PSI Belt Drive Workhorse with Honda GX390 and High-Flow Pump

The Mi-T-M CW-2505-4MGH is a gasoline belt-drive pressure washer delivering 2500 PSI at 4.4 GPM — 11,000 cleaning units — through a Honda GX390 OHV engine and General pump with external bypass system. The CW Premium Series pairs a forged brass manifold, thermal relief valve, and two-piece belt guard with a 216 lb steel frame on 13-inch flat-free tires, making it a reliable field unit for commercial and agricultural cleaning at manageable operating pressure.

CW-2505-4MGH Pump System and Belt Drive Configuration

  • General pump with external bypass system — continuously recirculates water during trigger-off intervals to prevent heat damage to seals
  • Forged brass manifold and thermal relief valve — combined protection against pressure spikes and thermal cycling fatigue
  • Factory preset unloader at 2500 PSI — consistent operating pressure without daily field adjustment
  • 36-inch insulated trigger lance — provides operator standoff distance suited to 2500 PSI spray angle characteristics
  • Optional CX-0045 electric start with included battery — available for convenience-oriented operations

Cleaning Environments Well Matched to 2500 PSI, 4.4 GPM Output

Property maintenance companies cleaning concrete sidewalks, parking structures, and building facades use the 2500 PSI level to remove embedded dirt without surface etching risk. Fleet wash operators maintaining passenger vehicles, light trucks, and transit buses prefer lower-pressure, higher-flow configurations like 4.4 GPM because flow rate accelerates soap dwell and rinse time. Agricultural operations cleaning wooden barn structures, irrigation equipment, and post-harvest machinery benefit from the 4.4 GPM volume at the lower 2500 PSI that avoids pressure damage to older materials. The optional CX-0054 roll cage adds protection during field transport and the CX-0005 dual lance enables simultaneous dual-operator cleaning.

Included Components and Available Options

The CW-2505-4MGH ships with quick-connect nozzles (0°, 15°, 25°, 40°), a 50-foot x 3/8-inch non-marking hose, and an insulated trigger gun. Factory options include CX-0005 Insulated Dual Lance, CX-0045 Electric Start with battery, and CX-0054 Roll Cage. Not for sale in California.

PSI 2500
GPM 4.4
Engine 389cc Honda GX390 OHV
Pump General
Unloader Mi-T-M Factory Preset
Lance Length 36 in.
Net Weight 216 lbs
Shipping Weight 290 lbs
Dimensions (L×W×H) 45.5 × 28 × 26 in.

Documents

Spec Sheet
Manual

Product Warranty Information

"1 Year Unloader, 3 Year Honda Engine, 7 Year Pump"
Product Image
Added to cart
Mi-T-M CW-2505-4MGH Belt Drive Pressure Washer – 2500 PSI, 4.4 GPM, Honda GX390Mi-T-M CW-2505-4MGH Belt Drive Pressure Washer – 2500 PSI...
View Cart

Frequently Asked Questions

What PSI and GPM does the CW-2505-4MGH produce?
The CW-2505-4MGH delivers 2500 PSI at 4.4 GPM, generating 11,000 cleaning units. The higher GPM compared to similarly rated units means faster soap coverage and rinse cycles per session.
What is the external bypass system on the General pump?
The external bypass continuously recirculates water back to the inlet when the trigger is released, preventing heat buildup in the pump head that can degrade seals and manifold components during frequent trigger cycling.
Is electric start available on the CW-2505-4MGH?
Yes — the CX-0045 electric start kit with battery included is available as a factory-order option for operators who prefer keystart convenience over the standard Honda GX390 recoil system.
What is the lance length on this model?
The CW-2505-4MGH uses a 36-inch lance versus the 48-inch lance on higher-PSI JCW models. The 36-inch lance suits the 2500 PSI operating range, balancing standoff distance with spray pattern control.
What optional accessories are available for the CW-2505-4MGH?
Factory-order options include the CX-0005 Insulated Dual Lance (for two-operator applications), CX-0045 Electric Start with battery, and CX-0054 Roll Cage for equipment protection during on-site transport.
What does the CW-2505-4MGH weigh?
The unit weighs 216 lbs net and ships at 290 lbs. It ships freight-only and requires a loading dock or lift gate at delivery.
Is the CW-2505-4MGH suitable for washing vehicles?
Yes — the 2500 PSI level is below the threshold that damages most vehicle paint (typically 2800 PSI+), and the 40° nozzle at 12 inches or more of standoff distance provides safe rinsing for trucks and trailers.
