Mi-T-M CW-2405-5ME1 Belt Drive Pressure Washer – 2400 PSI, 4.6 GPM, 230V

Mi-T-M CW-2405-5ME1 Belt Drive Pressure Washer – 2400 PSI, 4.6 GPM, 230V

Brand: Mi-T-M SKU: CW-2405-5ME1 In Stock – Ready to Ship
$6,067.00
FREE SHIPPING – You save $200+ on freight

Ships from US manufacturer with factory warranty

Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa
Authorized Retailer Factory-authorized dealer with genuine products
Manufacturer's Warranty Full manufacturer warranty included
30-Day Returns Hassle-free returns within 30 days
Lowest Price Guaranteed We match any competitor's price
Ordering 3+ units? Call for volume pricing – (978) 295-7538
Order before 5:00 PM EST for same-day dispatch. Estimated delivery:

Need help choosing? Talk to an expert

(978) 295-7538

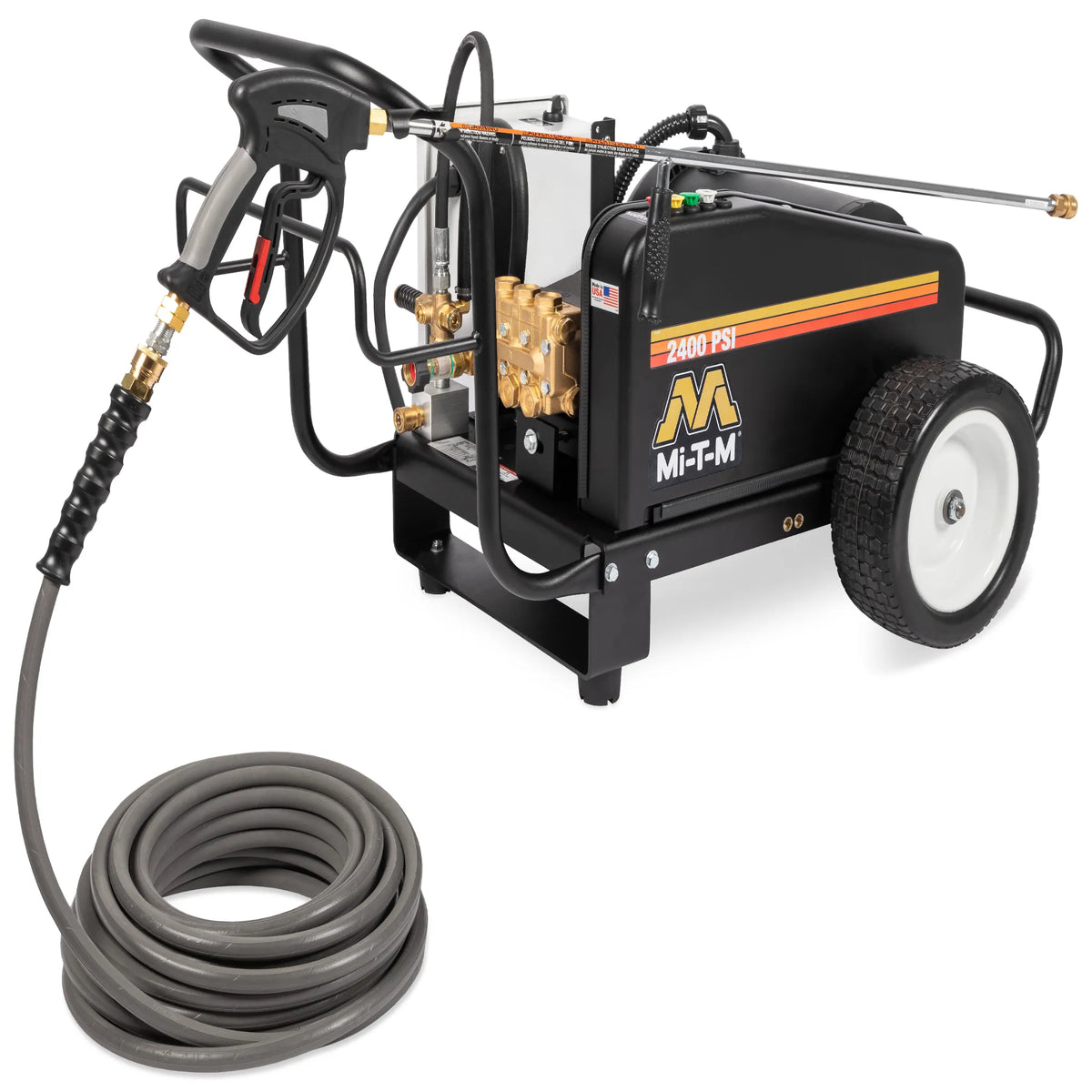

Mi-T-M CW-2405-5ME1 Electric Belt Drive Pressure Washer – 2400 PSI, 4.6 GPM

The Mi-T-M CW-2405-5ME1 is an 8 HP, 230V single-phase belt drive pressure washer producing 2400 PSI and 4.6 GPM — 11,040 cleaning units. The belt drive system reduces pump speed relative to motor speed, running the General pump at lower RPM for extended seal life compared to direct drive configurations of similar output. It connects on a NEMA 6-50P plug at 34.6A and ships ready to work on a 322 lb powder-coated steel frame.

General Pump and Thermal Protection

  • Pump brand: General triplex pump
  • Manifold: Forged brass for sustained high-pressure operation
  • Unloader: Factory preset Mi-T-M unloader — consistent output from day one
  • External bypass system: Prevents heat buildup during trigger-closed bypass, extending pump life
  • Thermal relief valve: Secondary protection against heat damage in bypass mode
  • Water filter: Clear-sleeve inline filter for quick inspection without disassembly

Service Shops and High-Volume Cleaning

Belt drive pressure washers are the preferred choice in service shops, fleet wash bays, and facilities where machines run for multiple hours daily. The belt-driven General pump runs at lower RPM than direct drive, which reduces heat generation and extends pump component life. The CW-2405-5ME1 sits on 13-inch flat-free tires in a totally enclosed belt guard frame — the guard keeps belts safe from spray, debris, and contact. At 4.6 GPM, throughput is higher than most direct-drive units at this pressure rating, which reduces total time on surface cleaning tasks.

Cleaning Units and What Ships

2400 PSI × 4.6 GPM equals 11,040 cleaning units. The higher GPM (versus 3.9 GPM at 3000 PSI units) means faster rinsing and more surface coverage per minute. The CW-2405-5ME1 ships with a 50-ft × 3/8-inch non-marking hose, 36-inch insulated trigger gun with lance, and quick-connect nozzles in 0°, 15°, 25°, and 40° configurations. The 10-ft motor power cord is shorter than the JP Series — plan electrical access points accordingly.

Specification Value
PSI 2400
GPM 4.6
Cleaning Units (PSI × GPM) 11,040
Motor 8.0 HP, 230V, 1Ø, 34.6A
Plug Type NEMA 6-50P
Pump General Triplex (belt drive)
Power Cord Length 10 ft
Hose 50 ft × 3/8 in, non-marking
Net Weight 322 lbs
Dimensions (L × W × H) 46 × 32.5 × 30 in

Documents

Spec Sheet
Manual

Product Warranty Information

"1 Year Electric Motor 1 Year Unloader, 7 Year Pump"
Product Image
Added to cart
Mi-T-M CW-2405-5ME1 Belt Drive Pressure Washer – 2400 PSI, 4.6 GPM, 230V Mi-T-M CW-2405-5ME1 Belt Drive Pressure Washer – 2400 PSI...
View Cart

Frequently Asked Questions

What electrical circuit is required for the CW-2405-5ME1?
The CW-2405-5ME1 draws 34.6A on 230V single-phase and uses a NEMA 6-50P plug. A dedicated 40-50A circuit is recommended. Note the motor power cord is 10 ft — shorter than the JP Series, so plan outlet placement accordingly.
What is the advantage of belt drive over direct drive on this washer?
Belt drive reduces the pump speed relative to the motor, so the General pump runs at lower RPM. Lower RPM means less heat and wear on pump seals and valves, resulting in longer pump service life — important in facilities running machines for multiple hours daily.
What is the cleaning output compared to a 3000 PSI direct drive unit?
At 2400 PSI × 4.6 GPM, the CW-2405-5ME1 produces 11,040 cleaning units — close to the 11,700 CU of the JP-3004 at 3.9 GPM. The higher GPM delivers faster rinsing and more surface coverage per minute, which reduces cleaning time on open floor areas.
What nozzles ship with the CW-2405-5ME1?
The machine ships with 0°, 15°, 25°, and 40° quick-connect nozzles, a 50-ft non-marking hose, and a 36-inch insulated trigger gun with lance. All four nozzle angles are included in this belt drive series.
What does the external bypass system do on the General pump?
When the trigger is not pulled, pressure builds and the unloader diverts flow. The external bypass returns this bypassed water to the pump inlet rather than keeping it inside the pump head, preventing heat buildup during idle periods and reducing the risk of pump damage.
How does the clear-sleeve water filter work?
The inline filter on the CW-2405-5ME1 has a clear sleeve so operators can visually inspect the filter element without removing it. A clogged or discolored element signals it is time to clean or replace, protecting the General pump from debris ingestion.
