Mi-T-M AM2-SM09-B Base-Mount Two-Stage Gasoline Compressor – 17.2 CFM, 300cc OHV

Mi-T-M AM2-SM09-B Base-Mount Two-Stage Gasoline Compressor – 17.2 CFM, 300cc OHV

Brand: Mi-T-MSKU: AM2-SM09-BIn Stock – Ready to Ship
$2,110.00
FREE SHIPPING – You save $200+ on freight

Ships from US manufacturer with factory warranty

Ach Direct DebitAmazon American Express Apple Pay Diners ClubDiscoverGoogle Pay MastercardPayPalShop Pay USDC Visa
Authorized RetailerFactory-authorized dealer with genuine products
Manufacturer's WarrantyFull manufacturer warranty included
30-Day ReturnsHassle-free returns within 30 days
Lowest Price GuaranteedWe match any competitor's price
Ordering 3+ units? Call for volume pricing – (978) 295-7538
Order before 5:00 PM EST for same-day dispatch. Estimated delivery:

Need help choosing? Talk to an expert

(978) 295-7538

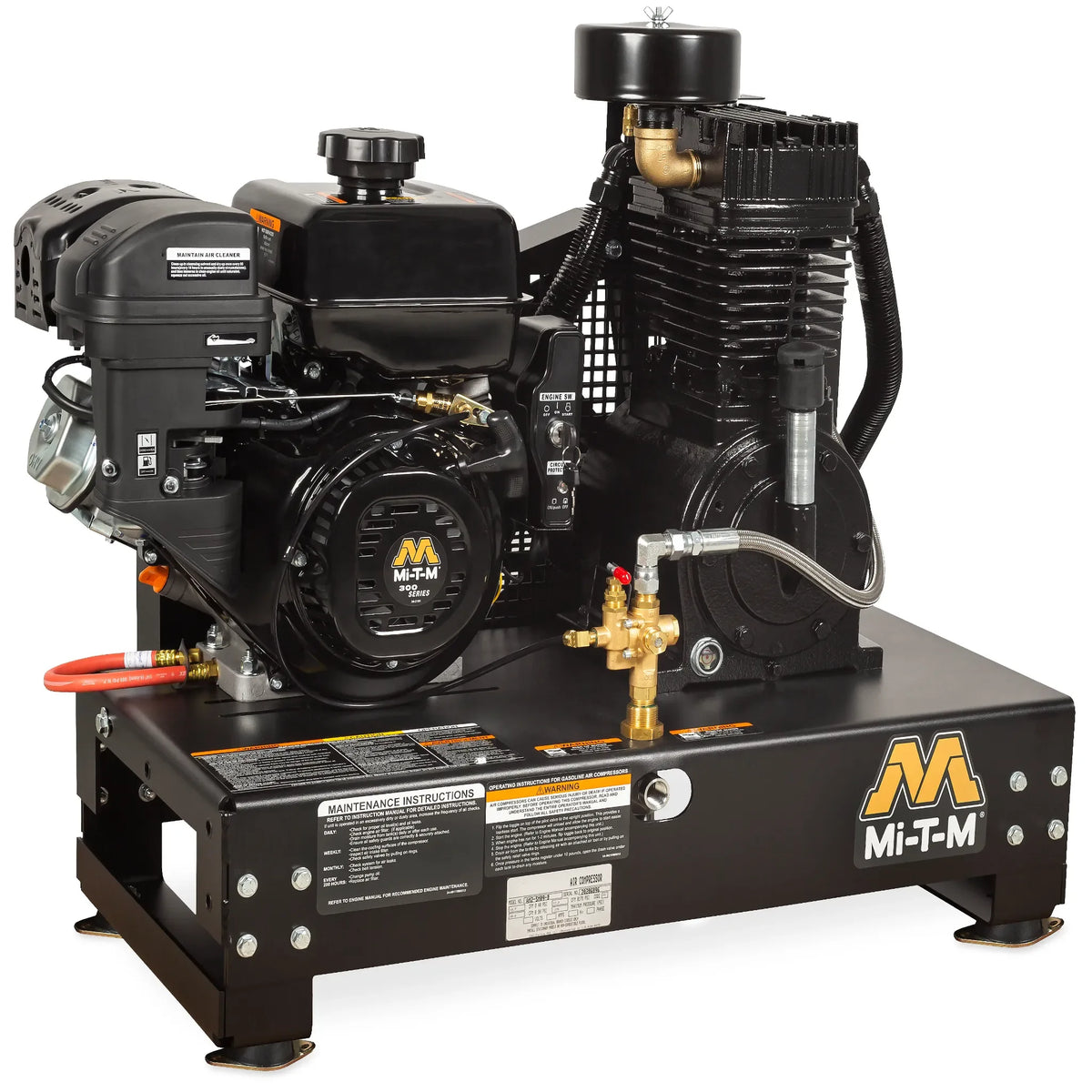

Mi-T-M AM2-SM09-B: Base-Mount Two-Stage Gasoline Compressor with Mi-T-M 300cc OHV Engine

The Mi-T-M AM2-SM09-B puts a 300cc Mi-T-M OHV engine on a base-mount two-stage compressor platform, producing 17.2 CFM at 175 PSI. Physically identical in dimensions to the Honda-engined AM2-SH09-B (309 lbs, 36.50 × 21.00 × 32.00 in), it substitutes Mi-T-M's own engine for operators who prefer single-source service through Mi-T-M dealers. No receiver tank is included.

300cc Mi-T-M OHV Engine and Base-Mount Compressor Details

  • 300cc Mi-T-M OHV engine — manufacturer-supported power plant with integrated service through Mi-T-M's dealer and parts network
  • 17.2 CFM @ 175 PSI — two-stage cast iron pump output matching the Honda-engined SM-class models
  • Electric start capable — accepts optional AX-0017 battery start kit (battery not included)
  • 150-PSI maximum rated regulator — downstream pressure tuning independent of tank cycling
  • Stainless-steel braided discharge hose — sustained high-pressure output without abrasion failure
  • Pneumatic idle control — auto-throttles at 145 PSI to conserve fuel and reduce engine wear
  • 3/16-inch vibration-reducing base plate — absorbs mechanical vibration for stable mounting on truck beds and trailers

Trailer and Service Truck Builds Using the AM2-SM09-B

Contractors building enclosed trailer air systems pair the AM2-SM09-B with a remotely mounted 80-gallon ASME tank for maximum volume. Utility fleets that standardize on Mi-T-M equipment across compressors, pressure washers, and generators benefit from single-source parts and service technician training. HVAC and refrigeration contractors use base-mount configurations to build out van cargo areas with a compact air supply system. Agricultural equipment dealers mount these units in service trucks for field repair of pneumatic seeding and harvesting equipment.

Optional Upgrades and What Ships

The AM2-SM09-B ships without a receiver tank, battery, or electric start hardware. Optional upgrades: AX-0017 Electric Start (sealed battery, tray, box, cables), AX-0077 Battery Box/Tray, and AX-0104 Remote Start/Choke with 7-ft sealed cable for remote key-switch operation.

CFM @ PSI 17.2 @ 175
Engine 300cc Mi-T-M OHV
Tank Base-Mount (receiver sold separately)
Idle Control Pneumatic
Net Weight 309 lbs
Dimensions (L×W×H) 36.50 × 21.00 × 32.00 in

Spec Sheet | Manual

Product Warranty Information

"2 Year Pump Exchange, 3 Year Engine"
Product Image
Added to cart
Mi-T-M AM2-SM09-B Base-Mount Two-Stage Gasoline Compressor – 17.2 CFM, 300cc OHVMi-T-M AM2-SM09-B Base-Mount Two-Stage Gasoline Compresso...
View Cart

Frequently Asked Questions

What receiver tank size pairs with the AM2-SM09-B?
At 17.2 CFM output, a 30- to 80-gallon ASME tank is the typical range. High duty-cycle operations — spray painting, air-assisted equipment — benefit from the 80-gallon reserve to avoid pressure drop.
Why choose the Mi-T-M engine over Honda on this compressor?
Operators who already run Mi-T-M pressure washers, generators, or other equipment benefit from single-source service — one dealer, one parts inventory, one service technician for all equipment in the fleet.
Is the electric start pre-wired on the AM2-SM09-B?
No. Unlike the -B models, electric start is not pre-installed. The optional AX-0017 kit must be added and installed to enable battery starting. Contact us to confirm installation compatibility.
What remote start option is available for the AM2-SM09-B?
The AX-0104 Remote Start/Choke with 7-foot sealed cable is specific to the SM09-B platform. It allows key-switch placement up to 7 feet from the unit for cab or panel mounting.
How does the 3/16-inch base plate reduce vibration?
The thick steel base plate provides mass and rigidity between the engine/pump assembly and the mounting surface, absorbing harmonic vibration that would otherwise transmit into truck beds or trailer floors and loosen fasteners over time.
What is the oil capacity and type for this compressor pump?
The cast iron two-stage pump uses SAE 30 non-detergent compressor oil. Capacity and change intervals are specified in the operator manual; check the oil level sight indicator before each use.
Is California sale permitted for the AM2-SM09-B?
No. Standard Mi-T-M gasoline compressors are not sold in California. CARB-compliant engine versions are required for California; contact us for availability.
