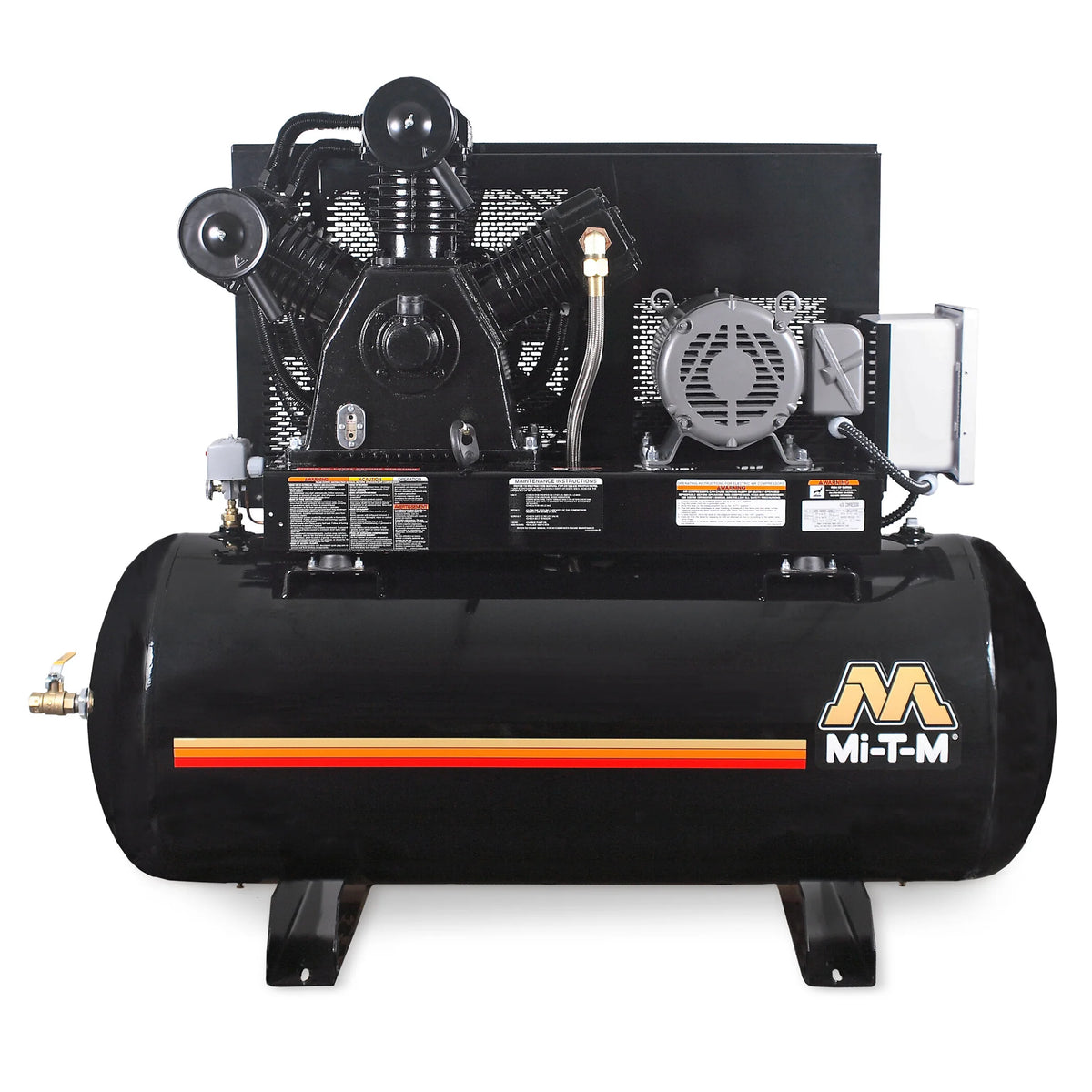

Mi-T-M AES-20315-120HM Air Compressor – 15.0 HP, 120-Gal Horizontal, 208V 3φ

Mi-T-M AES-20315-120HM Air Compressor – 15.0 HP, 120-Gal Horizontal, 208V 3φ

Brand: Mi-T-MSKU: AES-20315-120HMOnly 3 left – order soon
$14,966.00

Ships from US manufacturer with factory warranty

Ach Direct DebitAmazon American Express Apple Pay Diners ClubDiscoverGoogle Pay Mastercard PayPalShop Pay USDC Visa
Authorized RetailerFactory-authorized dealer with genuine products
Manufacturer's WarrantyFull manufacturer warranty included
30-Day ReturnsHassle-free returns within 30 days
Lowest Price GuaranteedWe match any competitor's price
Ordering 3+ units? Call for volume pricing – +1 (978) 295-7538
Order before 5:00 PM EST for same-day dispatch. Estimated delivery:

Need help choosing? Talk to an expert

+1 (978) 295-7538

AES-20315-120HM 15.0 HP Two-Stage Simplex Air Compressor

The Mi-T-M AES-20315-120HM is a 120-gallon horizontal two-stage air compressor built for shops and service bays that run air tools all day. Its three-phase 208V motor drives a cast-iron pump rated to 175 PSI, delivering 46.5 CFM @ 175 PSI of steady air.

AES-20315-120HM Air Output and Power

This unit is wired for 208V 3-phase service and rated at 46.5 CFM @ 175 PSI.

  • Two-stage cast-iron pump — splash-lubricated and built for continuous shop duty, delivering up to 175 PSI
  • 46.5 CFM @ 175 PSI — runs impact wrenches, sanders, and spray guns without stalling
  • 120-gallon horizontal tank — stores a large reserve so the motor cycles less often
  • 208V 3-phase motor — industrial low-RPM design for longer life and cooler running
  • Magnetic starter included — provides thermal-overload protection and reliable across-the-line starting

AES-20315-120HM Applications and Environments

Automotive service centers, fabrication shops, fleet-maintenance garages, and manufacturing lines use the AES-20315-120HM to power impact wrenches, sanders, spray equipment, and other pneumatic tools. The 120-gallon reserve keeps up with continuous-duty tool use. It ships on a pallet by freight at about 1208 pounds and is warranted for 1 year electric motor, 2 year pump exchange.

Specifications

Horsepower 15.0 HP
Configuration Simplex (single pump/motor)
Stage Two-Stage
Pump Cast iron compressor pump, splash lubricated
Air Delivery 46.5 CFM @ 175 PSI
Maximum Pressure 175 PSI
Tank Size 120 Gallon
Tank Orientation Horizontal
Voltage 208V
Phase Three Phase (3φ)
Motor Starter Magnetic starter included
Dimensions (L×W×H) 74.00 x 26.50 x 58.00 in
Net Weight 1058 lbs
Shipping Weight 1208 lbs
Warranty 1 Year Electric Motor, 2 Year Pump Exchange
UPC 16977176037
Model / MPN AES-20315-120HM

Documents

Mi-T-M AES-20315-120HM Specification Sheet (PDF)

Manufacturer's Warranty

This product comes with a full manufacturer's warranty. All warranty claims are handled directly by the manufacturer.

For specific warranty details, please contact us at +1 (978) 295-7538 or email info@uscleaningtools.com

B2B & Tax-Exempt Purchases

We supply contractors, restoration companies, property managers, schools, government agencies, and other tax-exempt organizations.

How to place a tax-exempt order:

  1. Write to us through our Contact Us page or email info@uscleaningtools.com and attach your valid tax exemption certificate (state resale or exemption certificate).
  2. We verify your certificate and mark your account tax-exempt — usually within one business day.
  3. Place your order and sales tax will not be charged.

For volume pricing or purchase orders, call +1 (978) 295-7538.

Shipping & Returns

Free shipping on most brands for orders over $300, delivered to the lower 48 states. Any brand-specific freight rate is shown at checkout before you pay.

Processing & delivery: in-stock orders are processed within 1–2 business days and typically deliver in 5–7 business days. Tracking is emailed within 24 hours of shipment. Built-to-order and backordered equipment shows its lead time on this page.

Freight deliveries: inspect your equipment on arrival and note any damage on the delivery receipt. Items damaged in transit or defective on arrival are fully covered at no cost to you.

Cancellations: cancel any time before your order ships for a full 100% refund.

30-day returns: return unused equipment in its original packaging within 30 days of delivery. Change-of-mind returns are subject to a restocking fee. To start a return, email info@uscleaningtools.com or call +1 (978) 295-7538.

Product Image
Added to cart
Mi-T-M AES-20315-120HM Air Compressor – 15.0 HP, 120-Gal Horizontal, 208V 3φMi-T-M AES-20315-120HM Air Compressor – 15.0 HP, 120-Gal ...
View Cart
$14,966.00

Frequently Asked Questions

What voltage and phase is the AES-20315-120HM?
It runs on 208V 3-phase power. Confirm your shop's incoming service matches before ordering, since these are wired for a specific voltage and phase.
How much air does the AES-20315-120HM deliver?
46.5 CFM @ 175 PSI. That feeds multiple air tools, impact wrenches, and spray equipment in a service bay or shop.
Is the AES-20315-120HM single-stage or two-stage?
Two-stage. Air is compressed twice for higher pressure (up to 175 PSI) and cooler, more efficient running than a single-stage unit.
Does the AES-20315-120HM ship freight?
Yes. At about 1208 lbs it ships by LTL freight on a pallet, not parcel. A liftgate or dock is recommended for delivery.
What warranty comes with the AES-20315-120HM?
1 Year Electric Motor, 2 Year Pump Exchange.
