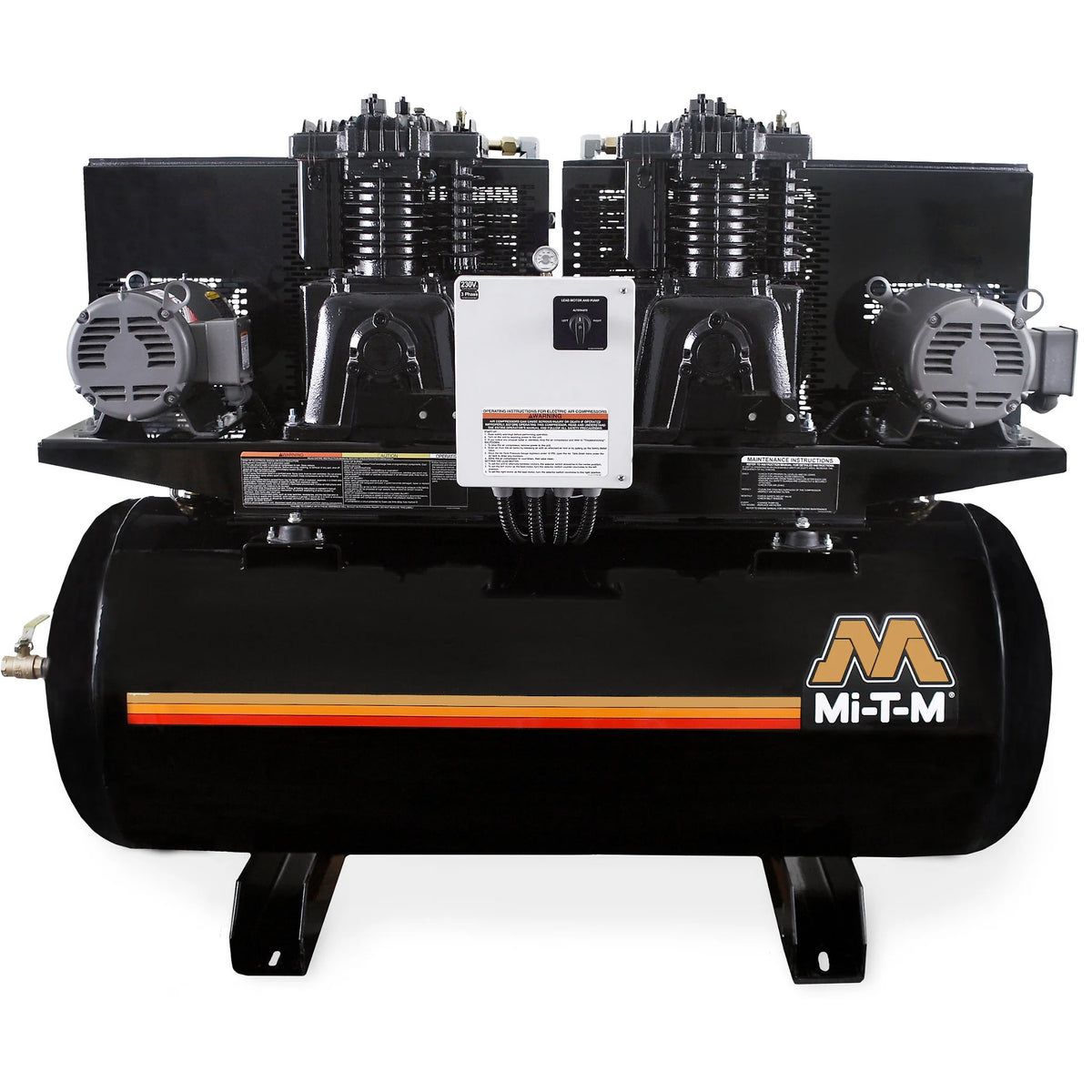

Mi-T-M ACD-20375-120HM Air Compressor – 7.5 HP, 120-Gal Horizontal, 208V 3φ
$10,820.00
FREE SHIPPING – You save $200+ on freight
Ships from US manufacturer with factory warranty
Authorized RetailerFactory-authorized dealer with genuine products
Manufacturer's WarrantyFull manufacturer warranty included
30-Day ReturnsHassle-free returns within 30 days
Lowest Price GuaranteedWe match any competitor's price
Order before 5:00 PM EST for same-day dispatch. Estimated delivery:
Need help choosing? Talk to an expert
+1 (978) 295-7538ACD-20375-120HM 7.5 HP Two-Stage Duplex Air Compressor
The Mi-T-M ACD-20375-120HM is a 120-gallon horizontal two-stage air compressor built for shops and service bays that run air tools all day. Its three-phase 208V motor drives a pair of cast-iron pumps rated to 175 PSI, delivering 46.4 CFM @ 175 PSI of steady air.
ACD-20375-120HM Air Output and Power
This unit is wired for 208V 3-phase service and rated at 46.4 CFM @ 175 PSI.
- Two-stage cast-iron pump — splash-lubricated and built for continuous shop duty, delivering up to 175 PSI
- 46.4 CFM @ 175 PSI — enough volume to run multiple air tools at once without pressure drop
- 120-gallon horizontal tank — stores a large reserve so the motor cycles less often
- 208V 3-phase motor — industrial low-RPM design for longer life and cooler running
- Magnetic starter included — provides thermal-overload protection and auto-alternating lead/lag control across both motors
- Dual pump-and-motor assemblies — built-in redundancy keeps air flowing if one head is serviced
ACD-20375-120HM Applications and Environments
Automotive service centers, fabrication shops, fleet-maintenance garages, and manufacturing lines use the ACD-20375-120HM to power impact wrenches, sanders, spray equipment, and other pneumatic tools. The duplex arrangement suits high-demand floors that cannot afford downtime — two pumps share the load and provide backup. It ships on a pallet by freight at about 1109 pounds and is warranted for 1 year electric motor, 2 year pump exchange.
Specifications
| Horsepower | 7.5 HP (per motor, dual) |
| Configuration | Duplex (two pumps/motors) |
| Stage | Two-Stage |
| Pump | Two cast iron compressor pumps, splash lubricated |
| Air Delivery | 46.4 CFM @ 175 PSI |
| Maximum Pressure | 175 PSI |
| Tank Size | 120 Gallon |
| Tank Orientation | Horizontal |
| Voltage | 208V |
| Phase | Three Phase (3φ) |
| Motor Starter | Magnetic starter included |
| Dimensions (L×W×H) | 74.00 x 26.50 x 58.00 in |
| Net Weight | 1005 lbs |
| Shipping Weight | 1109 lbs |
| Warranty | 1 Year Electric Motor, 2 Year Pump Exchange |
| UPC | 16977186784 |
| Model / MPN | ACD-20375-120HM |
