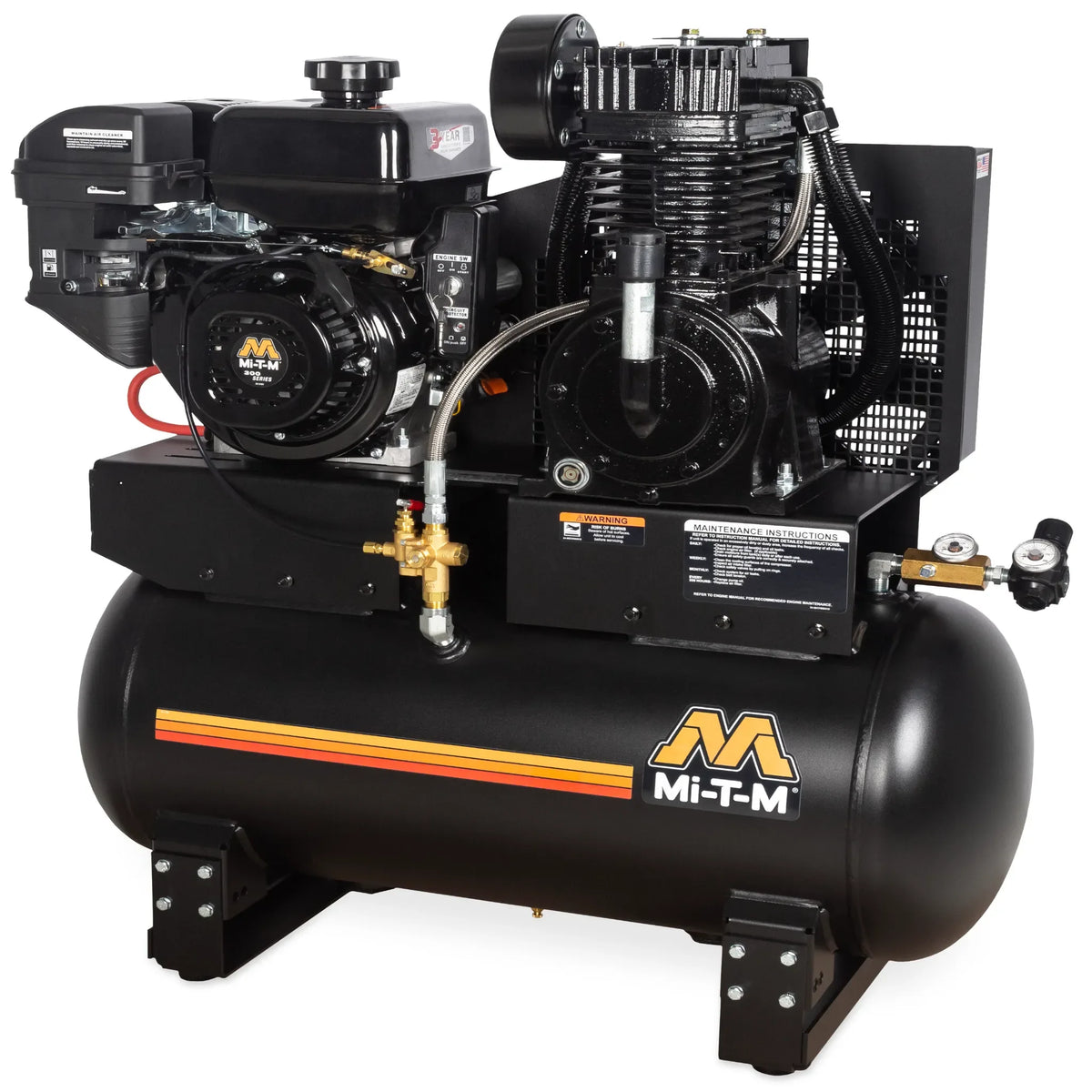

Mi-T-M AM2-SM09-30ME 30-Gal Two-Stage Gas Compressor – Electric Start, 300cc OHV

Mi-T-M AM2-SM09-30ME 30-Gal Two-Stage Gas Compressor – Electric Start, 300cc OHV

Brand: Mi-T-MSKU: AM2-SM09-30MEIn Stock – Ready to Ship
$3,973.90
FREE SHIPPING – You save $200+ on freight

Ships from US manufacturer with factory warranty

Ach Direct DebitAmazon American Express Apple Pay Diners ClubDiscoverGoogle Pay MastercardPayPalShop Pay USDC Visa
Authorized RetailerFactory-authorized dealer with genuine products
Manufacturer's WarrantyFull manufacturer warranty included
30-Day ReturnsHassle-free returns within 30 days
Lowest Price GuaranteedWe match any competitor's price
Ordering 3+ units? Call for volume pricing – (978) 295-7538
Order before 5:00 PM EST for same-day dispatch. Estimated delivery:

Need help choosing? Talk to an expert

(978) 295-7538

Mi-T-M AM2-SM09-30ME: Electric-Start 30-Gallon Two-Stage Compressor with Mi-T-M OHV Engine

The Mi-T-M AM2-SM09-30ME is the electric-start variant of the AM2-SM09 platform, adding pre-installed start wiring to the 300cc Mi-T-M OHV engine. Output is 17.2 CFM at 175 PSI from a 30-gallon ASME powder-coated receiver. At 379 lbs net (449 lbs shipping), the -30ME is 15 lbs heavier than the manual-start -30M due to the starter hardware. Battery, box, and cables are not included.

Electric Start, Cast Iron Pump, and Splash Lubrication Details

  • Electric start pre-wired — accepts battery kit (AX-0017, sold separately) for push-button ignition without pull-cord effort
  • 300cc Mi-T-M OHV engine — factory-supported power plant with parts available through Mi-T-M's dealer network
  • 17.2 CFM @ 175 PSI — two-stage output for sustained air tool and spray gun operation
  • Cast iron two-stage pump — splash lubricated with oil sight indicator and 145–175 PSI auto-cycle control
  • Powder-coated receiver tank — ASME-rated, 30-gallon capacity with manual drain valve
  • Stainless-steel braided discharge hose — handles continuous high-pressure cycling
  • Removable base plate — enables direct skid or trailer floor mounting

Fleet Shops and Service Centers That Rely on Electric Start

Commercial service bays at dealerships and fleet maintenance facilities value electric start to eliminate pull-cord fatigue when technicians start the compressor multiple times per shift. Enclosed trailer operators prefer push-button start for safety when the unit is positioned away from easy pull-cord access. Generator-integrated mobile units can wire the electric start circuit directly to a relay for automated startup when air demand registers on a pressure switch.

Upgrade Options and What Ships

The AX-0017 Electric Start kit (battery, tray, box, and cables) completes the electric start system. The AX-0077 Battery Box/Tray and AX-0105 Remote Start/Choke (7-ft sealed cable key switch) are factory-order options for cab-controlled ignition. The AX-0003 Manual Drain/Regulator/Metal Bowl is recommended for moisture-sensitive downstream systems.

CFM @ PSI 17.2 @ 175
Engine 300cc Mi-T-M OHV
Tank Size 30 gallons
Start Type Electric (battery not included)
Net Weight 379 lbs
Dimensions (L×W×H) 40.50 × 17.50 × 44.50 in

Spec Sheet | Manual

Product Warranty Information

"2 Year Pump Exchange, 3 Year Engine"
Product Image
Added to cart
Mi-T-M AM2-SM09-30ME 30-Gal Two-Stage Gas Compressor – Electric Start, 300cc OHVMi-T-M AM2-SM09-30ME 30-Gal Two-Stage Gas Compressor – El...
View Cart

Frequently Asked Questions

What parts do I need to complete the electric start on the AM2-SM09-30ME?
The unit ships with start wiring pre-installed. You need the optional AX-0017 kit (sealed battery, tray, box, and cables) to complete the electric start system. The AX-0077 Battery Box/Tray is an alternative if you source your own battery.
How does the AM2-SM09-30ME differ from the AM2-SH09-30ME?
The SM variant uses Mi-T-M's 300cc OHV engine; the SH variant uses a Honda GX270. Output is identical at 17.2 CFM @ 175 PSI. The Mi-T-M engine is serviced through Mi-T-M dealers; Honda is serviced through Honda dealers.
What is the auto-cycle pressure range?
The compressor starts at 145 PSI and cuts off at 175 PSI, maintaining a 30-PSI buffer in the tank during continuous tool use.
Can I add cab-controlled remote start to this unit?
Yes. The AX-0105 Remote Start/Choke with a 7-foot sealed cable (factory order) allows the ignition key switch to be mounted in a truck cab or control panel up to 7 feet from the unit.
How does splash lubrication work in the cast iron pump?
A dipper attached to the connecting rod dips into the oil reservoir on each rotation, flinging oil onto the cylinder walls and bearings. The oil level sight indicator lets you verify level before startup without removing the crankcase cover.
Is the tank drain valve automatic or manual?
The tank drain valve is manual. Daily draining is recommended to remove condensate that builds up in the tank and can cause corrosion or moisture contamination in air lines.
What is the weight difference between the -30M and -30ME?
The AM2-SM09-30ME weighs 379 lbs net versus 364 lbs for the -30M, a 15-lb difference attributable to the pre-installed electric start wiring and hardware.
