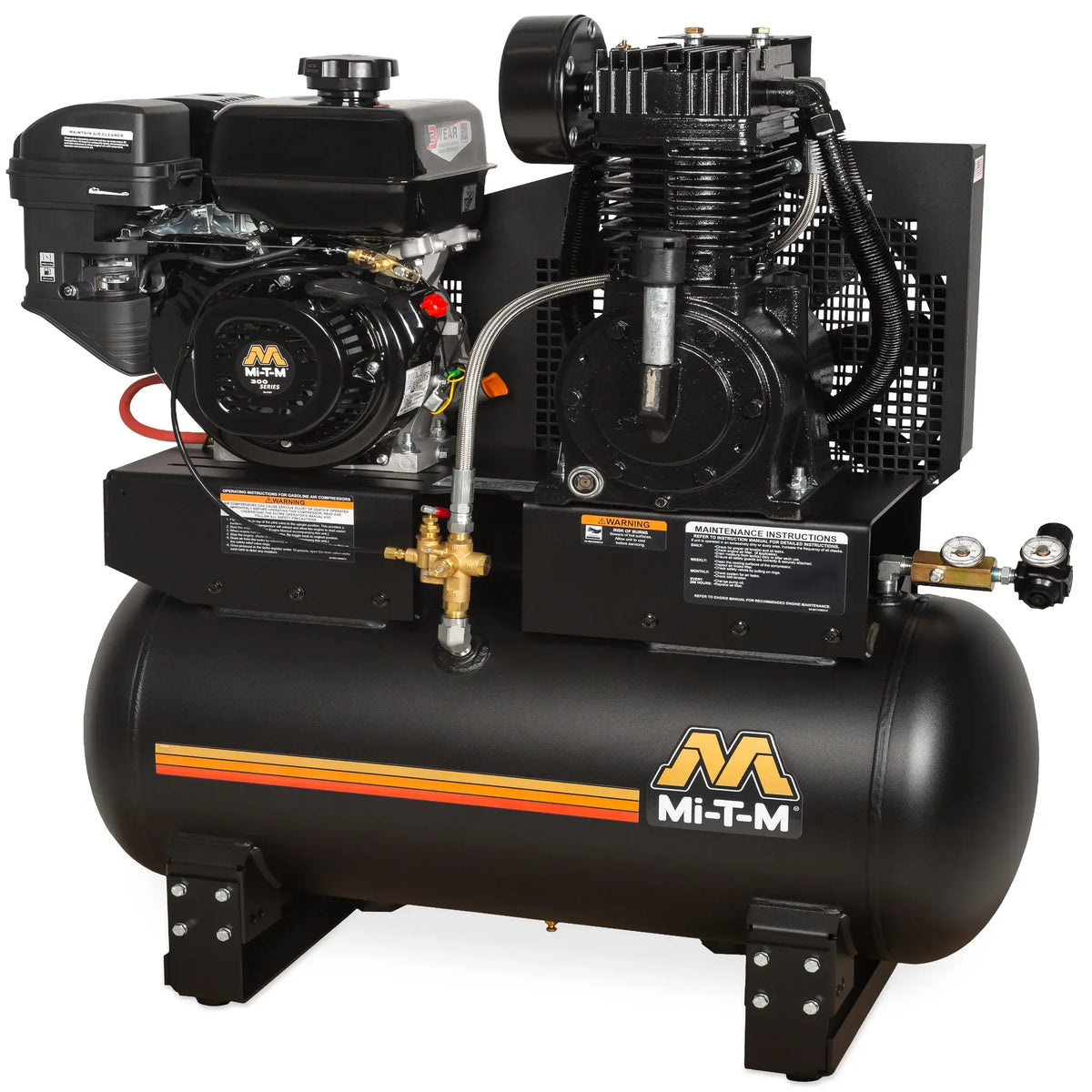

Mi-T-M AM2-SM09-30M 30-Gal Two-Stage Gasoline Compressor – 17.2 CFM, 300cc OHV

Mi-T-M AM2-SM09-30M 30-Gal Two-Stage Gasoline Compressor – 17.2 CFM, 300cc OHV

Brand: Mi-T-MSKU: AM2-SM09-30MIn Stock – Ready to Ship
$3,861.20
FREE SHIPPING – You save $200+ on freight

Ships from US manufacturer with factory warranty

Ach Direct DebitAmazon American Express Apple Pay Diners ClubDiscoverGoogle Pay MastercardPayPalShop Pay USDC Visa
Authorized RetailerFactory-authorized dealer with genuine products
Manufacturer's WarrantyFull manufacturer warranty included
30-Day ReturnsHassle-free returns within 30 days
Lowest Price GuaranteedWe match any competitor's price
Ordering 3+ units? Call for volume pricing – (978) 295-7538
Order before 5:00 PM EST for same-day dispatch. Estimated delivery:

Need help choosing? Talk to an expert

(978) 295-7538

Mi-T-M AM2-SM09-30M: 30-Gallon Two-Stage Compressor with Mi-T-M 300cc OHV Engine

The Mi-T-M AM2-SM09-30M uses a 300cc Mi-T-M OHV engine — the brand's own power platform — paired with a two-stage cast iron compressor pump producing 17.2 CFM at 175 PSI. The 30-gallon ASME powder-coated tank weighs 364 lbs net (434 lbs shipping), sitting between the Honda-engined models in overall weight. This manual-start unit ships as a complete tanked system ready for shop or field deployment.

Mi-T-M OHV Engine and Two-Stage Pump Performance

  • 300cc Mi-T-M OHV engine — manufacturer-built power plant with vertically integrated parts support through Mi-T-M service network
  • 17.2 CFM @ 175 PSI — two-stage output supports spray guns, DA sanders, and simultaneous multi-tool operation
  • Cast iron two-stage pump — splash lubricated with oil sight indicator for pre-shift checks
  • 30-gallon ASME powder-coated tank — passes code inspection requirements for pressurized vessels in commercial environments
  • Stainless-steel braided discharge hose — resists kinking and abrasion under sustained high-pressure cycling
  • Pneumatic idle control — reduces engine RPM automatically when tank pressure reaches 145 PSI
  • Large canister intake filter — protects pump valves and extends service intervals

Industries Using the AM2-SM09-30M: Construction, Auto, and Industrial

Construction contractors position this unit at job sites to run framing nailers, finish guns, and roofing staplers across a crew of three to four operators. Auto body shops use it for sustained DA sanding and HVLP spray work where consistent pressure matters. Industrial maintenance teams rely on the Mi-T-M OHV engine's parts availability through the manufacturer's service network for minimal downtime on the floor.

What Ships and Optional Add-Ons

The AM2-SM09-30M ships complete with the 30-gallon tank, engine, and cast iron pump assembly. The optional AX-0003 Manual Drain/Regulator/Metal Bowl upgrades moisture control inline. No electric start comes pre-installed; for electric start, see the AM2-SM09-30ME variant.

CFM @ PSI 17.2 @ 175
Engine 300cc Mi-T-M OHV
Tank Size 30 gallons (ASME)
Idle Control Pneumatic
Net Weight 364 lbs
Dimensions (L×W×H) 40.50 × 17.50 × 44.50 in

Spec Sheet | Manual

Product Warranty Information

"2 Year Pump Exchange, 3 Year Engine"
Product Image
Added to cart
Mi-T-M AM2-SM09-30M 30-Gal Two-Stage Gasoline Compressor – 17.2 CFM, 300cc OHVMi-T-M AM2-SM09-30M 30-Gal Two-Stage Gasoline Compressor ...
View Cart

Frequently Asked Questions

What is the Mi-T-M OHV engine and how does it compare to Honda?
The 300cc Mi-T-M OHV is a manufacturer-built engine that matches the Honda GX270's 270cc displacement class in output (17.2 CFM @ 175 PSI on both models). Mi-T-M's vertically integrated service network provides parts support through the same dealers that service the rest of the compressor.
Does the AM2-SM09-30M have electric start?
No. The -30M is a manual pull-start model. The electric start version is the AM2-SM09-30ME, which ships with start wiring pre-installed (battery ordered separately).
What is the tank pressure cycling range?
The compressor auto-starts at 145 PSI and shuts off at 175 PSI, maintaining a 30 PSI differential in the tank at all times for tool pressure stability.
What moisture control is available for this model?
The optional AX-0003 Manual Drain/Regulator/Metal Bowl installs between the tank outlet and air lines to trap condensate and set regulated downstream pressure separately from tank pressure.
How do I check the oil level on this compressor?
The AM2-SM09-30M has an oil level sight indicator on the pump housing. Check the level before each use; the pump uses SAE 30 non-detergent compressor oil.
What tools can the AM2-SM09-30M run simultaneously?
At 17.2 CFM, this unit can sustain a standard DA sander (8–12 CFM) plus a blow gun simultaneously, or support framing nailers for a two-person crew with adequate tank reserve.
Is this unit compliant for California sale?
Mi-T-M gasoline compressors with standard engines are not for sale in California. Contact us for CARB-compliant engine availability if you are in California.
