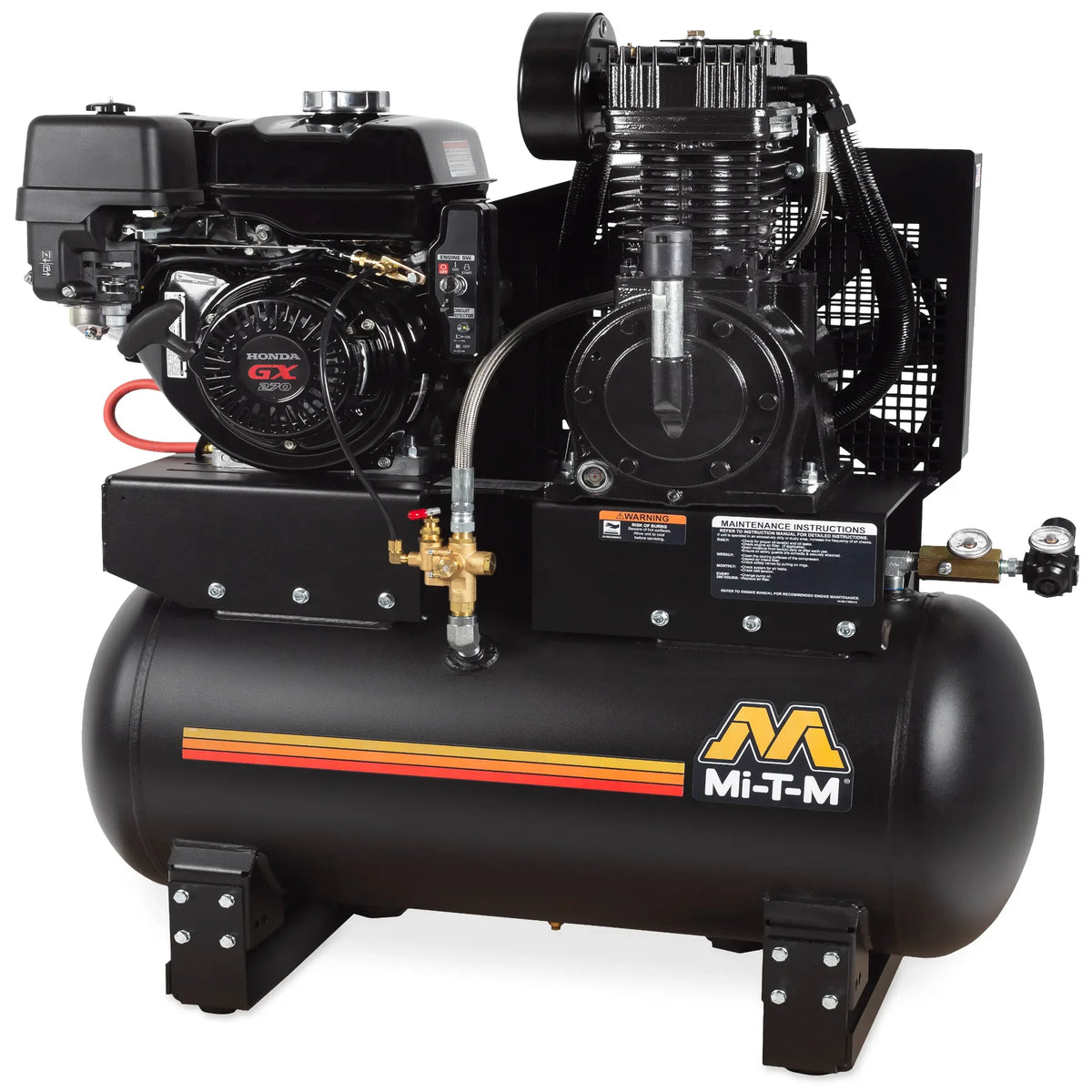

Mi-T-M AM2-SH09-30ME 30-Gal Two-Stage Gasoline Compressor – Electric Start, 17.2 CFM

Mi-T-M AM2-SH09-30ME 30-Gal Two-Stage Gasoline Compressor – Electric Start, 17.2 CFM

Brand: Mi-T-MSKU: AM2-SH09-30MEIn Stock – Ready to Ship
$3,600.00
FREE SHIPPING – You save $200+ on freight

Ships from US manufacturer with factory warranty

Ach Direct DebitAmazon American Express Apple Pay Diners ClubDiscoverGoogle Pay MastercardPayPalShop Pay USDC Visa
Authorized RetailerFactory-authorized dealer with genuine products
Manufacturer's WarrantyFull manufacturer warranty included
30-Day ReturnsHassle-free returns within 30 days
Lowest Price GuaranteedWe match any competitor's price
Ordering 3+ units? Call for volume pricing – (978) 295-7538
Order before 5:00 PM EST for same-day dispatch. Estimated delivery:

Need help choosing? Talk to an expert

(978) 295-7538

Mi-T-M AM2-SH09-30ME: 30-Gallon Two-Stage Gasoline Compressor with Electric Start

The Mi-T-M AM2-SH09-30ME adds electric start capability to the proven AM2 two-stage platform. Powered by a 270cc Honda GX270 OHV engine producing 17.2 CFM at 175 PSI, this 30-gallon ASME tank unit weighs 490 lbs net — heavier than the base -30M due to the electric start hardware already installed. Battery and cables are not included and must be ordered separately.

Electric Start and Two-Stage Pump Details on the AM2-SH09-30ME

  • Electric start pre-installed — eliminates pull-cord effort for daily startup in shop or fleet environments
  • Honda GX270 OHV engine — 270cc displacement with commercial-grade durability and parts availability
  • 17.2 CFM @ 175 PSI — sustained two-stage output for spray guns, impact wrenches, and air-operated lifts
  • Two-stage cast iron pump — inter-stage cooling reduces heat buildup during extended run cycles
  • Stainless-steel braided discharge hose — rated for high-pressure output without abrasion wear
  • Pneumatic idle control — auto-throttles at set pressure to reduce fuel use and engine hours
  • 150-PSI maximum rated regulator — allows output pressure tuning for different tool requirements

Where Electric Start Matters: Fleet Shops and Daily-Use Stations

Electric start is most valued in fleet maintenance facilities, auto dealership service bays, and rental equipment yards where compressors start and stop multiple times per shift. Manufacturing floor stations benefit from push-button startup that doesn't require technician strength or proximity to the recoil. Mobile service units with generator integration can connect directly to the electric start circuit for remote activation.

Optional Upgrades and What Ships

The AM2-SH09-30ME ships with electric start wiring pre-installed but without a battery. The optional AX-0017 kit adds a sealed battery, tray, box, and cables for a complete installation. The AX-0077 Battery Box/Tray and AX-0105 Remote Start/Choke (7-ft sealed cable) are also available as factory-order options for remote key-switch control.

CFM @ PSI 17.2 @ 175
Engine 270cc Honda GX270 OHV
Tank Size 30 gallons
Start Type Electric (battery not included)
Net Weight 490 lbs
Dimensions (L×W×H) 40.50 × 17.50 × 44.50 in

Spec Sheet | Manual

Product Warranty Information

"2 Year Pump Exchange, 3 Year Honda Engine"
Product Image
Added to cart
Mi-T-M AM2-SH09-30ME 30-Gal Two-Stage Gasoline Compressor – Electric Start, 17.2 CFMMi-T-M AM2-SH09-30ME 30-Gal Two-Stage Gasoline Compressor...
View Cart

Frequently Asked Questions

Does the AM2-SH09-30ME come with a battery for the electric start?
No. The unit ships with the electric start wiring pre-installed, but the battery is not included. The optional AX-0017 kit adds the sealed battery, tray, box, and cables needed for a complete installation.
What is the difference between the AM2-SH09-30M and AM2-SH09-30ME?
The -30ME adds electric start hardware, increasing the net weight to 490 lbs versus 376 lbs for the manual-start -30M. Output specs — 17.2 CFM at 175 PSI — are identical on both models.
Can I add remote start to the AM2-SH09-30ME?
Yes. The AX-0105 Remote Start/Choke with 7-foot sealed cable is a factory-order option that allows a key switch to be mounted away from the unit, such as in a truck cab.
What does the 150-PSI rated regulator control?
The regulator allows you to set downstream working pressure up to 150 PSI, letting you match output to tool specifications rather than running tools at full tank pressure.
How often does the cast iron pump need oil changes?
Mi-T-M recommends checking oil level before each use via the sight indicator and changing oil after the first 20 hours, then every 200 hours thereafter under normal commercial use conditions.
What moisture control options are available?
The optional AX-0003 Manual Drain/Regulator/Metal Bowl upgrade installs inline to separate condensate from compressed air before it reaches your tools and hoses.
Is the removable base plate included?
Yes. A removable base plate ships with the unit, enabling direct floor mounting or skid integration on service trucks and enclosed trailers.
