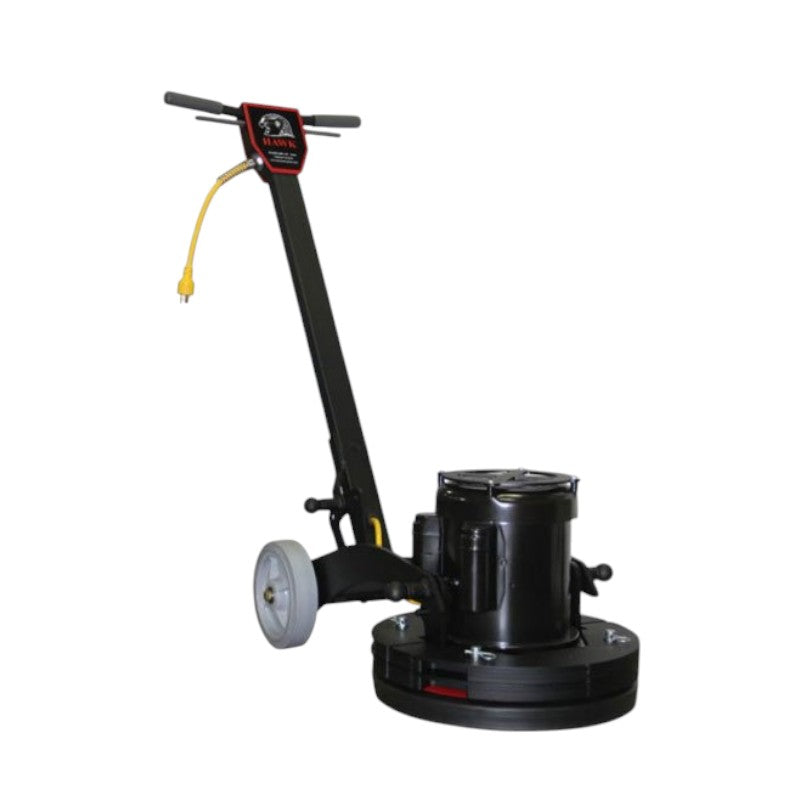

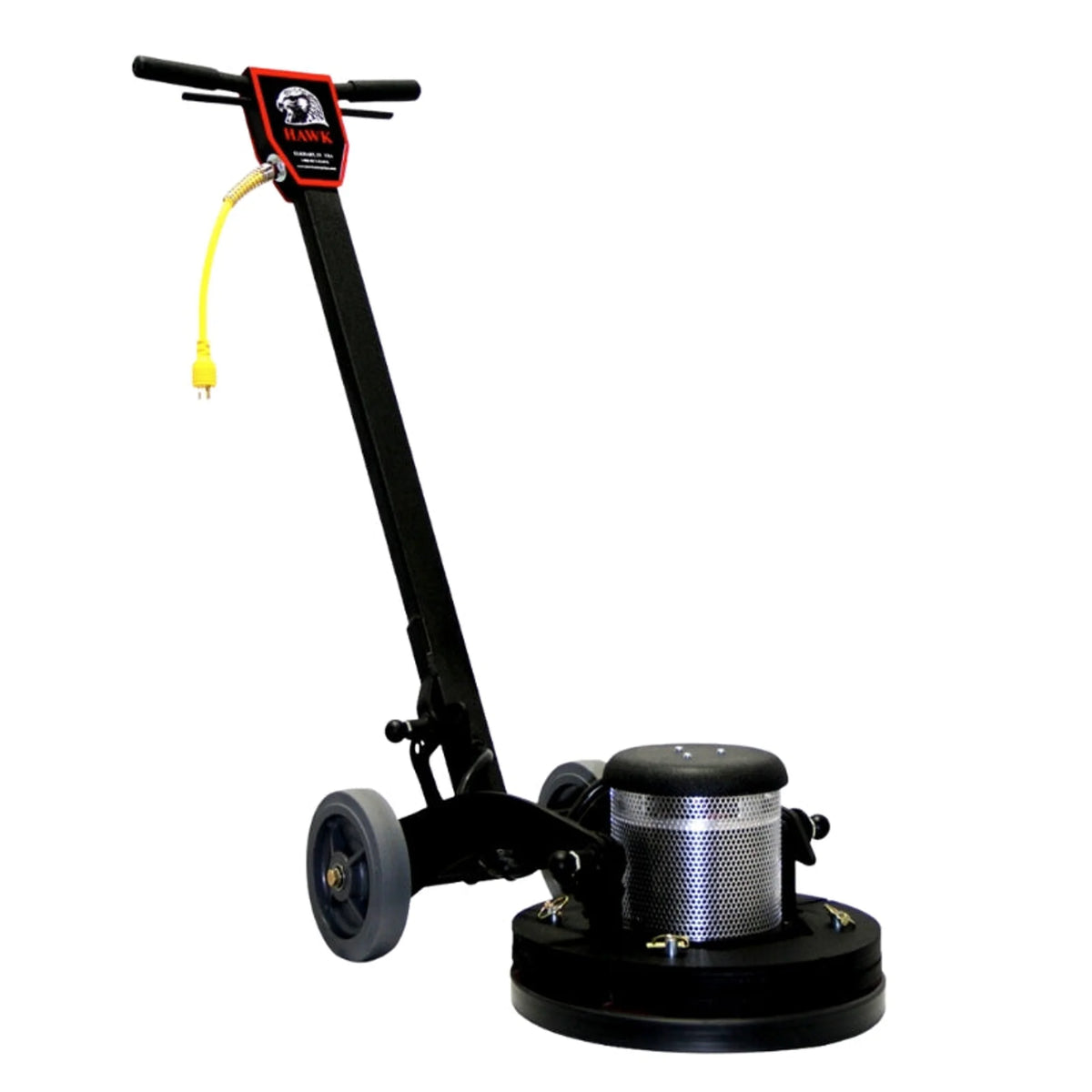

Hawk Merlin Severe-Duty WD 17" Floor Machine – 165 RPM, 1.5 HP TEFC

Brand: Hawk Enterprises SKU: F70-17-01 In Stock – Ready to Ship
$2,608.00

Ships from US manufacturer with factory warranty

Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa
Authorized Retailer Factory-authorized dealer with genuine products
Manufacturer's Warranty Full manufacturer warranty included
30-Day Returns Hassle-free returns within 30 days
Lowest Price Guaranteed We match any competitor's price
Ordering 3+ units? Call for volume pricing – (978) 295-7538
Order before 5:00 PM EST for same-day dispatch. Estimated delivery:

Need help choosing? Talk to an expert

(978) 295-7538

Single-Speed 17" Severe-Duty Floating Head Machine with 60-Second Modular Breakdown

The Hawk Merlin Severe-Duty WD 17" (F70-17-01) is the single-speed industrial configuration in the 17-inch Merlin line: 1.5 HP TEFC dual-capacitor motor, XHD 11:1 helical-cut gears, forward-motion control, and WD floating head in a 231-lb chassis. Like the 20-inch version, it breaks down into transportable sections in under 60 seconds for elevator transit and van loading. The TEFC motor housing resists the abrasive dust and moisture present in concrete, stone, and heavy-duty floor preparation environments.

Build and Performance Specs

  • 1.5 HP TEFC dual-capacitor, 7.9A, 115–230V — TEFC housing is sealed against abrasive dust ingress; dual-voltage motor operates internationally; 7.9A draw leaves circuit headroom for other equipment on the same branch.
  • 165 RPM, XHD 11:1 helical-cut gears — industrial gear specification handles diamond tooling, aggressive stripping, and heavy scrubbing at the torque levels required for concrete resurfacing and floor restoration work.

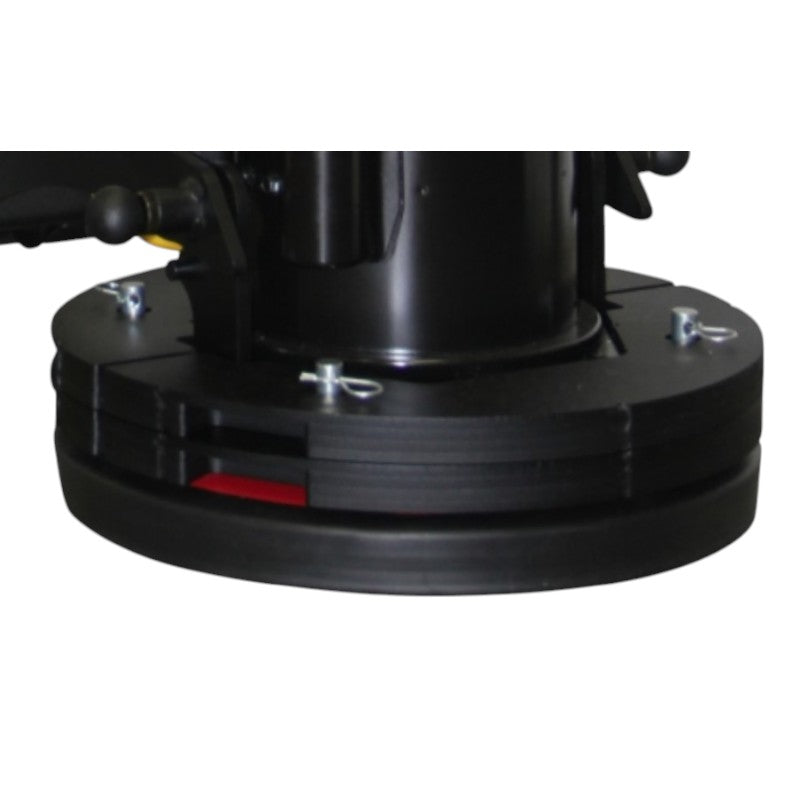

  • WD floating head, forward-motion control — WD pivot maintains consistent pad contact on uneven concrete and stone surfaces; forward-motion system allows straight-line cleaning passes that reduce operator fatigue on extended shifts.
  • 60-second modular breakdown, 231 lbs — one person disassembles to transportable sections without tools; 231 lbs total is heavy enough for excellent surface contact on concrete but manageable for elevator-based multi-floor deployment.

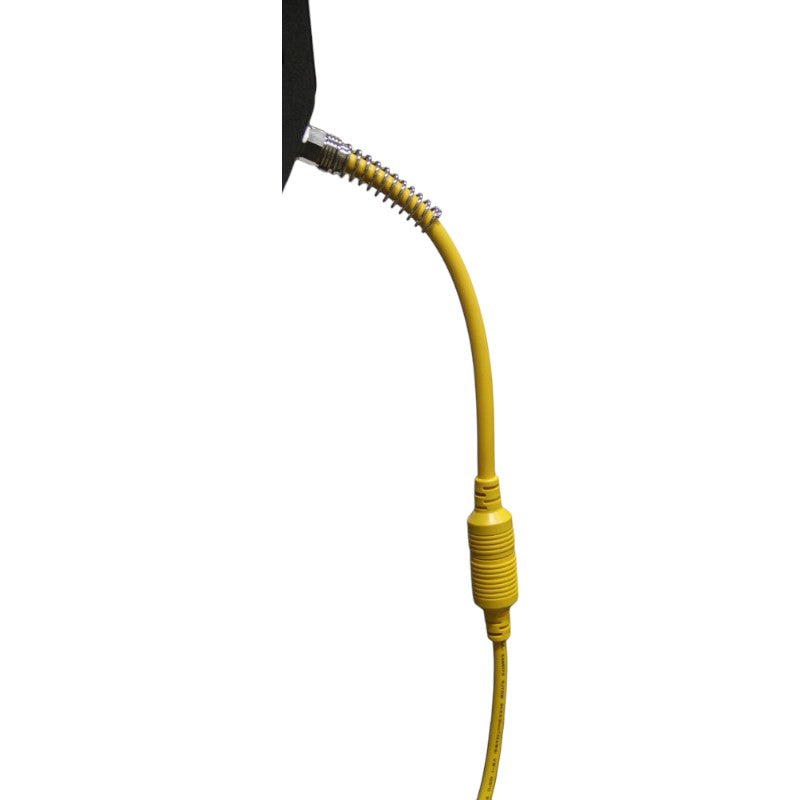

  • 66 dB, GS42, 50-ft twist-lock cord — GS42 noise compliance for occupied-building work; twist-lock cord prevents disconnection during long forward-motion passes.

Applications and Deployment

Commercial flooring contractors use the Merlin WD 17" for concrete preparation in renovation projects inside occupied commercial buildings where the 17-inch footprint fits between cubicles, around partition walls, and in clinical spaces. Stone restoration specialists deploy it for marble and terrazzo polishing and grinding in retail stores, hotel lobbies, and healthcare campus corridors. Building service contractors use it for overnight strip-and-refinish cycles on VCT floors in 17-inch spaces including patient rooms, small conference rooms, and back-of-house utility corridors. Restoration contractors use the modular breakdown feature for multi-floor access in healthcare campus renovation projects where elevator transit is the primary means of moving between work areas.

Specifications

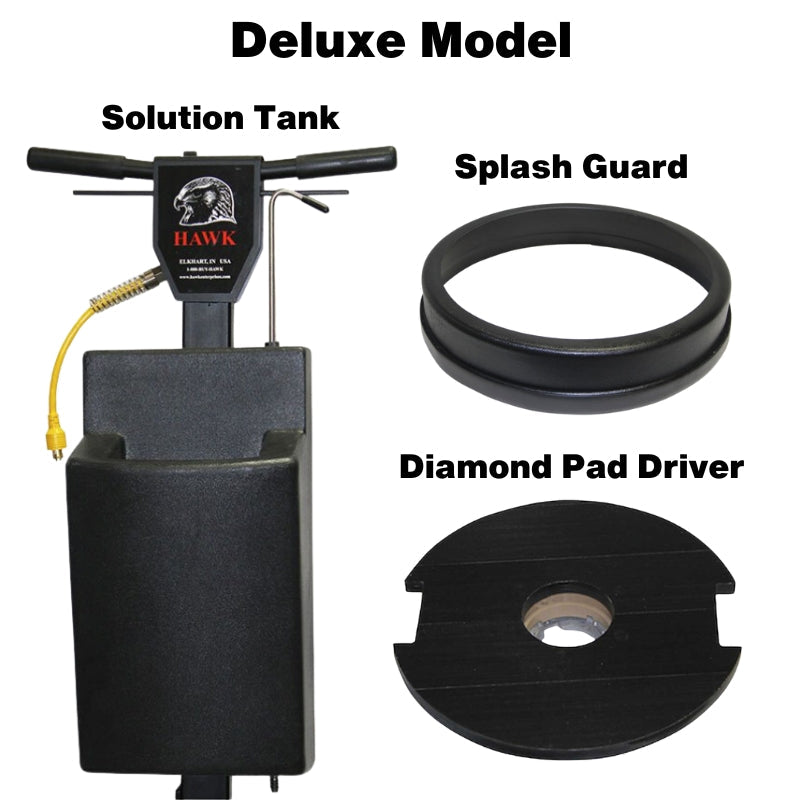

Part Numbers F70-17-01 / F70-17-01-CP / F70-17-01DX
Machine Size 17"
Speed 165 RPM
Amp Draw 7.9 A
Motor 1.5 HP, 180 frame, TEFC dual capacitor AC
Drive System Triple-planetary XHD 11:1 helical-cut industrial gears
Power Supply 115–230V, 60 Hz (50 Hz optional)
Power Cord 50 ft, (12-3) 2-piece industrial with twist lock
Noise Level 66 dB – GS42 compliant
Weight 231 lbs (TE) / 260 lbs (DX)
Dimensions 25 × 33 × 55 in

Video

Documents

Spec Sheet

Manual

Product Warranty Information

"1 Year Service Warranty, 3 Years For Parts"
Product Image
Added to cart
Hawk Merlin Severe-Duty WD 17 Hawk Merlin Severe-Duty WD 17" Floor Machine – 165 RPM, 1...
View Cart

Frequently Asked Questions

What is the difference between the Merlin Severe-Duty WD 17" and the Merlin 2-Speed XHD WD 17"?
The Merlin Severe-Duty WD (F70-17-01) operates at a single speed of 165 RPM with a 1.5 HP TEFC motor. The Merlin 2-Speed XHD WD (F71-17-01) adds a second speed at 300 RPM using a DC rectified motor, allowing both stripping and spray buffing. The single-speed model is appropriate when 165 RPM severe-duty applications are all that's required.
Why would I choose the 17" Merlin WD instead of the 20" version?
The 17-inch footprint fits through doorways and around obstacles that the 20-inch model cannot navigate — patient rooms, office spaces with cubicle partitions, and narrow service corridors. Both share the same TEFC motor, XHD gearing, 60-second breakdown, and GS42 noise compliance.
How quickly does the machine break down for transport?
The modular construction allows a single operator to disassemble the Merlin Severe-Duty WD 17" into transportable sections in under 60 seconds without tools. This enables elevator-based multi-floor deployment without requiring additional personnel.
What is the TEFC motor enclosure and why is it used on the Merlin WD?
TEFC (Totally Enclosed Fan Cooled) seals the motor windings against abrasive dust and moisture ingress. This is critical on severe-duty concrete and stone applications where open-frame motors would ingest abrasive particles and fail prematurely. The TEFC housing allows use in dusty and mildly wet operating environments.
What voltage options are available on the F70-17-01?
The motor is rated 115–230V at 60 Hz (50 Hz optional), supporting operation on North American and international electrical supplies without motor replacement. The same machine runs on 115V in the US and 230V in European and other international facilities.
