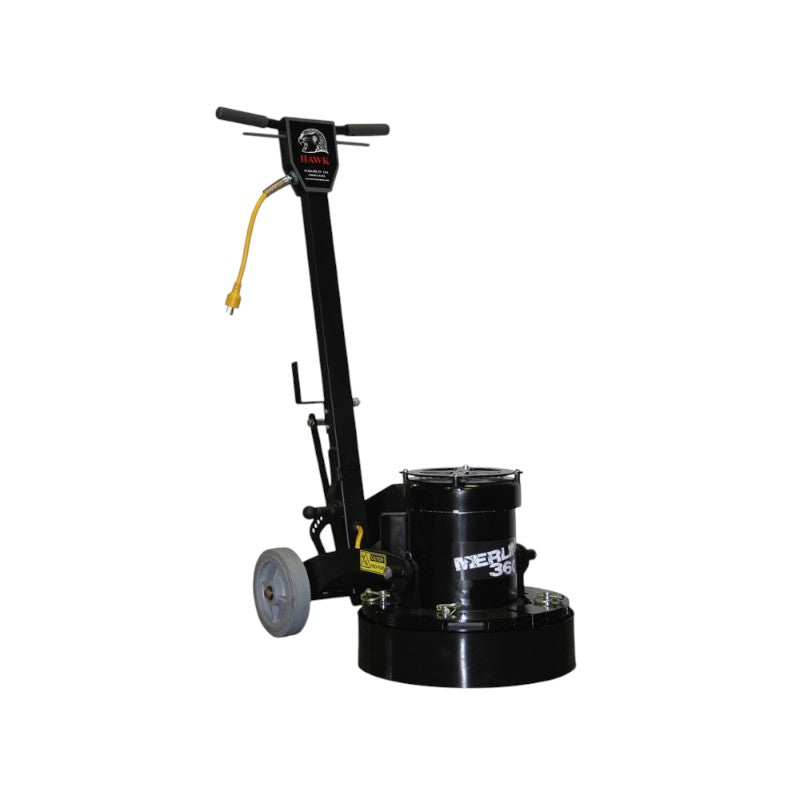

Hawk Merlin 360 Severe-Duty 17" Floor Machine – 360° Dust, 1.5 HP TEFC

Brand: Hawk EnterprisesSKU: F75-17BIn Stock – Ready to Ship
$3,305.00
FREE SHIPPING – You save $200+ on freight

Ships from US manufacturer with factory warranty

Ach Direct DebitAmazon American Express Apple Pay Diners ClubDiscoverGoogle Pay Mastercard PayPalShop Pay USDC Visa
Authorized RetailerFactory-authorized dealer with genuine products
Manufacturer's WarrantyFull manufacturer warranty included
30-Day ReturnsHassle-free returns within 30 days
Lowest Price GuaranteedWe match any competitor's price
Ordering 3+ units? Call for volume pricing – +1 (978) 295-7538
Order before 5:00 PM EST for same-day dispatch. Estimated delivery:

Need help choosing? Talk to an expert

+1 (978) 295-7538

360° Dust-Controlled 17" Severe-Duty Floor Machine for Concrete Resurfacing and Stone Polishing

The Hawk Merlin 360 Severe-Duty 17" (F75-17B) integrates a 360-degree circumferential dust pickup system into the 233-lb industrial machine frame for total source-capture dust control during surface preparation, concrete grinding, and stone polishing. The 1.5 HP TEFC dual-capacitor motor drives XHD 11:1 helical-cut gears at 165 RPM, and an 80 lb weight system maximizes downforce for aggressive tooling applications. Foot-operated lift assist enables single-operator repositioning of the 233-lb chassis.

Dust Capture and Industrial Drive Specs

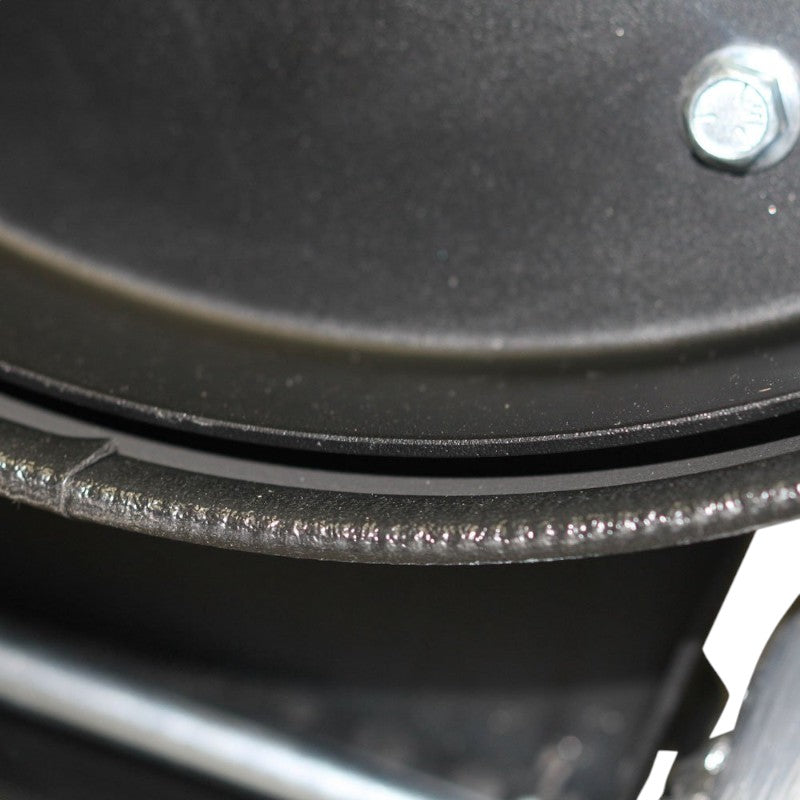

  • 360° dust pickup, foot-operated lift assist — circumferential shroud captures debris from all directions around the working diameter, not just the trailing edge; 80 lb weight system increases tooling pressure; foot-operated lift allows one operator to reposition 233 lbs between work zones.
  • 1.5 HP TEFC dual-capacitor, 7.9A, 165 RPM — TEFC housing prevents abrasive concrete and stone dust from entering motor windings; dual-capacitor design provides reliable startup under load without current spikes in older commercial electrical panels.
  • XHD 11:1 helical-cut gears, 233 lbs operating weight — machine weight plus optional weight kit provides the ground pressure required for diamond tooling on concrete and abrasive disc applications on stone without operator downforce.
  • 66 dB, GS42 compliant, 115–230V dual voltage — qualifies for occupied-building use; dual voltage supports international deployment; 50-ft twist-lock cord prevents disconnection during aggressive forward passes.

Deployment Environments

Concrete polishing contractors use the Merlin 360 17" for surface preparation and sealer removal in commercial office spaces, retail stores, and healthcare facilities where the 17-inch footprint fits between cubicle rows and around fixed partitions that the 20-inch version cannot navigate. Stone restoration specialists use it on marble, granite, and terrazzo floors in occupied hotel lobbies and casino gaming floors where the 360° dust containment prevents abrasive debris from reaching guest areas during polishing operations. Flooring removal contractors use it with scarifying discs for adhesive and thin-set residue removal from concrete subfloors in office renovation projects. Infrastructure maintenance teams in healthcare campuses use it for floor surface preparation in occupied corridors and patient areas where both dust containment and noise control are contractually required.

Specifications

Part Numbers F75-17B (Black) / F75-17C (Chrome)
Pad Driver Size 17"
Pad Size 16"
Speed 165 RPM
Amp Draw 7.9 A
Motor 1.5 HP, 180 frame, TEFC dual capacitor AC
Drive System Triple-planetary XHD 11:1 helical-cut industrial gears
Power Source 115–230V, 60 Hz (50 Hz optional)
Power Cord 50 ft, (12-3) 2-piece industrial with twist lock
Noise Level 66 dB – GS42 compliant
Weight 233 lbs

Video

Documents

Hawk Merlin 360 Severe-Duty 17" Floor Machine – 360° Dust, 1.5 HP TEFC User Manual (PDF)

Hawk Merlin 360 Severe-Duty 17" Floor Machine – 360° Dust, 1.5 HP TEFC Spec Sheet (PDF)

Spec Sheet

Manual

Product Warranty Information

"1 Year Service Warranty, 3 Years For Parts"

B2B & Tax-Exempt Purchases

We supply contractors, restoration companies, property managers, schools, government agencies, and other tax-exempt organizations.

How to place a tax-exempt order:

  1. Write to us through our Contact Us page or email info@uscleaningtools.com and attach your valid tax exemption certificate (state resale or exemption certificate).
  2. We verify your certificate and mark your account tax-exempt — usually within one business day.
  3. Place your order and sales tax will not be charged.

For volume pricing or purchase orders, call +1 (978) 295-7538.

Shipping & Returns

Free shipping on most brands for orders over $300, delivered to the lower 48 states. Any brand-specific freight rate is shown at checkout before you pay.

Processing & delivery: in-stock orders are processed within 1–2 business days and typically deliver in 5–7 business days. Tracking is emailed within 24 hours of shipment. Built-to-order and backordered equipment shows its lead time on this page.

Freight deliveries: inspect your equipment on arrival and note any damage on the delivery receipt. Items damaged in transit or defective on arrival are fully covered at no cost to you.

Cancellations: cancel any time before your order ships for a full 100% refund.

30-day returns: return unused equipment in its original packaging within 30 days of delivery. Change-of-mind returns are subject to a restocking fee. To start a return, email info@uscleaningtools.com or call +1 (978) 295-7538.

Product Image
Added to cart
Hawk Merlin 360 Severe-Duty 17Hawk Merlin 360 Severe-Duty 17" Floor Machine – 360° Dust...
View Cart
$3,305.00

Frequently Asked Questions

How does the 360° dust pickup differ from a trailing-edge dust shroud?
A trailing-edge dust shroud only captures debris from the back of the machine's cleaning path. The Merlin 360's circumferential shroud wraps around the full working diameter, capturing debris from all 360 degrees simultaneously. This is especially important for circular pad passes on stone and concrete where debris scatters in all directions.
What is the difference between the Merlin 360 17" and the Merlin Severe-Duty WD 17"?
The Merlin 360 (F75-17B) adds a 360° dust collection system to the same 1.5 HP TEFC platform. The Merlin Severe-Duty WD (F70-17-01) does not include dust collection but is otherwise mechanically similar. Choose the 360 model when dust control compliance is required; choose the WD model for applications where a separate vacuum is already handling dust collection.
How is a 233-lb machine repositioned by a single operator?

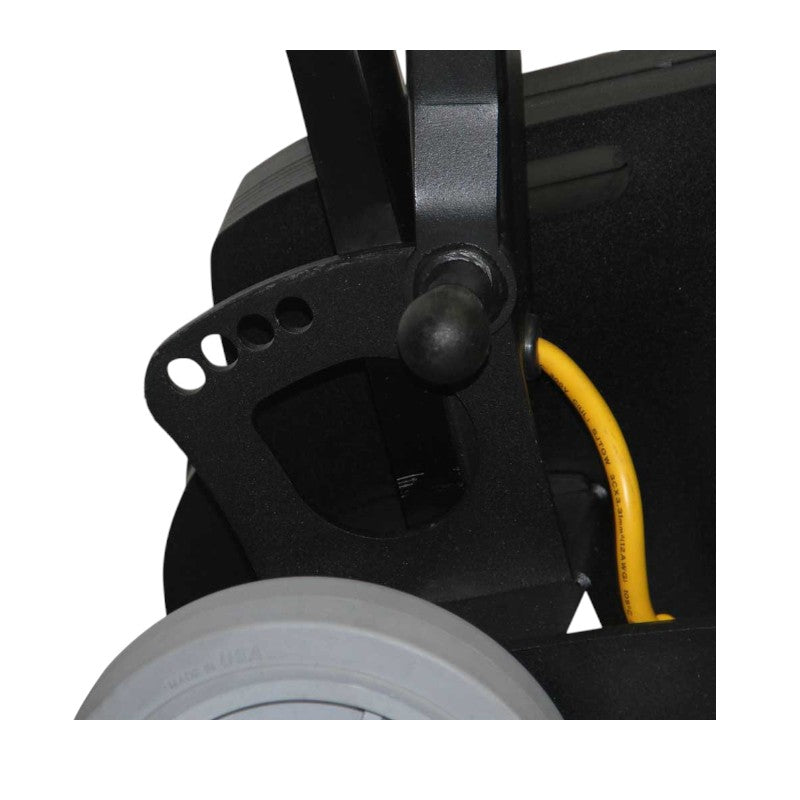

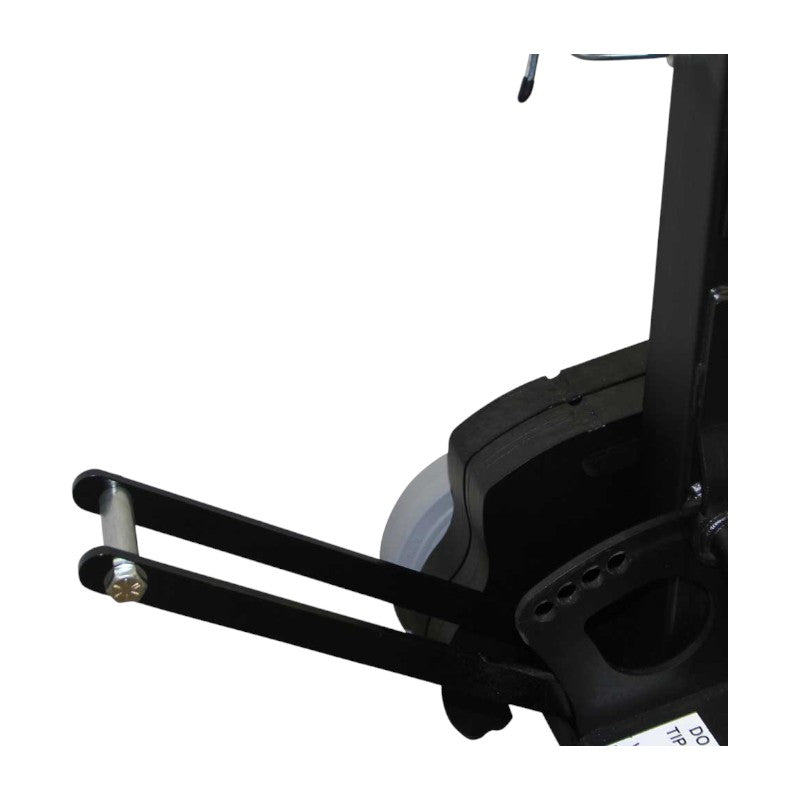

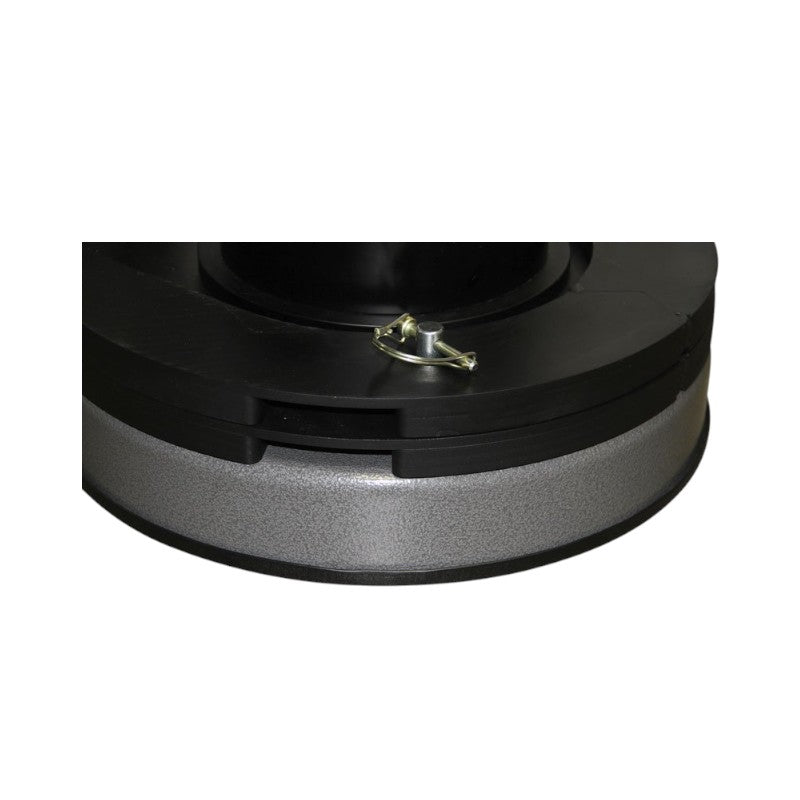

The foot-operated lift assist lever raises the front of the machine onto the transport wheels, reducing the effort required to roll the 233-lb chassis between work zones. The 80 lb weight system is removable, reducing transport weight to 153 lbs when moving between areas.
Does the Merlin 360 17" come in different motor finishes?

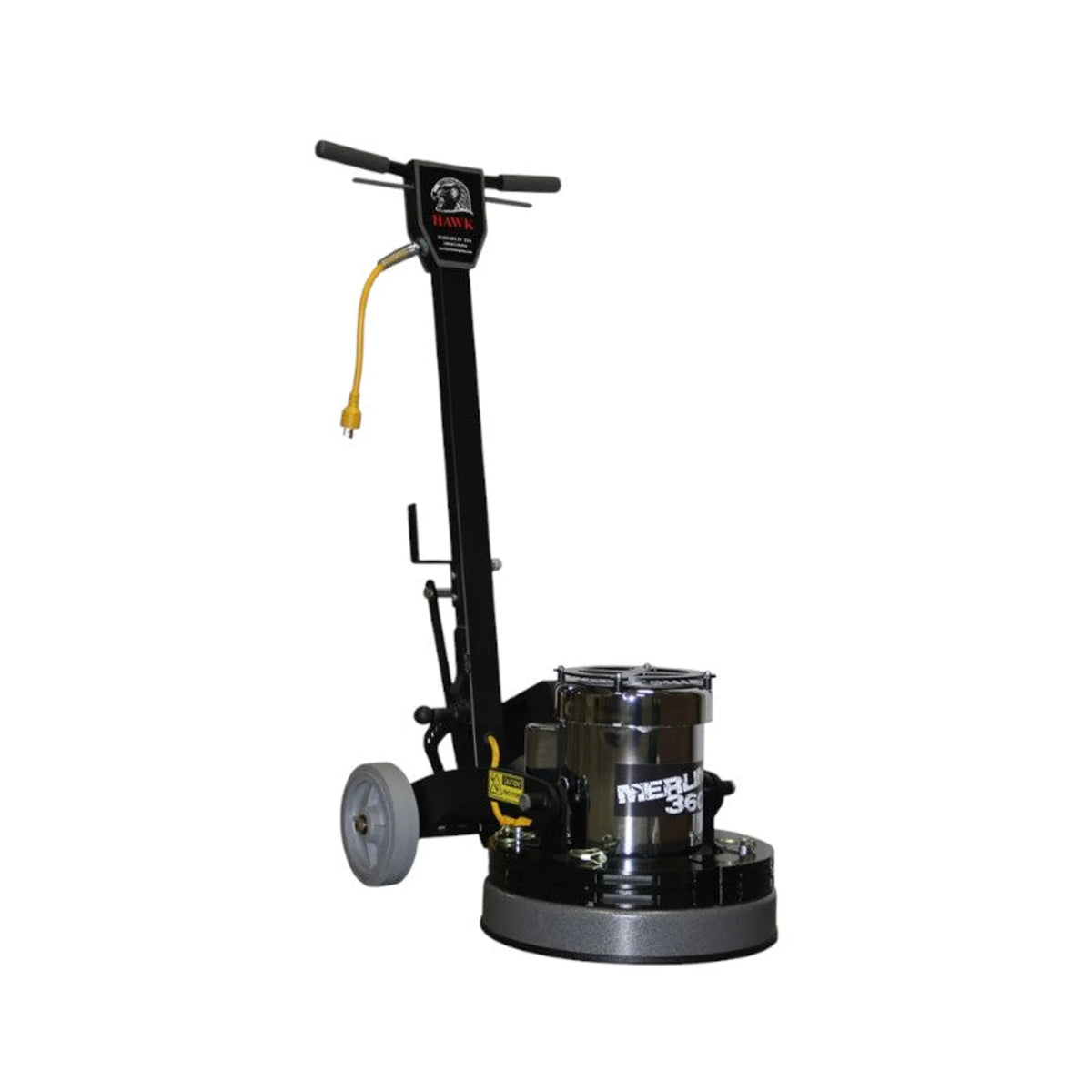

Yes. F75-17B has a black motor cover and powder-coated frame. F75-17C has a chrome motor cover with powder-coated frame. Both are mechanically identical — same motor, gearing, speed, and specifications.
What power supply does the Merlin 360 17" require?
The motor runs on 115–230V at 60 Hz standard (50 Hz optional) and draws 7.9 amps. This is compatible with standard 15-amp commercial circuits, and the dual voltage allows operation on international 230V supplies without modification.
