Ebac RM40 Whole House Ducted HVAC Dehumidifier – 24 PPD, 110V

Ebac RM40 Mobile Unit With Tank or Drain Hose Operation

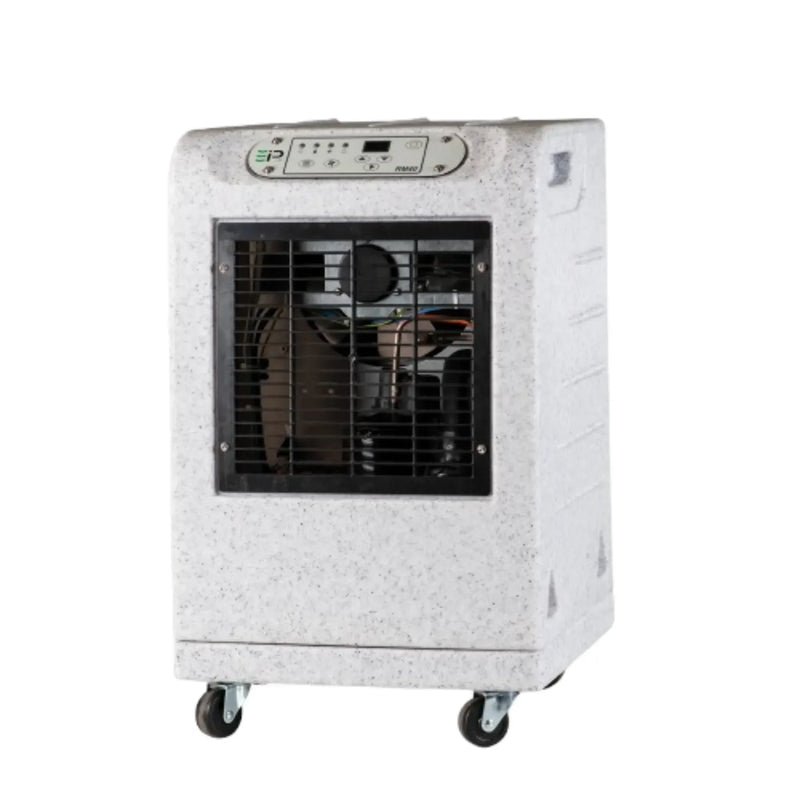

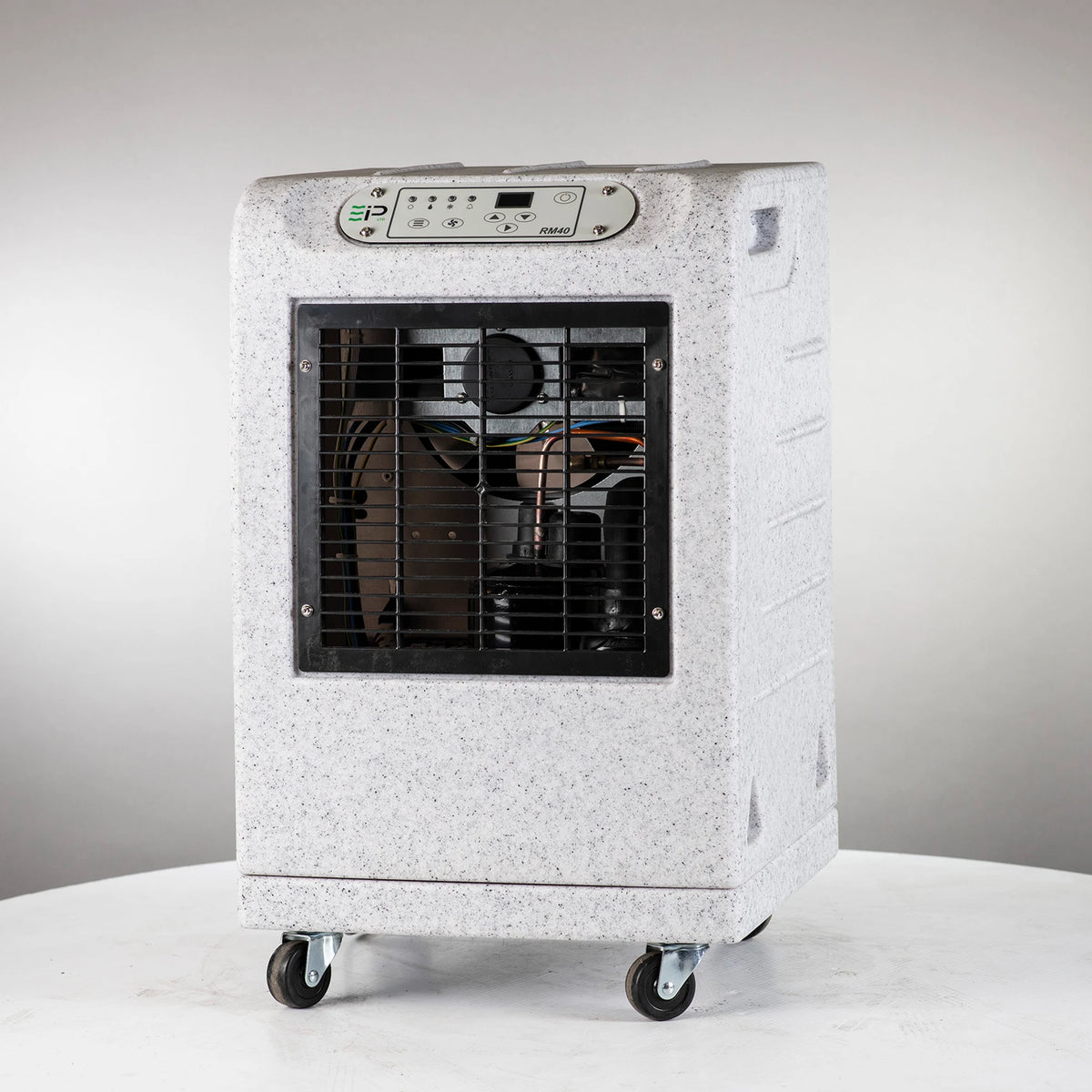

Ebac RM40 dehumidifier takes out a typical 24 pints of moisture per day and covers an effective volume of 3,000 cubic feet. It rolls on castors, so a contractor or building manager can move it from room to room as damp spots show up. You can let it fill its internal water container or connect a hose for continuous drainage.

Ebac RM40 Controls and Water Handling

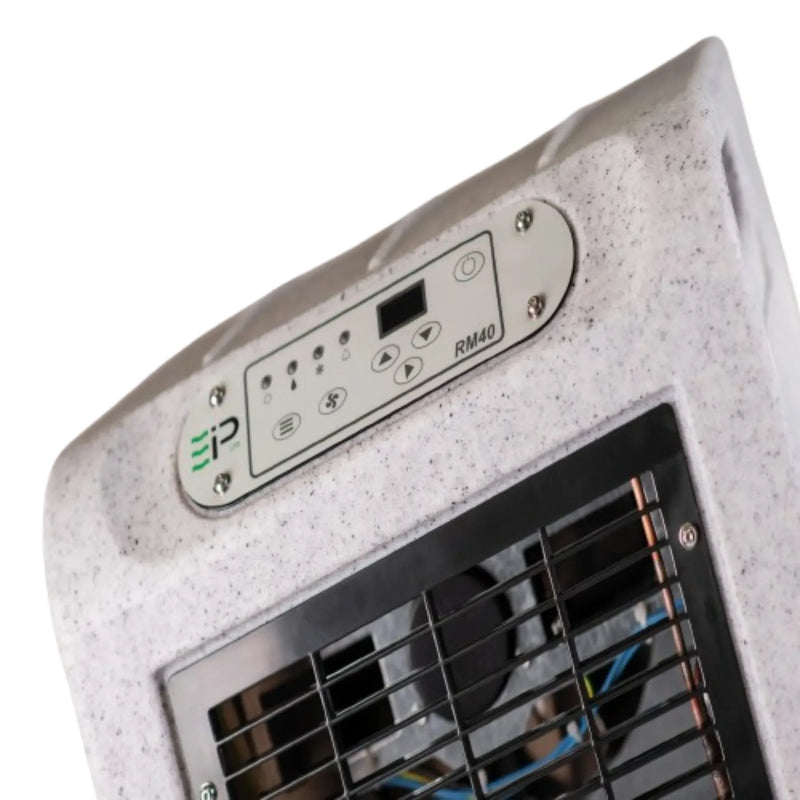

The front OLED display and LED status panel show what the unit is doing without guesswork. For water, you choose between emptying a container and running a drain line. The container suits short stays in one room, while the hose makes more sense for a long-term setup next to a floor drain.

• Adjustable electronic humidistat — set a target humidity and the RM40 cycles to hold it

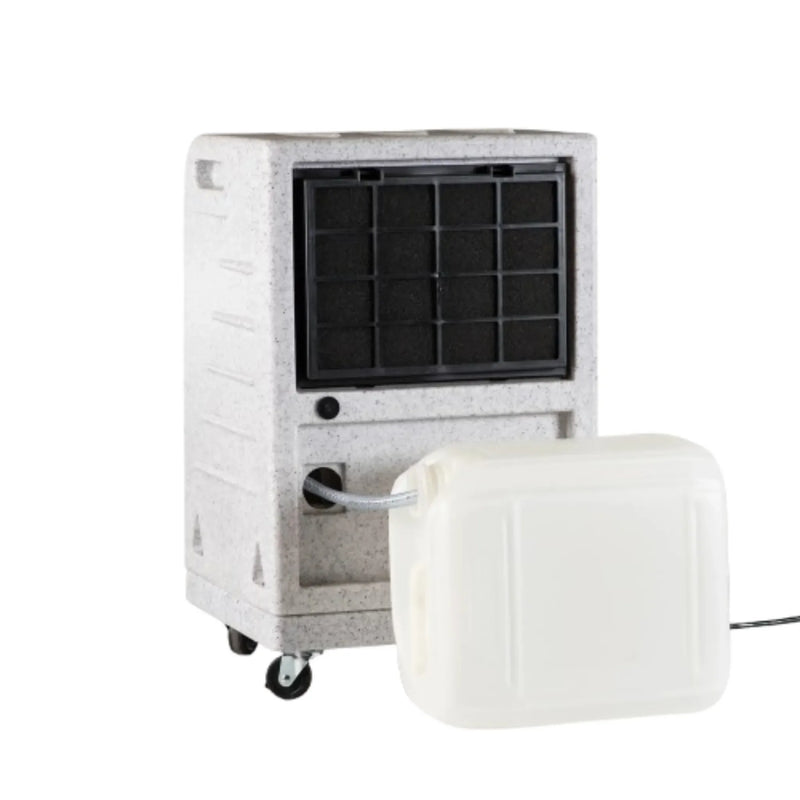

• Internal water container with bucket full indicator — the panel tells you when it is time to empty

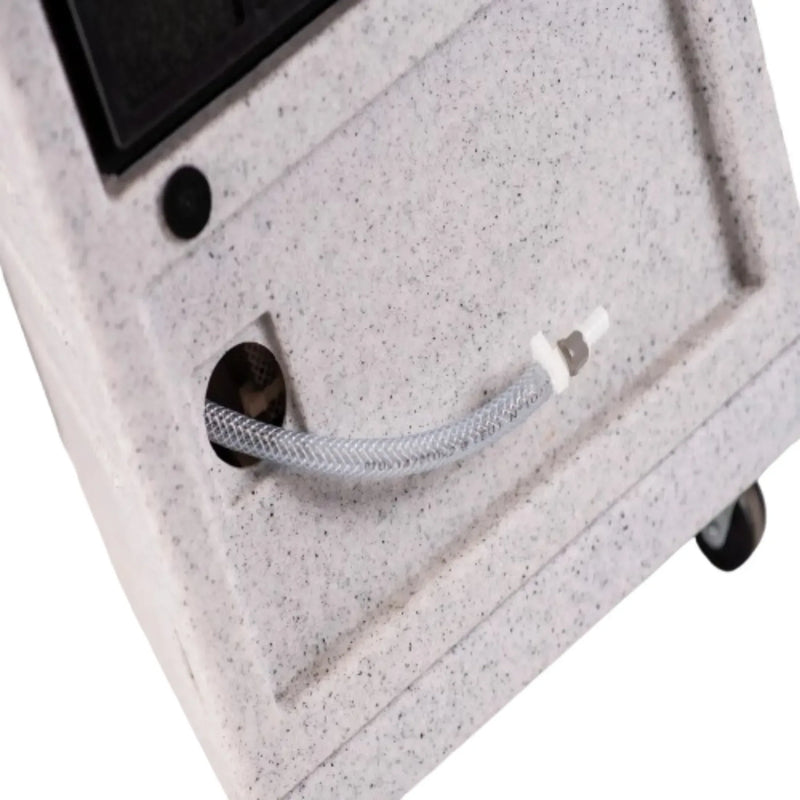

• Permanent drain facility and quick release hose connector — clip on a hose for continuous drainage and pull it off when you move the unit
• Recirculation (fan only) mode — moves air through the room without running the compressor
• Washable air filter — rinse and refit it instead of buying replacements
• Hot gas defrost with temperature-sensitive control — keeps the coil clear when it runs in rooms near 33°F

Ebac RM40 Applications and Environments

Sold as a whole-house HVAC dehumidifier, the unit works in any space up to 3,000 cubic feet with an operating range of 33°F to 95°F. That range covers unheated rooms in winter as well as warm, humid ones in summer. At 42 lbs and 15" W × 14" D × 25" H, the Ebac RM40 is easy to wheel through a doorway. It plugs into a standard 110V outlet, drawing 3.3 A, and runs at a rated 47 dBA.

Specifications

What's in the Box

• RM40 dehumidifier
• Owner's manual

Documents

Spec Sheet

Manual

RM40 Wiring Diagram (PDF)

RM40 Wiring Schematic (PDF)
