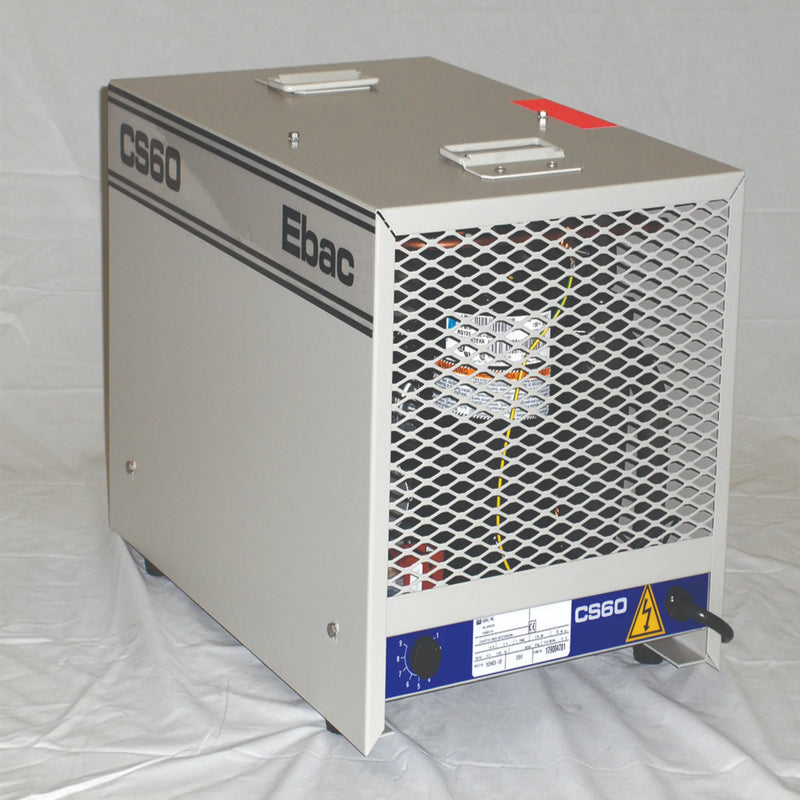

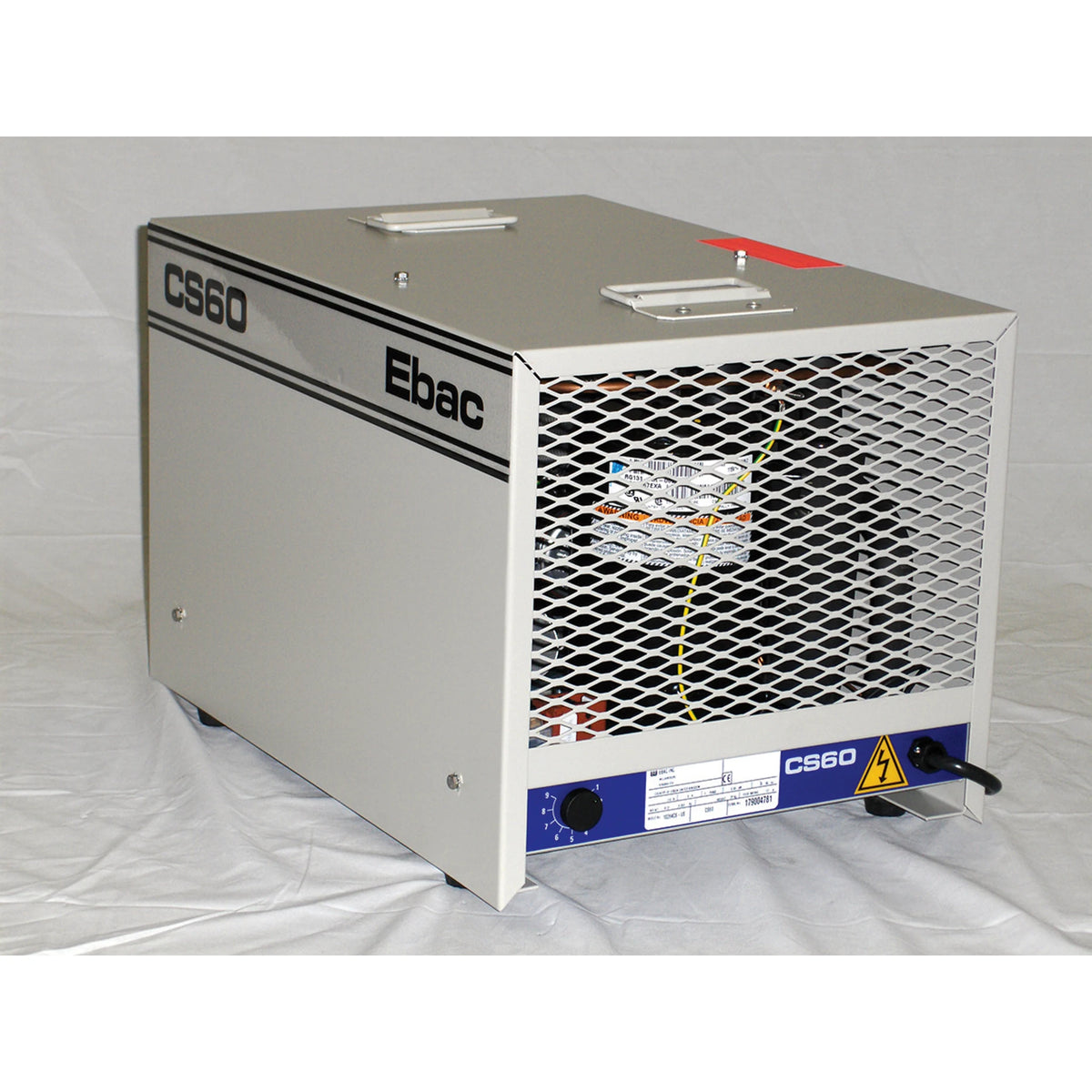

Ebac CS60 Whole House Ducted HVAC Dehumidifier – 110V Commercial

Ebac CS60 Humidity Control for Ducted Homes and Commercial Rooms

Ebac CS60 dehumidifier pulls a typical 56 pints of water a day out of the air and covers an effective volume of 8,370 cu ft. Contractors use it to add humidity control to a ducted HVAC system, and facility managers use it when one compact unit has to handle a damp commercial area. You set a humidity level and the unit works to hold it there.

Ebac CS60 Defrost and Cold-Space Operation

The CS60 is rated to run from 33°F up to 95°F, so it keeps drying in cool spaces where a coil would otherwise ice over. Its hot gas defrost is electronically controlled and temperature sensitive, clearing the coil and getting the unit back to work.

• Adjustable control humidistat — pick a target humidity and the unit switches itself on and off to stay near it.
• 147 CFM airflow at 57 dBA — a steady air volume at a noise level that suits rooms people use.

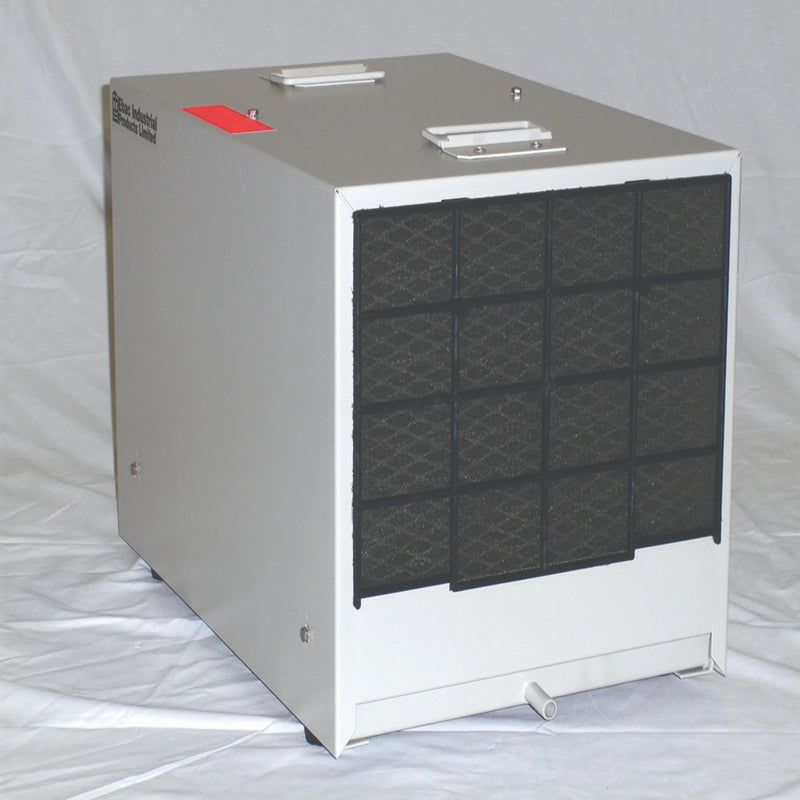

• Washable air filter — rinse it, let it dry and refit it instead of buying replacements.
• Rotary compressor on 110V, 7 A — draws 880 W from a single-phase 60 Hz supply through the fitted mains plug.
• Rubber anti-vibration feet — cut down the vibration passed into the floor under the unit.
• Collapsible carrying handles — fold away during operation and give you a grip when the 63 lb unit needs to move.

Ebac CS60 Applications and Environments

Ebac lists the CS60 as a whole-house ducted unit, so the typical install ties it into an existing HVAC system to dry the air for the whole building instead of a single room. In commercial buildings it does the same job for any space that falls inside its 8,370 cu ft effective volume. At 14" W × 20" D and 15" high, it fits in a utility area or mechanical room without taking over the floor. An unheated space that stays above 33°F is still within its rating, and the epoxy powder coating protects the casing where the air is damp. When sizing a job, match the Ebac CS60 to spaces that stay within that volume and below 95°F.

Specifications

What's in the Box

• CS60 dehumidifier
• Owner's manual
• 3/8" I.D. PVC tube, 3 m long
• Jubilee clip

Documents

Spec Sheet

Manual

CS60 Wiring Diagram (PDF)

CS60 Wiring Schematic (PDF)
