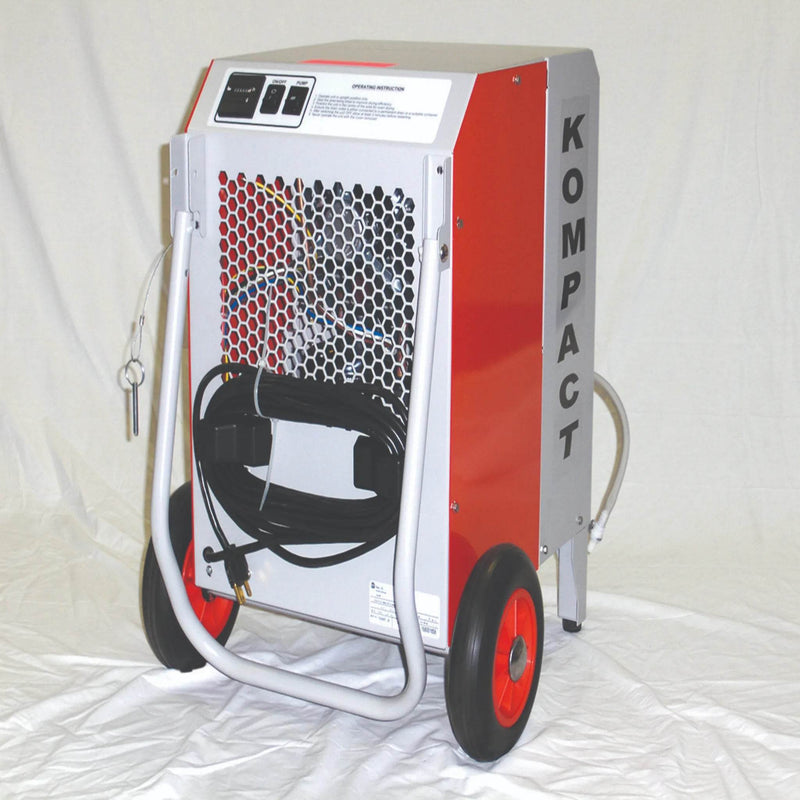

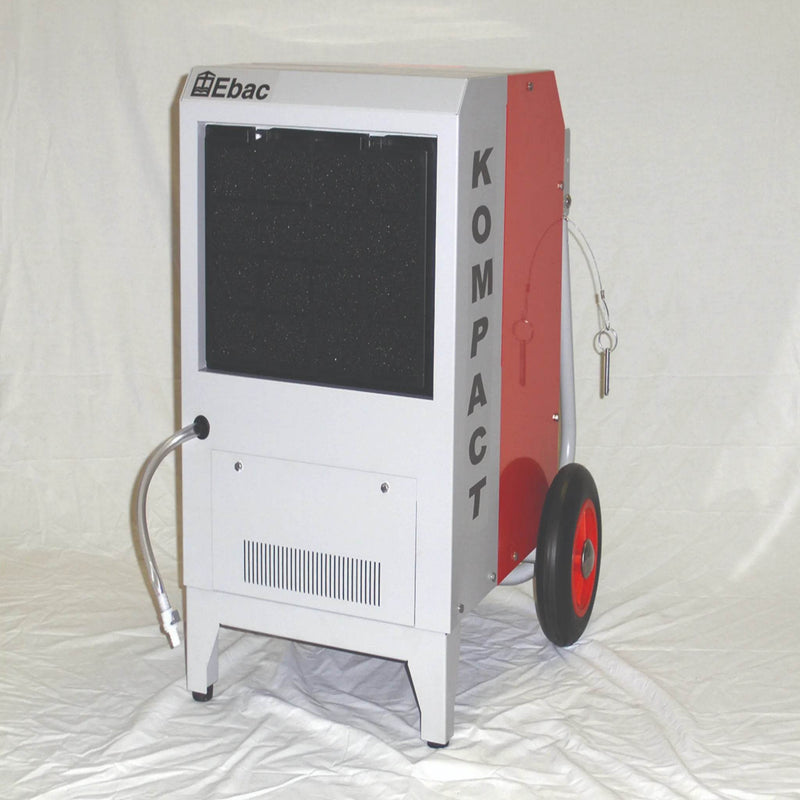

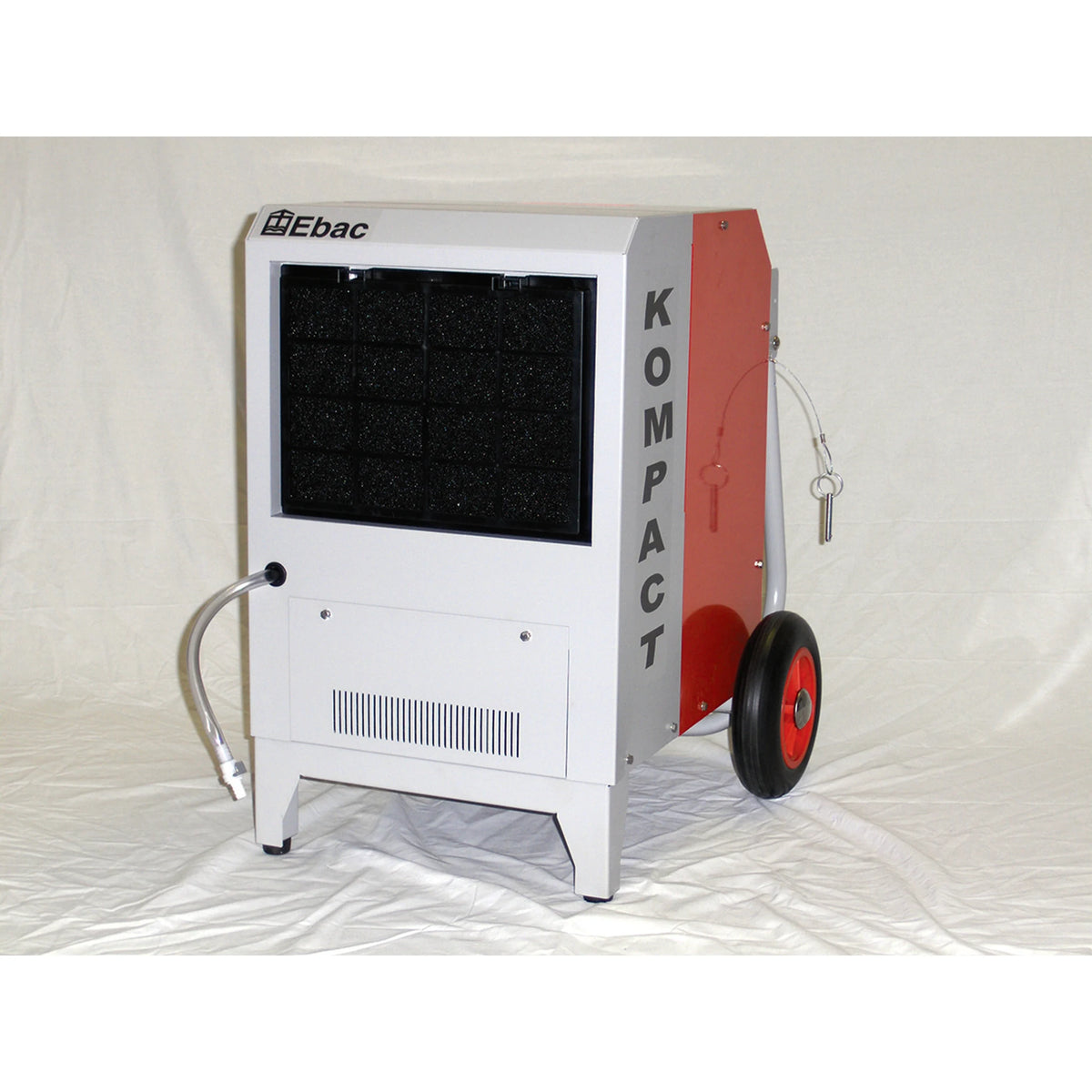

Ebac Kompact 10240KP-US Dehumidifier – 56 Pints/Day, Built-In Pump, 880W

11240KP-US Compact Dehumidifier — Water Damage Restoration with Built-In Condensate Pump

The Ebac Kompact 11240KP-US removes 56 pints per day at AHAM conditions using a rotary compressor and R454c low-GWP refrigerant — a current-generation replacement for units still running R410a. Where most compact dehumidifiers leave drainage to the user, the 11240KP-US ships with an internal condensate pump that lifts water up to 20 feet vertically, eliminating the need to gravity-drain or manually empty the tank on active job sites. At 78 lbs and 24 inches tall, it fits on a standard equipment dolly and through doorways without disassembly.

11240KP-US Drying Capacity and Drainage Features

The built-in pump and extended drain hose are the two features that separate this unit from comparable-capacity portable dehumidifiers that require gravity-feed drainage.

• 56 PPD extraction at AHAM conditions (80°F, 60% RH) — rated capacity for standard insurance documentation on residential and light-commercial water loss jobs
• Built-in condensate pump with 20 ft vertical lift — drains over walls, into ceiling cavities, or out windows without a gravity-feed path; 25 ft drain hose included
• R454c refrigerant — lower global warming potential than R410a, meeting current EPA SNAP requirements and satisfying environmentally conscious facility managers
• Hot gas defrost cycle — prevents frost lock-up when ambient temperatures drop toward the 33°F minimum, keeping the unit running in cold basements and crawlspaces without manual intervention
• Hours run meter — tracks cumulative operating hours for insurance drying logs and scheduled maintenance intervals
• Epoxy powder-coated steel housing with semi-pneumatic tires — absorbs impact on uneven concrete and rough job-site floors; collapsible handle reduces storage footprint

11240KP-US Applications and Environments

Property restoration contractors handling Category 1 and Category 2 water loss events in residential and light-commercial spaces will find the 11240KP-US sized right for single-room containment zones. The 33°F low-end operating temperature makes it viable in cold-climate basements and crawlspaces where warmer-rated units stall or ice up. Facility maintenance teams in schools, hotels, and multi-unit housing use it for seasonal humidity control in storage rooms and mechanical spaces — the 608 m³/hr airflow circulates air through spaces up to 237 m³ effectively. Disaster recovery contractors who need a unit that stays running through the night unattended rely on the automatic condensate pump to eliminate manual tank emptying.

Xactimate Code and Compliance

Xactimate line item code for insurance estimates: WTRDHM>L (LGR-class compact dehumidifier). The 11240KP-US operates on a standard 115V/7A circuit — no dedicated electrical circuit required, allowing placement alongside air movers on a shared 15-amp breaker. The R454c refrigerant is EPA SNAP-approved for commercial use in the United States.

Specifications

Documents

Spec Sheet

Manual

Kompact Wiring Diagram (PDF)

Kompact Wiring Schematic (PDF)
