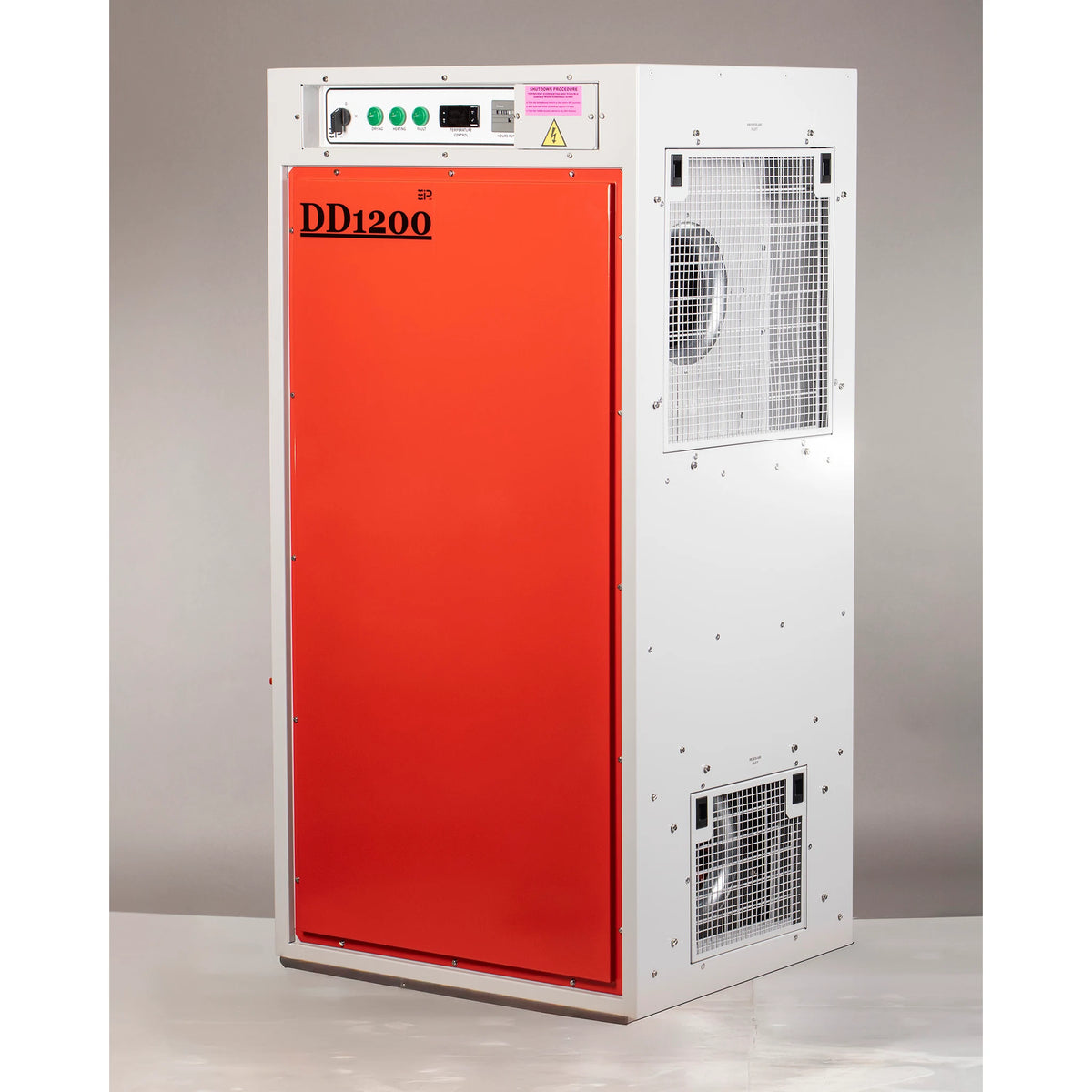

Ebac DD1200 Desiccant Dehumidifier – Model 10541GR-US (460V, 3-Phase)
The Ebac DD1200 (10541GR-US) is the highest-capacity unit in Ebac's DD desiccant series at 562 PPD, running on 460V 3-phase at 15A and 11.8 kW. It moves 705 CFM of process air and 195 CFM of regeneration air through 5" and 4" duct connections, operates from -4°F to 104°F, and weighs 200 lbs in a stainless steel housing 28" × 23" × 56". The PPS rotor with 82% active silica gel, washable design, and integrated ammeter/hour meter place it as the specification for high-moisture industrial environments requiring sub-zero capability.
DD1200 10541GR-US – Key Specifications and Features
Model: 10541GR-US (DD1200, 460V 3-phase)
Extraction rate: 562 PPD (typical conditions)
Process airflow: 705 CFM, 5" duct connection
Regen airflow: 195 CFM, 4" duct connection
Electrical: 460V, 3-phase, 60 Hz, 15A, 11.8 kW
Operating temperature: -4°F to 104°F
Rotor: washable PPS with 82% active silica gel
Construction: stainless steel
Control: auto/manual with remote humidistat connection
Monitoring: integrated ammeter and hour meter
Dimensions: 28" W × 23" D × 56" H
Weight: 200 lbs
Where the Ebac DD1200 Performs
Large-scale cold storage facilities requiring a single desiccant unit to handle the full moisture load of a 30,000+ sq ft frozen or refrigerated space specify the DD1200 rather than deploying multiple smaller units. Pharmaceutical manufacturing plants building validated low-humidity cleanrooms use it because the 562 PPD and 705 CFM output can maintain very low dewpoints in large process areas. Military and aviation depot maintenance facilities, where archival humidity control for sensitive electronics and equipment must operate year-round through winter temperatures, require the -4°F floor that eliminates refrigerant alternatives. At 200 lbs, the DD1200 weighs only slightly more than the DD900 (198 lbs) despite extracting 54% more moisture.
DD1200 at the Top of Ebac's Desiccant Lineup
The DD1200 (562 PPD, 705 CFM, 15A/460V) is the capacity leader in the DD series, stepping up from the DD900 (364 PPD, 530 CFM, 13A) and the DD700 (231 PPD, 410 CFM, 10A). All three share -4°F minimum operation, 5"/4" duct sizing, stainless construction, and the same rotor technology. The DD1200's 56" height is 8" taller than the DD900, which may require clearance consideration in installations with low ceilings. Process airflow of 705 CFM is adequate for large-zone desiccant drying when the target dewpoint is below what refrigerant units can achieve.
We supply contractors, restoration companies, property managers, schools, government agencies, and other tax-exempt organizations.
How to place a tax-exempt order:
Write to us through our Contact Us page or email info@uscleaningtools.com and attach your valid tax exemption certificate (state resale or exemption certificate).
We verify your certificate and mark your account tax-exempt — usually within one business day.
Place your order and sales tax will not be charged.
For volume pricing or purchase orders, call (978) 295-7538.
What is the extraction rate of the Ebac DD1200 10541GR-US?
The DD1200 10541GR-US extracts 562 PPD — the highest capacity in Ebac's DD desiccant series, 54% more than the DD900 (364 PPD) and 143% more than the DD700 (231 PPD).
What are the electrical requirements for the DD1200 10541GR-US?
The 10541GR-US requires 460V, 3-phase, 60 Hz at 15A (11.8 kW). Circuit protection should be sized at 20A or larger per electrical code.
What is the minimum operating temperature of the Ebac DD1200?
The DD1200 operates down to -4°F — the same as the DD700 and DD900. Desiccant adsorption is thermally driven and maintains performance at sub-zero temperatures where refrigerant dehumidifiers fail entirely.
How does the DD1200 compare to the DD900 and DD700?
All three share -4°F operation, stainless steel construction, 5"/4" duct sizing. DD1200: 562 PPD, 705 CFM, 15A/460V, 56" H. DD900: 364 PPD, 530 CFM, 13A/460V, 48" H. DD700: 231 PPD, 410 CFM, 10A/460V, 40" H. The DD1200 also has the highest power draw at 11.8 kW.
What process airflow and duct sizes does the DD1200 10541GR-US use?
Process air: 705 CFM through a 5" duct connection. Regeneration air: 195 CFM through a 4" duct. These are the same duct sizes as the DD700 and DD900, allowing consistent installation planning across Ebac's DD series.
How tall is the DD1200 and does ceiling height matter?
The DD1200 stands 56" (4'8") tall — 8" taller than the DD900's 48" and 16" taller than the DD700's 40". This additional height requires adequate ceiling clearance above the unit, particularly in low-ceiling mechanical rooms or mezzanine installations.
