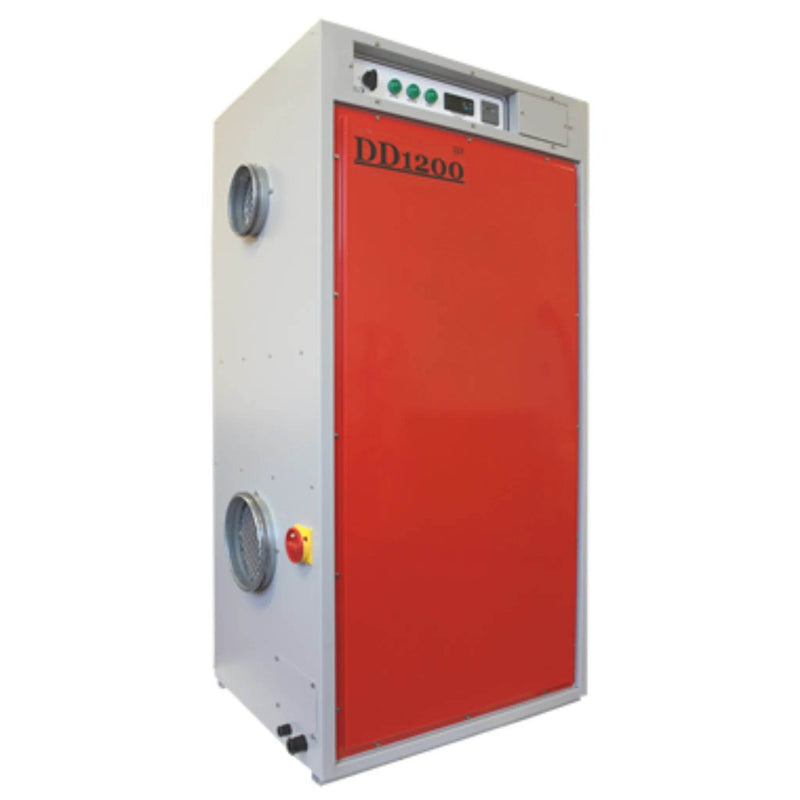

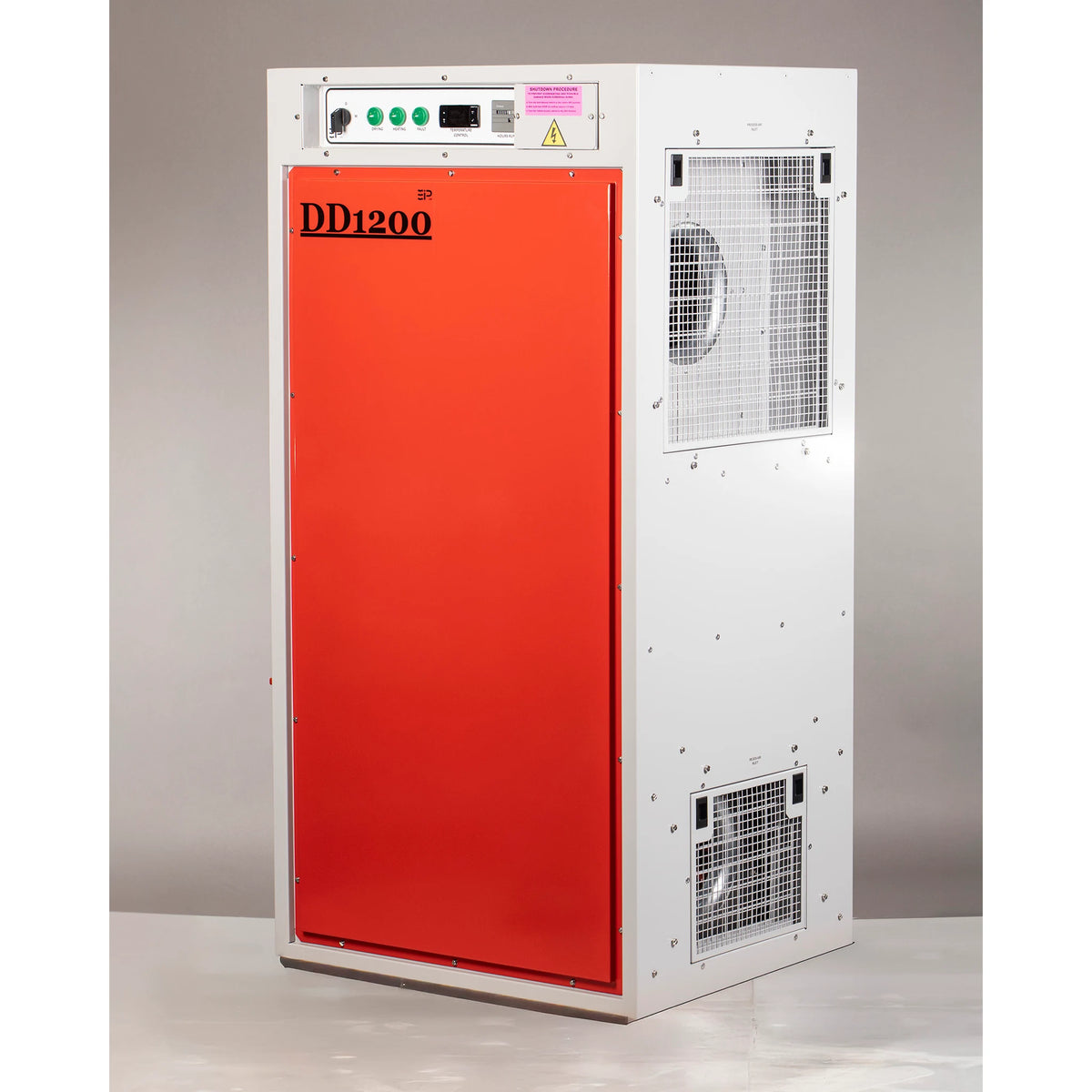

Ebac DD1200 Desiccant Dehumidifier – Model 10540GR-US (220V, 3-Phase)

The Ebac DD1200 (10540GR-US) is the 220V, 3-phase variant of Ebac's 562 PPD top-capacity desiccant dehumidifier. At 220V it draws 31A for 11.8 kW output, versus 15A at 460V — identical extraction rate, airflow (705 CFM process, 195 CFM regen), and -4°F operating floor. The stainless steel housing, washable PPS silica gel rotor, auto/manual controls, and integrated instruments are unchanged across both voltage configurations of the DD1200.

DD1200 10540GR-US – Key Specifications and Features

  • Model: 10540GR-US (DD1200, 220V 3-phase)
  • Extraction rate: 562 PPD (typical conditions)
  • Process airflow: 705 CFM, 5" duct connection
  • Regen airflow: 195 CFM, 4" duct connection
  • Electrical: 220V, 3-phase, 60 Hz, 31A, 11.8 kW
  • Operating temperature: -4°F to 104°F
  • Rotor: washable PPS with 82% active silica gel
  • Construction: stainless steel
  • Control: auto/manual with remote humidistat connection
  • Monitoring: integrated ammeter and hour meter
  • Dimensions: 28" W × 23" D × 56" H
  • Weight: 200 lbs

Where the Ebac DD1200 220V Performs

International facilities, military installations in regions using 220V 3-phase standards, and North American sites with 208–240V service that require the highest desiccant extraction available in the Ebac lineup specify the 10540GR-US. At 31A, the 220V DD1200 requires a 40A or larger circuit per code — planners should account for this when assessing panel capacity in facilities with multiple high-load units. The performance envelope — 562 PPD, -4°F minimum, 705 CFM — is unchanged from the 460V model.

Related: Desiccant Dehumidifiers · Ebac Equipment · Industrial Dehumidifiers

Choosing Between DD1200 220V and 460V

The 10540GR-US (220V) and 10541GR-US (460V) are performance-identical at 562 PPD, 705 CFM, and 11.8 kW. The 220V model draws 31A versus 15A for the 460V model. Over long cable runs in large facilities, the 460V model's lower current draw reduces conductor cost and line losses — which is why 460V is preferred in most large industrial installations. For 208–240V distribution sites, the 220V model provides full DD1200 performance with no penalty beyond the larger circuit requirement.

Model 10540GR-US
Extraction Rate 562 PPD
Process Airflow 705 CFM
Regen Airflow 195 CFM
Electrical 220V, 3-phase, 31A, 11.8 kW
Min Operating Temp -4°F
Max Operating Temp 104°F
Noise Level 67 dBA
Dimensions 28" W × 23" D × 56" H
Weight 200 lbs

Documents

Spec Sheet

Manual

Product Warranty Information

"1 Year"
Product Image
Added to cart
Ebac DD1200 10540GR-US Desiccant Dehumidifier 220V 3ph – 562 PPD, -4°F, 200 lbsEbac DD1200 10540GR-US Desiccant Dehumidifier 220V 3ph – ...
View Cart

Frequently Asked Questions

What is the difference between the Ebac DD1200 10540GR-US and 10541GR-US?
Both are DD1200 desiccant units with 562 PPD, 705 CFM, and 11.8 kW output. The 10540GR-US runs on 220V 3-phase at 31A; the 10541GR-US runs on 460V 3-phase at 15A. Select based on site power distribution.
What is the current draw of the DD1200 10540GR-US at 220V?
The 10540GR-US draws 31A at 220V 3-phase for 11.8 kW. This requires a 40A or larger circuit per electrical code — the highest amperage requirement in Ebac's DD series at 220V.
What is the extraction rate of the Ebac DD1200 10540GR-US?
The 10540GR-US extracts 562 PPD — the highest in Ebac's DD desiccant series — under typical desiccant conditions. Performance is maintained at temperatures down to -4°F.
What is the minimum operating temperature of the DD1200 10540GR-US?
The 10540GR-US operates down to -4°F — identical to the 460V model. The silica gel rotor adsorbs moisture thermally, maintaining extraction at sub-zero temperatures where refrigerant dehumidifiers cannot operate.
How does the DD1200 220V compare to the DD1200 460V on circuit requirements?
At 220V the DD1200 draws 31A (requires 40A circuit); at 460V it draws 15A (requires 20A circuit). Both deliver 562 PPD at 11.8 kW. The 460V model is preferred in large facilities to reduce conductor sizing and line losses over long cable runs.
What duct connections does the DD1200 10540GR-US require?
The DD1200 uses 5" process air duct (705 CFM) and 4" regeneration air duct (195 CFM) — the same sizes as the DD700 and DD900, allowing consistent multi-unit duct layouts in facilities running multiple Ebac DD units.
