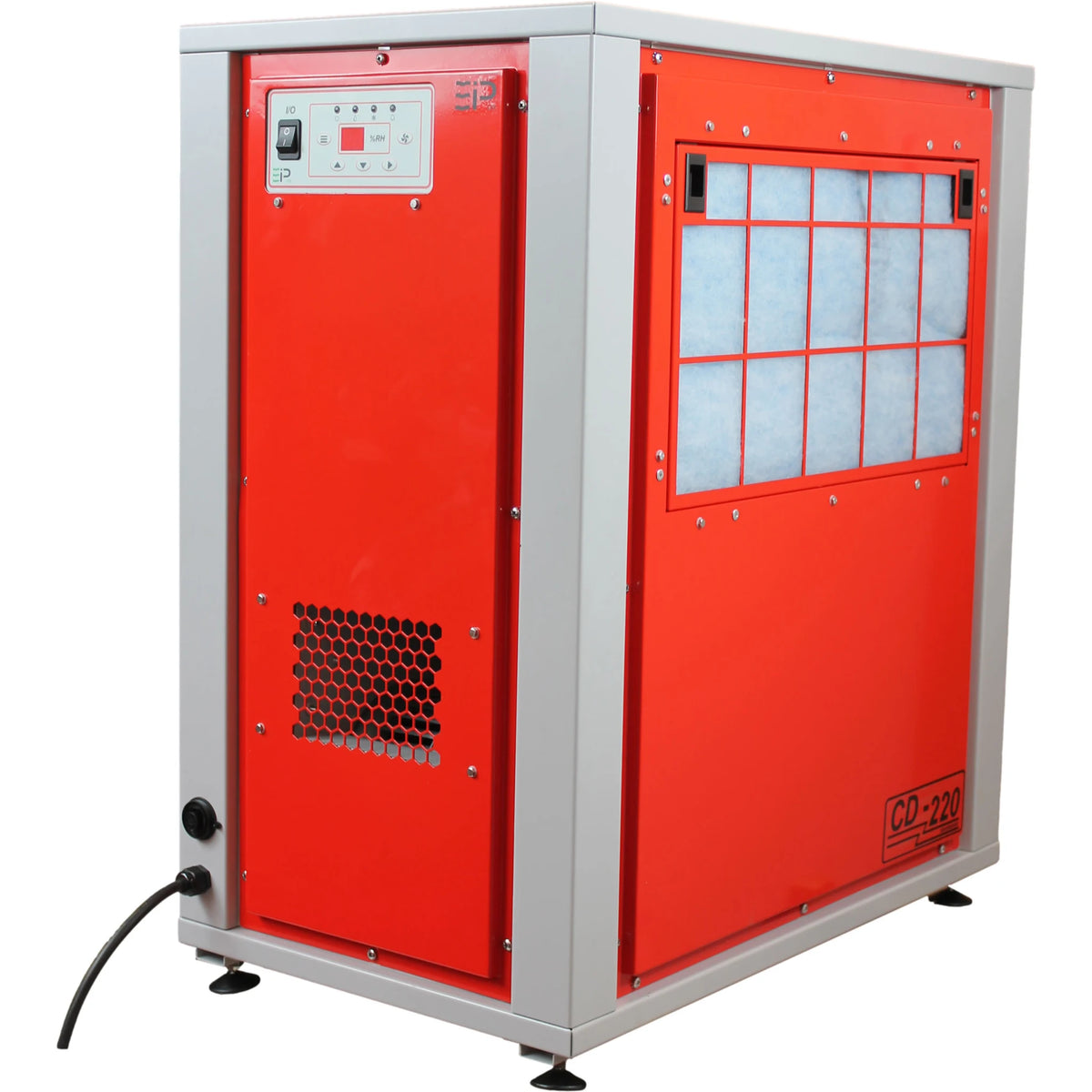

Ebac CD220-D 11181GR-US Refrigerant Dehumidifier 220V – 157 PPD, 664 CFM, 176 lbs
1/3
Ebac CD220-D 11181GR-US Refrigerant Dehumidifier 220V – 157 PPD, 664 CFM, 176 lbs
Ebac CD220-D 11181GR-US Refrigerant Dehumidifier 220V – 157 PPD, 664 CFM, 176 lbs
Ebac CD220-D 11181GR-US Refrigerant Dehumidifier 220V – 157 PPD, 664 CFM, 176 lbs

Ebac CD220-D 11181GR-US Refrigerant Dehumidifier 220V – 157 PPD, 664 CFM, 176 lbs

Brand: EbacSKU: 11181GR-USIn Stock – Ready to Ship
$7,933.00
FREE SHIPPING – You save $200+ on freight

Ships from US manufacturer with factory warranty

Ach Direct DebitAmazon American Express Apple Pay Diners ClubDiscoverGoogle Pay MastercardPayPalShop Pay USDC Visa
Authorized RetailerFactory-authorized dealer with genuine products
Manufacturer's WarrantyFull manufacturer warranty included
30-Day ReturnsHassle-free returns within 30 days
Lowest Price GuaranteedWe match any competitor's price
Ordering 3+ units? Call for volume pricing – (978) 295-7538
Order before 5:00 PM EST for same-day dispatch. Estimated delivery:

Need help choosing? Talk to an expert

(978) 295-7538

CD220-D Ducted Commercial Dehumidifier for Mid-Size Spaces

The Ebac CD220-D removes 157 pints a day and holds humidity across roughly 21,000 cubic feet, sitting between the portable CD100 and the industrial CD425. The 10220-class chassis runs on single-phase 220V and ships with an integral condensate pump, so it drops into commercial rooms without a three-phase supply or a nearby drain.

CD220-D 11181GR-US Control and Installation

  • Rotary compressor with R32 refrigerant runs quieter than reciprocating units of similar output, useful where the unit shares space with occupants
  • Two-speed centrifugal fan up to 664 CFM lets you trim airflow and noise once a space is close to target
  • Integral high-capacity pump clears condensate vertically, so siting is not limited to a floor drain
  • Digital humidistat with remote facility holds a setpoint and can be controlled from outside the room
  • Self-contained cabinet works freestanding with no ductwork, then accepts optional inlet and outlet flanges when ducting is wanted
  • Reverse-cycle defrost sustains extraction in cooler ambient conditions where coil frost would otherwise cut output

CD220-D Applications and Environments

The CD220-D fits storage facilities, archives, plant rooms, gyms, and indoor agriculture where a mid-size fixed unit makes more sense than rotating portables. The single-phase 220V supply is common in commercial buildings, and the optional duct flanges let an installer pull dry air from one room and deliver it to another. Its enclosed, epoxy-coated coils stand up to humid, dust-laden rooms over long continuous runs.

Specifications

Typical Extraction 157 PPD
Effective Volume 21,189 cu ft (600 m³)
Airflow (Low / High) 585 / 664 CFM
Power Supply 220V / 1-Phase / 60Hz
Power Consumption 2.3 kW
Current 11 A
Refrigerant R32
Compressor Rotary
Fan Centrifugal, 2-speed
Condensate Pump Integral, high-capacity
Operating Temp Range 33°F – 95°F
Noise 73 dBA
Dimensions (H×W×D) 32.7 × 29.5 × 17.5 in
Weight 176 lbs

Documents

CD220-D Owner's Manual (PDF)

CD220-D Specification Sheet (PDF)

CD220-D Spare Parts List (PDF)

CD220-D Wiring Diagram (PDF)

CD220-D Wiring Schematic (PDF)

Manufacturer's Warranty

This product comes with a full manufacturer's warranty. All warranty claims are handled directly by the manufacturer.

For specific warranty details, please contact us at (978) 295-7538 or email info@uscleaningtools.com

Product Image
Added to cart
Ebac CD220-D 11181GR-US Refrigerant Dehumidifier 220V – 157 PPD, 664 CFM, 176 lbsEbac CD220-D 11181GR-US Refrigerant Dehumidifier 220V – 1...
View Cart

Frequently Asked Questions

What is the extraction rate of the Ebac CD220-D?
The CD220-D extracts 157 pints per day and holds humidity across roughly 21,189 cubic feet (600 m³). It sits between the portable CD100 and the industrial CD425.
Does the CD220-D need a floor drain?
No. It has an integral high-capacity condensate pump that clears water vertically, so it can be sited where a floor drain is not available.
What power supply does the CD220-D 11181GR-US require?
It runs on single-phase 220V, 60 Hz at 11A (2.3 kW), so it installs in commercial rooms without a three-phase supply.
Does the CD220-D need ductwork?
No. It is self-contained and works freestanding. Optional inlet and outlet duct flanges are available if you want to draw from or deliver dry air to an adjacent room.
How loud is the CD220-D and can airflow be reduced?
It uses a two-speed centrifugal fan rated up to 664 CFM at 73 dBA. Dropping to low speed trims both airflow and noise once a space is near its target humidity.
Does the CD220-D ship free?
Yes, orders over $3,000 ship free and the CD220-D qualifies. It includes a 1-year manufacturer warranty.
