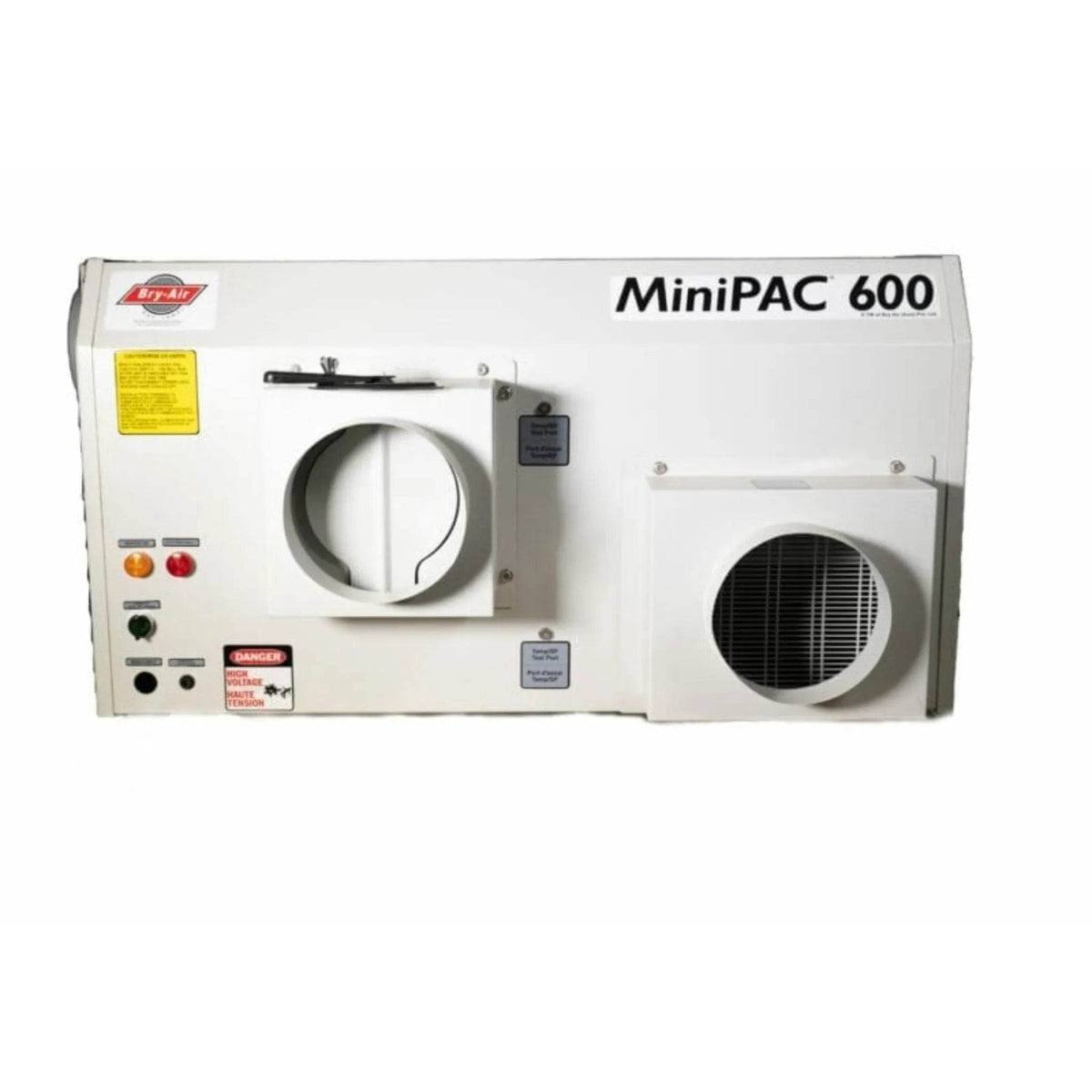

Bry-Air MiniPAC MP-600 Desiccant Dehumidifier – 600 CFM, 20 lbs/hr, 3-Phase

MP-600 MiniPAC Desiccant Dehumidifier — 600 CFM Three-Phase Industrial Humidity Control Without a Compressor

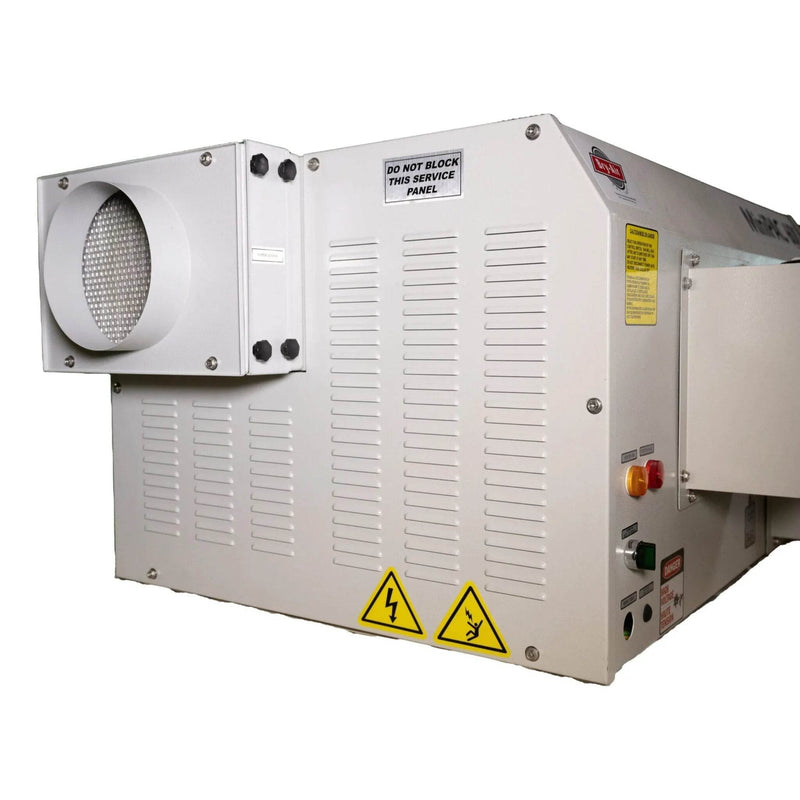

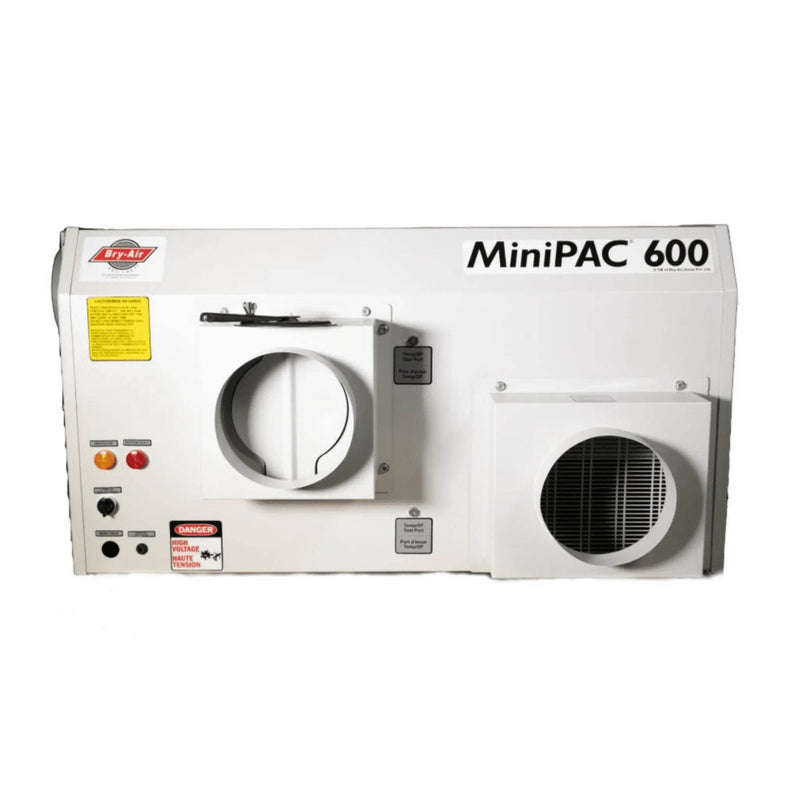

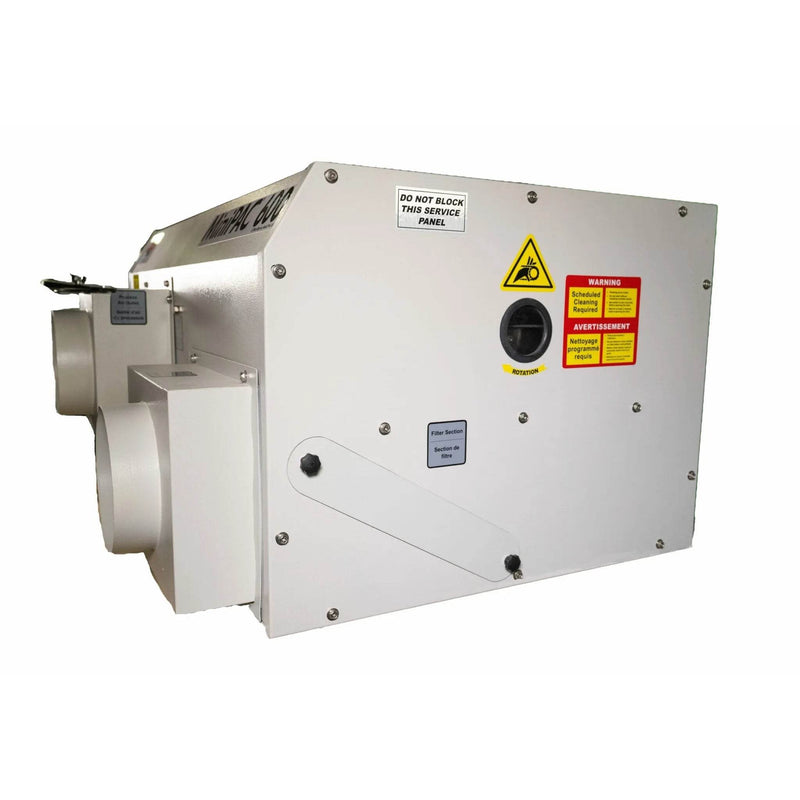

The Bry-Air MiniPAC MP-600 is a 600 CFM desiccant dehumidifier built for industrial and institutional applications that demand continuous, temperature-independent moisture removal: pharmaceutical manufacturing, cold storage warehouses, electronics production, and process environments where refrigerant equipment cannot sustain target humidity. At 20 lbs/hr moisture removal and 306 lbs, the MP-600 handles mid-scale industrial moisture loads — providing nearly twice the throughput of the MP-350 in a self-contained unit that connects to standard three-phase industrial power without the engineering overhead of a custom desiccant system installation.

MP-600 Desiccant Wheel Technology and Safety Systems

The MP-600 uses a rotating desiccant wheel rather than a compressor and refrigerant circuit. Process air (600 CFM) passes continuously through the desiccant rotor where moisture is adsorbed into the hygroscopic matrix. The rotor rotates into the reactivation sector where heated reactivation air (200 CFM) drives absorbed moisture out of the rotor and exhausts it away from the process airstream. No compressor, no evaporator, no refrigerant charge — the unit removes moisture continuously at temperatures and humidity levels where LGR equipment would ice over, defrost, or cease effective operation.

• 600 CFM process airflow at 0.75" wc external static — sized for large laboratories, pharmaceutical production areas, cold storage warehouses, and mid-scale industrial process environments
• 20 lbs/hr moisture removal — consistent extraction rate across the full operating temperature range, independent of ambient conditions
• Water-washable desiccant rotor with stainless steel flange — field-serviceable without chemical cleaning agents; stainless flange resists corrosion in high-humidity intake conditions
• Insulated airflow sectors — physically separate the process and reactivation airstreams, preventing humid reactivation exhaust from contaminating the dry process air path

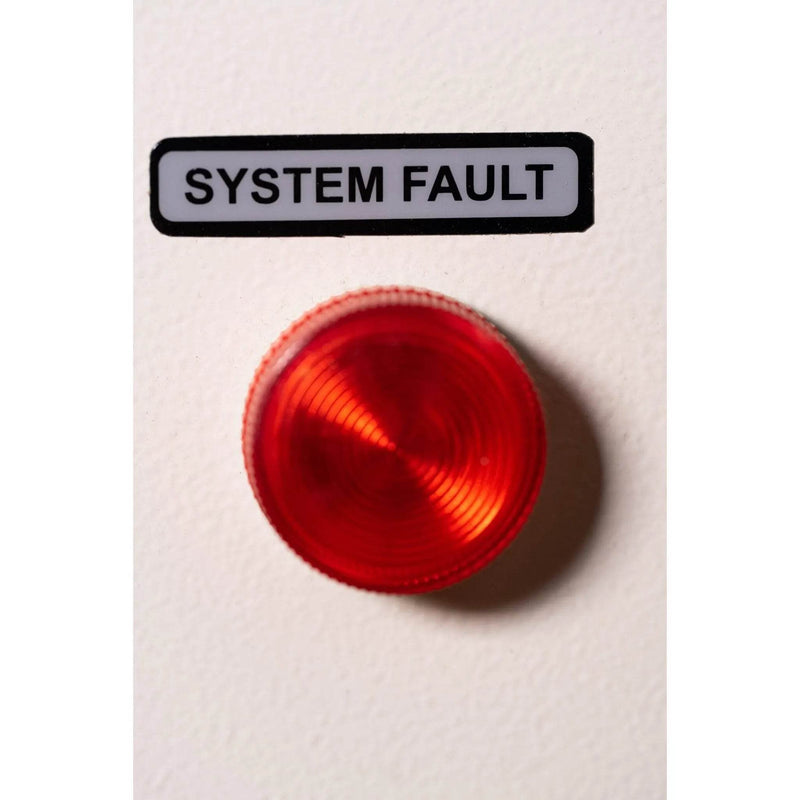

• Differential air pressure switch — monitors airflow continuously and triggers alarm or controlled shutdown if filter blockage or blower failure reduces flow below the operating threshold

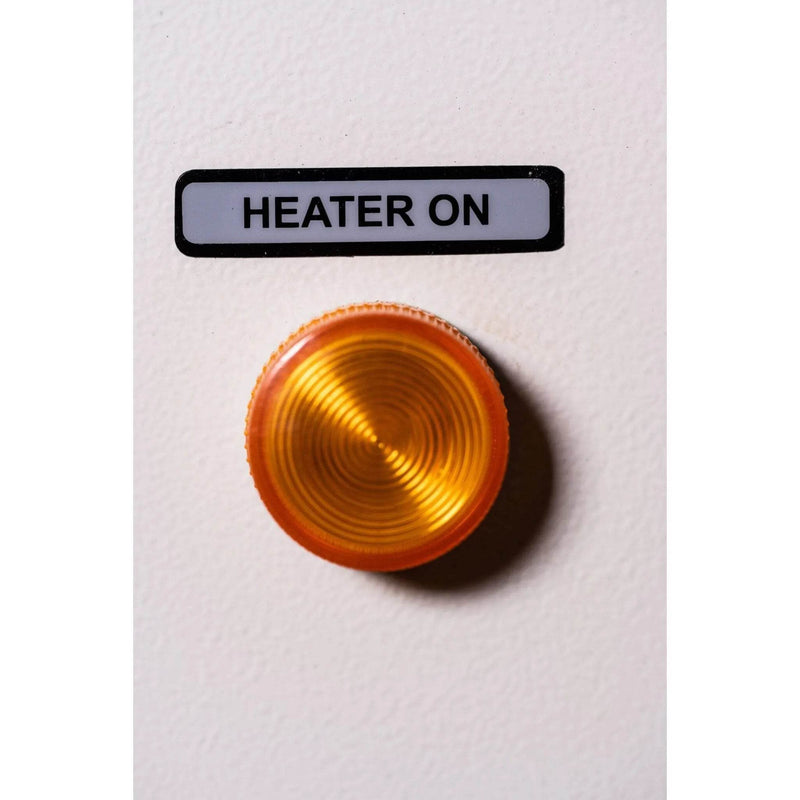

• Safety thermostat — protects the reactivation heater from overtemperature during 24/7 continuous-duty operation
• Reactivation cooldown sequence — cools the heater element after shutdown before full stop, extending heater life in continuous-duty applications

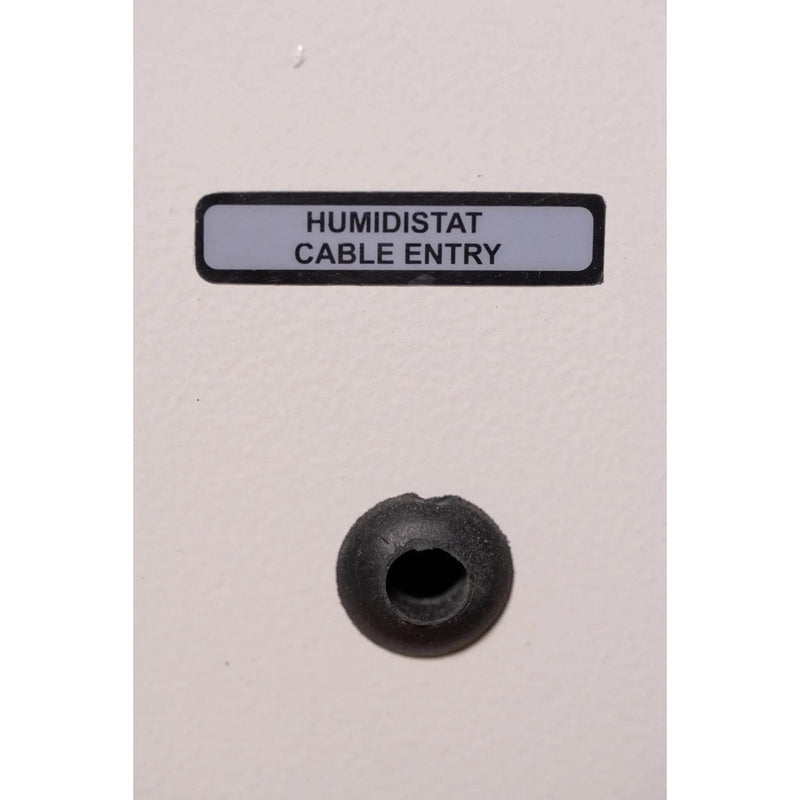

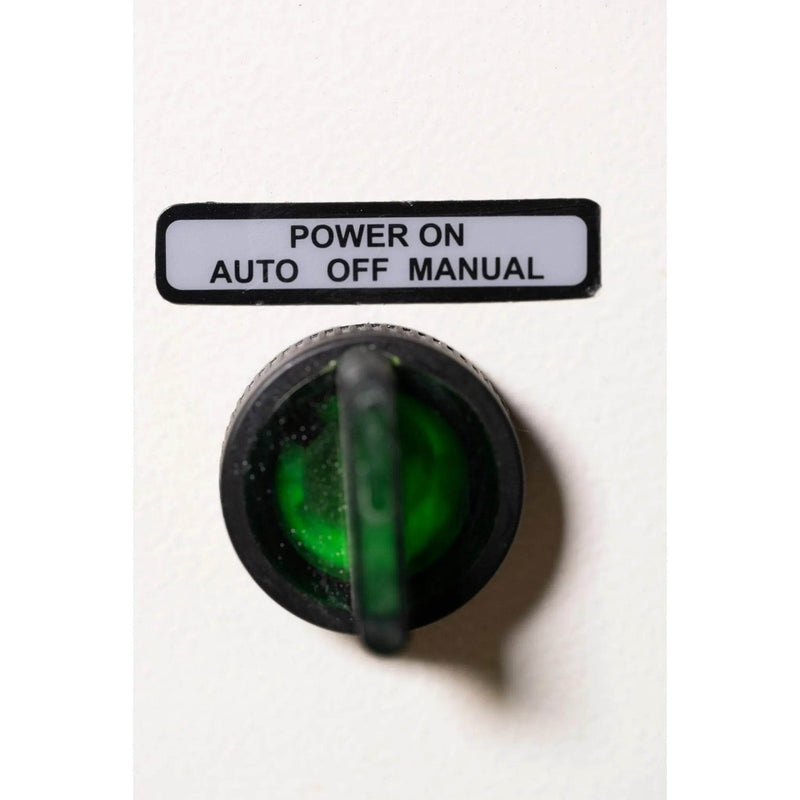

• Auto/manual operating modes — auto for humidistat-controlled cycling; manual for scheduled or fixed-rate drying operations
• Multiple mounting configurations — floor-standing, wall-mounted, or duct-inline installation for mechanical room and process area constraints

MP-600 Applications and Environments

Pharmaceutical manufacturers deploy the MP-600 in API processing areas, tablet coating rooms, and packaging lines where sustained humidity below 35% RH is a GMP requirement. Cold storage facilities and refrigerated distribution centers use it in loading docks and staging zones where sub-freezing ambient temperatures disable refrigerant dehumidifiers — the desiccant rotor functions normally at temperatures well below 32°F. Electronics manufacturers and semiconductor facilities specify desiccant dehumidifiers in cleanroom ante-rooms and component storage areas to prevent corrosion-related failures in moisture-sensitive assemblies. Archives, museum conservation labs, and rare document storage facilities use the MP-600 for 24/7 humidity control where paper, magnetic media, and artifact materials require sustained low relative humidity. Industrial process environments including lithium battery production, chemical production areas, and power generation facilities use it where humidity control is a process requirement rather than a comfort parameter.

Desiccant vs. Refrigerant: Technology Selection Criteria

Refrigerant and LGR dehumidifiers remove moisture by cooling process air below its dew point onto evaporator coils. Below approximately 45–50°F those coils ice over, blocking airflow and triggering defrost cycles that interrupt dehumidification. Below 35°F, most refrigerant units cease effective operation. The MP-600's desiccant rotor adsorbs moisture through a chemical process with no icing threshold — it operates from sub-freezing temperatures through 140°F and can achieve grain depressions well below the 40–45% RH floor that limits LGR equipment. The MP-600 operates on three-phase 208–240V or 460–480V 60Hz power. The reactivation exhaust — warm and moisture-laden at 200 CFM — must be ducted to the building exterior. Returning that exhaust to the conditioned space eliminates the dehumidification effect and must be accounted for in the building's ventilation balance.

Specifications
