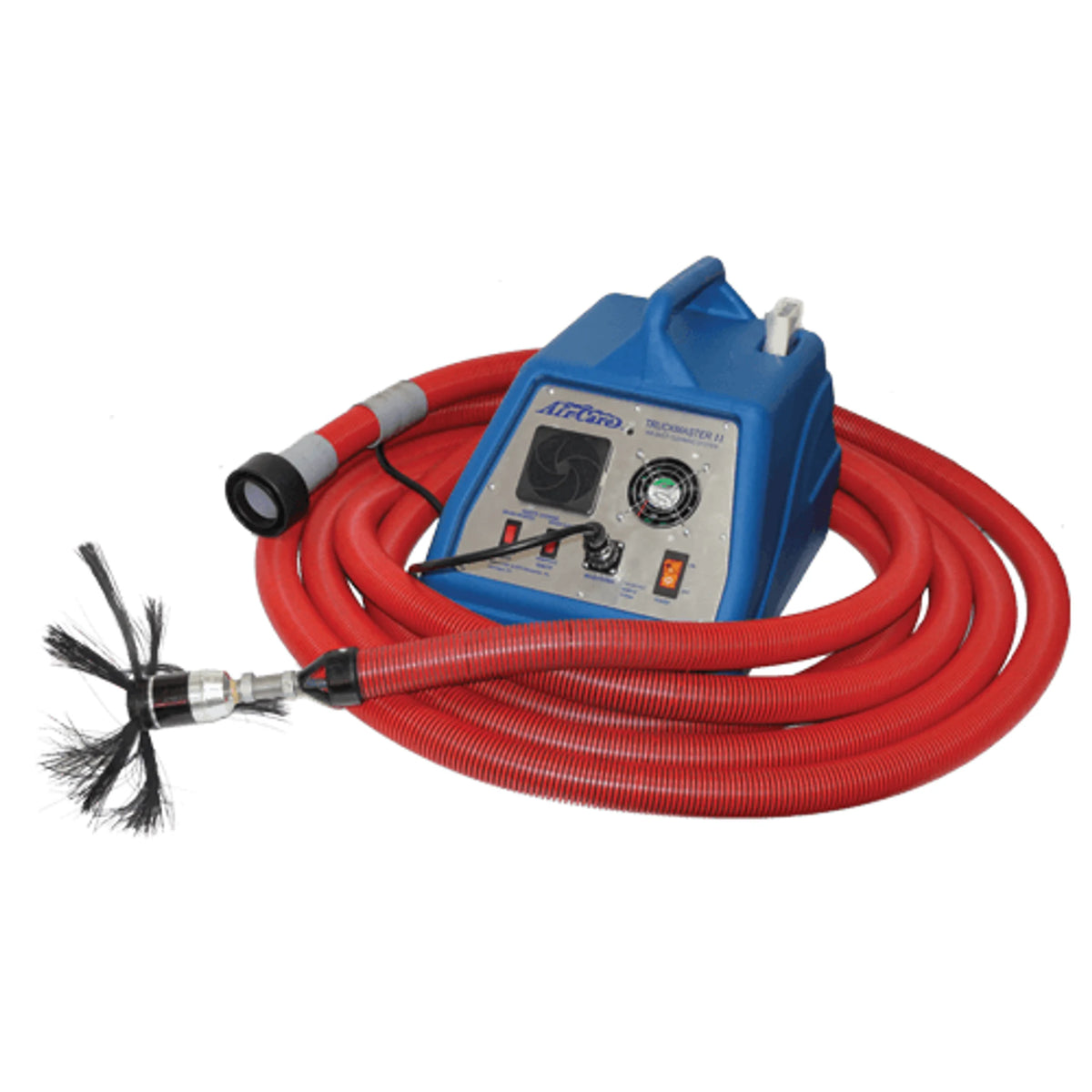

Air-Care TruckMaster II Duct Cleaning System – Truckmount, 2,000 RPM Brush
$2,758.00
Ships from US manufacturer with factory warranty
Request a quote / purchase order
Tell us your quantity, delivery ZIP code and required date. For help choosing equipment, include your application.
Email a quote request Call (978) 295-7538Planning around a job date? Confirm current availability and delivery timing with us before ordering.
Authorized Air-Care dealerGenuine Air-Care equipment with full factory warranty support
Tax-exempt & PO acceptedSend your exemption certificate and we bill without sales tax
30-day returnsUnused equipment in original packaging, within 30 days
Need help choosing? Talk to an expert
+1 (978) 295-7538TruckMaster II Turns a Truckmount Carpet Vacuum Into a Duct Cleaning Rig
A carpet cleaning business already owns the expensive part of a duct cleaning setup: the vacuum. The TruckMaster II supplies everything else, a 1,500 W brushless brush motor on a 35 ft hose, a control box, an IR remote, and a dust damper, so duct cleaning becomes a service the same truck and the same technician can sell. The control box weighs 10.1 lbs and takes almost no space in the van.
TruckMaster II Brush Drive and Truckmount Interface
Two details decide whether this works in the field: how the brush navigates a duct, and how the truckmount blower is protected from what comes out.
- 1,500 W brushless outrunner motor — 2,000 RPM at 96 in-oz of torque in a 1.9 in diameter package, mounted on flexible steel cable so it follows turns
- Dust damper — sits between the truckmount vacuum hose and the TruckMaster hose and keeps duct debris out of the truckmount blower wheel
- 1.5 in x 35 ft hose with 2 in cuff — with a 12 in pancake brush adjusting for 4 in to 12 in ducts, and an optional 2 in x 35 ft hose with an 18 in brush
- Infrared handheld remote — start, stop, and reverse from inside the building, using dual IR transmitters and receivers, with duplicate panel switches
- High and low brush power — a panel selector matches brush aggression to the duct liner rather than running one speed everywhere
- Regulated 12 VDC, 25 A supply — a 36 A controller with servo input, in a rotationally molded case with a built-in handle
- One-person operation — the coil-and-carry strap keeps the hose, motor, and brush arm together between registers
TruckMaster II Applications and Environments
Carpet cleaning companies use the TruckMaster II to add air duct cleaning to existing residential and light commercial routes: houses, apartments, condominiums, small offices, and restaurants already booked for carpet work. The duct opening has to be at least 5 in for the brush, motor, and hose assembly to enter, and a run with two 90-degree turns inside 12 in needs to be accessed from another opening. The unit runs on 120 V AC at 60 Hz through a 15 ft grounded cord, with a 220/240 V option, and operates from 25 to 125 °F. Air-Care covers it for three years, with one year on the circuit board, remote, and power supply, and 90 days on the hose and motor assembly.
Specifications
| Brush Speed | 2,000 RPM maximum |
| Brush Motor | 1,500 W (1.5 to 2.0 HP) brushless outrunner, 3-phase |
| Brush Motor Torque | 96 in-oz |
| Brush Motor Size | 1.9 in dia. x 3.1 in long |
| Brush Motor Mount | Flexible steel cable to navigate turns |
| Motor Controller | 15 VDC, 36 A with servo control input and 5 VDC auxiliary output |
| Internal Power Supply | Regulated 12 VDC, 25 A |
| Power Requirements | 120 V AC, 60 Hz (optional 220/240 V, 50/60 Hz) |
| Power Cord | 15 ft, 3-wire grounded with computer-type socket |
| Hose Assembly | 1.5 in x 35 ft vacuum hose with 2 in cuff (optional 2 in x 35 ft) |
| Brush | 12 in disposable pancake brush, 0.045 in bristles (optional 18 in), adjusts for 4 in to 12 in ducts |
| Dust Damper | Fits between the truckmount vacuum hose and the TruckMaster hose |
| Remote | Infrared handheld, 9 V battery included, dual IR transmitters and receivers |
| Operating Controls | Main breaker with red power indicator, brush high/low switch, brush on/off and forward/reverse |
| Operating Environment | 25 to 125 °F (-4 to 50 °C) |
| Case | Rotationally molded with built-in handle |
| Size | 14.4 in W x 19.5 in D x 14 in H |
| Weight | 10.1 lbs, power and control box |
| Warranty | 3 years, component periods vary |
