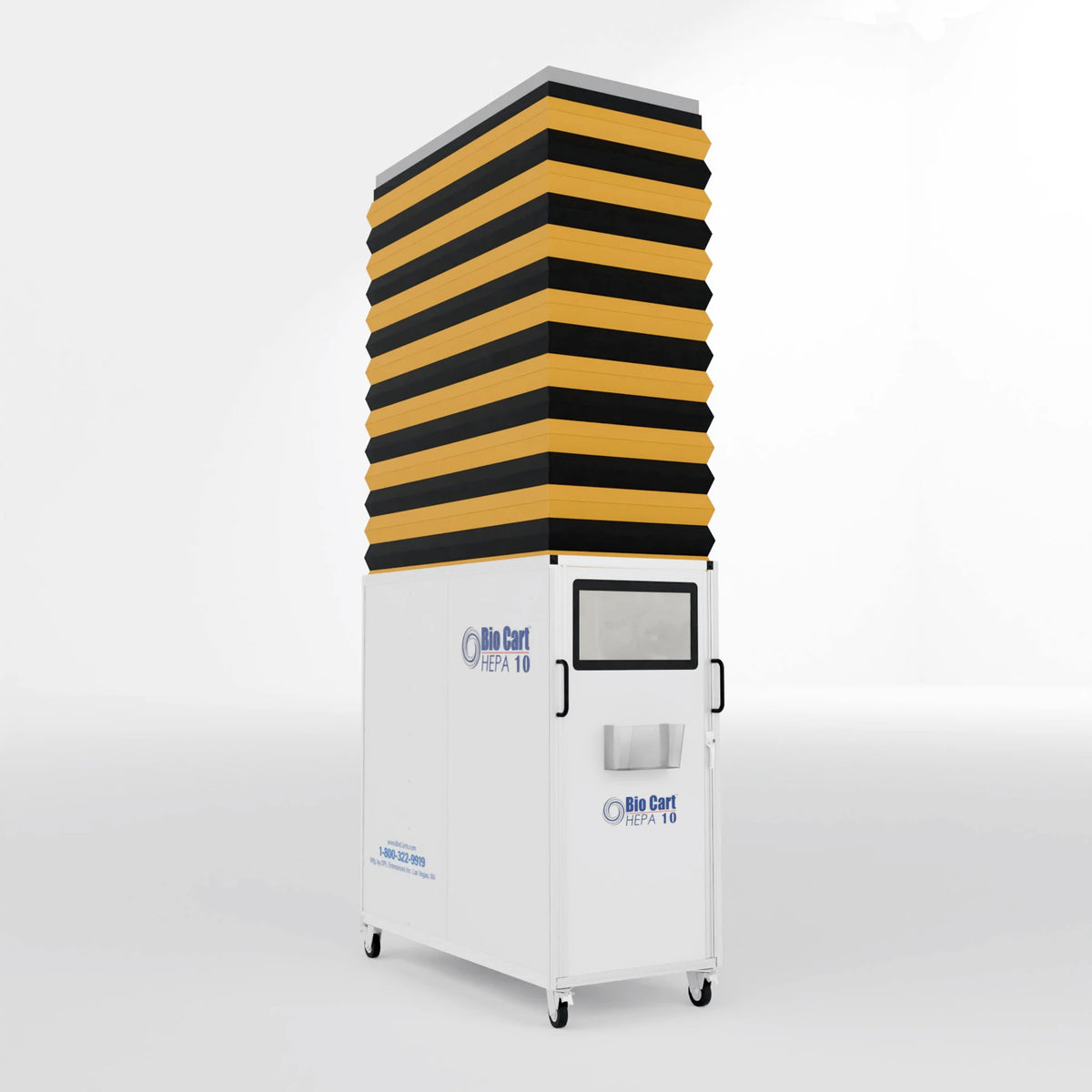

Air-Care Bio Cart 10 HEPA Containment Cart – 880 CFM, 10 ft Lift, ICRA

Bio Cart 10 Containment for Above-Ceiling Work in Occupied Buildings

The Bio Cart 10 puts a sealed, negative-pressure work space around a technician so ceiling tiles can come down in a live corridor without dust reaching patients, staff, or equipment. A 12 ft telescoping ladder, interior lighting, and a duplex outlet are built in, so one person rolls up, seals to the ceiling, and works. Compared with poly sheeting and a portable scrubber, setup is a single lift cycle instead of a taped enclosure that has to be rebuilt at every new location.

Bio Cart 10 Lift, Seal, and Air Handling

The cart does two jobs at once: it contains the work zone mechanically and it keeps that zone under negative pressure while the tile is open.

• Dual lift with foam top seal — bellows rise from 3 in collapsed to meet ceilings between 7 ft and 10 ft 2 in, sealing the perimeter so debris cannot fall into the room
• 880 CFM HEPA scrubber — up to six air changes per minute inside the enclosure, with filtered air exhausted low and diffused so it does not scatter paperwork on nearby desks
• Two-stage filtration — an electrostatic disposable pad catches bulk debris ahead of the 99.97% at 0.3 micron HEPA, so the expensive element is not loaded by drywall dust
• 77 in collapsed height — clears standard door frames and elevator cabs, so the cart reaches upper floors without disassembly
• Externally visible IN USE light — signals the corridor that the enclosure is sealed and under negative pressure
• Keyfob lift remote — raises and lowers the top from outside the cart when the operator wants eyes on the bellows seal
• Wipe-down interior — extruded aluminum frame with white melamine walls and a thermal coating skin, so the cart is sanitized between rooms

Bio Cart 10 Applications and Environments

Hospitals and outpatient clinics use the Bio Cart 10 for fire and smoke sensor testing, IT and fiber pulls, light fixture and ballast changes, and HVAC component access in corridors that stay open to traffic. It is built to the guidance for portable negative-air dust containment carts in healthcare facilities, covering ICRA Class 1 through 4 work along with CDC and OSHA direction on controlling dust and infectious particulate during maintenance above the ceiling. Clean rooms, laboratories, data centers, and pharmacy compounding areas apply the same logic where an open ceiling would otherwise mean shutting the space down. The cart weighs 450 lbs with the ladder and filters installed and ships on a pallet at 36 in W x 75 in L x 86 in H. Air-Care covers the Bio Cart with a five-year warranty, with shorter periods on specific components.

Specifications

Documents

Bio Cart HEPA 10 Owner's Manual (PDF)
