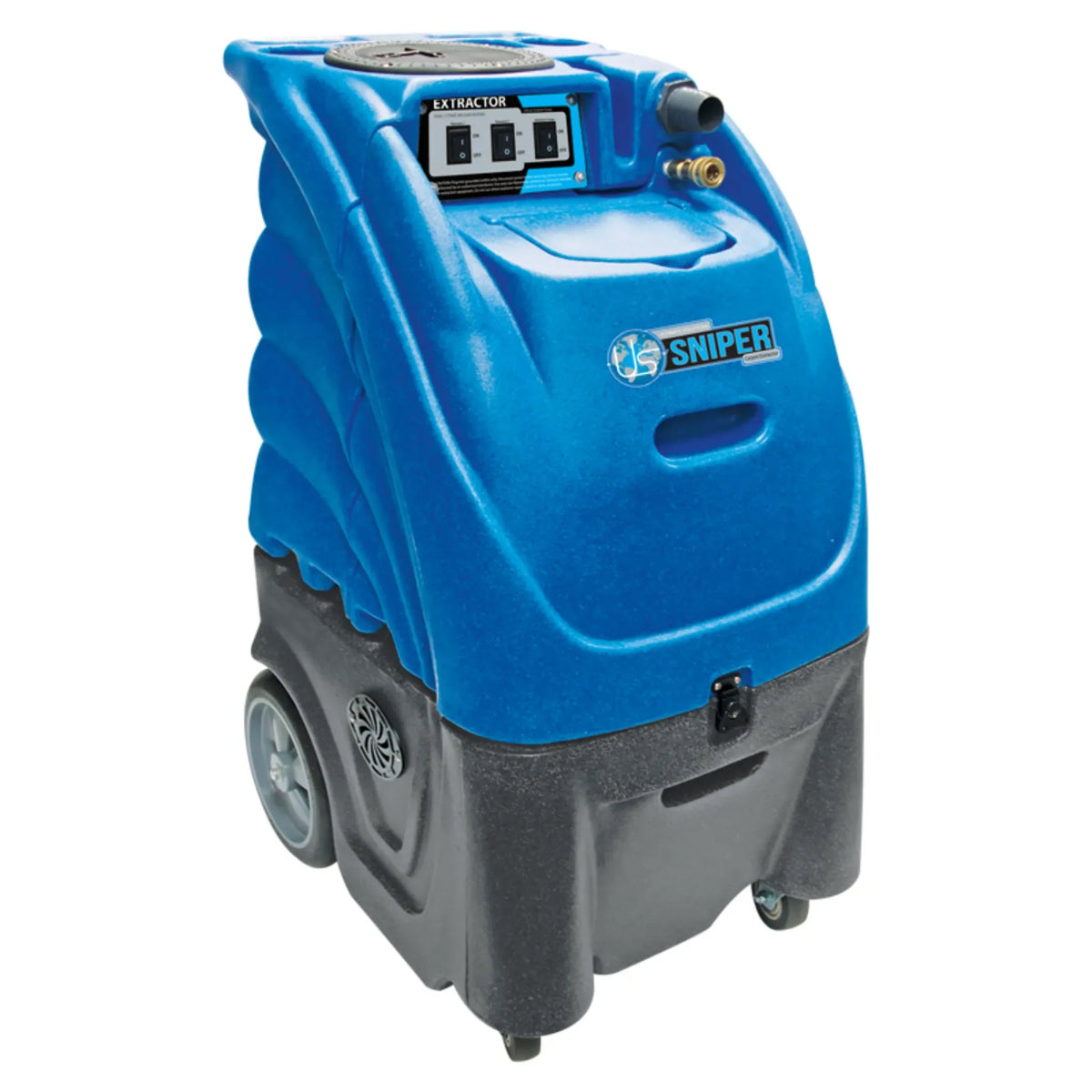

Sandia 66-2300 Carpet Extractor – 300 PSI, Dual 2-Stage, 215" Lift, 12 Gal

Sandia 66-2300 300 PSI Carpet Extractor – Dual 2-Stage Motors, 215" Water Lift

The 66-2300 delivers 300 PSI solution pressure through dual 2-stage 6.6-inch vacuum motors producing 133 CFM and 215 inches of water lift. The Eternity Brush System on the thermally protected motors provides three times the standard motor brush life, and the cooling fan system draws outside air across the motors to reduce operating temperature. A 2,000-watt in-line heater option brings solution to 200°F for heated extraction on commercial carpet. Dual 25-foot safety cords (12/3-gauge) handle the full electrical load of both motors simultaneously.

66-2300 Extractor Specs and Eternity Brush System

• Pump pressure: 300 PSI — triple the standard 100 PSI carpet extraction pressure
• Vacuum motors: dual 2-stage, 6.6-inch — 133 CFM combined airflow
• Water lift: 215 inches — deep solution recovery from high-pile and heavily soiled carpet
• Motor protection: thermal protection + Eternity Brush System (3× brush life) + external cooling fan intake
• Heater option: 2,000-watt in-line (200°F) — available for heated extraction configuration
• Solution tank: 12 gallons — reduces refill frequency on large commercial jobs
• Recovery tank: 12 gallons — matched capacity for continuous operation
• Power cords: (2) × 25 ft, 12/3-gauge safety — heavier gauge than standard 16/3 cords
• Body: roto-molded polyethylene — impact-resistant for daily professional use
• Controls: waist-high recessed — ergonomic, protected during transport
• Wheels: 10-inch non-marking
• Dimensions: 28"L × 21"W × 41"H
• Weight: approximately 139 lbs (heated)
• Warranty: Lifetime (body), 2 years (motors and pump), 1 year (electrical), 90 days (tools/accessories)

When 300 PSI Extraction Is Specified

Standard carpet extraction runs at 100–150 PSI, which is sufficient for typical commercial carpet soil loads. At 300 PSI, the solution velocity through the wand jet is significantly higher, which improves penetration on heavily soiled, high-pile commercial carpet — the dense carpet found in casino gaming floors, convention center carpet installed over concrete, and high-traffic hotel corridors that see years of ground-in soil. 300 PSI also enables hard-surface tile and grout cleaning when fitted with appropriate spinning surface cleaning tools, covering both carpet and hard surface restoration in a single portable machine. The Sniper 80-2100-H at 100 PSI handles standard commercial carpet; the 66-2300 at 300 PSI is the specification for heavy-soil commercial carpet and hard-surface tile restoration.

300 PSI Extractor Motor Longevity: Eternity Brush System

Vacuum motor brushes wear under continuous load — a standard commercial brush set typically lasts 500–600 hours. Sandia's Eternity Brush System uses a different brush material formulation that the company rates at three times standard brush life, directly extending the service interval between motor rebuilds on machines that run multiple hours per day on commercial cleaning schedules. Thermal protection shuts motors off before heat damage occurs, and the external cooling fan draws ambient air across motor housings to reduce operating temperature — both extending motor life beyond standard thermal management approaches. The 12/3-gauge cords (heavier than the 16/3 standard) reduce voltage drop at the full 300 PSI pump + dual motor load.
