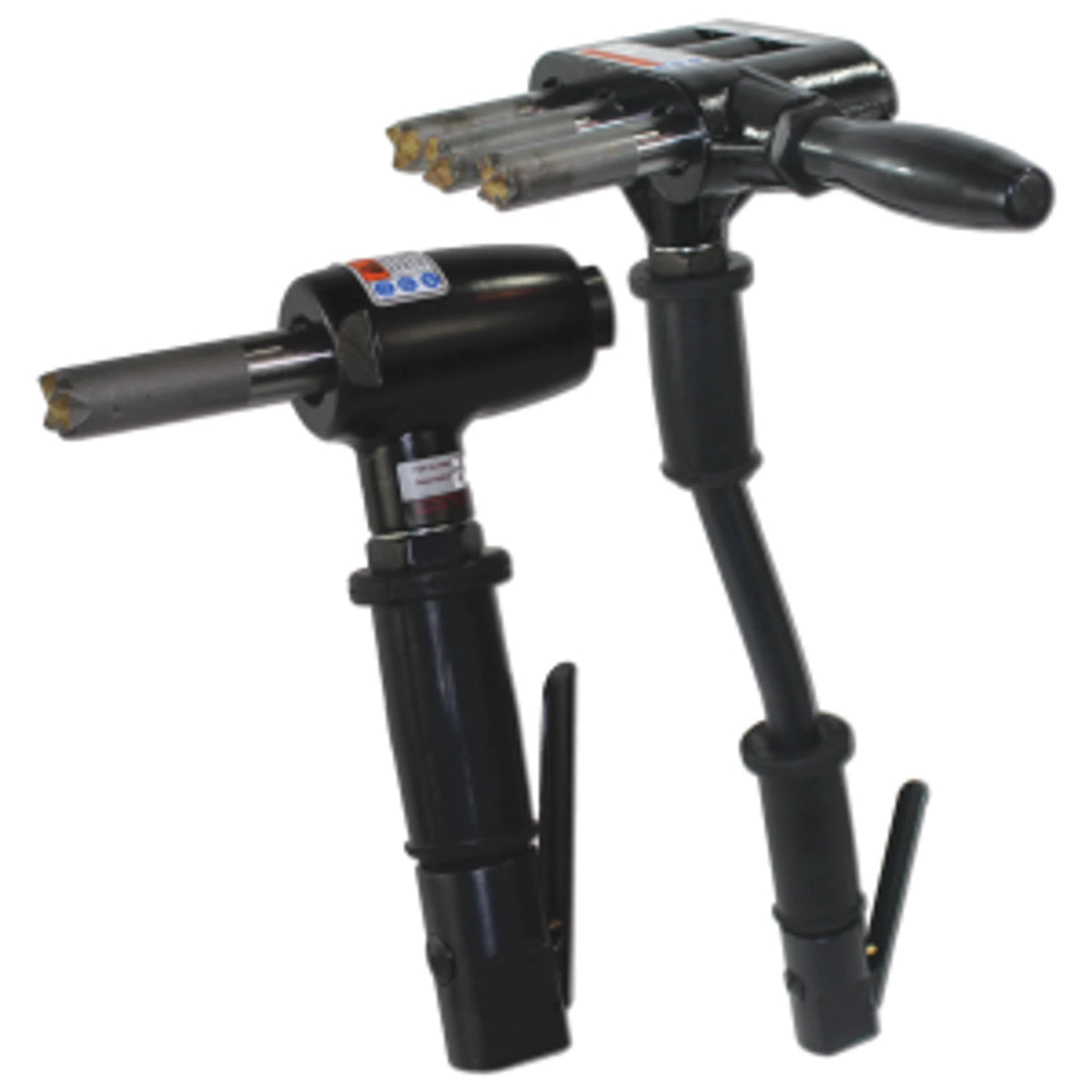

Novatek HDSH3 - Long Sc.Hammer Shroud – PHS3VSEHDL
$925.00
Free shipping on this item
Ships from US manufacturer with factory warranty
Request a quote / purchase order
Tell us your quantity, delivery ZIP code and required date. For help choosing equipment, include your application.
Email a quote request Call (978) 295-7538Planning around a job date? Confirm current availability and delivery timing with us before ordering.
Authorized Novatek dealerGenuine Novatek equipment with full factory warranty support
Tax-exempt & PO acceptedSend your exemption certificate and we bill without sales tax
30-day returnsUnused equipment in original packaging, within 30 days
Need help choosing? Talk to an expert
+1 (978) 295-7538Novatek Shrouded HD Triple Scaling Hammer VSE (Long Handle) for High-Output Dust-Controlled Removal
The PHS3VSEHDL pairs the triple-piston scaling hammer with a vacuum shroud that captures debris and dust at the heads. It drives three tungsten carbide cruciform pistons at 2,500 blows per minute each, matching the open HD-SH3 output, while the shroud and port route material to a connected dust collector. The 18-inch handle adds reach for deck, slab, and floor-level work where dust containment is required across large areas.
VSE Triple Long Handle: Dust Capture at Three-Piston Output
The shroud surrounds the three-head cluster and connects through a port to a vacuum or dust collector, pulling coating debris and abrasive dust away as the pistons work. The triple output clears flat area faster than the single VSE, which matters on broad lead-paint or silica-bearing surfaces where containment and pace both count. Two live air inlets allow inline or perpendicular handle setup, and the tool can be converted to an in-line configuration for hard-to-reach areas by moving the side handle to the main handle. The screw-top cap and nylon brush seals carry over for field service.
- Vacuum shroud and port capture debris and dust at the three-head cluster for connection to a dust collector
- Three tungsten carbide cruciform pistons at 3 x 2,500 BPM, matching open HD-SH3 output
- 18-inch handle adds reach for deck, slab, and floor-level work with dust containment in place
- Converts to an inline configuration for hard-to-reach areas by moving the side handle to the main handle
- Two live air inlets allow inline or perpendicular handle setup
- Runs on 14 CFM, so size the compressor accordingly before deployment
- Screw-top cap and nylon brush seals support field service and reduce grit wear
VSE Triple Long Handle Applications and Environments
Structural steel: dust-controlled removal of pack rust, laminar rust, and high-build coatings across plate and decking. Marine: strips deck coatings and non-skid over broad deck areas with debris captured. Concrete: take-down and texturing of slab surfaces with silica dust routed to a collector; aggregate exposure with optional bush hammer heads.
Specifications
| Part No. | PHS3VSEHDL |
| Configuration | Shrouded triple head (VSE), long handle |
| Dust Control | Vacuum shroud with port for dust collector |
| Head Type | Tungsten carbide cruciform, single-piece pistons (bush hammer optional) |
| Blows Per Minute | 3 x 2,500 |
| Air Consumption | 14 CFM (408 lpm) |
| Cylinder Bore | 1.06 in (28 mm) |
| Piston Stroke | 1.04 in (26 mm) |
| Air Inlets | Two live inlets (inline or perpendicular handle) |
| Handle Length | 18 in (457 mm) |
| Tool Weight | 14 lbs (6.4 kg) |
