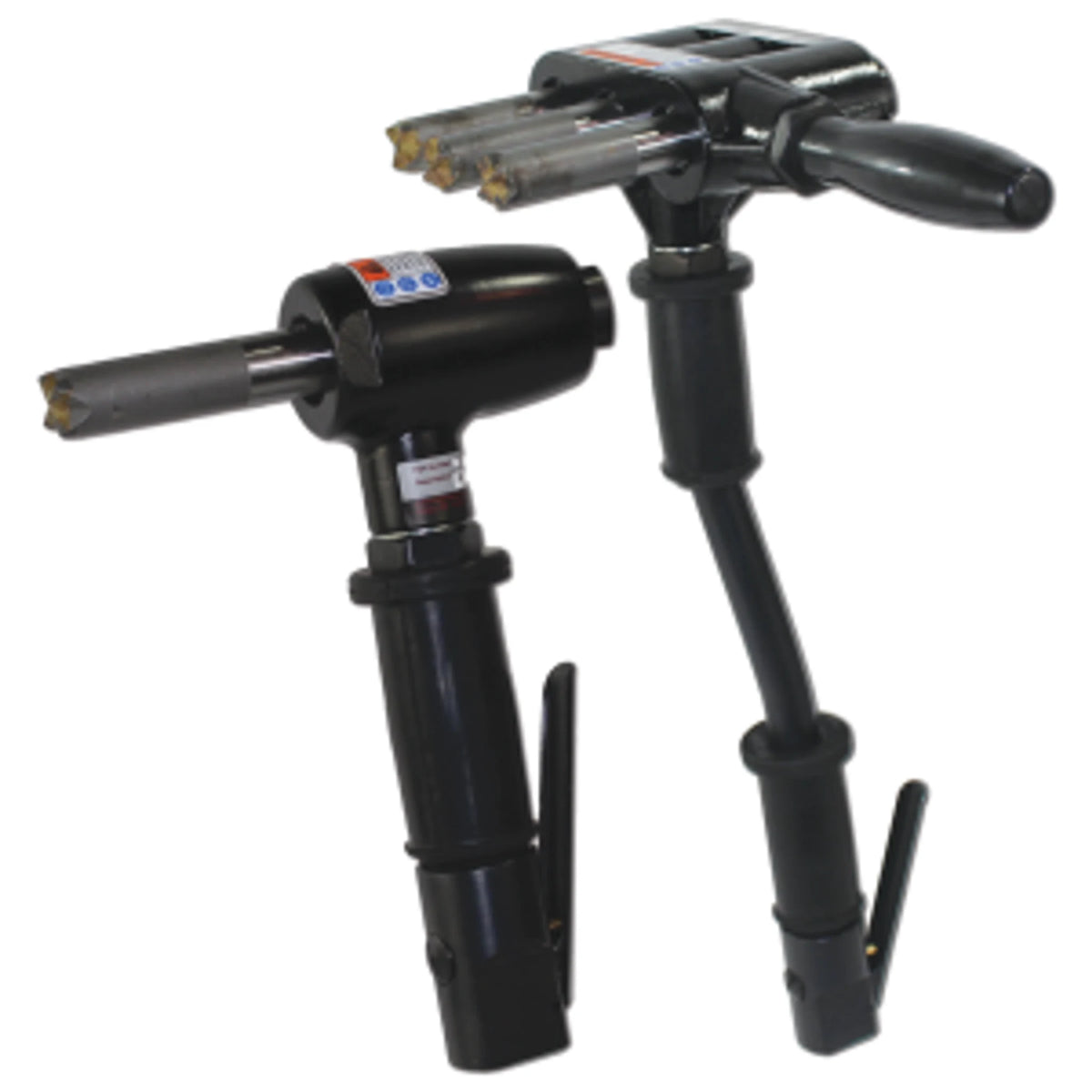

+1 (978) 295-7538Novatek HD-SH1 Single Scaling Hammer (Short Handle) for Tight-Quarter Coating Removal
The HD-SH1 short-handle scaling hammer drives one tungsten carbide cruciform piston at 2,500 blows per minute to fracture material that needle scalers cannot lift. The 9-inch handle keeps the tool compact for overhead, vertical, and confined work where a longer handle gets in the way. Crews running structural steel, marine, and concrete surface prep use it on pack rust, laminar rust, thick mill scale, epoxy, and non-skid coatings.
HD-SH1 Short Handle: Compact Single-Piston Tool for Confined Work
The single-piston head puts the full air charge into one impact point, giving close control along weld seams, edges, and fittings. The 9-inch handle, compared with the 18-inch long version, shortens the tool for tank interiors, beam webs, overhead beams, and other confined positions where reach matters less than handling. The screw-top cap opens for field head and piston replacement, and the nylon brush seal wipes the piston each stroke to extend life.
- One tungsten carbide cruciform piston at 2,500 BPM for controlled impact on edges, seams, and detail areas
- 9-inch handle keeps the tool compact for overhead, vertical, and confined-space work
- Runs on 6.5 CFM, supplied by one mid-size compressor through a full shift
- Single-piston head is narrow for work around bolts, flanges, and fittings
- Screw-top cap allows field replacement of the head and piston
- Nylon brush seal cleans the piston each stroke to reduce grit wear
- Optional tungsten carbide bush hammer head converts the tool for concrete texturing
HD-SH1 Short Handle Applications and Environments
Structural steel: removes pack rust, laminar rust, and high-build coatings from beams, plate, and weldments, including overhead and confined positions. Marine: strips deck coatings, non-skid, and corrosion in tanks and tight superstructure areas. Concrete: take-down of slab surfaces, plus texturing and aggregate exposure when fitted with the bush hammer head.
Specifications
| Part No. | PHS1HDS |
| Configuration | Single head, short handle |
| Head Type | Tungsten carbide cruciform, single-piece piston (bush hammer optional) |
| Blows Per Minute | 2,500 |
| Air Consumption | 6.5 CFM (186 lpm) |
| Cylinder Bore | 1.06 in |
| Piston Stroke | 1.04 in |
| Handle Length | 9 in (229 mm) |
| Tool Weight | 8 lbs |
