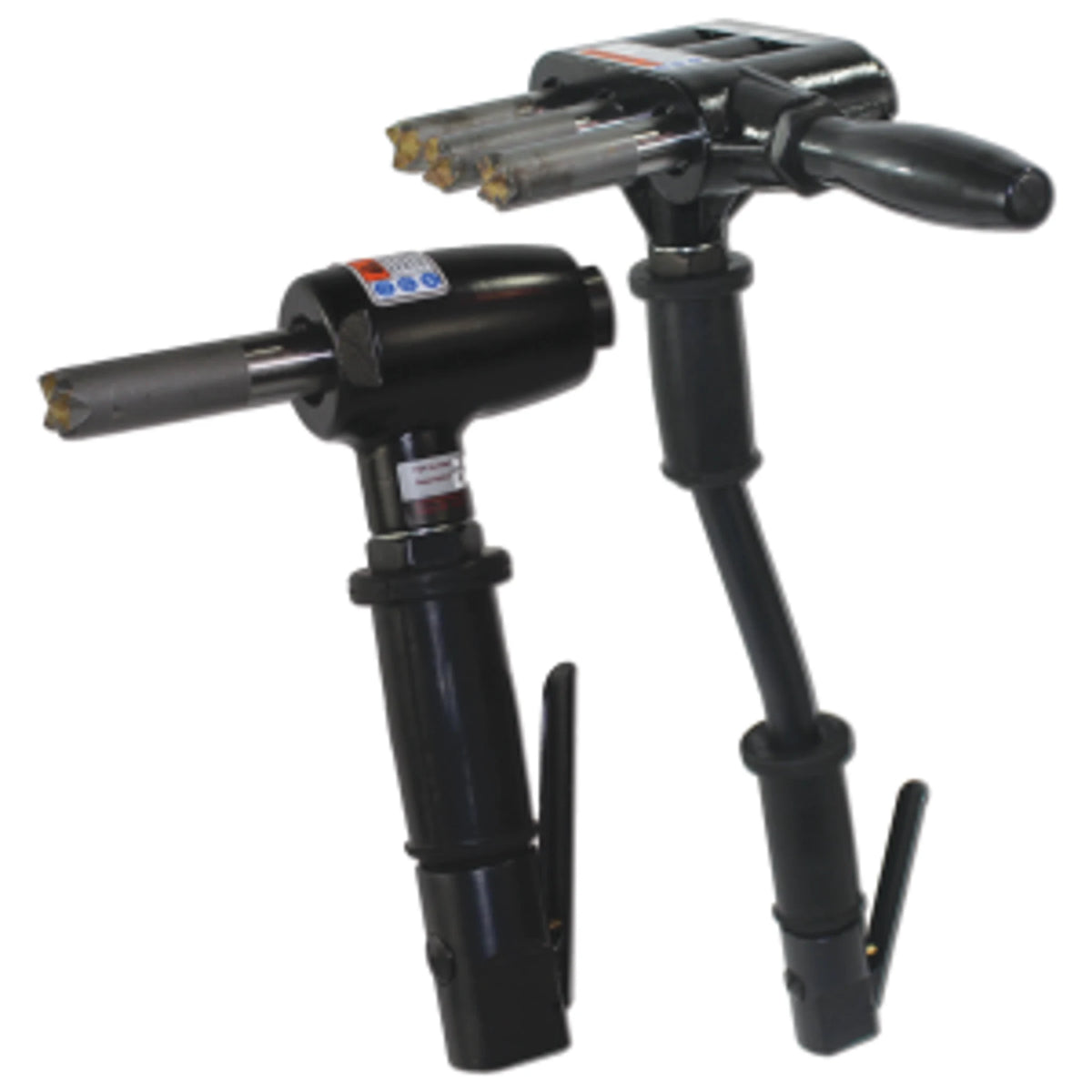

Novatek HD-SH1 Long Handle - 1Pc Head – PHS1HDL
$395.00
Free shipping on this item
Ships from US manufacturer with factory warranty
Request a quote / purchase order
Tell us your quantity, delivery ZIP code and required date. For help choosing equipment, include your application.
Email a quote request Call (978) 295-7538Planning around a job date? Confirm current availability and delivery timing with us before ordering.
Authorized Novatek dealerGenuine Novatek equipment with full factory warranty support
Tax-exempt & PO acceptedSend your exemption certificate and we bill without sales tax
30-day returnsUnused equipment in original packaging, within 30 days
Need help choosing? Talk to an expert
+1 (978) 295-7538Novatek HD-SH1 Single Scaling Hammer (Long Handle) for Heavy Coating and Rust Removal
The HD-SH1 long-handle scaling hammer drives one tungsten carbide cruciform piston at 2,500 blows per minute, fracturing material that needle scalers leave behind. Crews running structural steel repaints, marine deck recoats, and concrete prep use it on pack rust, laminar rust, thick mill scale, epoxy, and non-skid coatings. The 18-inch handle adds standoff distance, so operators reach deck plate, beam webs, and floor-level work without bending over the tool.
HD-SH1 Long Handle: Single-Piston Control with Extended Reach
The single-piston head concentrates the full air charge into one impact point, which gives the operator close control along edges, weld seams, and around fittings where a triple head is too wide. Choosing the long handle over the 9-inch short handle trades some maneuverability in tight quarters for reach and a more upright working posture on deck and slab surfaces. The screw-top cap opens for head and piston replacement without a press, and a nylon brush seal wipes the piston on every stroke to extend service life.
- One tungsten carbide cruciform piston at 2,500 BPM concentrates impact for edge work, weld seams, and detail areas
- 18-inch handle keeps the operator upright on deck and slab work and reaches floor-level surfaces without crouching
- Runs on 6.5 CFM, so one mid-size compressor can supply the tool through a full shift
- Single-piston layout is narrower than the triple head for work around bolts, flanges, and fittings
- Screw-top cap allows field replacement of the head and piston without removing the tool from service for long
- Nylon brush seal cleans the piston each stroke to reduce grit wear
- Optional tungsten carbide bush hammer head converts the tool for concrete texturing and aggregate exposure
HD-SH1 Long Handle Applications and Environments
Structural steel: removes pack rust, laminar rust, and high-build coatings from beams, plate, and weldments. Marine: strips deck coatings, non-skid, and corrosion on hulls and superstructure. Concrete: rapid take-down of slab surfaces, plus texturing and aggregate exposure for bonding overlays when fitted with the bush hammer head.
Specifications
| Part No. | PHS1HDL |
| Configuration | Single head, long handle |
| Head Type | Tungsten carbide cruciform, single-piece piston (bush hammer optional) |
| Blows Per Minute | 2,500 |
| Air Consumption | 6.5 CFM (186 lpm) |
| Cylinder Bore | 1.06 in |
| Piston Stroke | 1.04 in |
| Handle Length | 18 in (457 mm) |
| Tool Weight | 9 lbs |
